◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#73807) — 15 parça

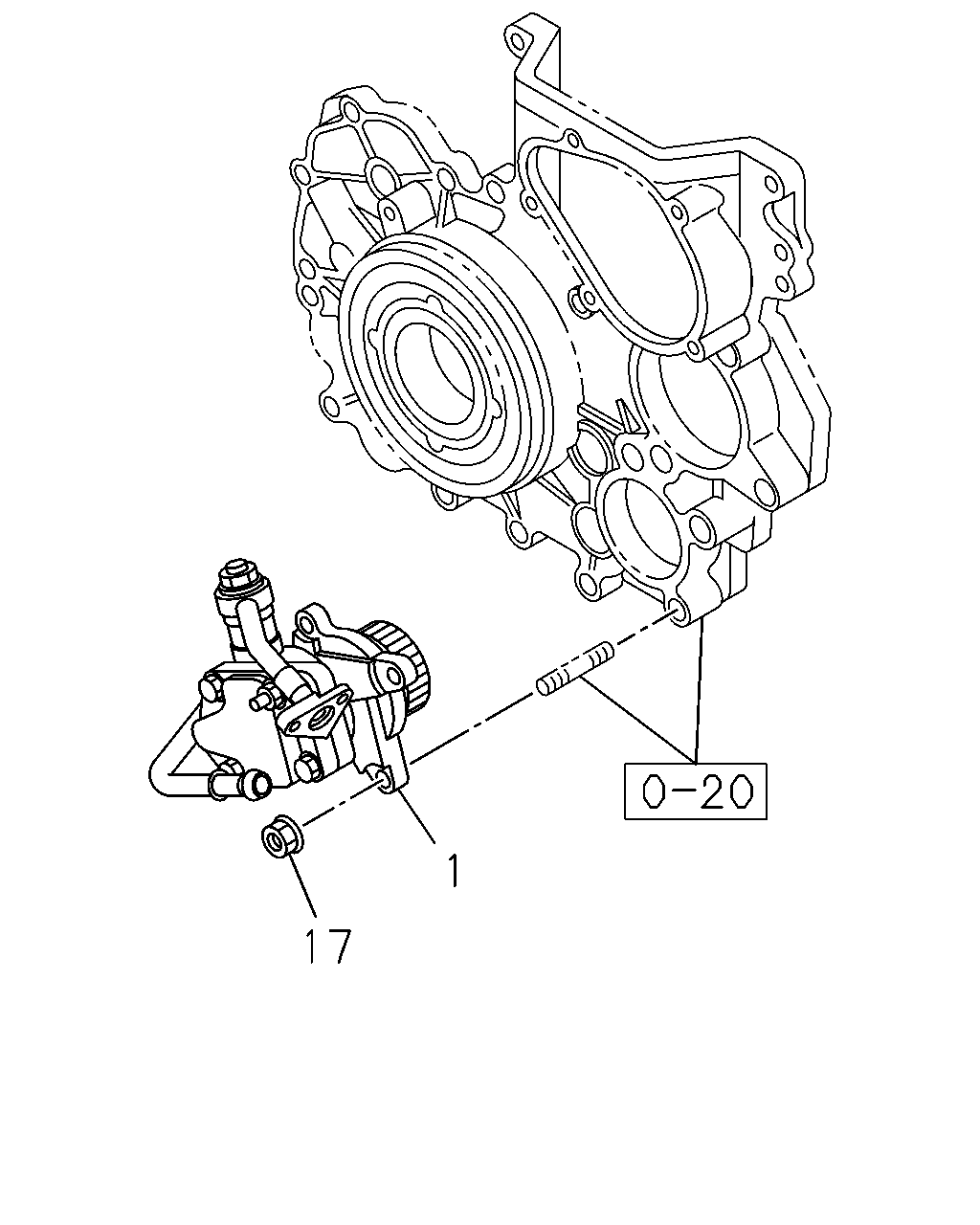

çizim 185421
1 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97355-980-3 01 1 0411-0606 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-829-0 01 1 0607-0609 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97944-829-0 01 1 0610-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-98063-153-0 01 1 0611-0705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-607-0 01 1 0706-0707 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-698-0 01 1 0708-0708 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97946-698-0 01 1 0709-0709 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97946-698-0 01 1 0710-0809 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97946-698-0 01 1 0810- ● ●
17 NUT; POWER STRG PUMP
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-208-0 03 1 0411-0606 ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 0607-0609 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0610-0708 ● ●
17 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 0709-0709 ● ●
17 NUT; POWER STRG PUMP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8 FLANGE THA 		0-91180-208-0 03 1 0710-0809 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
