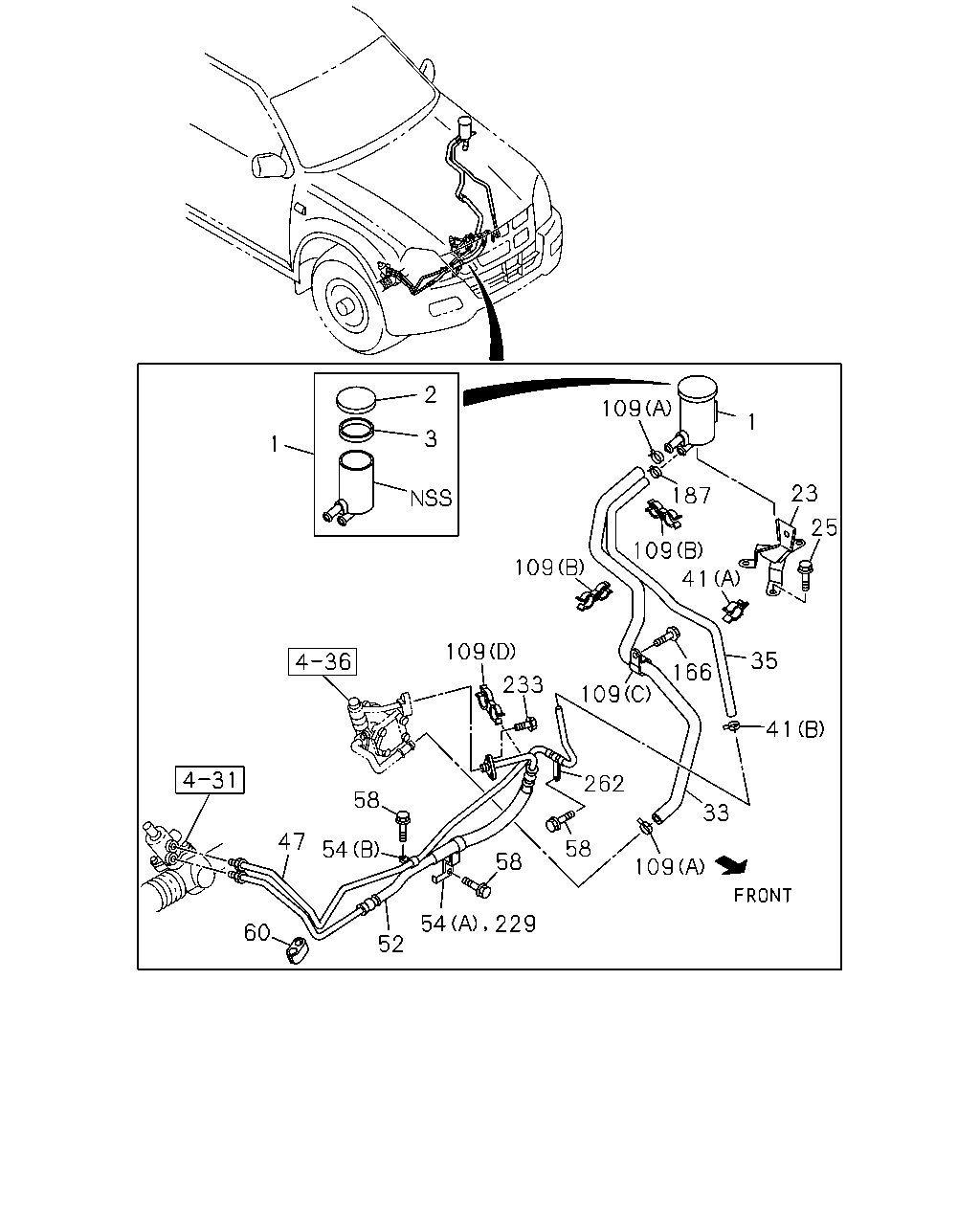

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#73806) — 33 parça

2 109 1 3 1 23 187 25 109 109 41 109 35 166 233 109 41 262 58 33 47 58 54 58 109 54 229 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0411-	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0411-	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0411-	●	●
23	BRACKET; OIL TANK,P/S THA	8-97234-380-1	01	1	0411-	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0411-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97943-485-1	01	1	0411-	●	●
35	HOSE; RETURN,P/S TANK THA	8-97234-899-2	01	1	0411-	●	●
41	CLIP; HOSE,P/S (A) ID=17 THA	8-94382-792-1	01	1	0411-	●	●
41	CLIP; HOSE,P/S (B) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●	●
41	CLIP; HOSE,P/S (B) ID=16 THA	8-98030-682-0	01	1	0605-	●	●
47	PIPE; RETURN THA	8-97943-477-0	01	1	0411-0606	●	●
47	PIPE; RETURN THA	8-97944-598-0	01	1	0607-	●	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-479-1	01	1	0411-0606	●	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97944-578-0	01	1	0607-	●	●
54	CLIP; OIL PIPE (A) THA	8-97943-484-0	01	1	0411-0606	●	●
54	CLIP; OIL PIPE (B) ID=11 L=16 THA	9-09525-022-0	01	1	0411-0606	●	●
54	CLIP; OIL PIPE (B) ID=11 L=16 THA	0-95235-022-0	01	1	0607-	●	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	01	1	0411-	●	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0411-	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0411-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	02	1	0411-0606	●	●
109	CLIP; RUBBER HOSE (A) ID=20.8 THA	8-97944-127-0	02	1	0607-	●	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0411-0606	●	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32 THA	8-98006-816-0	01	1	0607-	●	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0411-	●	●
109	CLIP; RUBBER HOSE (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0411-	●	●
166	BOLT; CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	0411-	●	●
187	CLIP; P/S OIL PIPE ID=16 IMA	8-94392-924-0	01	1	0411-0604	●	●
187	CLIP; P/S OIL PIPE ID=16 THA	8-98030-682-0	01	1	0605-	●	●
229	BRACKET; HOSE,POWER STRG THA	8-97944-610-0	01	1	0607-	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	0411-	●	●
262	CLIP; P/S PIPE ID=11 L=50 THA	9-09525-082-0	01	1	0411-0606	●	●
262	CLIP; P/S PIPE ID=11 L=50 THA	0-95235-082-0	01	1	0607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
