◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#73804) — 69 parça

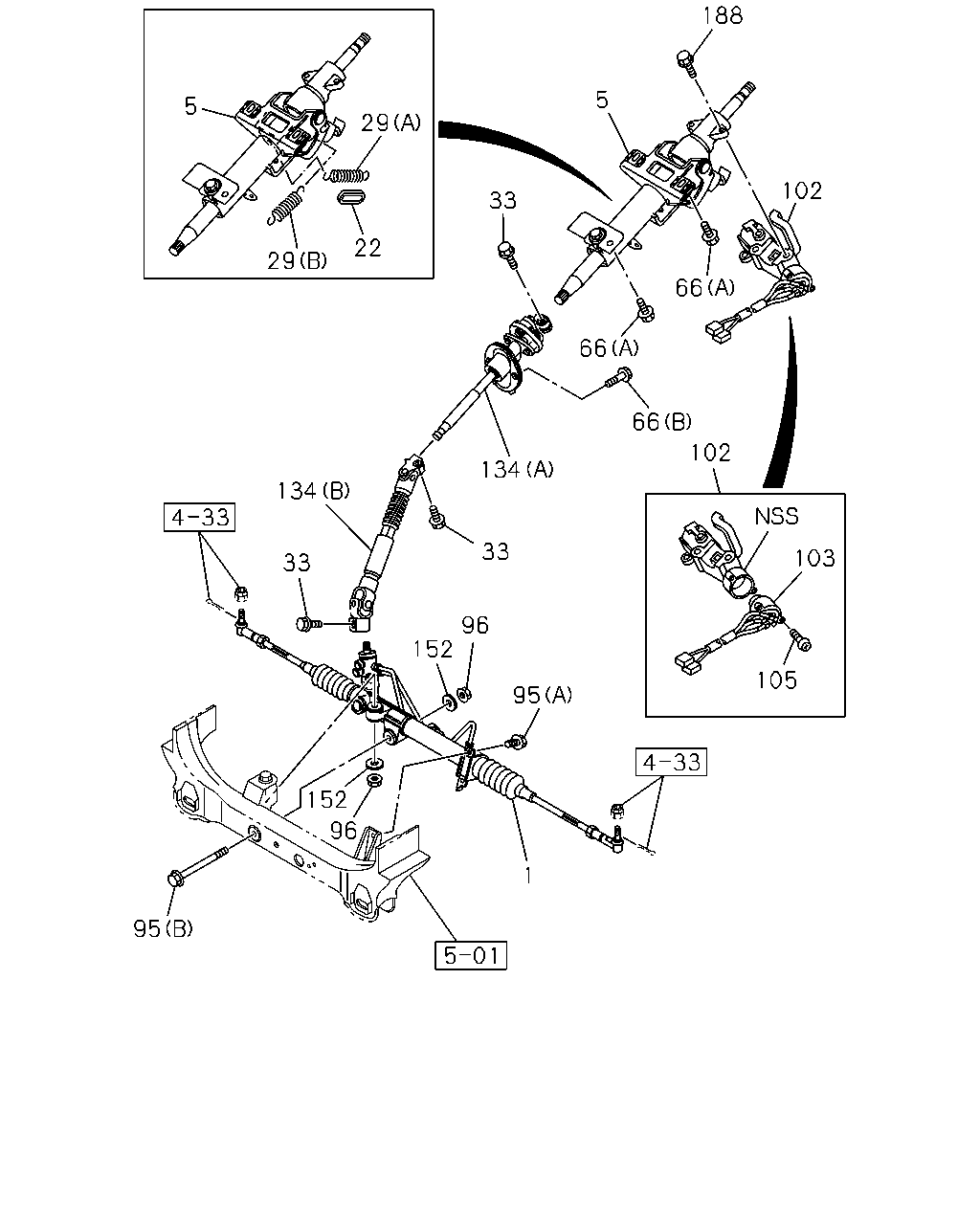

çizim 123256
188 5 5 29 102 33 22 29 66 66 66 102 134 134 33 103 33 96 152 105 95 152 96 1 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA 		8-97943-521-1 01 1 0411-0606 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA 		8-97944-518-1 01 1 0607-0709 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA 		8-98101-779-0 01 1 0710- ● ●
5 COLUMN; STRG
THA 		8-97349-946-0 01 1 0411-0606 ● ●
5 COLUMN; STRG
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-772-0 01 1 0607-0609 ● ●
5 COLUMN; STRG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97945-772-0 01 1 0610-0708 ● ●
5 COLUMN; STRG
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-772-0 01 1 0709-0709 ● ●
5 COLUMN; STRG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97945-772-0 01 1 0710-0809 ● ●
5 COLUMN; STRG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97945-772-0 01 1 0810- ● ●
22 BUSHING; STRG COLUMN
THA 		8-97349-938-0 01 1 0411-0606 ● ●
22 BUSHING; STRG COLUMN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-938-0 01 1 0607-0609 ● ●
22 BUSHING; STRG COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97349-938-0 01 1 0610-0708 ● ●
22 BUSHING; STRG COLUMN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-938-0 01 1 0709-0709 ● ●
22 BUSHING; STRG COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97349-938-0 01 1 0710-0809 ● ●
22 BUSHING; STRG COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97349-938-0 01 1 0810- ● ●
29 SPRING; COLUMN
(A) THA 		8-97349-937-0 01 1 0411-0606 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97349-937-0 01 1 0607-0609 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) THA 		8-97349-937-0 01 1 0610-0708 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97349-937-0 01 1 0709-0709 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) THA 		8-97349-937-0 01 1 0710-0809 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97349-937-0 01 1 0810- ● ●
29 SPRING; COLUMN
(B) THA 		8-97349-939-0 01 1 0411-0606 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97349-939-0 01 1 0607-0609 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA 		8-97349-939-0 01 1 0610-0708 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97349-939-0 01 1 0709-0709 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA 		8-97349-939-0 01 1 0710-0809 ● ●
29 SPRING; COLUMN
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97349-939-0 01 1 0810- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE THA 		8-97249-320-0 01 1 0411- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE THA 		8-97249-320-0 02 1 0411- ● ●
66 BOLT; STRG COLUMN
(A) M8X30 FLANGE THA 		0-28650-830-0 04 1 0411- ● ●
66 BOLT; STRG COLUMN
(B) THA 		8-97249-319-1 02 1 0411- ● ●
95 BOLT; STRG UNIT
(A) M12X30 FLANGE THA 		0-28661-230-0 02 1 0411- ● ●
95 BOLT; STRG UNIT
(B) M16X195 W/PL WASHER THA 		8-97245-661-0 01 1 0411- ● ●
96 NUT; STRG UNIT
M16 THA 		0-91110-516-0 02 1 0411- ● ●
102 LOCK ASM; STRG
THA 		8-97349-940-0 01 1 0411-0606 ● ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-940-0 01 1 0607-0609 ● ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-940-0 01 1 0610-0708 ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97349-940-0 01 1 0610-0708 ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-940-0 01 1 0709-0709 ● ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97349-940-0 01 1 0710- ● ●
102 LOCK ASM; STRG
A/T AISIN<RMD> THA 		8-97945-767-0 01 1 0610-0708 ● ●
102 LOCK ASM; STRG
A/T AISIN<RMD> THA 		8-97945-767-0 01 1 0710-0809 ● ●
102 LOCK ASM; STRG
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97945-767-0 01 1 0810- ● ●
103 SWITCH; IGNITION
THA 		8-97350-071-0 01 1 0411-0606 ● ●
103 SWITCH; IGNITION
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97350-071-0 01 1 0607-0609 ● ●
103 SWITCH; IGNITION
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97350-071-0 01 1 0610-0708 ● ●
103 SWITCH; IGNITION
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97350-071-0 01 1 0709-0709 ● ●
103 SWITCH; IGNITION
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97350-071-0 01 1 0710-0809 ● ●
103 SWITCH; IGNITION
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97350-071-0 01 1 0810- ● ●
105 SCREW; IGN SW
THA 		8-97349-945-0 02 1 0411-0606 ● ●
105 SCREW; IGN SW
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-945-0 02 1 0607-0609 ● ●
105 SCREW; IGN SW
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97349-945-0 02 1 0610-0708 ● ●
105 SCREW; IGN SW
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97349-945-0 02 1 0709-0709 ● ●
105 SCREW; IGN SW
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97349-945-0 02 1 0710-0809 ● ●
105 SCREW; IGN SW
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97349-945-0 02 1 0810- ● ●
134 SHAFT; STRG,2ND
(B) THA 		8-97358-237-0 01 1 0411- ● ●
134 SHAFT; STRG,2ND
(A) THA 		8-97943-692-0 01 1 0411-0502 ● ●
134 SHAFT; STRG,2ND
(A) THA 		8-97944-436-0 01 1 0503-0606 ● ●
134 SHAFT; STRG,2ND
(A) THA 		8-97944-592-0 01 1 0607-0804 ● ●
134 SHAFT; STRG,2ND
(A) THA 		8-98108-809-0 01 1 0805- ● ●
152 WASHER; LK,STRG UNIT
ID=16.5 OD=45 THA 		8-97249-436-0 02 1 0411-0606 ● ●
152 WASHER; LK,STRG UNIT
ID=16.5 OD=45 THA 		8-97944-809-0 02 1 0607- ● ●
188 BOLT; TORQUE,STEERING
THA 		8-97349-941-0 02 1 0411-0606 ● ●
188 BOLT; TORQUE,STEERING
M/T MUA 5 SPEED 5H<MWQ> M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 0607-0609 ● ●
188 BOLT; TORQUE,STEERING
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 0610-0708 ● ●
188 BOLT; TORQUE,STEERING
M/T MUA 5 SPEED 5H<MWQ> M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 0709-0709 ● ●
188 BOLT; TORQUE,STEERING
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 0710-0809 ● ●
188 BOLT; TORQUE,STEERING
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8X18.5 TWISTED OFF THA 		8-97945-749-0 02 1 0810-0811 ● ●
188 BOLT; TORQUE,STEERING
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98133-262-0 02 1 0812- ● ●
