◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#73803) — 18 parça

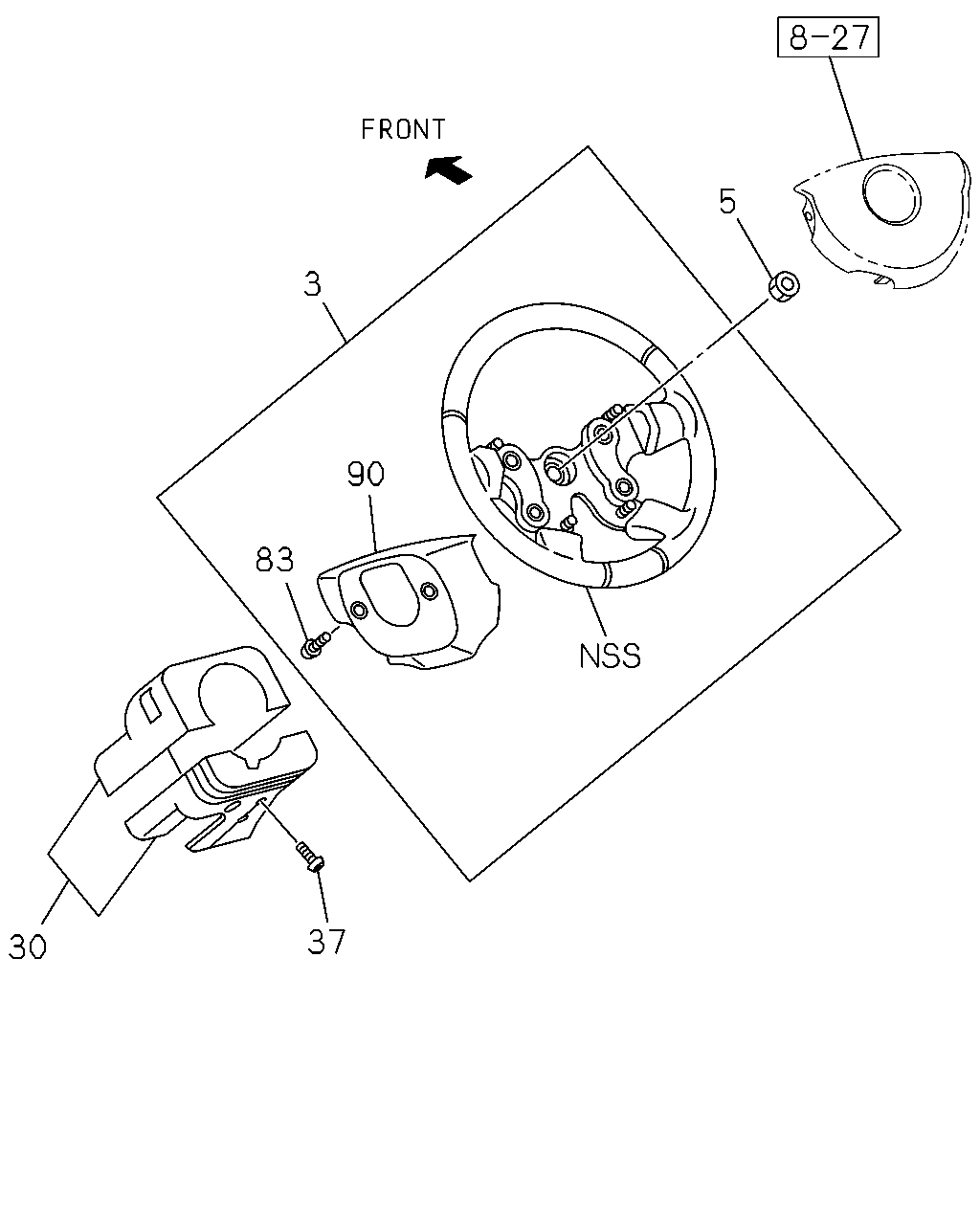

çizim 185422
5 3 90 83 37 30
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97423-012-0 01 1 1101-1107 ●
3 WHEEL; STRG
INTERIOR COLOR VERY DARK GRAY<116> SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97423-012-0 01 1 1108- ● ●
3 WHEEL; STRG
DARK GRAY THA 		8-97390-772-2 01 1 0411-0508 ● ●
3 WHEEL; STRG
DARK GRAY THA 		8-97404-496-1 01 1 0509-0606 ● ●
3 WHEEL; STRG
DARK GRAY THA 		8-97406-954-2 01 1 0607-1012 ● ●
3 WHEEL; STRG
INTERIOR COLOR BEIGE<184> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97406-954-2 01 1 1101-1107 ●
3 WHEEL; STRG
DARK GRAY THA 		8-97406-954-2 01 1 1101-1107 ●
3 WHEEL; STRG
INTERIOR COLOR BEIGE<184> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97406-954-2 01 1 1108- ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 0411- ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97294-054-1 01 1 0411-0508 ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97403-685-1 01 1 0509-1104 ● ●
30 COWL; STEERING
DARK GRAY THA 		8-97422-708-0 01 1 1105- ● ●
37 SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER THA 		9-03920-412-0 03 1 0411-0606 ● ●
37 SCREW; STRG COWL UPR
M4X12 W/LK&PL WASHER THA 		0-36230-412-0 03 1 0607- ● ●
83 SCREW; LWR COVER TO WHEEL
THA 		8-97350-038-0 02 1 0411- ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97394-463-0 01 1 0411-0508 ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97396-837-0 01 1 0509-0606 ● ●
90 COVER ASM; STRG WHEEL,LWR
DARK GRAY THA 		8-97403-937-1 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
