Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#73802) — 218 parça

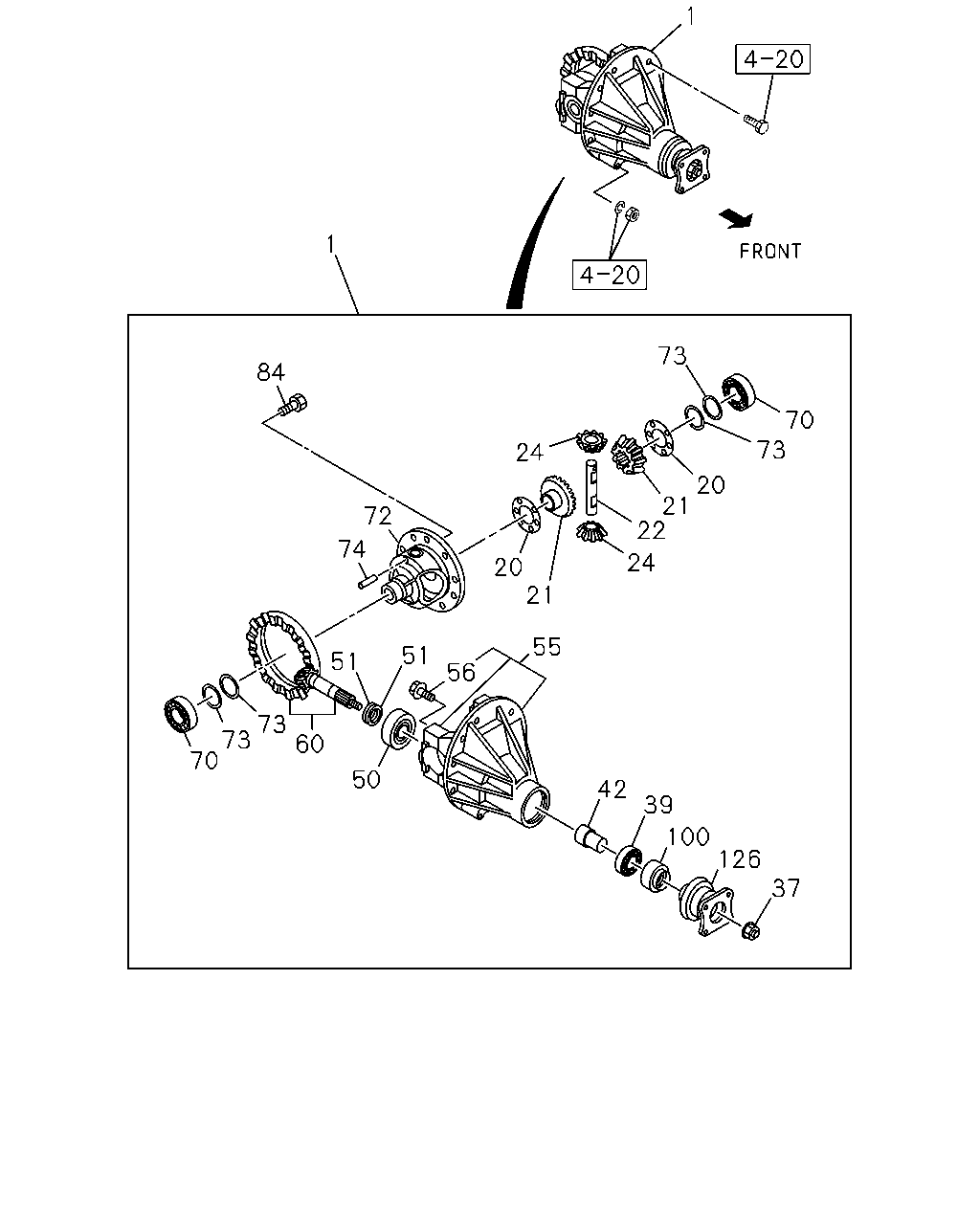

1 1 73 84 70 73 24 20 21 22 72 74 24 20 21 55 51 51 56 73 73 60 70 50 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97388-755-0	01	1	0411-0608	●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-98047-783-0	01	1	0609-0609	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98047-783-0	01	1	0610-0708	●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97946-377-0	01	1	0709-0709	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97946-377-0	01	1	0710-1106	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97947-764-0	01	1	1107-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98047-781-0	01	1	0610-0708	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97946-375-0	01	1	0710-1106	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97947-763-0	01	1	1107-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97946-371-0	01	1	0710-1106	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97947-761-0	01	1	1107-	●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97388-756-0	01	1	0411-0608		●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-98047-786-0	01	1	0609-0609		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98047-786-0	01	1	0610-0708		●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97946-378-0	01	1	0709-0709		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97946-378-0	01	1	0710-1009		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97947-562-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98047-782-0	01	1	0610-0703		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98080-826-0	01	1	0704-0708		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97946-376-0	01	1	0710-1009		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97947-561-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-98028-799-0	01	1	0610-0708		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97946-372-0	01	1	0710-1009		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97947-559-0	01	1	1010-		●
20	WASHER; THRUST,SIDE GEAR T=0.80 IMA	8-94435-343-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=0.90 IMA	8-94435-344-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.10 IMA	8-94435-345-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.20 IMA	8-94435-346-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.30 IMA	8-94435-347-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.00 IMA	9-41562-602-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.60 IMA	8-94365-187-0	02	1	0411-		●
20	WASHER; THRUST,SIDE GEAR T=1.70 IMA	8-94365-188-0	02	1	0411-		●
20	WASHER; THRUST,SIDE GEAR T=1.50 IMA	8-94453-935-0	02	1	0411-		●
20	WASHER; THRUST,SIDE GEAR T=1.80 IMA	8-97066-412-0	02	1	0411-		●
21	GEAR; SIDE,DIFF THA	8-97226-763-0	02	1	0411-1106	●
21	GEAR; SIDE,DIFF Z=18 IMA	8-98186-828-1	02	1	1107-	●
21	GEAR; SIDE,DIFF IMA	8-97200-286-0	02	1	0411-		●
22	SPIDER; DIFF PINION IMA	8-94435-308-1	01	1	0411-	●
24	GEAR; PINION,DIFF THA	8-97226-762-0	02	1	0411-1106	●
24	GEAR; PINION,DIFF Z=10 IMA	8-98186-829-0	02	1	1107-	●
24	GEAR; PINION,DIFF IMA	8-97200-285-1	04	1	0411-		●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94376-261-1	01	1	0411-	●	●
39	BEARING; FINAL PINION NSK THA	9-00093-078-0	01	1	0411-0907	●	●
39	BEARING; FINAL PINION JTEKT THA	8-97947-477-0	01	1	0908-	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97035-399-0	01	1	0411-	●	●
50	BEARING; FINAL PINION JTEKT THA	8-94452-448-0	01	1	0809-0912	●	●
50	BEARING; FINAL PINION JTEKT THA	8-97947-487-0	01	1	1001-	●	●
50	BEARING; FINAL PINION NSK THA	8-94435-342-0	01	1	0411-0907	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94 IMA	8-94435-356-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96 IMA	8-94435-357-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98 IMA	8-94435-358-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00 IMA	8-94435-359-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02 IMA	8-94435-360-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04 IMA	8-94435-361-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06 IMA	8-94435-362-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08 IMA	8-94435-363-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10 IMA	8-94435-364-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12 IMA	8-94435-365-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14 IMA	8-94435-366-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16 IMA	8-94435-367-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18 IMA	8-94435-368-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20 IMA	8-94435-369-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22 IMA	8-94435-370-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24 IMA	8-94435-371-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26 IMA	8-94435-372-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28 IMA	8-94435-373-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30 IMA	8-94435-374-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32 IMA	8-94435-375-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34 IMA	8-94435-376-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36 IMA	8-94435-377-0	AR	1	0411-	●	●
55	CARRIER; DIFF IMA	8-97240-889-2	01	1	0411-	●	●
56	BOLT; BRG CAP M12X75 THA	8-94435-341-0	04	1	0411-1012	●	●
56	BOLT; BRG CAP M12X75 FLANGE IMA	8-98176-233-0	04	1	1101-	●	●
60	GEAR SET; FINAL DRIVE,RR 43/10 THA	8-97302-925-0	01	1	0411-0608	●	●
60	GEAR SET; FINAL DRIVE,RR 43/10 THA	8-98014-987-0	01	1	0609-0609	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98014-987-0	01	1	0610-0708	●	●
60	GEAR SET; FINAL DRIVE,RR 43/10 THA	8-98014-987-0	01	1	0709-0709	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98014-987-1	01	1	0710-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98014-984-0	01	1	0610-0708	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98014-984-1	01	1	0710-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-98030-515-1	01	1	0710-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-98030-515-0	01	1	0610-0708		●
70	BEARING; DIFF CAGE NSK THA	8-94435-355-0	02	1	0411-0907	●	●
70	BEARING; DIFF CAGE NSK THA	8-97947-476-0	02	1	0908-	●	●
70	BEARING; DIFF CAGE JTEKT THA	8-94452-449-1	02	1	0411-0907	●	●
72	CAGE; DIFF IMA	8-94325-448-0	01	1	0411-	●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-94435-348-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-97947-965-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-94435-349-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-97947-966-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-94435-350-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-97947-967-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-94435-351-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-97947-968-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-94435-352-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-97947-969-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-94435-353-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-97947-970-0	AR	1	1402-	●	●
74	PIN; LK,CROSS PIN OD=5 L=35 IMA	9-09878-096-0	01	1	0411-	●
84	BOLT; FINAL DRIVE GEAR M10X18.5 IMA	8-97038-064-0	12	1	0411-	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-94408-084-1	01	1	0411-0411	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97328-648-0	01	1	0412-1012	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97947-678-0	01	1	1101-	●	●
100	SEAL; OIL,FINAL PINION TKK THA	8-94408-085-1	01	1	0411-0501	●	●
126	COUPLING; DRIVING PINION THA	8-97217-146-0	01	1	0411-1001	●	●
126	COUPLING; DRIVING PINION THA	8-97946-794-1	01	1	1002-	●	●

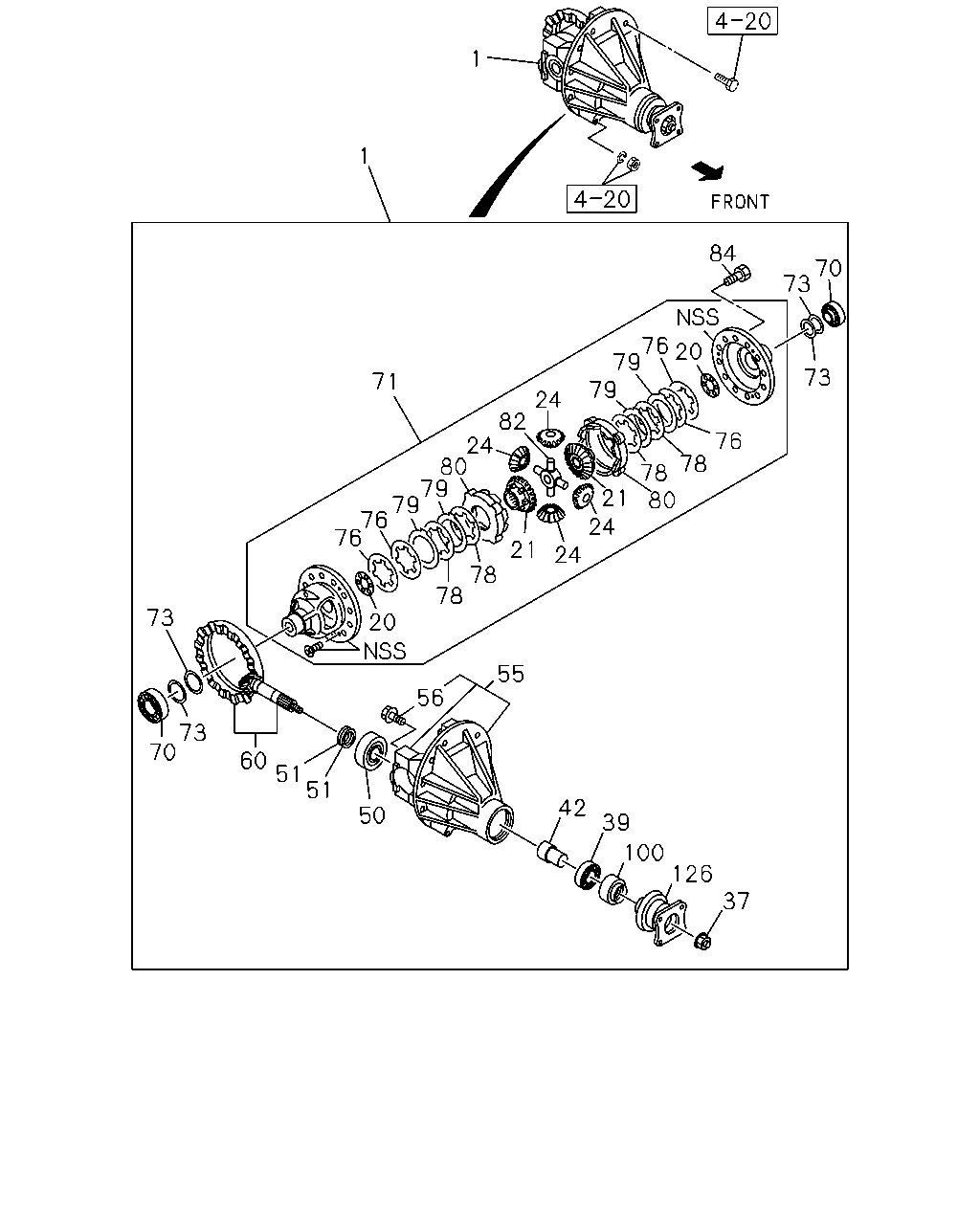

1 1 84 70 73 76 20 79 79 73 71 24 82 24 80 79 79 76 76 76 78 78 80 21 24 24 21 78 78 73 20 55 56 73 70 60 51 51 42 50 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97388-755-0	01	1	0411-0608	●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-98047-783-0	01	1	0609-0609	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98047-783-0	01	1	0610-0708	●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97946-377-0	01	1	0709-0709	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97946-377-0	01	1	0710-1106	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97947-764-0	01	1	1107-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98047-781-0	01	1	0610-0708	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97946-375-0	01	1	0710-1106	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97947-763-0	01	1	1107-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97946-371-0	01	1	0710-1106	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97947-761-0	01	1	1107-	●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97388-756-0	01	1	0411-0608		●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-98047-786-0	01	1	0609-0609		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98047-786-0	01	1	0610-0708		●
1	DRIVE ASM; FINAL,RR 43/10 THA	8-97946-378-0	01	1	0709-0709		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97946-378-0	01	1	0710-1009		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-97947-562-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98047-782-0	01	1	0610-0703		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98080-826-0	01	1	0704-0708		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97946-376-0	01	1	0710-1009		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-97947-561-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-98028-799-0	01	1	0610-0708		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97946-372-0	01	1	0710-1009		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-97947-559-0	01	1	1010-		●
20	WASHER; THRUST,SIDE GEAR T=0.80 IMA	8-94435-343-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=0.90 IMA	8-94435-344-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.10 IMA	8-94435-345-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.20 IMA	8-94435-346-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.30 IMA	8-94435-347-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.00 IMA	9-41562-602-0	02	1	0411-	●
20	WASHER; THRUST,SIDE GEAR T=1.60 IMA	8-94365-187-0	02	1	0411-		●
20	WASHER; THRUST,SIDE GEAR T=1.70 IMA	8-94365-188-0	02	1	0411-		●
20	WASHER; THRUST,SIDE GEAR T=1.50 IMA	8-94453-935-0	02	1	0411-		●
20	WASHER; THRUST,SIDE GEAR T=1.80 IMA	8-97066-412-0	02	1	0411-		●
21	GEAR; SIDE,DIFF THA	8-97226-763-0	02	1	0411-1106	●
21	GEAR; SIDE,DIFF Z=18 IMA	8-98186-828-1	02	1	1107-	●
21	GEAR; SIDE,DIFF IMA	8-97200-286-0	02	1	0411-		●
24	GEAR; PINION,DIFF THA	8-97226-762-0	02	1	0411-1106	●
24	GEAR; PINION,DIFF Z=10 IMA	8-98186-829-0	02	1	1107-	●
24	GEAR; PINION,DIFF IMA	8-97200-285-1	04	1	0411-		●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94376-261-1	01	1	0411-	●	●
39	BEARING; FINAL PINION NSK THA	9-00093-078-0	01	1	0411-0907	●	●
39	BEARING; FINAL PINION JTEKT THA	8-97947-477-0	01	1	0908-	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97035-399-0	01	1	0411-	●	●
50	BEARING; FINAL PINION JTEKT THA	8-94452-448-0	01	1	0809-0912	●	●
50	BEARING; FINAL PINION JTEKT THA	8-97947-487-0	01	1	1001-	●	●
50	BEARING; FINAL PINION NSK THA	8-94435-342-0	01	1	0411-0907	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94 IMA	8-94435-356-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96 IMA	8-94435-357-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98 IMA	8-94435-358-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00 IMA	8-94435-359-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02 IMA	8-94435-360-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04 IMA	8-94435-361-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06 IMA	8-94435-362-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08 IMA	8-94435-363-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10 IMA	8-94435-364-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12 IMA	8-94435-365-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14 IMA	8-94435-366-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16 IMA	8-94435-367-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18 IMA	8-94435-368-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20 IMA	8-94435-369-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22 IMA	8-94435-370-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24 IMA	8-94435-371-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26 IMA	8-94435-372-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28 IMA	8-94435-373-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30 IMA	8-94435-374-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32 IMA	8-94435-375-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34 IMA	8-94435-376-0	AR	1	0411-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36 IMA	8-94435-377-0	AR	1	0411-	●	●
55	CARRIER; DIFF IMA	8-97240-889-2	01	1	0411-	●	●
56	BOLT; BRG CAP M12X75 THA	8-94435-341-0	04	1	0411-1012	●	●
56	BOLT; BRG CAP M12X75 FLANGE IMA	8-98176-233-0	04	1	1101-	●	●
60	GEAR SET; FINAL DRIVE,RR 43/10 THA	8-97302-925-0	01	1	0411-0608	●	●
60	GEAR SET; FINAL DRIVE,RR 43/10 THA	8-98014-987-0	01	1	0609-0609	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98014-987-0	01	1	0610-0708	●	●
60	GEAR SET; FINAL DRIVE,RR 43/10 THA	8-98014-987-0	01	1	0709-0709	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10<GY2> 43/10 THA	8-98014-987-1	01	1	0710-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98014-984-0	01	1	0610-0708	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10<GT5> 41/10 THA	8-98014-984-1	01	1	0710-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-98030-515-1	01	1	0710-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11<GT4> 41/11 THA	8-98030-515-0	01	1	0610-0708		●
70	BEARING; DIFF CAGE NSK THA	8-94435-355-0	02	1	0411-0907	●	●
70	BEARING; DIFF CAGE NSK THA	8-97947-476-0	02	1	0908-	●	●
70	BEARING; DIFF CAGE JTEKT THA	8-94452-449-1	02	1	0411-0907	●	●
71	CAGE ASM; DIFF,FINAL DRIVE THA	8-97062-971-2	01	1	0411-0703		●
71	CAGE ASM; DIFF,FINAL DRIVE THA	8-98080-352-0	01	1	0704-1009		●
71	CAGE ASM; DIFF,FINAL DRIVE IMA	8-98167-619-0	01	1	1010-		●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-94435-348-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-97947-965-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-94435-349-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-97947-966-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-94435-350-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-97947-967-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-94435-351-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-97947-968-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-94435-352-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-97947-969-0	AR	1	1402-	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-94435-353-0	AR	1	0411-1401	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-97947-970-0	AR	1	1402-	●	●
76	DISC; BEVEL IMA	8-97096-209-0	04	1	0411-		●
78	DISC; FRICTION IMA	8-94453-937-0	04	1	0411-		●
79	PLATE; FRICTION T=1.85 IMA	8-94365-189-0	04	1	0411-		●
79	PLATE; FRICTION T=1.75 IMA	8-94453-936-0	04	1	0411-		●
80	RING; PRESSURE IMA	8-94453-931-0	02	1	0411-		●
82	SPIDER; DIFF PINION IMA	8-94453-932-0	01	1	0411-		●
84	BOLT; FINAL DRIVE GEAR M10X18.5 IMA	8-97038-064-0	12	1	0411-	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-94408-084-1	01	1	0411-0411	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97328-648-0	01	1	0412-1012	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97947-678-0	01	1	1101-	●	●
100	SEAL; OIL,FINAL PINION TKK THA	8-94408-085-1	01	1	0411-0501	●	●
126	COUPLING; DRIVING PINION THA	8-97217-146-0	01	1	0411-1001	●	●
126	COUPLING; DRIVING PINION THA	8-97946-794-1	01	1	1002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
