◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#73797) — 29 parça

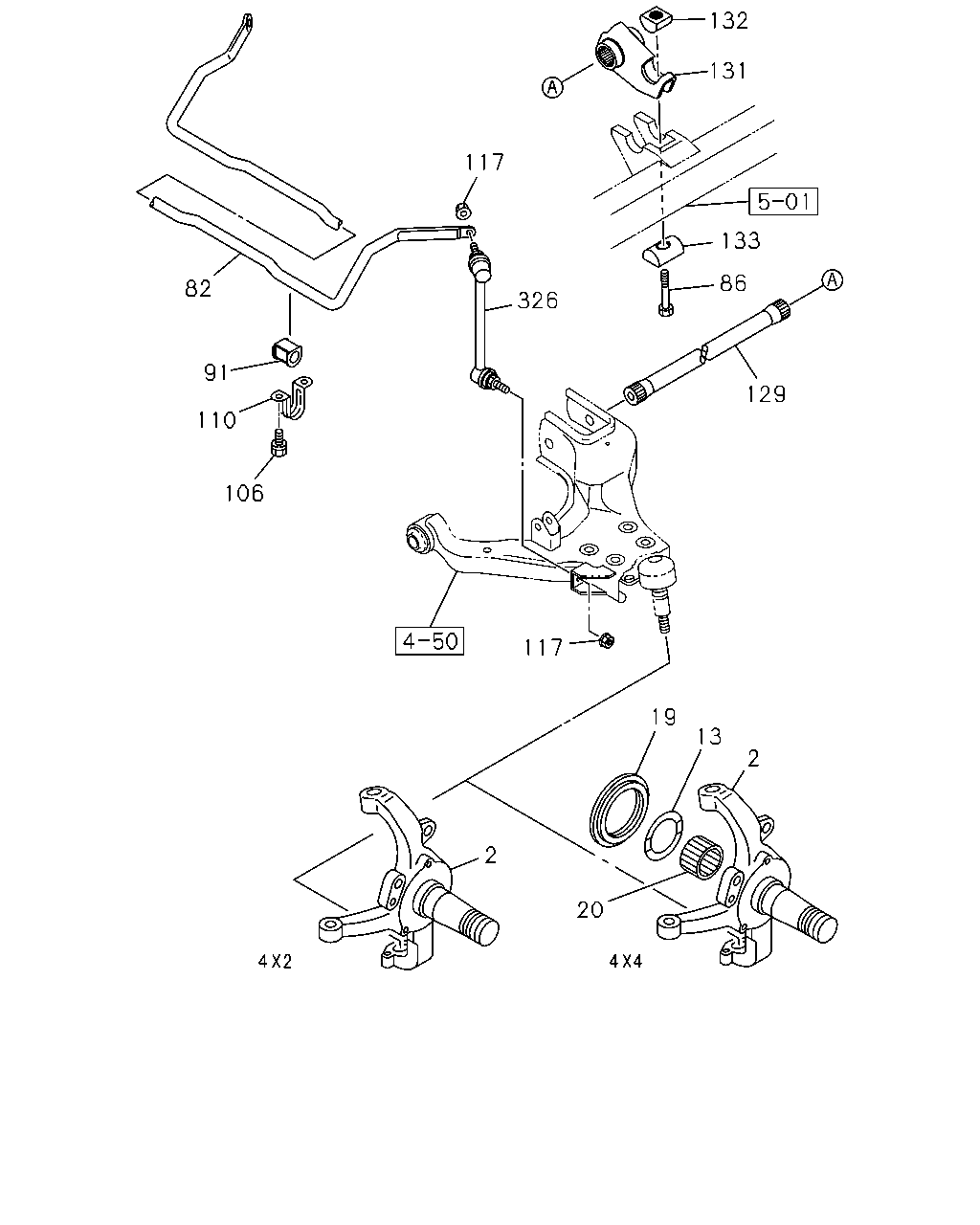

çizim 122703
132 131 117 133 86 82 326 91 129 110 106 117 19 13 2 2 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE
THA 		8-97943-627-1 01 1 0411- ●
2 KNUCKLE; FRT AXLE
THA 		8-97943-626-1 01 1 0411- ●
2 KNUCKLE; FRT AXLE
THA 		8-97943-629-1 01 1 0411- ●
2 KNUCKLE; FRT AXLE
THA 		8-97943-628-1 01 1 0411- ●
13 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE IMA 		8-94407-718-0 02 1 0411- ●
19 SEAL; OIL,KNUCKLE
THA 		8-97123-691-0 02 1 0411-0604 ●
19 SEAL; OIL,KNUCKLE
THA 		8-98036-595-0 02 1 0605- ●
20 BEARING; KNUCKLE
IMA 		8-94407-708-0 02 1 0411- ●
82 BAR; STAB,FRT SUSP
THA 		8-97235-783-1 01 1 0411- ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X160 THA 		8-97354-887-0 02 1 0411- ● ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97235-784-0 02 1 0411- ● ●
106 BOLT; CAP FIX
M8X25 FLANGE THA 		0-28650-825-0 04 1 0411- ● ●
110 CLAMP; STAB TO ROD
THA 		8-97235-780-0 02 1 0411-0606 ● ●
110 CLAMP; STAB TO ROD
THA 		8-98005-922-0 02 1 0607- ● ●
117 NUT; STAB BAR BUSHING
M10 FLANGE THA 		8-97245-646-0 04 1 0411- ● ●
129 BAR; TORSION,FRT SUSP
THA 		8-97235-865-0 01 1 0411- ● ●
129 BAR; TORSION,FRT SUSP
THA 		8-97235-864-0 01 1 0411- ● ●
131 ARM; HEIGHT CONT
THA 		8-97258-540-1 01 1 0411-0606 ● ●
131 ARM; HEIGHT CONT
THA 		8-98005-920-0 01 1 0607- ● ●
131 ARM; HEIGHT CONT
THA 		8-97258-539-1 01 1 0411-0606 ● ●
131 ARM; HEIGHT CONT
THA 		8-98005-919-0 01 1 0607- ● ●
132 COLLAR; TORSION BAR
THA 		8-94367-757-0 02 1 0411-0606 ● ●
132 COLLAR; TORSION BAR
THA 		8-98005-877-0 02 1 0607- ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
THA 		8-97032-976-1 02 1 0411-0606 ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
THA 		8-98005-824-0 02 1 0607- ● ●
326 LINK ASM; STABILIZER
THA 		8-97235-787-1 01 1 0411-0507 ● ●
326 LINK ASM; STABILIZER
THA 		8-97944-569-0 01 1 0508- ● ●
326 LINK ASM; STABILIZER
THA 		8-97235-786-1 01 1 0411-0507 ● ●
326 LINK ASM; STABILIZER
THA 		8-97944-568-0 01 1 0508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
