3-58 — FIXING PARTS; OIL PIPING (#73794) — 59 parça

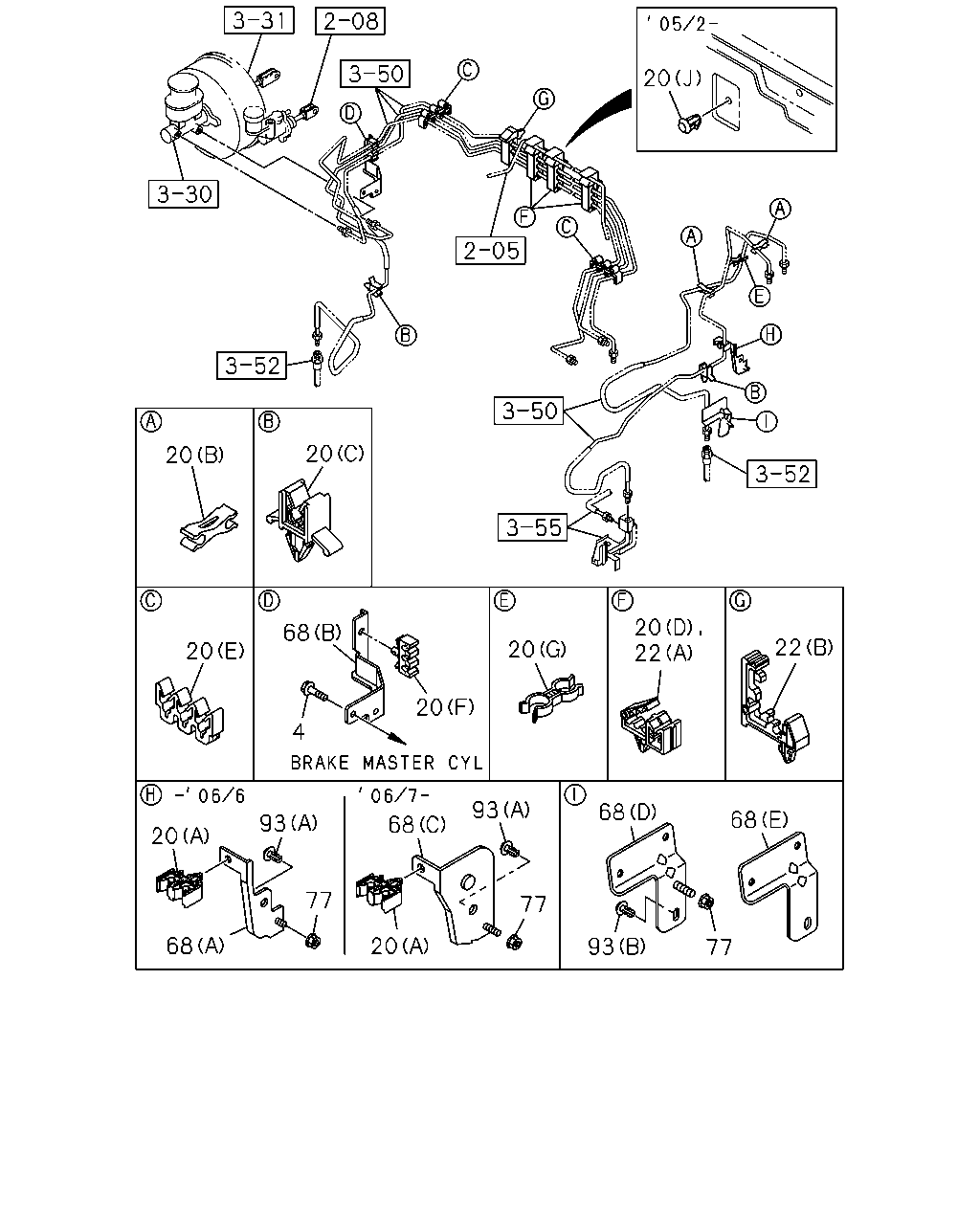

çizim 121397
20 20 20 20 22 68 22 20 20 20 4 93 68 68 93 68 20 77 77 68 20 93 77
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 02 1 0411- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (E) ID=4.8X3 THA 		8-94487-369-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(E) ID=4.8X3 THA 		8-94487-369-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (F) ID=4.76X3 THA 		8-97216-721-1 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(F) ID=4.76X3 THA 		8-97216-721-1 01 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (D) ID=10 & 4.76X3 THA 		8-97249-904-0 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 THA 		8-97249-904-0 01 1 0607- ● ●
20 CLIP; BRK PIPE
(H) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 03 1 0411- ● ●
20 CLIP; BRK PIPE
(I) ID=6.8X2 THA 		8-97251-124-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(K) ID=8.7 & 7.1X3 THA 		8-98043-266-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (C) ID=4.76 THA 		8-97300-443-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(C) ID=4.76 THA 		8-97300-443-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (B) ID=4.6X2 THA 		8-94241-454-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(B) ID=4.6X2 THA 		8-94241-454-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (A) ID=4.76X2 THA 		8-97249-905-0 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(A) ID=4.76X2 THA 		8-97249-905-0 01 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (G) ID=4.8 THA 		8-97300-405-0 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(J) THA 		8-97310-401-0 01 1 0502- ● ●
22 CLIP; PIPE TO FRAME
(A) ID=10 & 4.76X3 THA 		8-97249-904-0 02 1 0411-0501 ● ●
22 CLIP; PIPE TO FRAME
(A) ID=10 & 4.76X3 THA 		8-97249-904-0 01 1 0502- ● ●
22 CLIP; PIPE TO FRAME
(B) THA 		8-97255-709-0 01 1 0411- ● ●
68 BRACKET; CLIP
A/T AISIN<RMD> (D) THA 		8-98036-122-0 01 1 0610-0708 ●
68 BRACKET; CLIP
A/T AISIN<RMD> (D) THA 		8-98036-122-0 01 1 0710-0809 ●
68 BRACKET; CLIP
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (D) THA 		8-98036-122-0 01 1 0810- ●
68 BRACKET; CLIP
(A) THA 		8-97236-433-4 01 1 0411-0606 ● ●
68 BRACKET; CLIP
M/T MUA 5 SPEED 5H<MWQ> (E) THA 		8-98034-935-0 01 1 0607-0709 ●
68 BRACKET; CLIP
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98034-935-0 01 1 0710- ●
68 BRACKET; CLIP
(B) THA 		8-97944-656-1 01 1 0607- ● ●
68 BRACKET; CLIP
(B) THA 		8-97259-810-1 01 1 0411-0606 ● ●
68 BRACKET; CLIP
(C) THA 		8-98006-970-0 01 1 0607- ● ●
77 NUT; BRKT,OIL PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0411-0609 ● ●
77 NUT; BRKT,OIL PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0610-0708 ● ●
77 NUT; BRKT,OIL PIPE
A/T AISIN<RMD> M6 FLANGE THA 		0-91180-106-0 01 1 0610-0708 ●
77 NUT; BRKT,OIL PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0709-0709 ● ●
77 NUT; BRKT,OIL PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0710-0809 ● ●
77 NUT; BRKT,OIL PIPE
A/T AISIN<RMD> M6 FLANGE THA 		0-91180-106-0 01 1 0710-0809 ●
77 NUT; BRKT,OIL PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 0810- ● ●
77 NUT; BRKT,OIL PIPE
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA 		0-91180-106-0 01 1 0810- ●
93 CLIP; BRKT
A/T AISIN<RMD> (B) OD=18 THA 		8-94269-290-0 01 1 0610-0708 ●
93 CLIP; BRKT
A/T AISIN<RMD> (B) OD=18 THA 		8-94269-290-0 01 1 0710-0809 ●
93 CLIP; BRKT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) OD=18 THA 		8-94269-290-0 01 1 0810- ●
93 CLIP; BRKT
(A) OD=25 THA 		8-94279-810-0 01 1 0411- ● ●

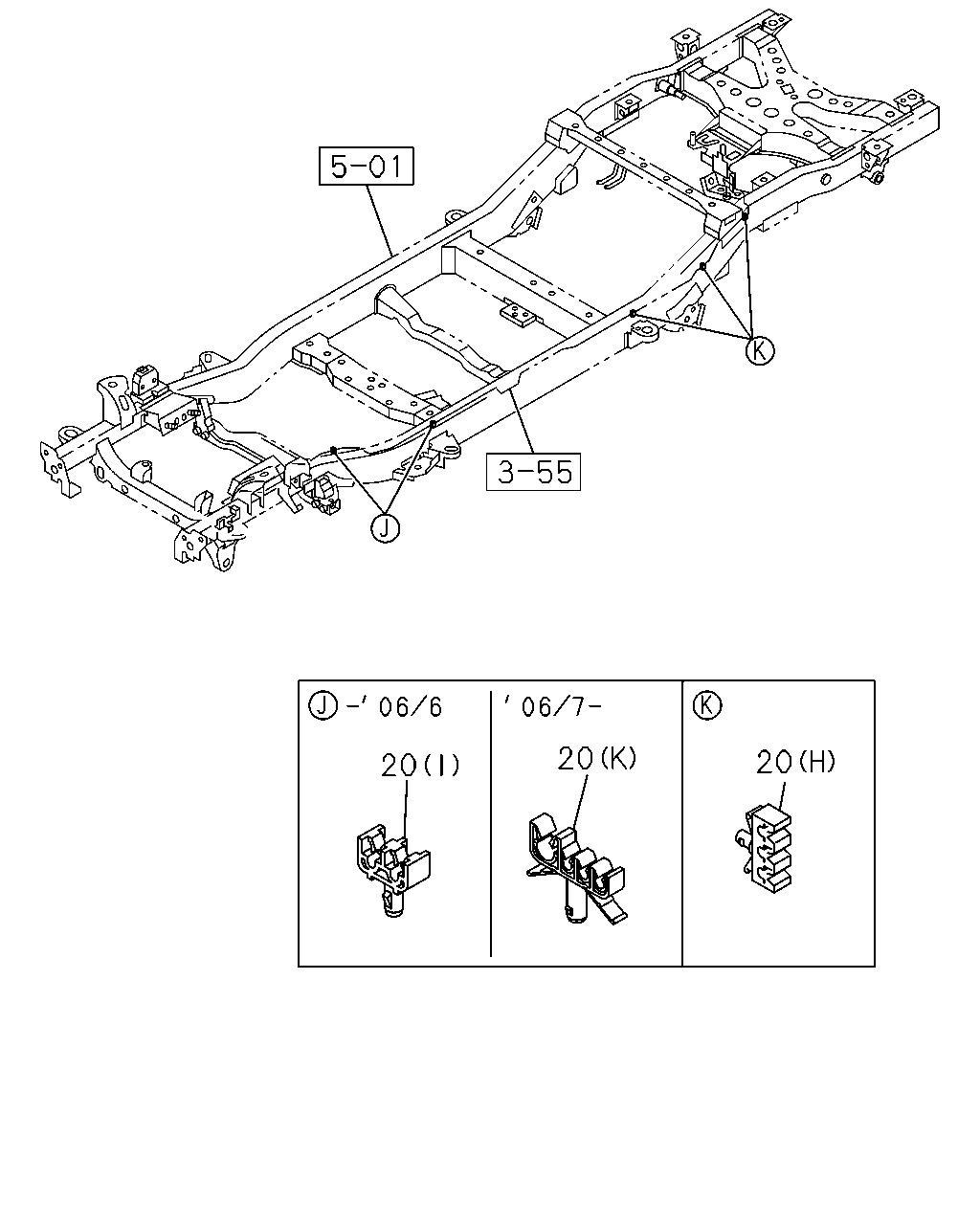

çizim 185418
20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (E) ID=4.8X3 THA 		8-94487-369-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(E) ID=4.8X3 THA 		8-94487-369-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (F) ID=4.76X3 THA 		8-97216-721-1 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(F) ID=4.76X3 THA 		8-97216-721-1 01 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (D) ID=10 & 4.76X3 THA 		8-97249-904-0 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 THA 		8-97249-904-0 01 1 0607- ● ●
20 CLIP; BRK PIPE
(H) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 03 1 0411- ● ●
20 CLIP; BRK PIPE
(I) ID=6.8X2 THA 		8-97251-124-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(K) ID=8.7 & 7.1X3 THA 		8-98043-266-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (C) ID=4.76 THA 		8-97300-443-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(C) ID=4.76 THA 		8-97300-443-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (B) ID=4.6X2 THA 		8-94241-454-0 02 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(B) ID=4.6X2 THA 		8-94241-454-0 02 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (A) ID=4.76X2 THA 		8-97249-905-0 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(A) ID=4.76X2 THA 		8-97249-905-0 01 1 0607- ● ●
20 CLIP; BRK PIPE
4JJ1-TCS ENG<LFB> (G) ID=4.8 THA 		8-97300-405-0 01 1 0411-0606 ● ●
20 CLIP; BRK PIPE
(J) THA 		8-97310-401-0 01 1 0502- ● ●
