3-55 — BRAKE PIPING; OIL,REAR (#73793) — 15 parça

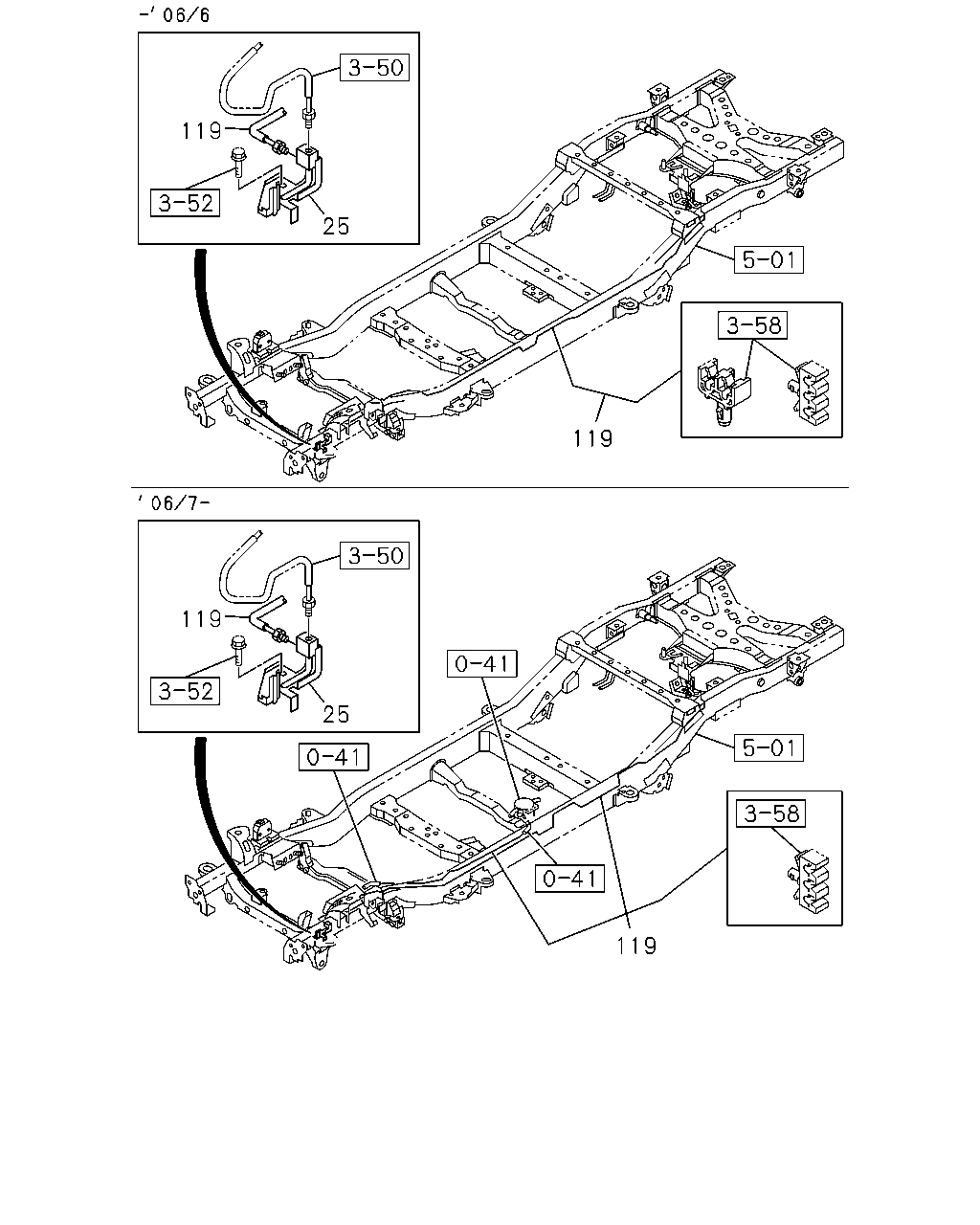

119 25 119 119 25 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CONNECTOR THA	8-97258-536-1	01	1	0411-0606	●	●
25	CONNECTOR THA	8-98008-369-0	01	1	0607-0609	●	●
25	CONNECTOR THA	8-98046-620-0	01	1	0610-	●	●
119	PIPE; BRK,2WAY TO RR THA	8-97367-143-0	01	1	0411-0606	●	●
119	PIPE; BRK,2WAY TO RR THA	8-98043-608-0	01	1	0607-	●	●

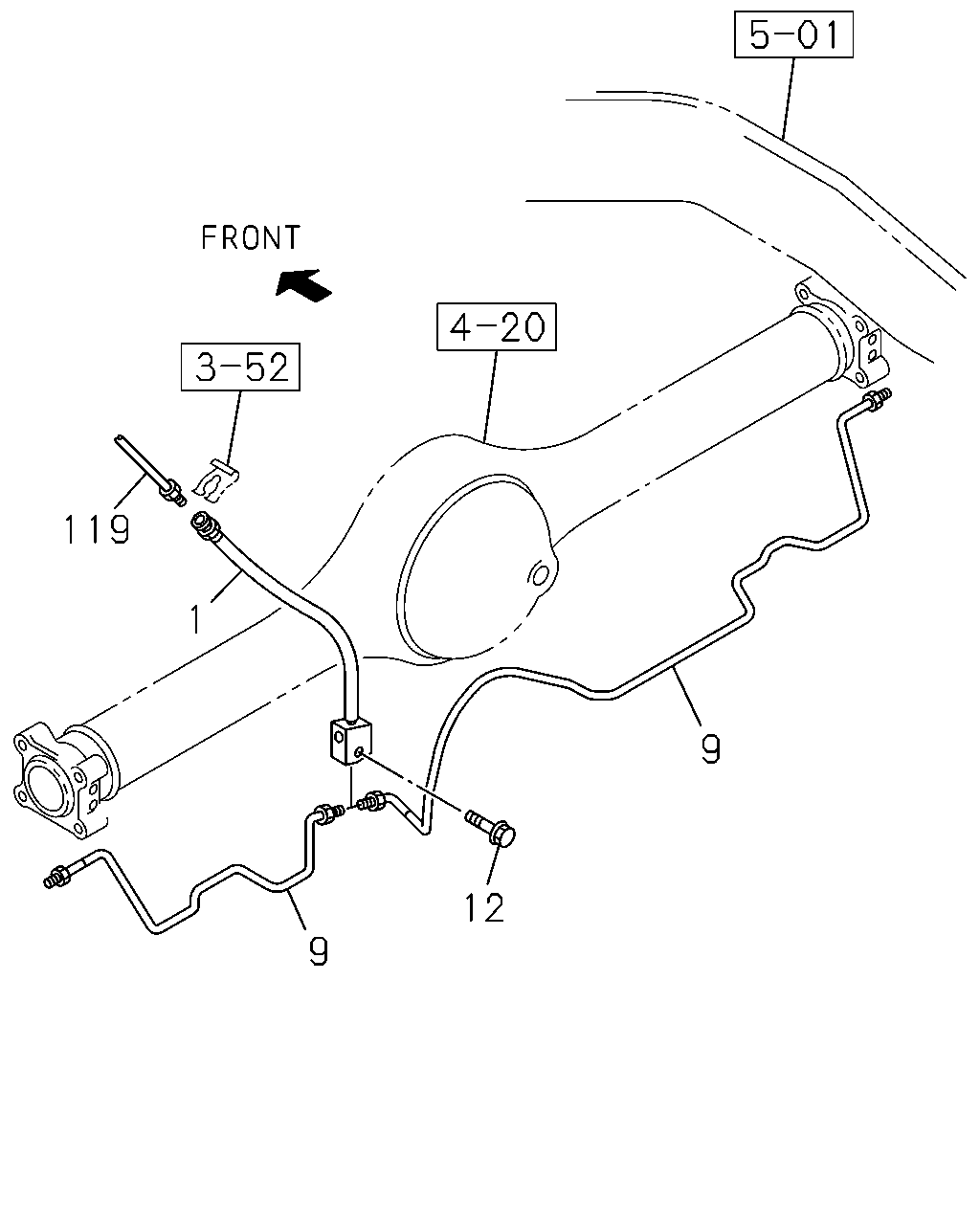

119 1 9 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK THA	8-97371-745-0	01	1	0411-0606	●	●
1	HOSE; FLEX,RR BRK THA	8-98018-485-0	01	1	0607-0807	●	●
1	HOSE; FLEX,RR BRK THA	8-98122-045-0	01	1	0808-	●	●
9	PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0411-0606	●	●
9	PIPE; BRK,RR AXLE THA	8-97944-704-0	01	1	0607-	●	●
9	PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0411-0606	●	●
9	PIPE; BRK,RR AXLE THA	8-97944-706-0	01	1	0607-	●	●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE THA	0-28650-830-0	01	1	0411-	●	●
119	PIPE; BRK,2WAY TO RR THA	8-97367-143-0	01	1	0411-0606	●	●
119	PIPE; BRK,2WAY TO RR THA	8-98043-608-0	01	1	0607-	●	●
