Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#73791) — 34 parça
Tümü
A - UCB5VF
B - UCS5VF
◀
[350A] NO.3 (12 parça)
[350A] NO.1 (12 parça)
[350A] NO.2 (10 parça)
▶

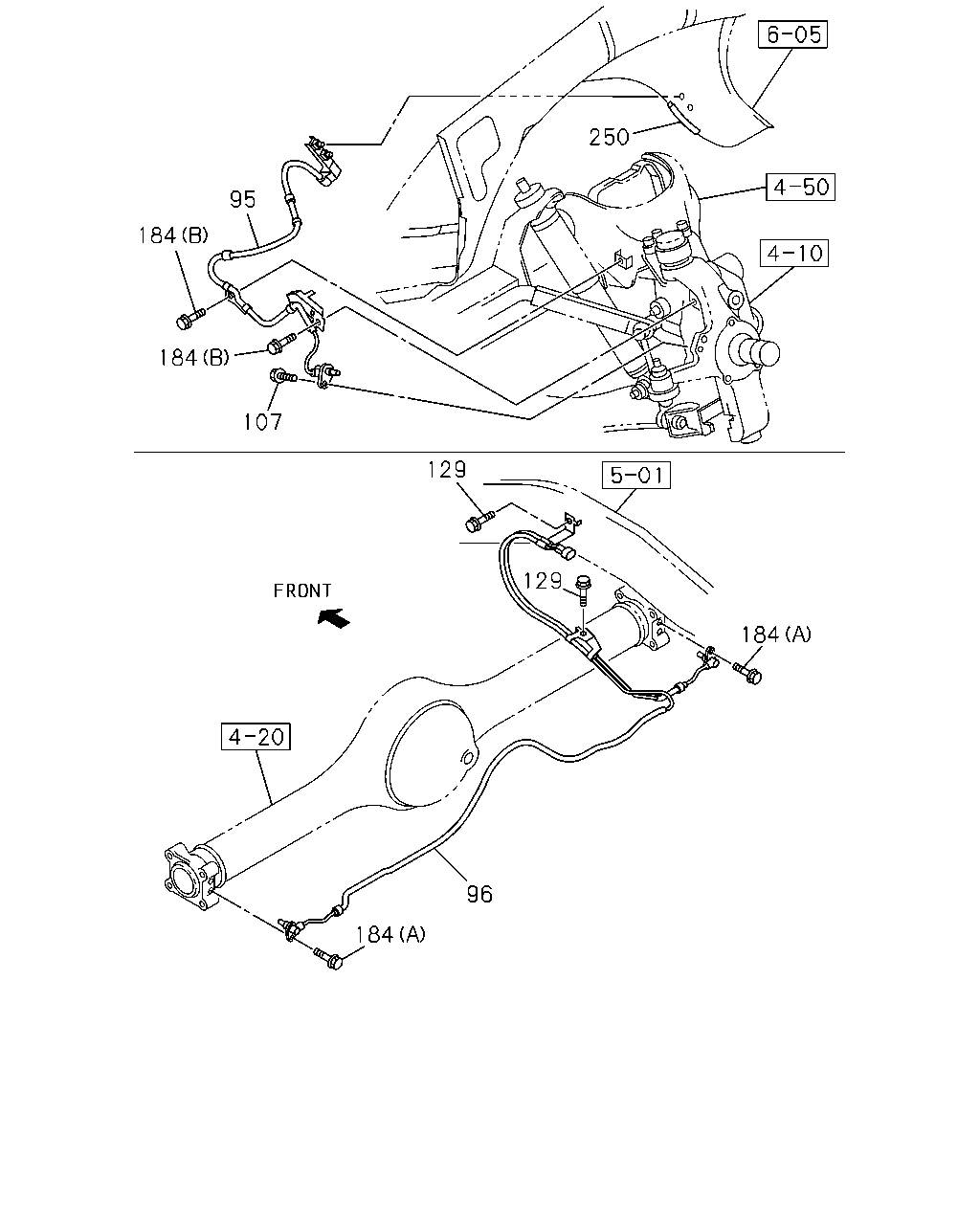

250
95
184
184
107
129
184
96
129
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
95
SENSOR; SPD,FRT WHEEL
THA
8-97236-106-2
01
1
0411-0606
●
●
95
SENSOR; SPD,FRT WHEEL
THA
8-97387-990-1
01
1
0607-
●
●
95
SENSOR; SPD,FRT WHEEL
THA
8-97370-590-0
01
1
0411-0606
●
●
95
SENSOR; SPD,FRT WHEEL
THA
8-97387-989-1
01
1
0607-
●
●
96
SENSOR; SPD,RR WHEEL
THA
8-97362-460-0
01
1
0411-0606
●
●
96
SENSOR; SPD,RR WHEEL
THA
8-97387-992-1
01
1
0607-
●
●
107
BOLT; WHEEL SPD SENSOR
M6X10 FLANGE THA
0-28050-610-0
02
1
0411-
●
●
129
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
02
1
0411-
●
●
184
BOLT; CLIP
(B) M6X10 FLANGE THA
0-28050-610-0
02
1
0411-
●
●
184
BOLT; CLIP
(B) M6X10 FLANGE THA
0-28050-610-0
02
1
0411-
●
●
184
BOLT; CLIP
(A) M6X16 FLANGE THA
0-28650-616-0
02
1
0411-
●
●
250
FINISHER; HARNESS
L=80 THA
5-71997-133-0
01
1
0411-
●
●

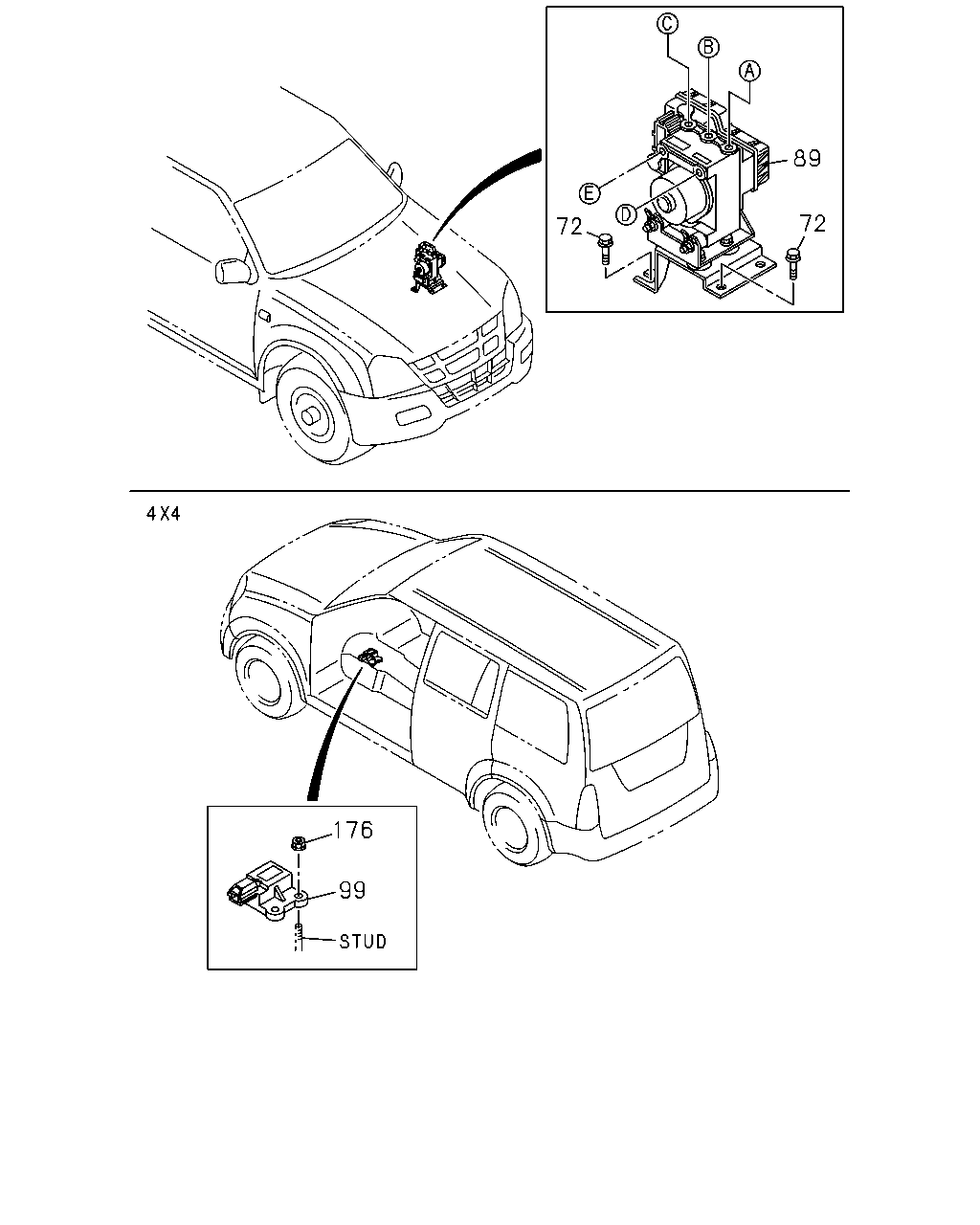

89
72
72
176
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
72
BOLT; BRKT TO BODY
M6X16 FLANGE THA
0-28650-616-0
03
1
0411-
●
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-97329-787-0
01
1
0411-0505
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-98004-194-0
01
1
0506-0606
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-98008-783-0
01
1
0607-1008
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-98008-783-0
01
1
1009-
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-97379-144-0
01
1
0411-0508
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-98004-195-0
01
1
0509-0606
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-98008-784-0
01
1
0607-1008
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
THA
8-98008-784-0
01
1
1009-
●
99
SENSOR; DECELERATION
THA
8-97262-548-0
01
1
0411-0606
●
99
SENSOR; DECELERATION
THA
8-98013-796-0
01
1
0607-
●
176
NUT; SENSOR
M6 FLANGE THA
0-91180-206-0
02
1
0411-
●

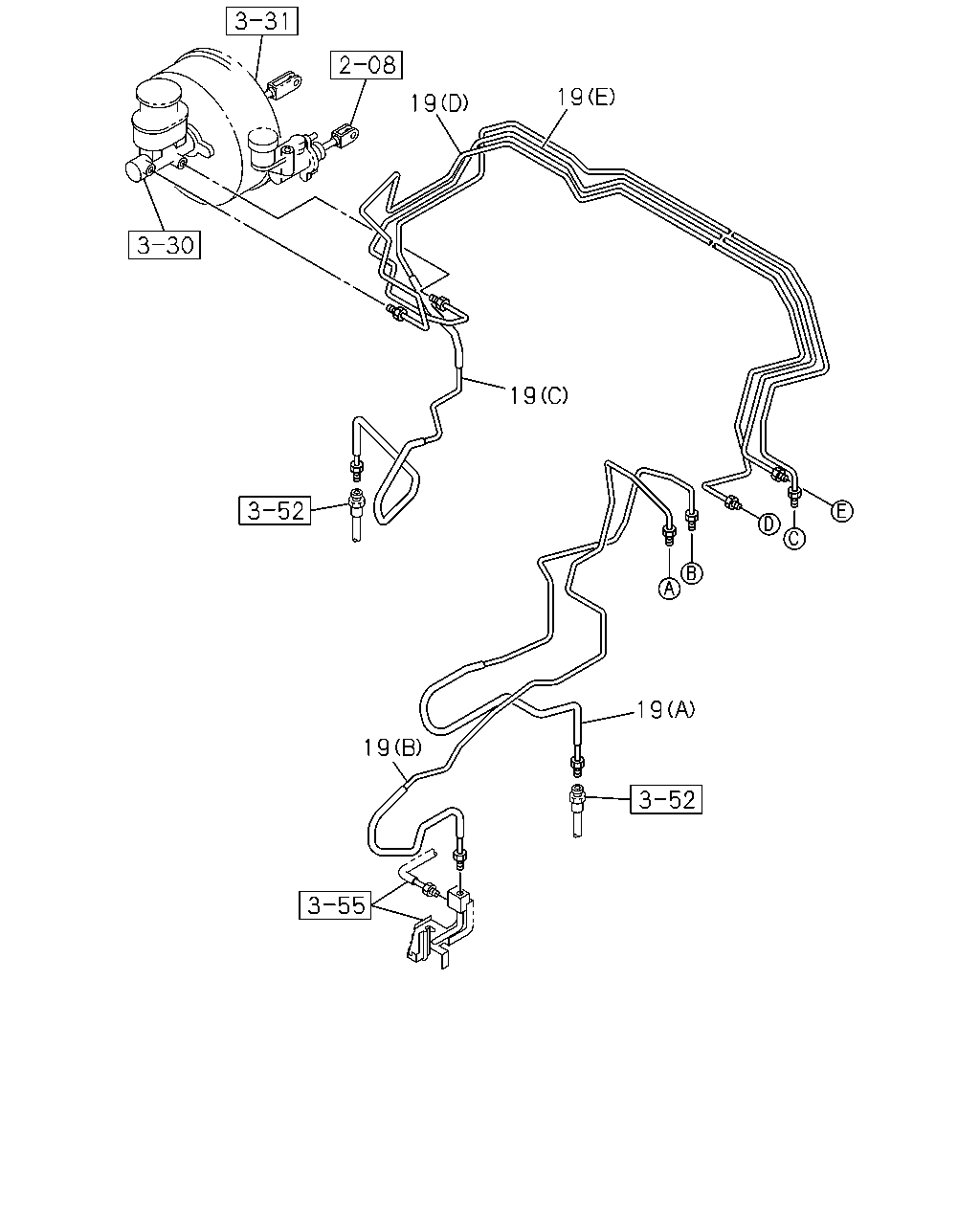

19
19
19
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (D) REAR THA
8-97363-712-1
01
1
0411-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (E) FRONT THA
8-97374-465-0
01
1
0411-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (A) FRONT THA
8-97236-427-2
01
1
0411-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(A) FRONT THA
8-97944-752-1
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (B) REAR THA
8-97236-428-2
01
1
0411-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(B) REAR THA
8-97944-751-1
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) FRONT THA
8-97365-221-0
01
1
0411-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(C) FRONT THA
8-97944-855-1
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
(E) FRONT THA
8-97944-787-0
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
(D) REAR THA
8-97944-788-0
01
1
0607-
●
●
