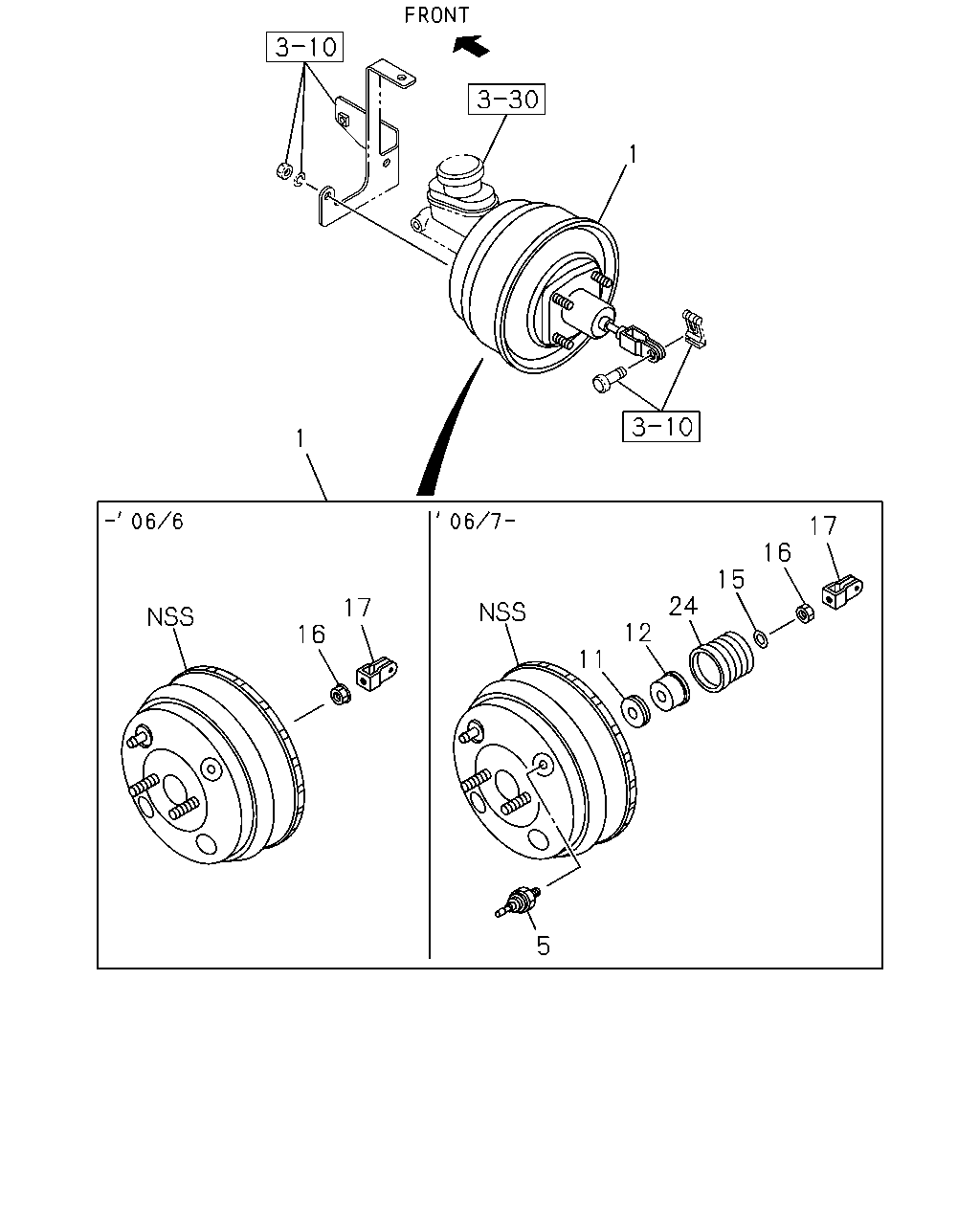

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#73790) — 11 parça

1 1 17 16 15 24 17 12 16 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MASTER VAC ASM; BRK THA	8-97363-563-1	01	1	0411-0606	●	●
1	MASTER VAC ASM; BRK THA	8-98006-788-0	01	1	0607-	●	●
5	SWITCH; VAC,M/VAC THA	8-98081-668-0	01	1	0607-	●	●
11	FILTER; M/VAC THA	8-98048-044-0	01	1	0607-	●	●
12	SILENCER; M/VAC IMA	8-97205-577-0	01	1	0607-	●	●
15	RETAINER; GUARD,M/VAC THA	8-98048-040-0	01	1	0607-	●	●
16	NUT; VLV ROD,M/VAC THA	8-97301-598-0	01	1	0411-0606	●	●
16	NUT; VLV ROD,M/VAC THA	8-98048-038-0	01	1	0607-	●	●
17	CLEVIS; YOKE,M/VAC THA	8-97301-597-0	01	1	0411-0606	●	●
17	CLEVIS; YOKE,M/VAC THA	8-98048-039-0	01	1	0607-	●	●
24	GUARD; VLV BODY,M/VAC THA	8-98048-043-0	01	1	0607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
