3-02 — FRONT DISC BRAKE CALIPER (#73785) — 134 parça

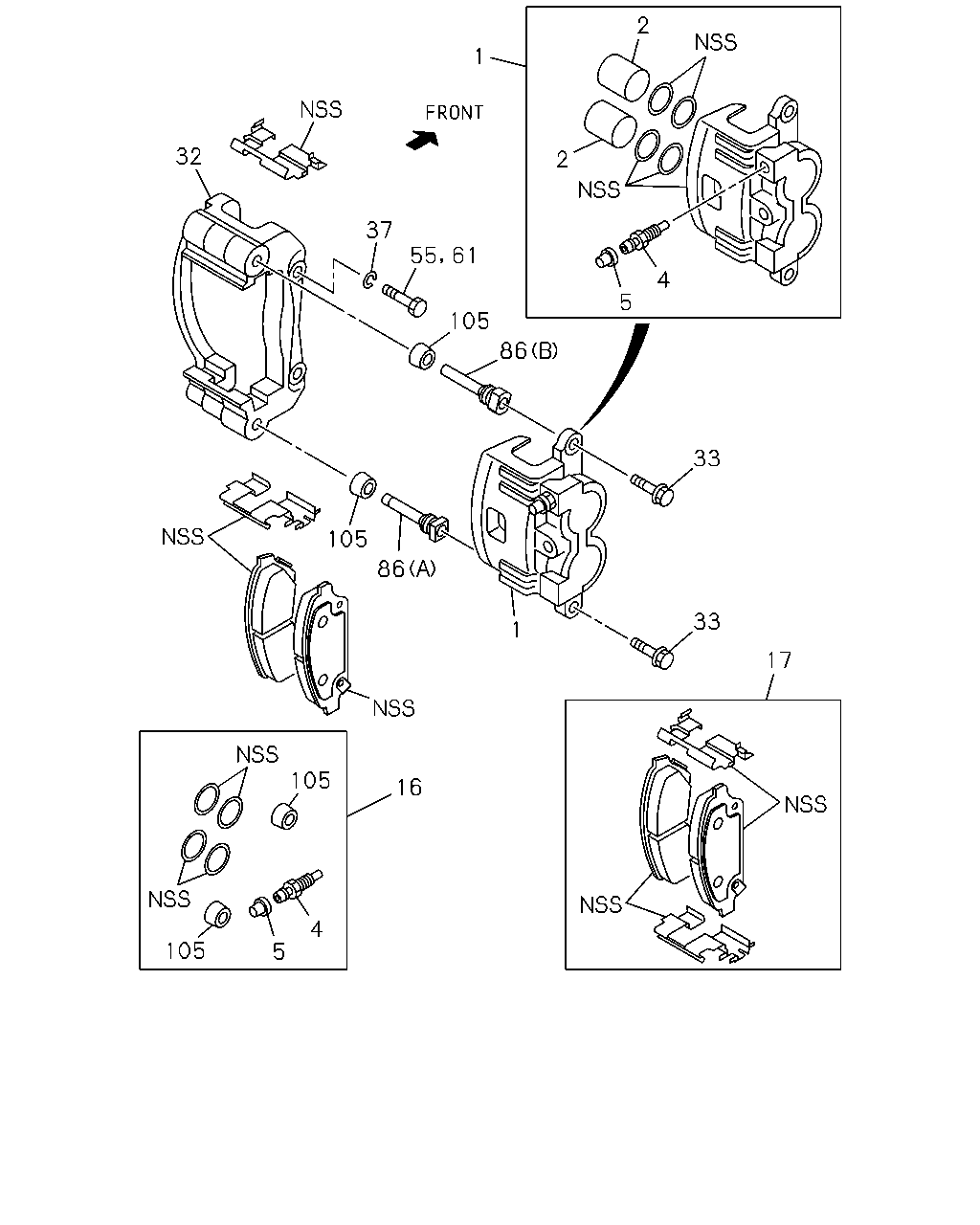

2 1 32 2 37 4 5 105 86 33 105 124 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CALIPER; FRT DISC BRK THA	8-97374-964-0	01	1	0411-0601	●	●
1	CALIPER; FRT DISC BRK THA	8-97374-963-0	01	1	0411-0601	●	●
1	CALIPER; FRT DISC BRK THA	8-98040-819-0	01	1	0602-0606	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-538-1	01	1	0607-0708	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-997-0	01	1	0709-0709	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-538-1	01	1	0710-0802	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-997-0	01	1	0803-	●	●
1	CALIPER; FRT DISC BRK THA	8-98040-818-0	01	1	0602-0606	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-537-1	01	1	0607-0708	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-996-0	01	1	0709-0709	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-537-1	01	1	0710-0802	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-996-0	01	1	0803-	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-97328-224-0	04	1	0411-0601	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98040-810-0	04	1	0602-0606	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98040-811-0	04	1	0607-0708	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98078-000-0	04	1	0709-0709	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98040-811-0	04	1	0710-0802	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98078-000-0	04	1	0803-	●	●
4	SCREW; BLEEDER,DISC BRK,FRT THA	8-97301-725-0	02	1	0411-0606	●	●
4	SCREW; BLEEDER,DISC BRK,FRT THA	8-98006-254-0	02	1	0607-0708	●	●
4	SCREW; BLEEDER,DISC BRK,FRT IMA	8-98050-476-0	02	1	0709-0709	●	●
4	SCREW; BLEEDER,DISC BRK,FRT THA	8-98006-254-0	02	1	0710-0802	●	●
4	SCREW; BLEEDER,DISC BRK,FRT IMA	8-98050-476-0	02	1	0803-	●	●
5	CAP; BLEEDER,DISC BRK,FRT THA	8-97301-726-0	02	1	0411-0708	●	●
5	CAP; BLEEDER,DISC BRK,FRT IMA	8-98050-479-0	02	1	0709-0709	●	●
5	CAP; BLEEDER,DISC BRK,FRT THA	8-97301-726-0	02	1	0710-0802	●	●
5	CAP; BLEEDER,DISC BRK,FRT IMA	8-98050-479-0	02	1	0803-	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-97318-674-0	01	1	0411-0601	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98040-822-0	01	1	0602-0606	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-762-1	01	1	0607-0708	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98079-105-0	01	1	0709-0709	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-762-1	01	1	0710-0802	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98079-105-0	01	1	0803-	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0411-0607	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0608-0708	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98079-104-0	01	1	0709-0710	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0711-0802	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98079-104-0	01	1	0803-	●	●
32	SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0411-0701	●	●
32	SUPPORT; FRT DISC BRK THA	8-98049-958-0	02	1	0702-0708	●	●
32	SUPPORT; FRT DISC BRK THA	8-98078-168-0	02	1	0709-0709	●	●
32	SUPPORT; FRT DISC BRK THA	8-98049-958-0	02	1	0710-0802	●	●
32	SUPPORT; FRT DISC BRK THA	8-98078-168-0	02	1	0803-	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-97301-730-0	04	1	0411-0606	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98006-255-0	04	1	0607-0708	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98078-192-0	04	1	0709-0709	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98006-255-0	04	1	0710-0802	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98078-192-0	04	1	0803-	●	●
37	WASHER; LK ID=14.2 THA	9-09150-814-0	04	1	0411-0604	●	●
37	WASHER; LK ID=14.2 IMA	0-91510-814-0	04	1	0605-	●	●
55	BOLT; SUPPORT BRKT TO DISC BRK THA	8-97331-945-0	02	1	0411-0606	●	●
55	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98037-731-0	02	1	0607-	●	●
61	BOLT; SUPPORT BRKT TO KNUCKLE THA	8-97331-945-0	02	1	0411-0606	●	●
61	BOLT; SUPPORT BRKT TO KNUCKLE THA	8-98037-731-0	02	1	0607-	●	●
86	PIN; GUIDE (B) TRAILING THA	8-98006-257-0	02	1	0710-0802	●	●
86	PIN; GUIDE (A) LEADING THA	8-97301-728-0	02	1	0411-0606	●	●
86	PIN; GUIDE (A) LEADING THA	8-98006-256-0	02	1	0607-0708	●	●
86	PIN; GUIDE (C) THA	8-98078-175-0	02	1	0709-0709	●	●
86	PIN; GUIDE (A) LEADING THA	8-98006-256-0	02	1	0710-0802	●	●
86	PIN; GUIDE (C) THA	8-98078-175-0	02	1	0803-	●	●
86	PIN; GUIDE (B) TRAILING THA	8-97301-746-0	02	1	0411-0606	●	●
86	PIN; GUIDE (B) TRAILING THA	8-98006-257-0	02	1	0607-0708	●	●
105	BOOT; CALIPER THA	8-97328-229-0	04	1	0411-0708	●	●
105	BOOT; CALIPER THA	8-98078-193-0	04	1	0709-0709	●	●
105	BOOT; CALIPER THA	8-97328-229-0	04	1	0710-0802	●	●
105	BOOT; CALIPER THA	8-98078-193-0	04	1	0803-	●	●
124	PIN ASM; W/BUSH THA	8-98078-176-0	02	1	0803-	●	●
124	PIN ASM; W/BUSH THA	8-98078-176-0	02	1	0709-0709	●	●

2 1 32 2 37 4 5 105 86 33 105 86 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CALIPER; FRT DISC BRK THA	8-97374-964-0	01	1	0411-0601	●	●
1	CALIPER; FRT DISC BRK THA	8-97374-963-0	01	1	0411-0601	●	●
1	CALIPER; FRT DISC BRK THA	8-98040-819-0	01	1	0602-0606	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-538-1	01	1	0607-0708	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-997-0	01	1	0709-0709	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-538-1	01	1	0710-0802	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-997-0	01	1	0803-	●	●
1	CALIPER; FRT DISC BRK THA	8-98040-818-0	01	1	0602-0606	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-537-1	01	1	0607-0708	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-996-0	01	1	0709-0709	●	●
1	CALIPER; FRT DISC BRK THA	8-98006-537-1	01	1	0710-0802	●	●
1	CALIPER; FRT DISC BRK THA	8-98077-996-0	01	1	0803-	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-97328-224-0	04	1	0411-0601	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98040-810-0	04	1	0602-0606	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98040-811-0	04	1	0607-0708	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98078-000-0	04	1	0709-0709	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98040-811-0	04	1	0710-0802	●	●
2	PISTON; CALIPER,DISC BRK,FRT THA	8-98078-000-0	04	1	0803-	●	●
4	SCREW; BLEEDER,DISC BRK,FRT THA	8-97301-725-0	02	1	0411-0606	●	●
4	SCREW; BLEEDER,DISC BRK,FRT THA	8-98006-254-0	02	1	0607-0708	●	●
4	SCREW; BLEEDER,DISC BRK,FRT IMA	8-98050-476-0	02	1	0709-0709	●	●
4	SCREW; BLEEDER,DISC BRK,FRT THA	8-98006-254-0	02	1	0710-0802	●	●
4	SCREW; BLEEDER,DISC BRK,FRT IMA	8-98050-476-0	02	1	0803-	●	●
5	CAP; BLEEDER,DISC BRK,FRT THA	8-97301-726-0	02	1	0411-0708	●	●
5	CAP; BLEEDER,DISC BRK,FRT IMA	8-98050-479-0	02	1	0709-0709	●	●
5	CAP; BLEEDER,DISC BRK,FRT THA	8-97301-726-0	02	1	0710-0802	●	●
5	CAP; BLEEDER,DISC BRK,FRT IMA	8-98050-479-0	02	1	0803-	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-97318-674-0	01	1	0411-0601	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98040-822-0	01	1	0602-0606	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-762-1	01	1	0607-0708	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98079-105-0	01	1	0709-0709	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-762-1	01	1	0710-0802	●	●
16	REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98079-105-0	01	1	0803-	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0411-0607	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0608-0708	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98079-104-0	01	1	0709-0710	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0711-0802	●	●
17	PAD KIT; CALIPER,DISC BRK,FRT THA	8-98079-104-0	01	1	0803-	●	●
32	SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0411-0701	●	●
32	SUPPORT; FRT DISC BRK THA	8-98049-958-0	02	1	0702-0708	●	●
32	SUPPORT; FRT DISC BRK THA	8-98078-168-0	02	1	0709-0709	●	●
32	SUPPORT; FRT DISC BRK THA	8-98049-958-0	02	1	0710-0802	●	●
32	SUPPORT; FRT DISC BRK THA	8-98078-168-0	02	1	0803-	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-97301-730-0	04	1	0411-0606	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98006-255-0	04	1	0607-0708	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98078-192-0	04	1	0709-0709	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98006-255-0	04	1	0710-0802	●	●
33	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98078-192-0	04	1	0803-	●	●
37	WASHER; LK ID=14.2 THA	9-09150-814-0	04	1	0411-0604	●	●
37	WASHER; LK ID=14.2 IMA	0-91510-814-0	04	1	0605-	●	●
55	BOLT; SUPPORT BRKT TO DISC BRK THA	8-97331-945-0	02	1	0411-0606	●	●
55	BOLT; SUPPORT BRKT TO DISC BRK THA	8-98037-731-0	02	1	0607-	●	●
61	BOLT; SUPPORT BRKT TO KNUCKLE THA	8-97331-945-0	02	1	0411-0606	●	●
61	BOLT; SUPPORT BRKT TO KNUCKLE THA	8-98037-731-0	02	1	0607-	●	●
86	PIN; GUIDE (B) TRAILING THA	8-98006-257-0	02	1	0710-0802	●	●
86	PIN; GUIDE (A) LEADING THA	8-97301-728-0	02	1	0411-0606	●	●
86	PIN; GUIDE (A) LEADING THA	8-98006-256-0	02	1	0607-0708	●	●
86	PIN; GUIDE (C) THA	8-98078-175-0	02	1	0709-0709	●	●
86	PIN; GUIDE (A) LEADING THA	8-98006-256-0	02	1	0710-0802	●	●
86	PIN; GUIDE (C) THA	8-98078-175-0	02	1	0803-	●	●
86	PIN; GUIDE (B) TRAILING THA	8-97301-746-0	02	1	0411-0606	●	●
86	PIN; GUIDE (B) TRAILING THA	8-98006-257-0	02	1	0607-0708	●	●
105	BOOT; CALIPER THA	8-97328-229-0	04	1	0411-0708	●	●
105	BOOT; CALIPER THA	8-98078-193-0	04	1	0709-0709	●	●
105	BOOT; CALIPER THA	8-97328-229-0	04	1	0710-0802	●	●
105	BOOT; CALIPER THA	8-98078-193-0	04	1	0803-	●	●
