◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#73783) — 84 parça

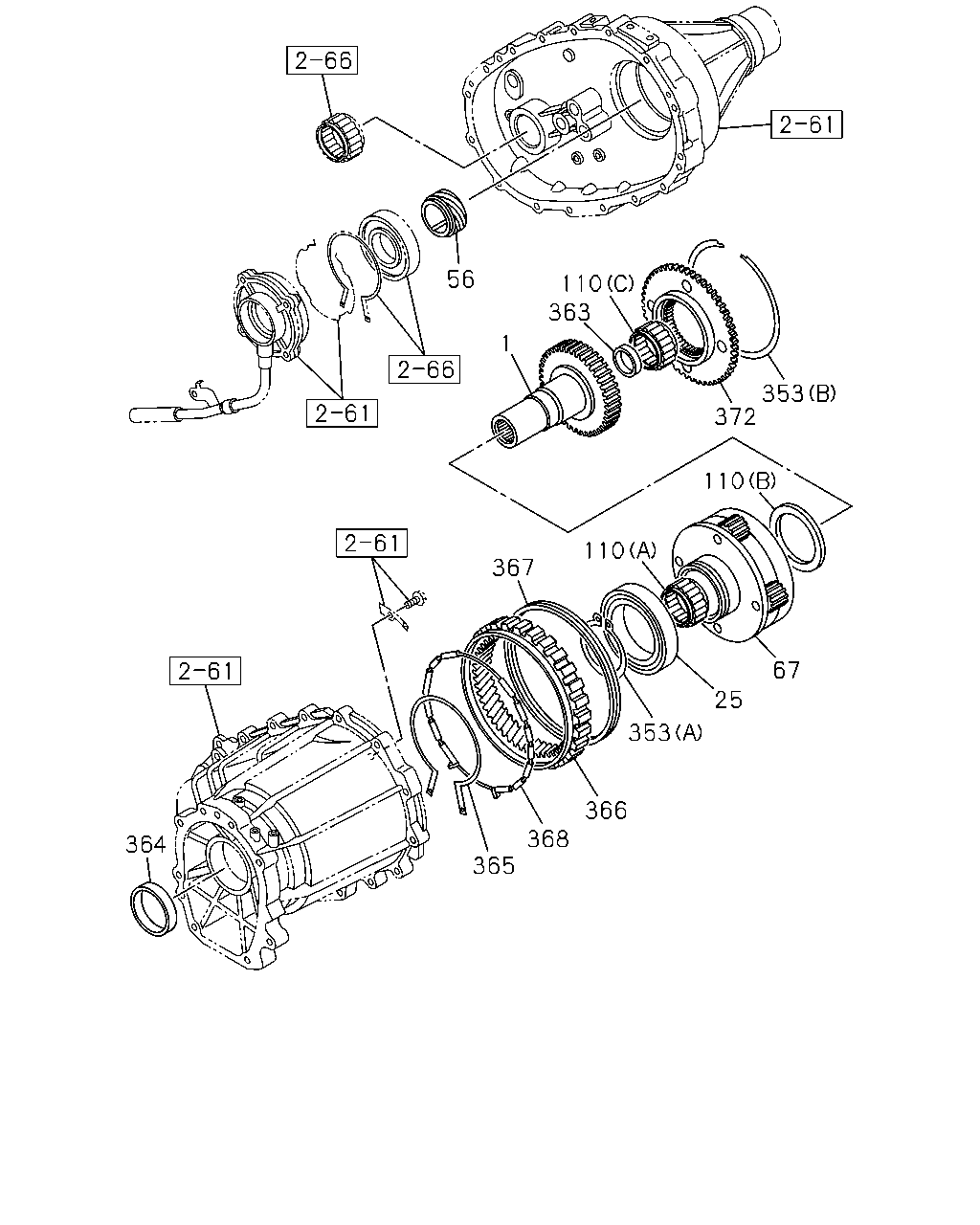

çizim 114569
56 110 363 1 353 372 110 110 367 67 25 353 366 364 368 365
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; GEAR,INPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97373-467-0 01 1 0411-0606
1 SHAFT; GEAR,INPUT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97373-467-0 01 1 0607-0609
1 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> IMA 		8-97373-467-0 01 1 0610-0708
1 SHAFT; GEAR,INPUT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97373-467-0 01 1 0709-0709
1 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> IMA 		8-97373-467-0 01 1 0710-
25 BEARING; BALL,INPUT SHAFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NSK IMA 		8-97234-735-0 01 1 0411-0606
25 BEARING; BALL,INPUT SHAFT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> NSK IMA 		8-97234-735-0 01 1 0607-0609
25 BEARING; BALL,INPUT SHAFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> NSK IMA 		8-97234-735-0 01 1 0610-0708
25 BEARING; BALL,INPUT SHAFT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> NSK IMA 		8-97234-735-0 01 1 0709-0709
25 BEARING; BALL,INPUT SHAFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> NSK IMA 		8-97234-735-0 01 1 0710-
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 1009-
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=6 IMA 		8-97238-581-0 01 1 0411-0606
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> Z=6 IMA 		8-97238-581-0 01 1 0607-0609
56 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> Z=6 IMA 		8-97238-581-0 01 1 0610-0708
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> Z=6 IMA 		8-97238-581-0 01 1 0709-0709
56 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> Z=6 IMA 		8-97238-581-0 01 1 0710-
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 0610-0708
56 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 THA 		8-98008-938-0 01 1 0710-1008
67 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97252-987-1 01 1 0411-0606
67 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97252-987-1 01 1 0607-0609
67 CARRIER; TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97252-987-1 01 1 0610-0708
67 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97252-987-1 01 1 0709-0709
67 CARRIER; TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97252-987-1 01 1 0710-1001
67 CARRIER; TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> IMA 		8-98158-116-0 01 1 1002-
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) IMA 		8-97234-739-0 01 1 0411-0606
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) IMA 		8-97234-739-0 01 1 0607-0609
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) IMA 		8-97234-739-0 01 1 0610-0708
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) IMA 		8-97234-739-0 01 1 0709-0709
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) IMA 		8-97234-739-0 01 1 0710-
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) IMA 		8-97234-741-0 01 1 0411-0606
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) IMA 		8-97234-741-0 01 1 0607-0609
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) IMA 		8-97234-741-0 01 1 0610-0708
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) IMA 		8-97234-741-0 01 1 0709-0709
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) IMA 		8-97234-741-0 01 1 0710-
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) IMA 		8-97234-743-0 01 1 0411-0606
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) IMA 		8-97234-743-0 01 1 0607-0609
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (C) IMA 		8-97234-743-0 01 1 0610-0708
110 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (C) IMA 		8-97234-743-0 01 1 0709-0709
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (C) IMA 		8-97234-743-0 01 1 0710-
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0411-0606
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0607-0609
353 RING; SNAP,CARRIER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0610-0708
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0709-0709
353 RING; SNAP,CARRIER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0710-
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) ID=137 IMA 		8-97305-406-0 01 1 0411-0606
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) ID=137 IMA 		8-97305-406-0 01 1 0607-0609
353 RING; SNAP,CARRIER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=137 IMA 		8-97305-406-0 01 1 0610-0708
353 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) ID=137 IMA 		8-97305-406-0 01 1 0709-0709
353 RING; SNAP,CARRIER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=137 IMA 		8-97305-406-0 01 1 0710-
363 CAP; SEAL,INPUT SHAFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97238-725-0 01 1 0411-0606
363 CAP; SEAL,INPUT SHAFT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97238-725-0 01 1 0607-0609
363 CAP; SEAL,INPUT SHAFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> IMA 		8-97238-725-0 01 1 0610-0708
363 CAP; SEAL,INPUT SHAFT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97238-725-0 01 1 0709-0709
363 CAP; SEAL,INPUT SHAFT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> IMA 		8-97238-725-0 01 1 0710-
364 SEAL; OIL,COVER,INPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NOK IMA 		8-97238-999-0 01 1 0411-0606
364 SEAL; OIL,COVER,INPUT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> NOK IMA 		8-97238-999-0 01 1 0607-0609
364 SEAL; OIL,COVER,INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> NOK IMA 		8-97238-999-0 01 1 0610-0708
364 SEAL; OIL,COVER,INPUT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> NOK IMA 		8-97238-999-0 01 1 0709-0709
364 SEAL; OIL,COVER,INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> NOK IMA 		8-97238-999-0 01 1 0710-
365 RING; RETAINING,OUTER INPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=97 IMA 		8-97305-010-1 01 1 0411-0606
365 RING; RETAINING,OUTER INPUT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=97 IMA 		8-97305-010-1 01 1 0607-0609
365 RING; RETAINING,OUTER INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=97 IMA 		8-97305-010-1 01 1 0610-0708
365 RING; RETAINING,OUTER INPUT
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=97 IMA 		8-97305-010-1 01 1 0709-0709
365 RING; RETAINING,OUTER INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=97 IMA 		8-97305-010-1 01 1 0710-
366 GEAR; INTERNAL,HIGH-LOW
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=27 IMA 		8-97231-831-2 01 1 0411-0606
366 GEAR; INTERNAL,HIGH-LOW
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> Z=27 IMA 		8-97231-831-2 01 1 0607-0609
366 GEAR; INTERNAL,HIGH-LOW
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> Z=27 IMA 		8-97231-831-2 01 1 0610-0708
366 GEAR; INTERNAL,HIGH-LOW
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> Z=27 IMA 		8-97231-831-2 01 1 0709-0709
366 GEAR; INTERNAL,HIGH-LOW
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> Z=27 IMA 		8-97231-831-2 01 1 0710-
367 RING; RETAINING,SPIRAL TYPE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0411-0606
367 RING; RETAINING,SPIRAL TYPE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0607-0609
367 RING; RETAINING,SPIRAL TYPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0610-0708
367 RING; RETAINING,SPIRAL TYPE
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0709-0709
367 RING; RETAINING,SPIRAL TYPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0710-
368 RING; DAMPER,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0411-0606
368 RING; DAMPER,TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0607-0609
368 RING; DAMPER,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0610-0708
368 RING; DAMPER,TRANSFER
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0709-0709
368 RING; DAMPER,TRANSFER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0710-
372 TEETH; DOG,PLANETARY
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=56 IMA 		8-97358-244-0 01 1 0411-0606
372 TEETH; DOG,PLANETARY
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> Z=56 IMA 		8-97358-244-0 01 1 0607-0609
372 TEETH; DOG,PLANETARY
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> Z=56 IMA 		8-97358-244-0 01 1 0610-0708
372 TEETH; DOG,PLANETARY
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> Z=56 IMA 		8-97358-244-0 01 1 0709-0709
372 TEETH; DOG,PLANETARY
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> Z=56 IMA 		8-97358-244-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
