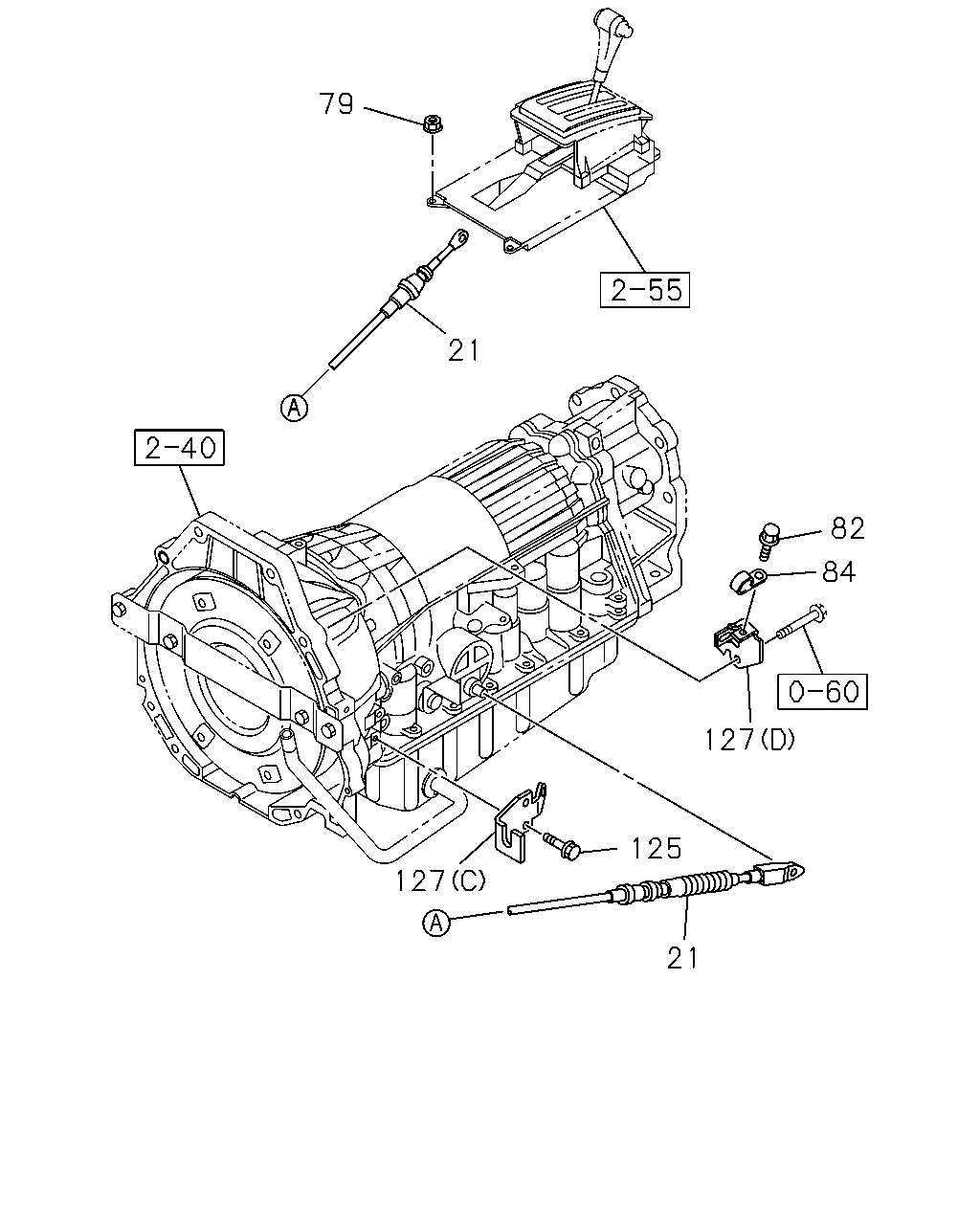

2-56 — AUTO TRANS CONTROL LINK (#73779) — 68 parça

21 125 127 127 84 82 21 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	CABLE; A/T THA	8-97363-357-0	01	1	0411-0606	●
21	CABLE; A/T THA	8-97363-357-0	01	1	0810-	●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0610-0708		●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0710-1008		●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	1009-		●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0411-0606	●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0610-0702		●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0703-0708		●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0710-0809		●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0810-	●	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0411-0606	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0708		●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0710-0809		●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0810-	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	9-09525-052-0	01	1	0411-0606	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0610-0708		●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0710-0809		●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0810-	●	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0411-0606	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0610-0708		●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0710-0809		●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0810-	●	●
127	BRACKET; A/T CONT CABLE (A) THA	8-97236-021-1	01	1	0810-	●
127	BRACKET; A/T CONT CABLE (B) THA	8-97301-831-1	01	1	0810-	●
127	BRACKET; A/T CONT CABLE (A) THA	8-97236-021-1	01	1	0411-0606	●
127	BRACKET; A/T CONT CABLE (B) THA	8-97301-831-1	01	1	0411-0606	●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0610-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0610-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0710-1008		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	1009-		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0710-1008		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	1009-		●

68 79 79 127 84 82 125 127 21 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
21	CABLE; A/T THA	8-97363-357-0	01	1	0411-0606	●
21	CABLE; A/T THA	8-97363-357-0	01	1	0810-	●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0610-0708		●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	0710-1008		●
21	CABLE; A/T 4JJ1-TCX ENG<LS0> THA	8-97388-319-0	01	1	1009-		●
68	BOLT; A/T CONT CABLE M6X12 FLANGE THA	0-28050-612-0	01	1	0411-0606	●
68	BOLT; A/T CONT CABLE M6X12 FLANGE THA	0-28050-612-0	01	1	0810-	●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0411-0606	●
79	NUT; CONT CABLE M6 FLANGE THA	8-97063-399-0	04	1	0610-0702		●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0703-0708		●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0710-0809		●
79	NUT; CONT CABLE M6 FLANGE IMA	8-98055-704-0	04	1	0810-	●	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0411-0606	●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0708		●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0710-0809		●
82	BOLT; A/T CONT CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0810-	●	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	9-09525-052-0	01	1	0411-0606	●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0610-0708		●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0710-0809		●
84	CLIP; A/T CONT CABLE ID=11 L=28 THA	0-95235-052-0	01	1	0810-	●	●
114	HOSE; BREATHER 4X4<UCS***> THA	8-97236-081-0	01	1	0411-0606	●		●
114	HOSE; BREATHER 4X4<UCS***> THA	8-97236-081-0	01	1	0607-		●		●	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0411-0606	●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0610-0708		●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0710-0809		●
125	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0810-	●	●
127	BRACKET; A/T CONT CABLE (A) THA	8-97236-021-1	01	1	0810-	●
127	BRACKET; A/T CONT CABLE (B) THA	8-97301-831-1	01	1	0810-	●
127	BRACKET; A/T CONT CABLE (A) THA	8-97236-021-1	01	1	0411-0606	●
127	BRACKET; A/T CONT CABLE (B) THA	8-97301-831-1	01	1	0411-0606	●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0610-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0610-0708		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	0710-1008		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (D) THA	8-97388-320-1	01	1	1009-		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	0710-1008		●
127	BRACKET; A/T CONT CABLE 4JJ1-TCX ENG<LS0> (C) THA	8-97388-321-1	01	1	1009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
