2-53 — TRANSMISSION OIL COOLER SYSTEM (#73777) — 64 parça

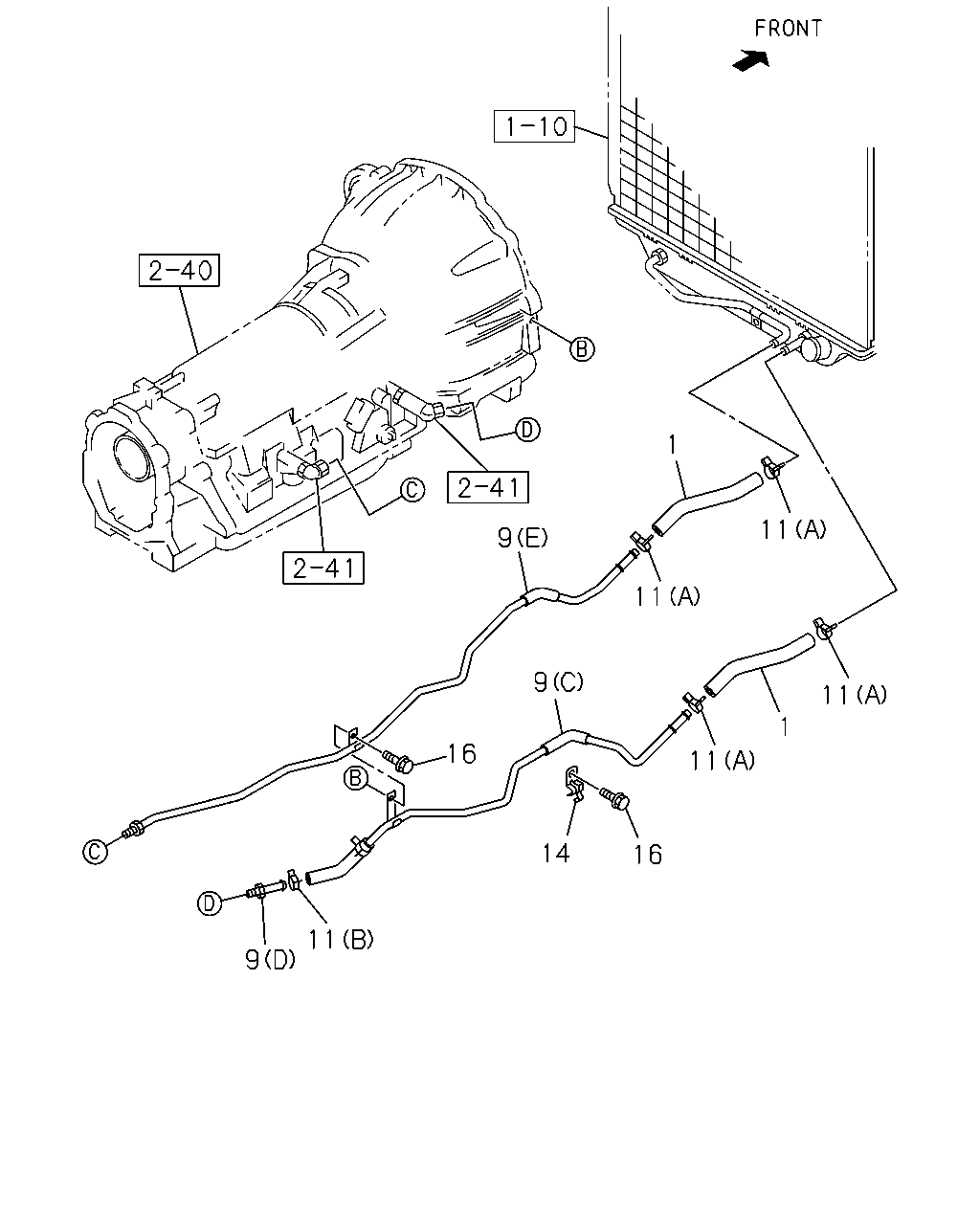

1 11 9 11 9 11 1 16 11 14 16 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 4JJ1-TCS ENG<LFB> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0411-0606	●
1	HOSE; ATF 4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0610-0708		●
1	HOSE; ATF 4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0710-0809		●
1	HOSE; ATF L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0810-	●	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97946-403-0	01	1	0810-	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97946-404-0	01	1	0810-	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97363-584-1	01	1	0411-0606	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97363-585-2	01	1	0411-0606	●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (D) THA	8-98036-273-0	01	1	0610-0708		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98048-111-0	01	1	0610-0707		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98085-689-0	01	1	0708-0708		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-98061-107-0	01	1	0610-0708		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (D) THA	8-98036-273-0	01	1	0710-		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-98061-107-0	01	1	0710-		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98085-689-0	01	1	0710-		●
11	CLIP; PIPE 4JJ1-TCS ENG<LFB> (A) ID=13.5 THA	8-97015-754-1	04	1	0411-0606	●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (A) THA	8-98008-165-0	04	1	0610-0708		●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (A) THA	8-98008-165-0	04	1	0710-0809		●
11	CLIP; PIPE (A) THA	8-98008-165-0	04	1	0810-	●	●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (B) ID=16 THA	8-98030-682-0	01	1	0610-0708		●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (B) ID=16 THA	8-98030-682-0	01	1	0710-		●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> THA	8-98008-163-0	03	1	0810-	●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> THA	8-97177-700-0	03	1	0411-0606	●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> THA	8-98008-163-0	01	1	0610-0708		●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> THA	8-98008-163-0	01	1	0710-		●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCS ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	03	1	0411-0606	●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCS ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	03	1	0810-	●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	02	1	0610-0708		●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	02	1	0710-		●

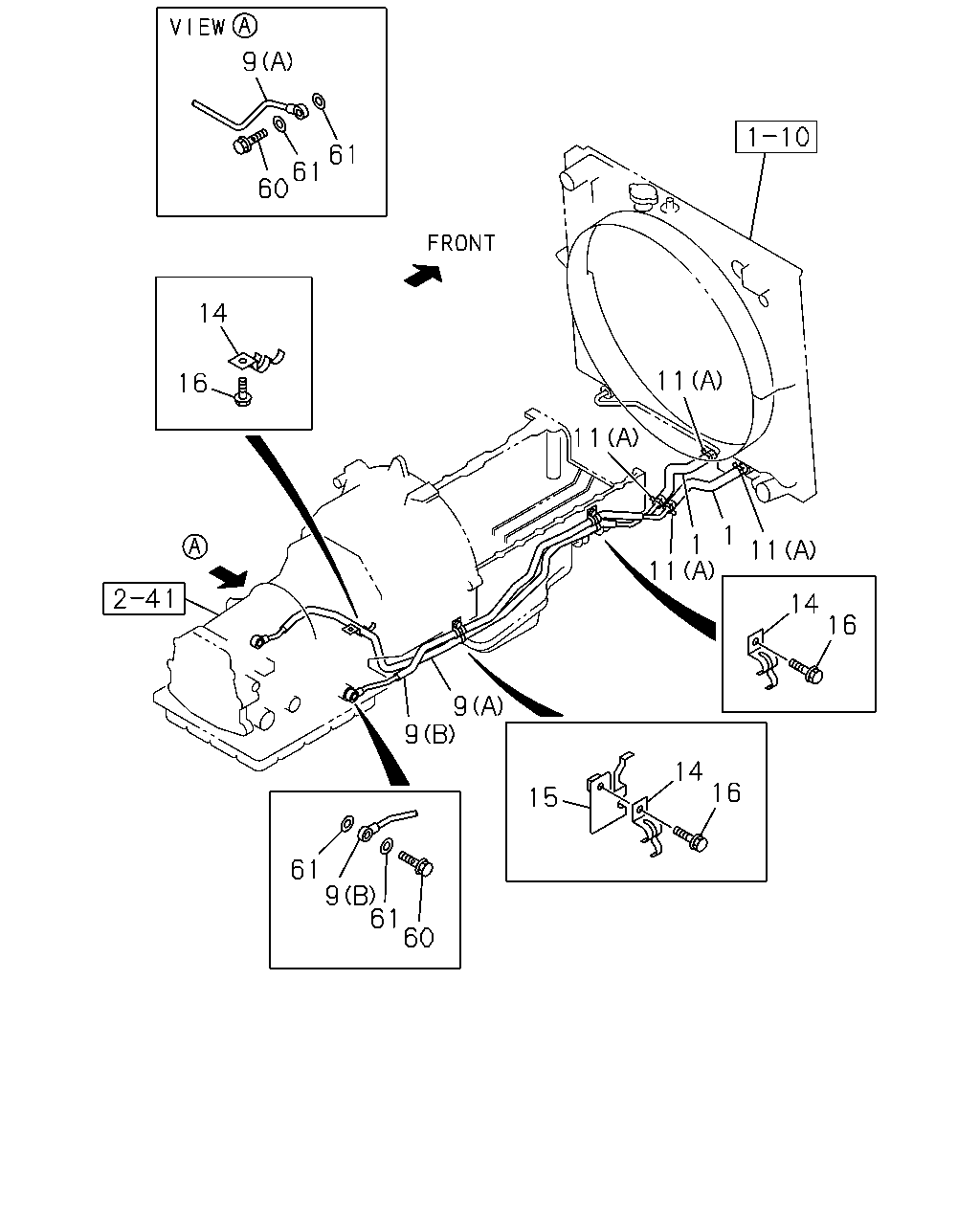

9 61 61 60 14 11 16 11 1 1 11 11 14 16 9 9 14 16 15 61 9 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 4JJ1-TCS ENG<LFB> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0411-0606	●
1	HOSE; ATF 4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0610-0708		●
1	HOSE; ATF 4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0710-0809		●
1	HOSE; ATF L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0810-	●	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97946-403-0	01	1	0810-	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97946-404-0	01	1	0810-	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97363-584-1	01	1	0411-0606	●
9	PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97363-585-2	01	1	0411-0606	●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (D) THA	8-98036-273-0	01	1	0610-0708		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98048-111-0	01	1	0610-0707		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98085-689-0	01	1	0708-0708		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-98061-107-0	01	1	0610-0708		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (D) THA	8-98036-273-0	01	1	0710-		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-98061-107-0	01	1	0710-		●
9	PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98085-689-0	01	1	0710-		●
11	CLIP; PIPE 4JJ1-TCS ENG<LFB> (A) ID=13.5 THA	8-97015-754-1	04	1	0411-0606	●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (A) THA	8-98008-165-0	04	1	0610-0708		●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (A) THA	8-98008-165-0	04	1	0710-0809		●
11	CLIP; PIPE (A) THA	8-98008-165-0	04	1	0810-	●	●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (B) ID=16 THA	8-98030-682-0	01	1	0610-0708		●
11	CLIP; PIPE 4JJ1-TCX ENG<LS0> (B) ID=16 THA	8-98030-682-0	01	1	0710-		●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> THA	8-98008-163-0	03	1	0810-	●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> THA	8-97177-700-0	03	1	0411-0606	●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> THA	8-98008-163-0	01	1	0610-0708		●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> THA	8-98008-163-0	01	1	0710-		●
15	BRACKET; ATF PIPE 4JJ1-TCS ENG<LFB> THA	8-97944-139-1	01	1	0411-0606	●
15	BRACKET; ATF PIPE 4JJ1-TCS ENG<LFB> THA	8-98050-694-0	01	1	0810-	●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCS ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	03	1	0411-0606	●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCS ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	03	1	0810-	●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	02	1	0610-0708		●
16	BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	02	1	0710-		●
60	BOLT; EYE,ATF PIPE 4JJ1-TCS ENG<LFB> THA	1-09675-033-0	02	1	0411-0606	●
60	BOLT; EYE,ATF PIPE 4JJ1-TCS ENG<LFB> THA	1-09675-033-0	02	1	0810-	●
61	GASKET; EYE BOLT,ATF PIPE 4JJ1-TCS ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0411-0606	●
61	GASKET; EYE BOLT,ATF PIPE 4JJ1-TCS ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0810-	●
