◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-52 - AUTO TRANS OVERDRIVE GEAR ▶
2-52 — AUTO TRANS OVERDRIVE GEAR (#73776) — 102 parça

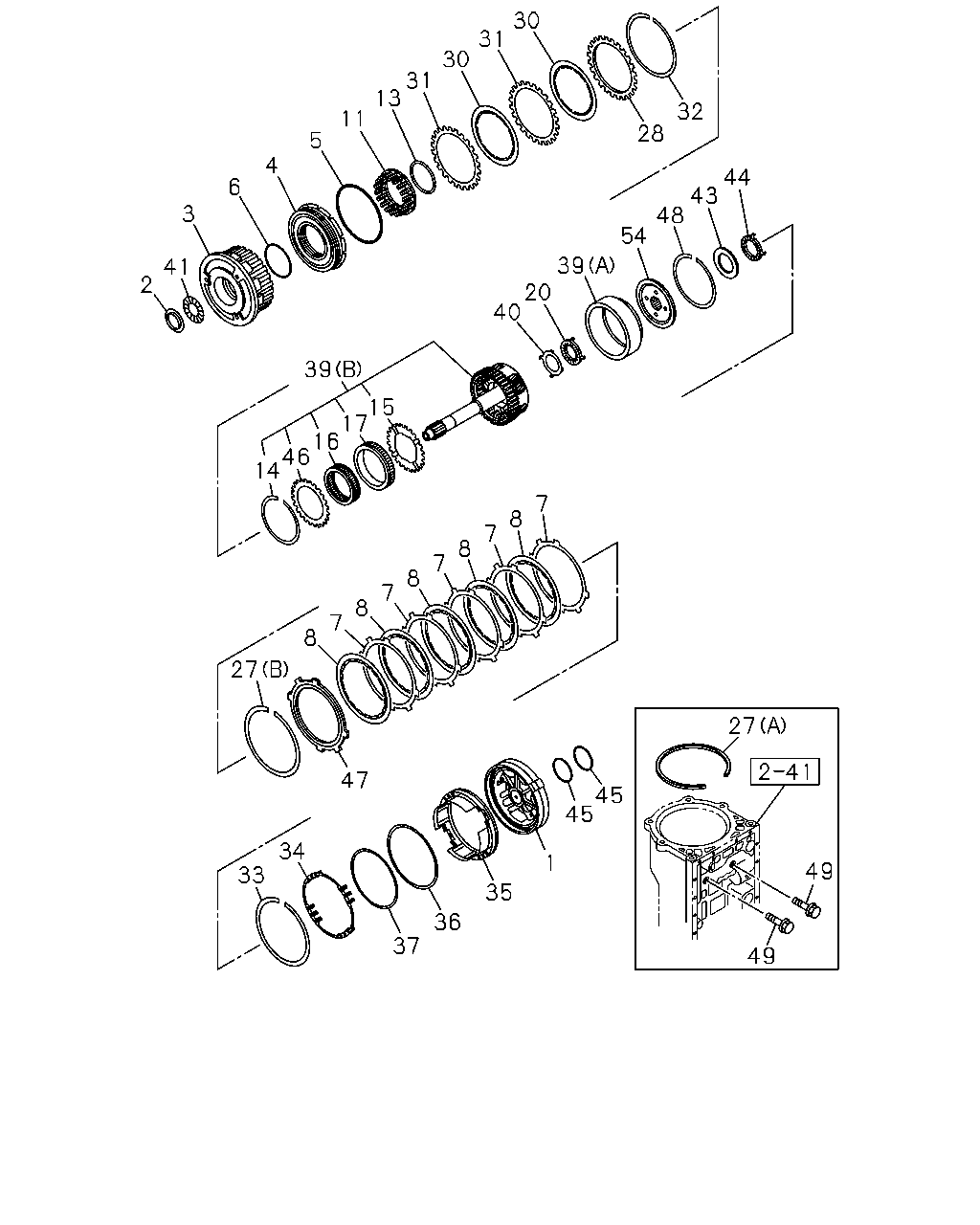

çizim 185409
30 31 30 31 13 32 11 28 5 4 44 43 48 54 6 3 39 20 40 41 2 39 15 17 16 46 14 7 8 7 8 7 8 7 8 7 8 27 27 47 45 45 34 1 49 33 35 36 37 49
BalonParca AdiParca NoAdetTipApplied Date
1 CASE ASM; OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-516-0 01 1 0610-0708
1 CASE ASM; OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-516-0 01 1 0710-
2 RACE; THRUST BRG,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97249-736-0 01 1 0610-0708
2 RACE; THRUST BRG,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97249-736-0 01 1 0710-
3 DRUM; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-556-0 01 1 0610-0708
3 DRUM; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-556-0 01 1 0710-0801
3 DRUM; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-98112-180-0 01 1 0802-
4 PISTON ASM; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-889-0 01 1 0610-0708
4 PISTON ASM; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-889-0 01 1 0710-
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-528-0 01 1 0610-0708
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-528-0 01 1 0710-
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-321-0 01 1 0610-0708
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-321-0 01 1 0710-
7 PLATE; CLU CUSHION
4JJ1-TCX ENG<LS0> THA 		8-97143-124-0 05 1 0610-0708
7 PLATE; CLU CUSHION
4JJ1-TCX ENG<LS0> THA 		8-97143-124-0 05 1 0710-
8 DISC; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-126-0 05 1 0610-0708
8 DISC; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-126-0 05 1 0710-
11 SPRING; CLU RETURN,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-890-0 01 1 0610-0708
11 SPRING; CLU RETURN,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-890-0 01 1 0710-
13 RING; SNAP,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-783-0 01 1 0610-0708
13 RING; SNAP,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-783-0 01 1 0710-
14 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-882-0 01 1 0610-0708
14 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-882-0 01 1 0710-
15 WASHER; THRUST,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-883-0 01 1 0610-0708
15 WASHER; THRUST,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-883-0 01 1 0710-
16 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-545-0 01 1 0610-0708
16 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-545-0 01 1 0710-
17 RACE; ONEWAY CLU,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-885-0 01 1 0610-0708
17 RACE; ONEWAY CLU,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-885-0 01 1 0710-
20 BEARING; THRUST
4JJ1-TCX ENG<LS0> THA 		8-97379-208-0 01 1 0610-0708
20 BEARING; THRUST
4JJ1-TCX ENG<LS0> THA 		8-97379-208-0 01 1 0710-
27 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> (A) THA 		8-94479-859-0 01 1 0610-0708
27 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> (A) THA 		8-94479-859-0 01 1 0710-
27 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-94479-874-0 01 1 0610-0708
27 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-94479-874-0 01 1 0710-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.6 THA 		8-97288-924-0 01 1 0610-0708
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.6 THA 		8-97288-924-0 01 1 0710-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.5 THA 		8-97288-925-0 01 1 0610-0708
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.5 THA 		8-97288-925-0 01 1 0710-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.4 THA 		8-97288-926-0 01 1 0610-0708
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.4 THA 		8-97288-926-0 01 1 0710-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.1 THA 		8-97311-564-0 01 1 0610-0708
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.1 THA 		8-97311-564-0 01 1 0710-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.2 THA 		8-97311-565-0 01 1 0610-0708
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.2 THA 		8-97311-565-0 01 1 0710-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.3 THA 		8-97311-566-0 01 1 0610-0708
28 PLATE; CLU BACKING,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> T=3.3 THA 		8-97311-566-0 01 1 0710-
30 DISC; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-121-0 03 1 1009-
30 DISC; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-121-0 02 1 0610-0708
30 DISC; CLU,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-121-0 02 1 0710-1008
31 PLATE; CUSHION,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-891-0 03 1 1009-
31 PLATE; CUSHION,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-891-0 02 1 0610-0708
31 PLATE; CUSHION,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-891-0 02 1 0710-1008
32 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94250-342-0 01 1 0610-0708
32 RING; RET,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94250-342-0 01 1 0710-
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> ID=160 THA 		8-97184-521-0 01 1 0610-0708
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> ID=160 THA 		8-97184-521-0 01 1 0710-
34 SPRING; BRK RETURN,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-526-0 01 1 0610-0708
34 SPRING; BRK RETURN,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-526-0 01 1 0710-
35 PISTON; BRK,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-552-0 01 1 0610-0708
35 PISTON; BRK,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-98050-552-0 01 1 0710-
36 GASKET; PISTON,OUTER,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-519-0 01 1 0610-0708
36 GASKET; PISTON,OUTER,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-519-0 01 1 0710-
37 GASKET; PISTON,INNER,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-520-0 01 1 0610-0708
37 GASKET; PISTON,INNER,A/T
4JJ1-TCX ENG<LS0> THA 		8-97184-520-0 01 1 0710-
39 GEAR ASM; PLANETARY INTERNAL,A/T
4JJ1-TCX ENG<LS0> (A) THA 		8-94479-876-0 01 1 0610-0708
39 GEAR ASM; PLANETARY INTERNAL,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-98050-553-0 01 1 0610-0708
39 GEAR ASM; PLANETARY INTERNAL,A/T
4JJ1-TCX ENG<LS0> (A) THA 		8-94479-876-0 01 1 0710-
39 GEAR ASM; PLANETARY INTERNAL,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-98050-553-0 01 1 0710-0801
39 GEAR ASM; PLANETARY INTERNAL,A/T
4JJ1-TCX ENG<LS0> (B) THA 		8-98112-206-0 01 1 0802-
40 RACE; THRUST BRG,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97379-207-0 01 1 0610-0708
40 RACE; THRUST BRG,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97379-207-0 01 1 0710-
41 BEARING; THRUST,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97249-734-0 01 1 0610-0708
41 BEARING; THRUST,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97249-734-0 01 1 0710-
43 RACE; THRUST BRG,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-548-0 01 1 0610-0708
43 RACE; THRUST BRG,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-548-0 01 1 0710-
44 BEARING; THRUST,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-547-0 01 1 0610-0708
44 BEARING; THRUST,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-97019-547-0 01 1 0710-
45 RING; SEAL,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-747-0 02 1 0610-0708
45 RING; SEAL,OVERDRIVE,A/T
4JJ1-TCX ENG<LS0> THA 		8-94479-747-0 02 1 0710-
46 PLATE; RET,OVERDRIVE CLU
4JJ1-TCX ENG<LS0> THA 		8-94479-886-0 01 1 0610-0708
46 PLATE; RET,OVERDRIVE CLU
4JJ1-TCX ENG<LS0> THA 		8-94479-886-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.6 THA 		8-97288-916-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.6 THA 		8-97288-916-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.7 THA 		8-97288-917-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.7 THA 		8-97288-917-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.5 THA 		8-97289-106-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.5 THA 		8-97289-106-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.8 THA 		8-97311-560-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.8 THA 		8-97311-560-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.9 THA 		8-97311-561-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.9 THA 		8-97311-561-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=4.0 THA 		8-97311-562-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=4.0 THA 		8-97311-562-0 01 1 0710-
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.3 THA 		8-97311-563-0 01 1 0610-0708
47 FLANGE; OVERDRIVE BRK,A/T
4JJ1-TCX ENG<LS0> T=3.3 THA 		8-97311-563-0 01 1 0710-
48 RING; SNAP,PLANETARY RING GEAR,OD
4JJ1-TCX ENG<LS0> THA 		8-94479-853-0 01 1 0610-0708
48 RING; SNAP,PLANETARY RING GEAR,OD
4JJ1-TCX ENG<LS0> THA 		8-94479-853-0 01 1 0710-
49 BOLT; OVERDRIVE SUPPORT,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-090-0 02 1 0610-0708
49 BOLT; OVERDRIVE SUPPORT,A/T
4JJ1-TCX ENG<LS0> THA 		8-97143-090-0 02 1 0710-
54 FLANGE; PLANETARY RING GEAR,OVERDRIVE
4JJ1-TCX ENG<LS0> THA 		8-97379-206-0 01 1 0610-0708
54 FLANGE; PLANETARY RING GEAR,OVERDRIVE
4JJ1-TCX ENG<LS0> THA 		8-97379-206-0 01 1 0710-
