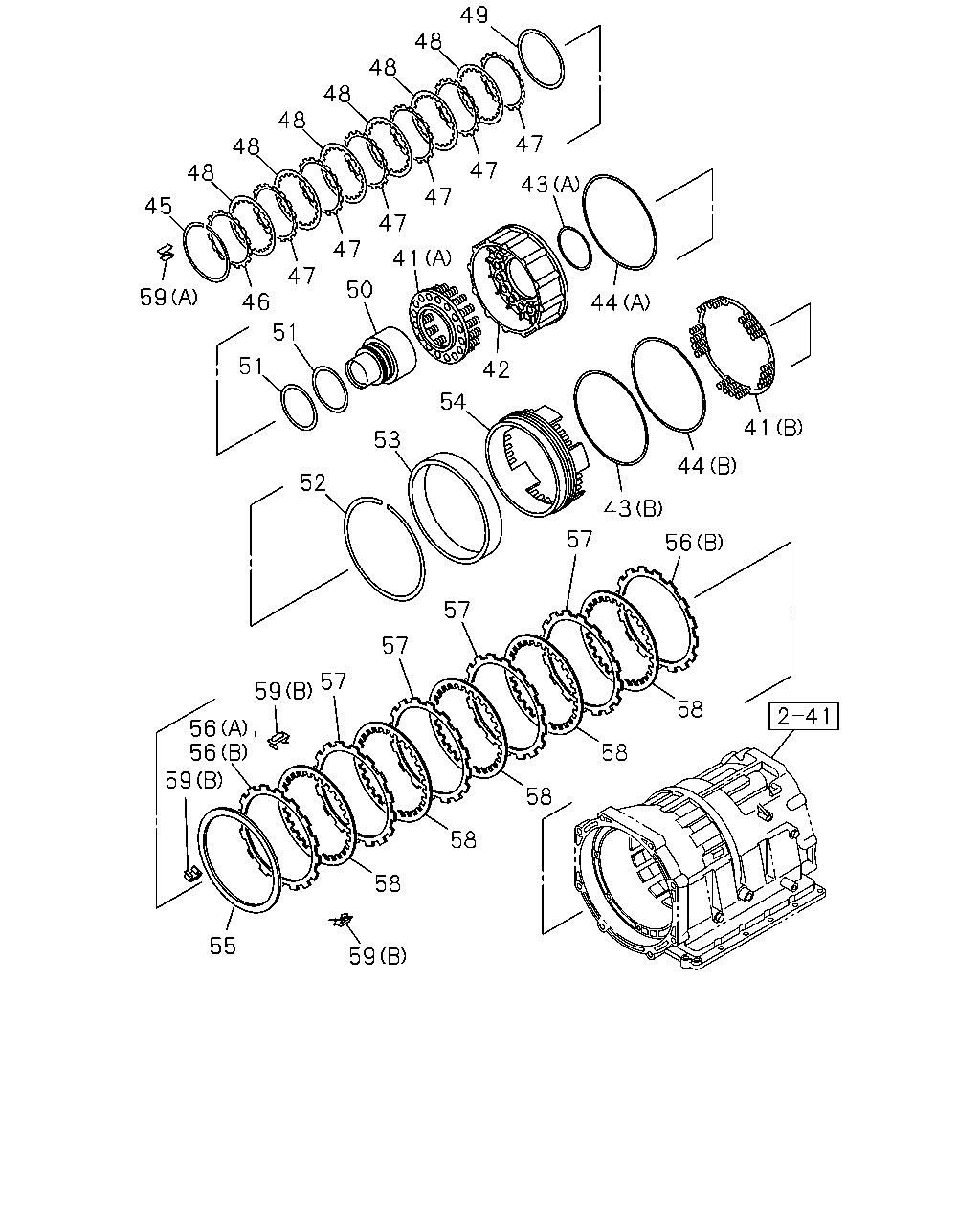

2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#73775) — 69 parça

49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 57 57 57 59 58 56 56 59 58 58 58 58 55 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SPRING; RETURN,PISTON,BRAKE 4JJ1-TCS ENG<LFB> (A) THA	8-97331-047-0	01	1	0411-0606
41	SPRING; RETURN,PISTON,BRAKE 4X2<UCB***> (A) THA	8-97331-047-0	01	1	0810-
41	SPRING; RETURN,PISTON,BRAKE 4JJ1-TCS ENG<LFB> (B) THA	8-97331-048-0	01	1	0411-0606
41	SPRING; RETURN,PISTON,BRAKE 4X2<UCB***> (B) THA	8-97331-048-0	01	1	0810-
42	PISTON; LOW BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-046-0	01	1	0411-0606
42	PISTON; LOW BRAKE 4X2<UCB***> THA	8-97331-046-0	01	1	0810-
43	SEAL; BRAKE PISTON,INNER 4JJ1-TCS ENG<LFB> (A) THA	8-94483-385-0	01	1	0411-0606
43	SEAL; BRAKE PISTON,INNER 4X2<UCB***> (A) THA	8-94483-385-0	01	1	0810-
43	SEAL; BRAKE PISTON,INNER 4JJ1-TCS ENG<LFB> (B) THA	8-97330-992-0	01	1	0411-0606
43	SEAL; BRAKE PISTON,INNER 4X2<UCB***> (B) THA	8-97330-992-0	01	1	0810-
44	SEAL; BRAKE PISTON,OUTER 4JJ1-TCS ENG<LFB> (A) THA	8-94483-382-0	01	1	0411-0606
44	SEAL; BRAKE PISTON,OUTER 4X2<UCB***> (A) THA	8-94483-382-0	01	1	0810-
44	SEAL; BRAKE PISTON,OUTER 4JJ1-TCS ENG<LFB> (B) THA	8-97330-993-0	01	1	0411-0606
44	SEAL; BRAKE PISTON,OUTER 4X2<UCB***> (B) THA	8-97330-993-0	01	1	0810-
45	RING; SNAP,LOW BRAKE PLATE 4JJ1-TCS ENG<LFB> THA	8-97330-964-0	01	1	0411-0606
45	RING; SNAP,LOW BRAKE PLATE 4X2<UCB***> THA	8-97330-964-0	01	1	0810-
46	PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.2 THA	8-97331-051-0	01	1	0411-0606
46	PLATE; RET,LOW BRAKE 4X2<UCB***> T=5.2 THA	8-97331-051-0	01	1	0810-
46	PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.4 THA	8-97331-052-0	01	1	0411-0606
46	PLATE; RET,LOW BRAKE 4X2<UCB***> T=5.4 THA	8-97331-052-0	01	1	0810-
46	PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.6 THA	8-97331-053-0	01	1	0411-0606
46	PLATE; RET,LOW BRAKE 4X2<UCB***> T=5.6 THA	8-97331-053-0	01	1	0810-
46	PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.8 THA	8-97331-054-0	01	1	0411-0606
46	PLATE; RET,LOW BRAKE 4X2<UCB***> T=5.8 THA	8-97331-054-0	01	1	0810-
46	PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=6.0 THA	8-97331-055-0	01	1	0411-0606
46	PLATE; RET,LOW BRAKE 4X2<UCB***> T=6.0 THA	8-97331-055-0	01	1	0810-
47	PLATE; DRIVEN,LOW BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-050-0	06	1	0411-0606
47	PLATE; DRIVEN,LOW BRAKE 4X2<UCB***> THA	8-97331-050-0	06	1	0810-
48	PLATE; DRIVE,LOW BRAKE 4JJ1-TCS ENG<LFB> THA	8-97330-996-0	06	1	0411-0606
48	PLATE; DRIVE,LOW BRAKE 4X2<UCB***> THA	8-97330-996-0	06	1	0810-
49	PLATE; DISHED,LOW BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-001-0	01	1	0411-0606
49	PLATE; DISHED,LOW BRAKE 4X2<UCB***> THA	8-97331-001-0	01	1	0810-
50	SUPPORT; LOW BRAKE 4JJ1-TCS ENG<LFB> THA	8-97330-958-0	01	1	0411-0606
50	SUPPORT; LOW BRAKE 4X2<UCB***> THA	8-97330-958-0	01	1	0810-
51	RING; SEAL,SUPPORT 4JJ1-TCS ENG<LFB> THA	8-97330-982-0	02	1	0411-0606
51	RING; SEAL,SUPPORT 4X2<UCB***> THA	8-97330-982-0	02	1	0810-
52	RING; SNAP,RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> THA	8-97330-972-0	01	1	0411-0606
52	RING; SNAP,RET,2 & 4 BRAKE 4X2<UCB***> THA	8-97330-972-0	01	1	0810-
53	RETAINER; PISTON,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-045-0	01	1	0411-0606
53	RETAINER; PISTON,2 & 4 BRAKE 4X2<UCB***> THA	8-97331-045-0	01	1	0810-
54	PISTON; 2 & 4 BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-042-0	01	1	0411-0606
54	PISTON; 2 & 4 BRAKE 4X2<UCB***> THA	8-97331-042-0	01	1	0810-
55	PLATE; DISHED,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-002-0	01	1	0411-0606
55	PLATE; DISHED,2 & 4 BRAKE 4X2<UCB***> THA	8-97331-002-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=5.6 THA	8-98126-858-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.0 THA	8-97331-025-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=5.0 THA	8-97331-025-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.2 THA	8-97331-026-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=5.2 THA	8-97331-026-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.4 THA	8-97331-027-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=5.4 THA	8-97331-027-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (B) T=5.6 THA	8-97331-028-0	02	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (B) T=5.6 THA	8-97331-028-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.8 THA	8-97331-029-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=5.8 THA	8-97331-029-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=6.0 THA	8-97331-030-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=6.0 THA	8-97331-030-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=6.2 THA	8-97331-031-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=6.2 THA	8-97331-031-0	01	1	0810-
56	PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=6.4 THA	8-97331-032-0	01	1	0411-0606
56	PLATE; RET,2 & 4 BRAKE 4X2<UCB***> (A) T=6.4 THA	8-97331-032-0	01	1	0810-
57	PLATE; DRIVEN,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> THA	8-97331-009-0	04	1	0411-0606
57	PLATE; DRIVEN,2 & 4 BRAKE 4X2<UCB***> THA	8-97331-009-0	04	1	0810-
58	PLATE; DRIVE,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> THA	8-97330-999-0	05	1	0411-0606
58	PLATE; DRIVE,2 & 4 BRAKE 4X2<UCB***> THA	8-97330-999-0	05	1	0810-
59	SPRING; PLATE HOLD 4JJ1-TCS ENG<LFB> (A) THA	8-97331-043-0	01	1	0411-0606
59	SPRING; PLATE HOLD 4X2<UCB***> (A) THA	8-97331-043-0	01	1	0810-
59	SPRING; PLATE HOLD 4JJ1-TCS ENG<LFB> (B) THA	8-97331-044-0	03	1	0411-0606
59	SPRING; PLATE HOLD 4X2<UCB***> (B) THA	8-97331-044-0	03	1	0810-
