2-49 — AUTO TRANS INHIBITOR SWITCH (#73774) — 125 parça

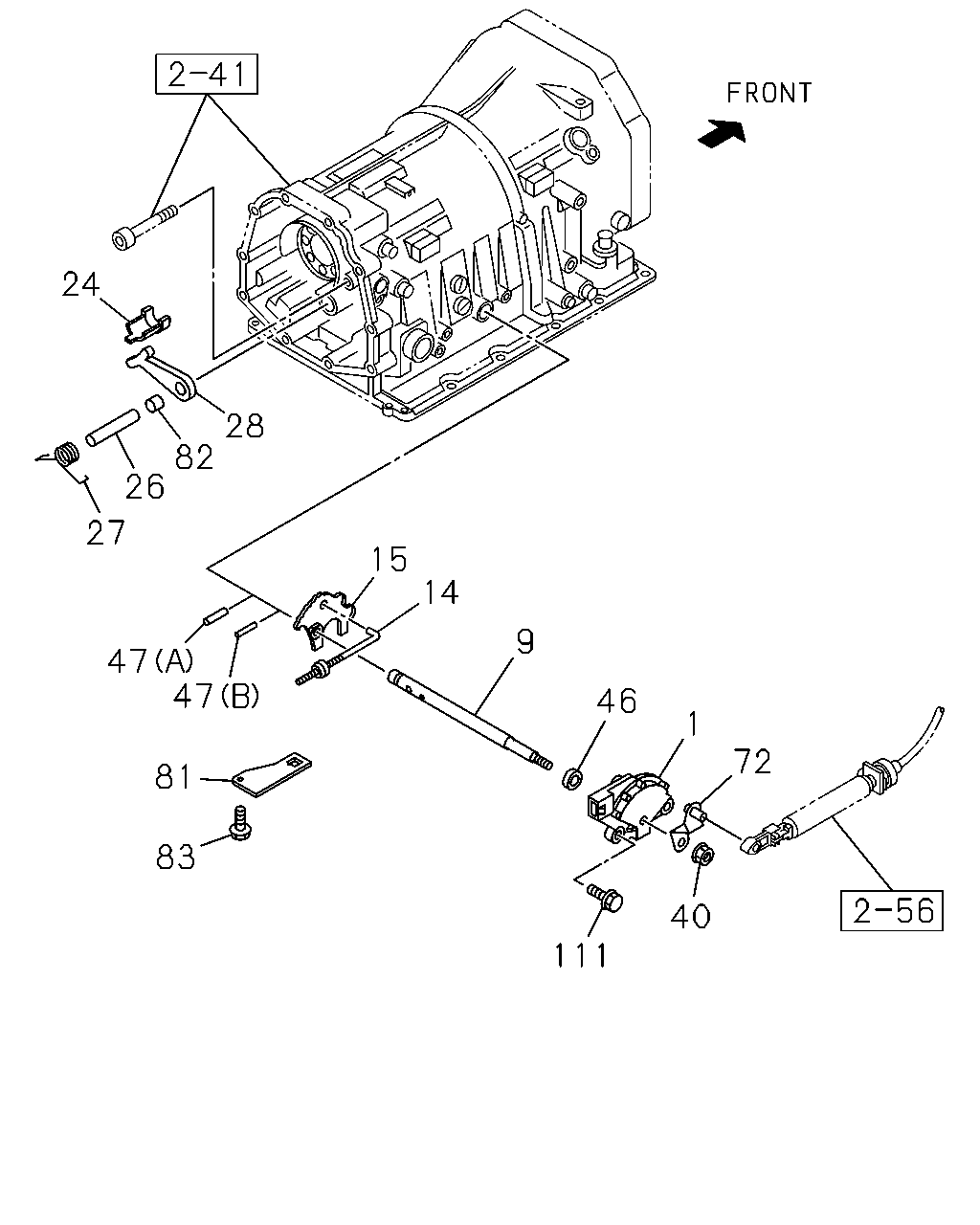

24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; INHIBITOR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-105-0	01	1	0411-0606	●
1	SWITCH; INHIBITOR,A/T 4X2<UCB***> THA	8-97331-105-0	01	1	0810-	●
9	SHAFT; MANUAL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-106-0	01	1	0411-0606	●
9	SHAFT; MANUAL,A/T 4X2<UCB***> THA	8-97331-106-0	01	1	0810-	●
14	ROD ASM; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-114-0	01	1	0411-0606	●
14	ROD ASM; PARKING,A/T 4X2<UCB***> THA	8-97331-114-0	01	1	0810-	●
15	PLATE; MANUAL SHAFT,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-107-0	01	1	0411-0606	●
15	PLATE; MANUAL SHAFT,A/T 4X2<UCB***> THA	8-97331-107-0	01	1	0810-	●
24	SUPPORT; ACTUATOR,A/T 4X2<UCB***> THA	8-98126-857-0	01	1	0810-	●
24	SUPPORT; ACTUATOR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-116-0	01	1	0411-0606	●
26	SHAFT; PARKING PAWL,A/T 4X2<UCB***> THA	8-97331-117-0	01	1	0810-	●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-117-0	01	1	0411-0606	●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0610-0708		●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0710-		●
27	SPRING; PAWL RETURN,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-118-0	01	1	0411-0606	●
27	SPRING; PAWL RETURN,A/T 4X2<UCB***> THA	8-97331-118-0	01	1	0810-	●
28	PAWL; PARKING,A/T 4X2<UCB***> THA	8-98126-855-0	01	1	0810-	●
28	PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-119-0	01	1	0411-0606	●
28	PAWL; PARKING,A/T 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0610-0708		●
28	PAWL; PARKING,A/T 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0710-		●
40	NUT; LEVER TO SHAFT 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0810-	●
40	NUT; LEVER TO SHAFT 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0411-0606	●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0610-0708		●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0710-1008		●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	1009-		●
46	SEAL; OIL 4X2<UCB***> THA	8-97330-908-0	01	1	0810-	●
46	SEAL; OIL 4JJ1-TCS ENG<LFB> THA	8-97330-908-0	01	1	0411-0606	●
46	SEAL; OIL 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0610-0708		●
46	SEAL; OIL 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0710-		●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (A) THA	8-97331-125-0	01	1	0411-0606	●
47	PIN; ROLL SHAFT 4X2<UCB***> (A) THA	8-97331-125-0	01	1	0810-	●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (B) THA	8-97331-126-0	01	1	0411-0606	●
47	PIN; ROLL SHAFT 4X2<UCB***> (B) THA	8-97331-126-0	01	1	0810-	●
47	PIN; ROLL SHAFT 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0610-0708		●
47	PIN; ROLL SHAFT 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0710-		●
72	LEVER; SELECT CONT 4JJ1-TCS ENG<LFB> THA	8-97231-904-1	01	1	0810-	●
72	LEVER; SELECT CONT 4JJ1-TCS ENG<LFB> THA	8-97231-904-1	01	1	0411-0606	●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0610-0708		●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0710-1008		●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	1009-		●
81	SPRING; DETENT,MANUAL CONT PLATE 4JJ1-TCS ENG<LFB> THA	8-97331-113-0	01	1	0411-0606	●
81	SPRING; DETENT,MANUAL CONT PLATE 4X2<UCB***> THA	8-97331-113-0	01	1	0810-	●
82	SPACER; DETENT SPRING 4JJ1-TCS ENG<LFB> THA	8-97330-950-0	01	1	0411-0606	●
82	SPACER; DETENT SPRING 4X2<UCB***> THA	8-97330-950-0	01	1	0810-	●
83	SCREW; DETENT SPRING,MANUAL CONT PLATE 4JJ1-TCS ENG<LFB> THA	8-97331-124-0	01	1	0411-0606	●
111	BOLT; INHIBITOR SW 4X2<UCB***> THA	8-97331-127-0	02	1	0810-	●
111	BOLT; INHIBITOR SW 4JJ1-TCS ENG<LFB> THA	8-97331-127-0	02	1	0411-0606	●

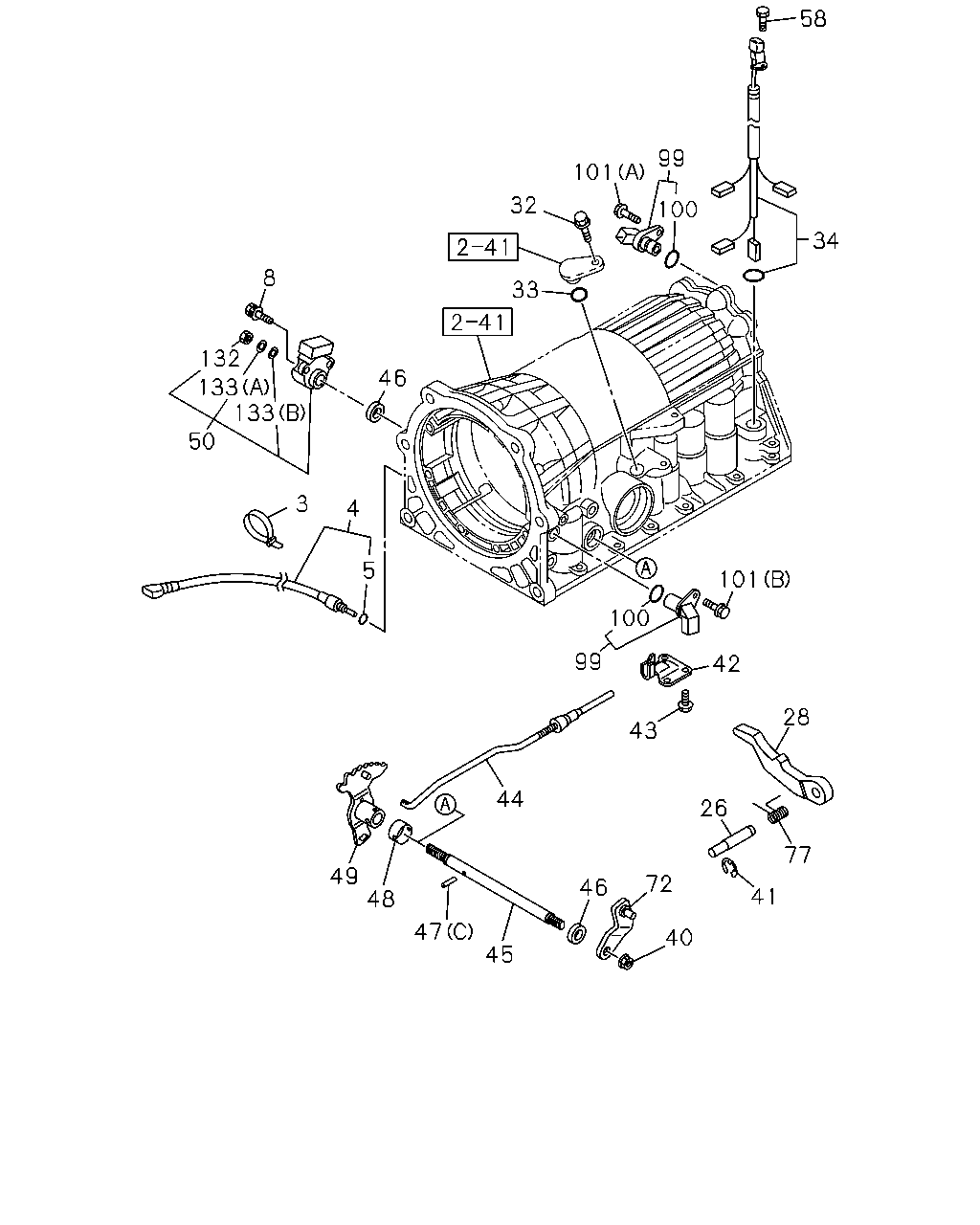

58 99 101 32 100 34 8 33 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; INHIBITOR SW,A/T 4JJ1-TCX ENG<LS0> THA	8-94473-565-0	01	1	0610-0708		●
3	CLIP; INHIBITOR SW,A/T 4JJ1-TCX ENG<LS0> THA	8-94473-565-0	01	1	0710-		●
4	SENSOR; THERMO,A/T OIL 4JJ1-TCX ENG<LS0> THA	8-97331-531-0	01	1	0610-0708		●
4	SENSOR; THERMO,A/T OIL 4JJ1-TCX ENG<LS0> THA	8-97331-531-0	01	1	0710-		●
5	GASKET; OIL THERMO SENSOR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-726-0	01	1	0610-0708		●
5	GASKET; OIL THERMO SENSOR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-726-0	01	1	0710-		●
8	BOLT; NEUTRAL START SW,A/T 4JJ1-TCX ENG<LS0> M8X30 THA	8-97130-929-0	01	1	0610-0708		●
8	BOLT; NEUTRAL START SW,A/T 4JJ1-TCX ENG<LS0> M8X30 THA	8-97130-929-0	01	1	0710-		●
26	SHAFT; PARKING PAWL,A/T 4X2<UCB***> THA	8-97331-117-0	01	1	0810-	●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-117-0	01	1	0411-0606	●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0610-0708		●
26	SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-975-0	01	1	0710-		●
28	PAWL; PARKING,A/T 4X2<UCB***> THA	8-98126-855-0	01	1	0810-	●
28	PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-119-0	01	1	0411-0606	●
28	PAWL; PARKING,A/T 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0610-0708		●
28	PAWL; PARKING,A/T 4JJ1-TCX ENG<LS0> THA	8-97143-087-0	01	1	0710-		●
32	BOLT; THROTTLE CABLE 4X2<UCB***> 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0610-0708		●
32	BOLT; THROTTLE CABLE 4X2<UCB***> 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0710-1008		●
33	GASKET; THROTTLE CABLE 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94364-922-0	01	1	0610-0708		●
33	GASKET; THROTTLE CABLE 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94364-922-0	01	1	0710-1008		●
34	SOLENOID ASM; A/T 4JJ1-TCX ENG<LS0> THA	8-98050-495-0	01	1	0610-0708		●
34	SOLENOID ASM; A/T 4JJ1-TCX ENG<LS0> THA	8-98050-495-0	01	1	0710-		●
40	NUT; LEVER TO SHAFT 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0810-	●
40	NUT; LEVER TO SHAFT 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0411-0606	●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0610-0708		●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	0710-1008		●
40	NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-108-0	01	1	1009-		●
41	RETAINER; SPR,SHAFT 4JJ1-TCX ENG<LS0> THA	5-34488-002-0	01	1	0610-0708		●
41	RETAINER; SPR,SHAFT 4JJ1-TCX ENG<LS0> THA	5-34488-002-0	01	1	0710-		●
42	BRACKET; PARKING LOCK 4JJ1-TCX ENG<LS0> THA	8-97126-815-0	01	1	0610-0708		●
42	BRACKET; PARKING LOCK 4JJ1-TCX ENG<LS0> THA	8-97126-815-0	01	1	0710-		●
43	BOLT; BRKT 4JJ1-TCX ENG<LS0> M6X14 THA	8-94479-978-0	03	1	0610-0708		●
43	BOLT; BRKT 4JJ1-TCX ENG<LS0> M6X14 THA	8-94479-978-0	03	1	0710-		●
44	ROD ASM; PARKING PAWL 4JJ1-TCX ENG<LS0> THA	8-98050-534-0	01	1	0610-0708		●
44	ROD ASM; PARKING PAWL 4JJ1-TCX ENG<LS0> THA	8-98050-534-0	01	1	0710-		●
45	SHAFT; VALVE LEVER 4JJ1-TCX ENG<LS0> THA	8-97025-848-0	01	1	0610-0708		●
45	SHAFT; VALVE LEVER 4JJ1-TCX ENG<LS0> THA	8-97025-848-0	01	1	0710-		●
46	SEAL; OIL 4X2<UCB***> THA	8-97330-908-0	01	1	0810-	●
46	SEAL; OIL 4JJ1-TCS ENG<LFB> THA	8-97330-908-0	01	1	0411-0606	●
46	SEAL; OIL 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0610-0708		●
46	SEAL; OIL 4JJ1-TCX ENG<LS0> OD=22 THA	8-94479-740-0	02	1	0710-		●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (A) THA	8-97331-125-0	01	1	0411-0606	●
47	PIN; ROLL SHAFT 4X2<UCB***> (A) THA	8-97331-125-0	01	1	0810-	●
47	PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (B) THA	8-97331-126-0	01	1	0411-0606	●
47	PIN; ROLL SHAFT 4X2<UCB***> (B) THA	8-97331-126-0	01	1	0810-	●
47	PIN; ROLL SHAFT 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0610-0708		●
47	PIN; ROLL SHAFT 4JJ1-TCX ENG<LS0> (C) D=4 THA	8-94257-081-0	01	1	0710-		●
48	COVER; SLEEVE 4JJ1-TCX ENG<LS0> THA	8-97362-483-0	01	1	0610-0708		●
48	COVER; SLEEVE 4JJ1-TCX ENG<LS0> THA	8-97362-483-0	01	1	0710-		●
49	LEVER ASM; CAM 4JJ1-TCX ENG<LS0> THA	8-97331-535-0	01	1	0610-0708		●
49	LEVER ASM; CAM 4JJ1-TCX ENG<LS0> THA	8-97331-535-0	01	1	0710-		●
50	SWITCH; NEUTRAL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-138-0	01	1	0610-0708		●
50	SWITCH; NEUTRAL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-138-0	01	1	0710-		●
58	BOLT; SOLENOID TO A/T 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0610-0708		●
58	BOLT; SOLENOID TO A/T 4JJ1-TCX ENG<LS0> M6X16 THA	8-94479-712-0	01	1	0710-		●
72	LEVER; SELECT CONT 4JJ1-TCS ENG<LFB> THA	8-97231-904-1	01	1	0810-	●
72	LEVER; SELECT CONT 4JJ1-TCS ENG<LFB> THA	8-97231-904-1	01	1	0411-0606	●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0610-0708		●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0710-1008		●
72	LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	1009-		●
77	SPRING; TORSION,PARKING BRK LK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-976-0	01	1	0610-0708		●
77	SPRING; TORSION,PARKING BRK LK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-976-0	01	1	0710-		●
99	SENSOR; SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	02	1	0710-1008		●
99	SENSOR; SPD 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	02	1	1009-		●
99	SENSOR; SPD 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	01	1	0610-0708		●
99	SENSOR; SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97027-383-0	01	1	0710-1008		●
100	GASKET; SPD SENSOR 4JJ1-TCX ENG<LS0> THA	8-97027-197-0	02	1	0610-0708		●
100	GASKET; SPD SENSOR 4JJ1-TCX ENG<LS0> THA	8-97027-197-0	02	1	0710-		●
101	BOLT; SPD SENSOR 4JJ1-TCX ENG<LS0> (A) M6X16 THA	8-94479-712-0	01	1	0610-0708		●
101	BOLT; SPD SENSOR 4JJ1-TCX ENG<LS0> (A) M6X16 THA	8-94479-712-0	01	1	0710-		●
101	BOLT; SPD SENSOR 4JJ1-TCX ENG<LS0> (B) M6X14 THA	8-94479-978-0	01	1	0610-0708		●
101	BOLT; SPD SENSOR 4JJ1-TCX ENG<LS0> (B) M6X14 THA	8-94479-978-0	01	1	0710-		●
132	NUT; SWITCH 4JJ1-TCX ENG<LS0> M16 THA	8-97354-883-0	01	1	0610-0708		●
132	NUT; SWITCH 4JJ1-TCX ENG<LS0> M16 THA	8-97354-883-0	01	1	0710-		●
133	WASHER; SWITCH 4JJ1-TCX ENG<LS0> (B) THA	8-97354-888-0	01	1	0610-0708		●
133	WASHER; SWITCH 4JJ1-TCX ENG<LS0> (B) THA	8-97354-888-0	01	1	0710-		●
133	WASHER; SWITCH 4JJ1-TCX ENG<LS0> (A) ID=16 THA	8-97354-889-0	01	1	0610-0708		●
133	WASHER; SWITCH 4JJ1-TCX ENG<LS0> (A) ID=16 THA	8-97354-889-0	01	1	0710-		●
