2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#73773) — 128 parça

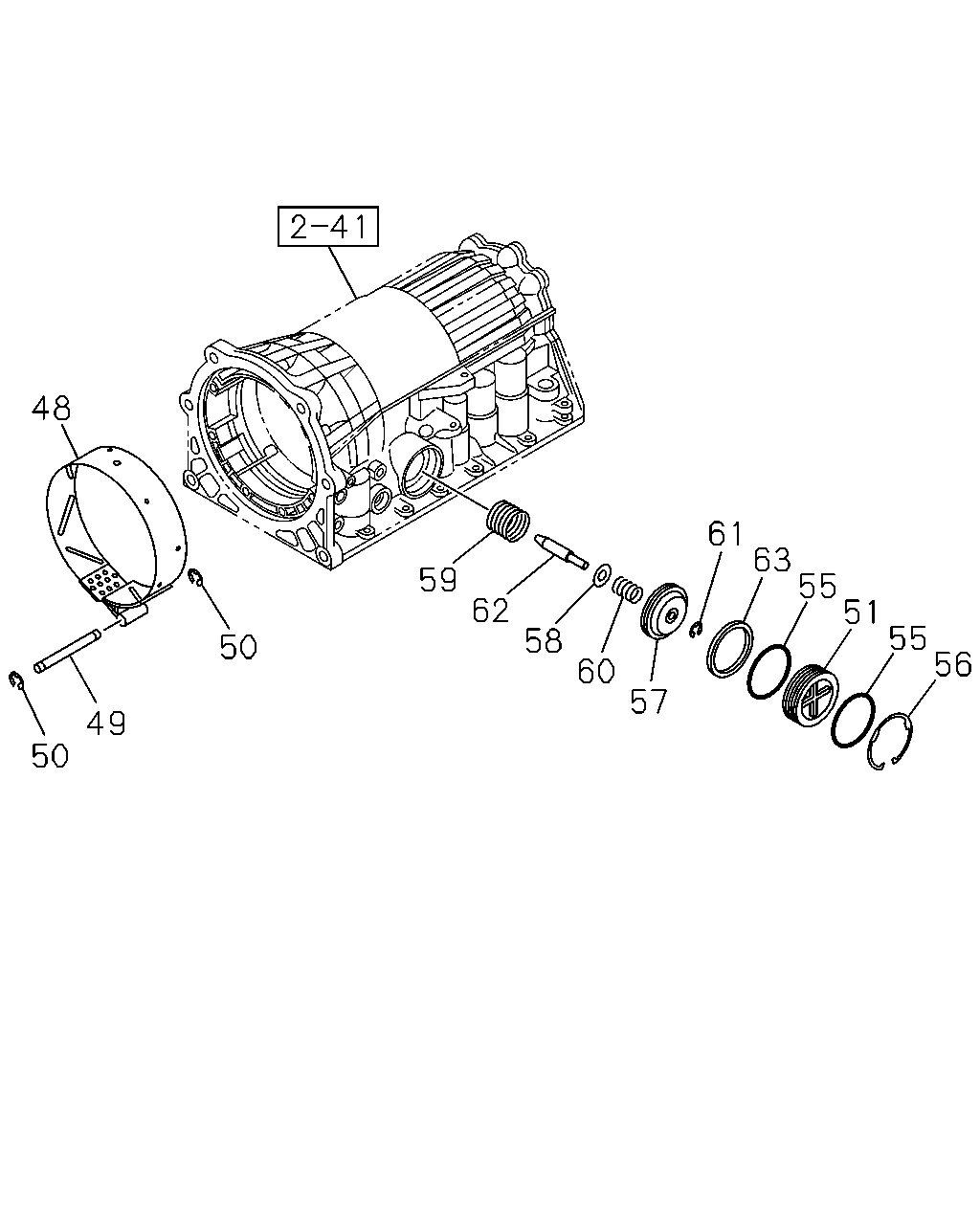

48 61 63 55 51 55 56 59 62 58 50 60 57 49 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BAND; 2ND COAST BRK 4JJ1-TCX ENG<LS0> THA	8-97143-086-0	01	1	0610-0708
48	BAND; 2ND COAST BRK 4JJ1-TCX ENG<LS0> THA	8-97143-086-0	01	1	0710-
49	PIN; 2ND COAST BRK BAND 4JJ1-TCX ENG<LS0> THA	8-94479-825-0	01	1	0610-0708
49	PIN; 2ND COAST BRK BAND 4JJ1-TCX ENG<LS0> THA	8-94479-825-0	01	1	0710-
50	RING; SNAP,2ND COAST BRK BAND,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-818-0	02	1	0610-0708
50	RING; SNAP,2ND COAST BRK BAND,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-818-0	02	1	0710-
51	COVER; 2ND COAST BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-97331-546-0	01	1	0610-0708
51	COVER; 2ND COAST BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-97331-546-0	01	1	0710-
55	GASKET; COVER,2ND COAST BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-824-0	02	1	0610-0708
55	GASKET; COVER,2ND COAST BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-824-0	02	1	0710-
56	RING; SNAP,2ND COAST BRK COVER,A/T 4JJ1-TCX ENG<LS0> THA	8-97069-458-0	01	1	0610-0708
56	RING; SNAP,2ND COAST BRK COVER,A/T 4JJ1-TCX ENG<LS0> THA	8-97069-458-0	01	1	0710-
57	PISTON; 2ND COAST BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-97331-542-0	01	1	0610-0708
57	PISTON; 2ND COAST BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-97331-542-0	01	1	0710-
58	WASHER; 2ND COAST BRK PISTON,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-817-0	01	1	0610-0708
58	WASHER; 2ND COAST BRK PISTON,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-817-0	01	1	0710-
59	SPRING; OUTER,2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-94479-812-0	01	1	0610-0708
59	SPRING; OUTER,2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-94479-812-0	01	1	0710-
60	SPRING; INNER,2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-97331-545-0	01	1	0610-0708
60	SPRING; INNER,2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-97331-545-0	01	1	0710-
61	RING; SNAP,2ND COAST BRK 4JJ1-TCX ENG<LS0> THA	8-94479-818-0	01	1	0610-0708
61	RING; SNAP,2ND COAST BRK 4JJ1-TCX ENG<LS0> THA	8-94479-818-0	01	1	0710-
62	ROD; 2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> L=78.4 THA	8-97331-543-0	01	1	0610-0708
62	ROD; 2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> L=79.9 THA	8-97331-544-0	01	1	0610-0708
62	ROD; 2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> L=78.4 THA	8-97331-543-0	01	1	0710-
62	ROD; 2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> L=79.9 THA	8-97331-544-0	01	1	0710-
63	RING; SEAL,2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-94479-813-0	01	1	0610-0708
63	RING; SEAL,2ND COAST BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-94479-813-0	01	1	0710-

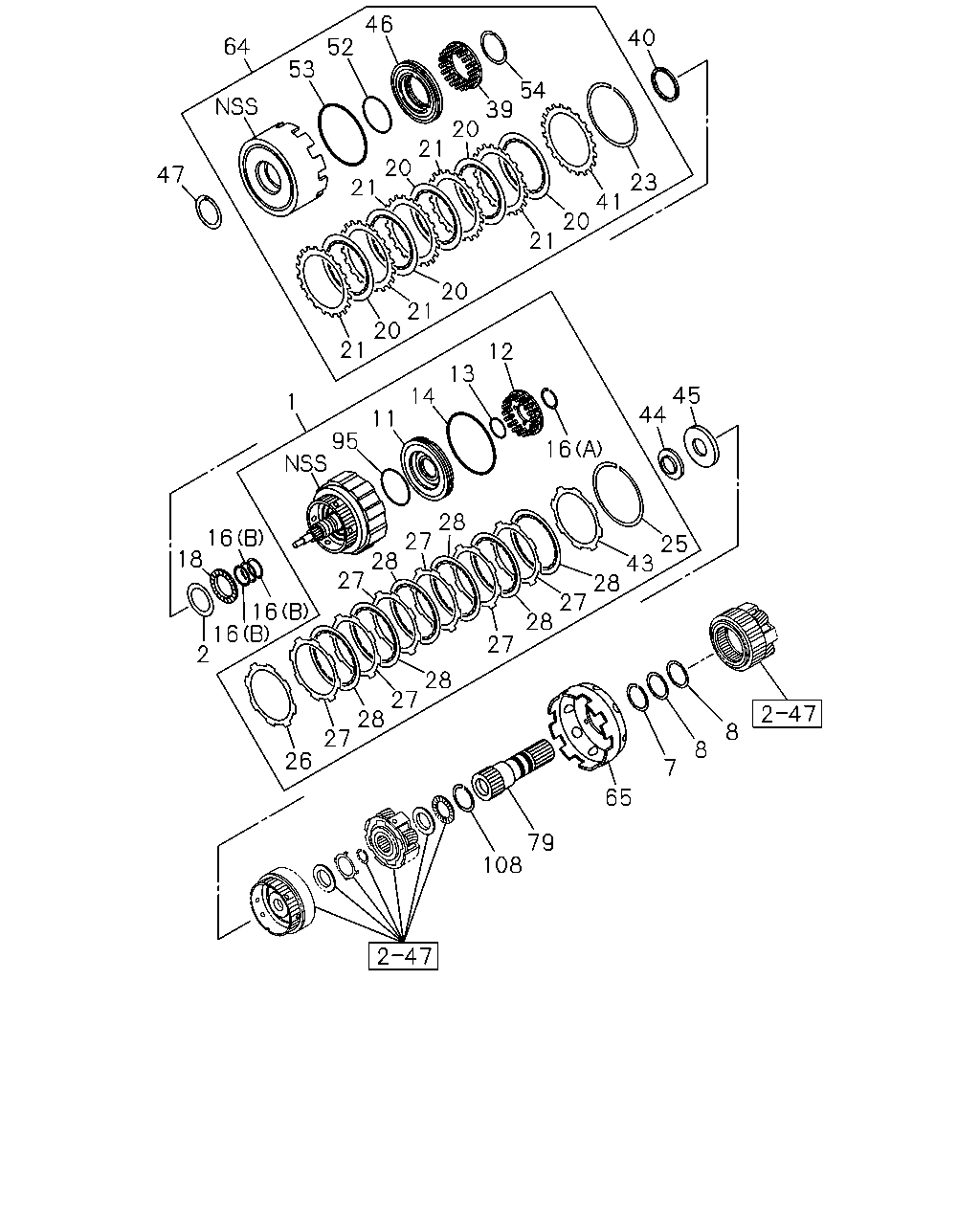

46 40 64 52 53 54 39 20 21 20 47 23 21 41 20 21 20 21 20 21 12 13 45 44 14 1 11 95 16 28 27 28 27 16 18 25 43 28 27 28 16 16 2 27 28 27 28 27 8 8 26 7 65 79 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HUB ASM; CLU,INPUT SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-038-0	01	1	0610-0708
1	HUB ASM; CLU,INPUT SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-038-0	01	1	0710-0801
1	HUB ASM; CLU,INPUT SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-237-0	01	1	0802-
2	RACE; THRUST BRG,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-763-0	01	1	0610-0708
2	RACE; THRUST BRG,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-763-0	01	1	0710-
7	RING; RET,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-844-0	01	1	0610-0708
7	RING; RET,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-844-0	01	1	0710-
8	RING; SEAL,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94166-003-0	02	1	0610-0708
8	RING; SEAL,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94166-003-0	02	1	0710-
11	PISTON ASM; CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-055-0	01	1	0610-0708
11	PISTON ASM; CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-055-0	01	1	0710-
12	SPRING; CLU RETURN,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-770-0	01	1	0610-0708
12	SPRING; CLU RETURN,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-770-0	01	1	0710-
13	GASKET; INNER,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-919-0	01	1	0610-0708
13	GASKET; INNER,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-919-0	01	1	0710-
14	GASKET; OUTER,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-920-0	01	1	0610-0708
14	GASKET; OUTER,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-920-0	01	1	0710-
16	RING; SNAP,CLU,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-769-0	01	1	0610-0708
16	RING; SNAP,CLU,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-769-0	01	1	0710-
16	RING; SNAP,CLU,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-94479-775-0	03	1	0610-0708
16	RING; SNAP,CLU,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-94479-775-0	03	1	0710-
18	BEARING; THRUST,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-764-0	01	1	0610-0708
18	BEARING; THRUST,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-764-0	01	1	0710-
20	DISC; CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-540-0	05	1	0610-0708
20	DISC; CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-540-0	05	1	0710-
21	DISC ASM; CLU & FACING,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-057-0	05	1	0610-0708
21	DISC ASM; CLU & FACING,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-057-0	05	1	0710-
23	RING; RET,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97214-553-0	01	1	0610-0708
23	RING; RET,CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97214-553-0	01	1	0710-
25	RING; RET,BACKING PLATE,A/T 4JJ1-TCX ENG<LS0> THA	8-94250-342-0	01	1	0610-0708
25	RING; RET,BACKING PLATE,A/T 4JJ1-TCX ENG<LS0> THA	8-94250-342-0	01	1	0710-
26	PLATE; CLU,BACKING,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-772-0	01	1	0610-0708
26	PLATE; CLU,BACKING,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-772-0	01	1	0710-
27	DISC ASM; CLU & FACING,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-058-0	06	1	0610-0708
27	DISC ASM; CLU & FACING,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-058-0	06	1	0710-
28	DISC; CLU,A/T 4JJ1-TCX ENG<LS0> T=1.7 THA	8-97232-041-0	06	1	1009-
28	DISC; CLU,A/T 4JJ1-TCX ENG<LS0> T=3.6 THA	8-97232-043-0	06	1	0610-0708
28	DISC; CLU,A/T 4JJ1-TCX ENG<LS0> T=3.6 THA	8-97232-043-0	06	1	0710-1008
39	SPRING; DIRECT CLU RETURN 4JJ1-TCX ENG<LS0> THA	8-97019-543-0	01	1	0610-0708
39	SPRING; DIRECT CLU RETURN 4JJ1-TCX ENG<LS0> THA	8-97019-543-0	01	1	0710-
40	WASHER; THRUST,CLU DRUM,INPUT SHAFT 4JJ1-TCX ENG<LS0> THA	8-94479-796-0	01	1	0610-0708
40	WASHER; THRUST,CLU DRUM,INPUT SHAFT 4JJ1-TCX ENG<LS0> THA	8-94479-796-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.3 THA	8-97288-908-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.3 THA	8-97288-908-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.4 THA	8-97288-909-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.4 THA	8-97288-909-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.5 THA	8-97288-910-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.5 THA	8-97288-910-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.6 THA	8-97288-911-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.6 THA	8-97288-911-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.7 THA	8-97288-912-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.7 THA	8-97288-912-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.8 THA	8-97288-913-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=3.8 THA	8-97288-913-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=4.0 THA	8-97331-540-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=4.0 THA	8-97331-540-0	01	1	0710-
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=4.2 THA	8-97331-541-0	01	1	0610-0708
41	FLANGE; DIRECT CLU 4JJ1-TCX ENG<LS0> T=4.2 THA	8-97331-541-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.6 THA	8-97232-043-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.6 THA	8-97232-043-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.8 THA	8-97232-044-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.8 THA	8-97232-044-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=4.0 THA	8-97232-045-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=4.0 THA	8-97232-045-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.2 THA	8-97232-046-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.2 THA	8-97232-046-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.4 THA	8-97232-047-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.4 THA	8-97232-047-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.0 THA	8-97331-537-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=3.0 THA	8-97331-537-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=4.2 THA	8-97331-538-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=4.2 THA	8-97331-538-0	01	1	0710-
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=4.4 THA	8-97331-539-0	01	1	0610-0708
43	FLANGE; FWD CLU 4JJ1-TCX ENG<LS0> T=4.4 THA	8-97331-539-0	01	1	0710-
44	BEARING; THRUST,INPUT SHAFT RR 4JJ1-TCX ENG<LS0> THA	8-98050-537-0	01	1	0610-0708
44	BEARING; THRUST,INPUT SHAFT RR 4JJ1-TCX ENG<LS0> THA	8-98050-537-0	01	1	0710-
45	RACE; THRUST BRG,INPUT SHAFT 4JJ1-TCX ENG<LS0> THA	8-98050-536-0	01	1	0610-0708
45	RACE; THRUST BRG,INPUT SHAFT 4JJ1-TCX ENG<LS0> THA	8-98050-536-0	01	1	0710-
46	PISTON; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-921-0	01	1	0610-0708
46	PISTON; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-921-0	01	1	0710-
47	WASHER; THRUST,DIRECT CLU DRUM 4JJ1-TCX ENG<LS0> THA	8-94479-779-0	01	1	0610-0708
47	WASHER; THRUST,DIRECT CLU DRUM 4JJ1-TCX ENG<LS0> THA	8-94479-779-0	01	1	0710-
52	GASKET; PISTON INNER,DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-321-0	01	1	0610-0708
52	GASKET; PISTON INNER,DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-321-0	01	1	0710-
53	GASKET; PISTON OUTER,DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-920-0	01	1	0610-0708
53	GASKET; PISTON OUTER,DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-920-0	01	1	0710-
54	RING; SNAP,PISTON RETURN SPRING 4JJ1-TCX ENG<LS0> THA	8-94479-783-0	01	1	0610-0708
54	RING; SNAP,PISTON RETURN SPRING 4JJ1-TCX ENG<LS0> THA	8-94479-783-0	01	1	0710-
64	DRUM ASM; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-538-0	01	1	0610-0708
64	DRUM ASM; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-538-0	01	1	0710-0801
64	DRUM ASM; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-190-0	01	1	0802-
65	DRUM; SUN GEAR INPUT 4JJ1-TCX ENG<LS0> THA	8-97024-255-0	01	1	0610-0708
65	DRUM; SUN GEAR INPUT 4JJ1-TCX ENG<LS0> THA	8-97024-255-0	01	1	0710-
79	GEAR ASM; INPUT SUN 4JJ1-TCX ENG<LS0> THA	8-98056-397-0	01	1	0610-0708
79	GEAR ASM; INPUT SUN 4JJ1-TCX ENG<LS0> THA	8-98056-397-0	01	1	0710-0801
79	GEAR ASM; INPUT SUN 4JJ1-TCX ENG<LS0> THA	8-98112-182-0	01	1	0802-
95	GASKET; CLU HUB 4JJ1-TCX ENG<LS0> THA	8-97122-978-0	01	1	0610-0708
95	GASKET; CLU HUB 4JJ1-TCX ENG<LS0> THA	8-97122-978-0	01	1	0710-
108	RING; SNAP,SUN GEAR 4JJ1-TCX ENG<LS0> THA	8-94479-845-0	01	1	0610-0708
108	RING; SNAP,SUN GEAR 4JJ1-TCX ENG<LS0> THA	8-94479-845-0	01	1	0710-
