Sayfa 2-47 - Isuzu EPC

2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#73772) — 182 parça

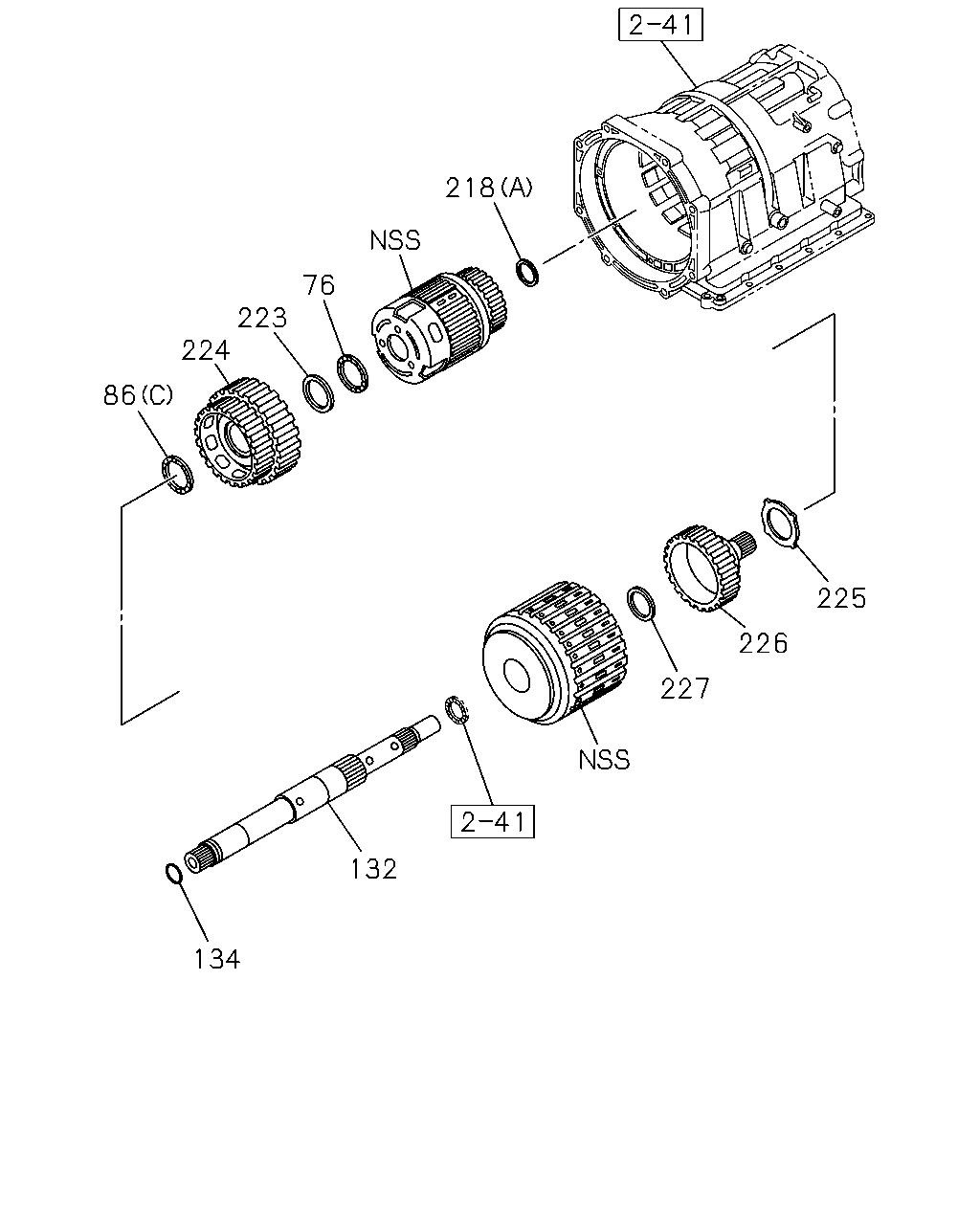

218 76 223 224 86 225 226 227 132 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
76	BEARING; THRUST,CARRIER 4JJ1-TCS ENG<LFB> THA	8-97330-927-0	01	1	0411-0606	●
76	BEARING; THRUST,CARRIER 4X2<UCB***> THA	8-97330-927-0	01	1	0810-	●
86	BEARING; THRUST,SUN GEAR 4JJ1-TCS ENG<LFB> (A) THA	8-97330-919-0	01	1	0411-0606	●
86	BEARING; THRUST,SUN GEAR 4X2<UCB***> (A) THA	8-97330-919-0	01	1	0810-	●
86	BEARING; THRUST,SUN GEAR 4JJ1-TCS ENG<LFB> (B) THA	8-97330-920-0	01	1	0411-0606	●
86	BEARING; THRUST,SUN GEAR 4X2<UCB***> (B) THA	8-97330-920-0	01	1	0810-	●
86	BEARING; THRUST,SUN GEAR 4JJ1-TCS ENG<LFB> (C) THA	8-97330-926-0	01	1	0411-0606	●
86	BEARING; THRUST,SUN GEAR 4X2<UCB***> (C) THA	8-97374-016-0	01	1	0810-	●
132	SHAFT; INPUT,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-931-0	01	1	0411-0606	●
132	SHAFT; INPUT,A/T 4X2<UCB***> THA	8-97330-931-0	01	1	0810-	●
134	SEAL; INPUT SHAFT,FRT 4JJ1-TCS ENG<LFB> THA	8-97331-697-0	01	1	0411-0606	●
134	SEAL; INPUT SHAFT,FRT 4X2<UCB***> THA	8-97331-697-0	01	1	0810-	●
218	BEARING; THRUST,INTERNAL GEAR 4JJ1-TCS ENG<LFB> (A) THA	8-97330-928-0	01	1	0411-0606	●
218	BEARING; THRUST,INTERNAL GEAR 4X2<UCB***> (A) THA	8-97330-928-0	01	1	0810-	●
218	BEARING; THRUST,INTERNAL GEAR 4JJ1-TCS ENG<LFB> (B) THA	8-97330-938-0	01	1	0411-0606	●
218	BEARING; THRUST,INTERNAL GEAR 4X2<UCB***> (B) THA	8-97330-938-0	01	1	0810-	●
223	RACE; BRG,CARRIER 4JJ1-TCS ENG<LFB> THA	8-97330-946-0	01	1	0411-0606	●
223	RACE; BRG,CARRIER 4X2<UCB***> THA	8-97330-946-0	01	1	0810-	●
224	GEAR ASM; SUN,FRT 4JJ1-TCS ENG<LFB> THA	8-97357-796-0	01	1	0411-0606	●
224	GEAR ASM; SUN,FRT 4X2<UCB***> THA	8-97374-015-0	01	1	0810-	●
225	RACE; BRG,SUN GEAR 4JJ1-TCS ENG<LFB> THA	8-97330-949-0	01	1	0411-0606	●
225	RACE; BRG,SUN GEAR 4X2<UCB***> THA	8-97330-949-0	01	1	0810-	●
226	HUB; HIGH CLUTCH 4JJ1-TCS ENG<LFB> THA	8-97331-038-0	01	1	0411-0606	●
226	HUB; HIGH CLUTCH 4X2<UCB***> THA	8-97331-038-0	01	1	0810-	●
227	BEARING; HUB,HIGH CLUTCH 4JJ1-TCS ENG<LFB> THA	8-97330-925-0	01	1	0411-0606	●
227	BEARING; HUB,HIGH CLUTCH 4X2<UCB***> THA	8-97330-925-0	01	1	0810-	●

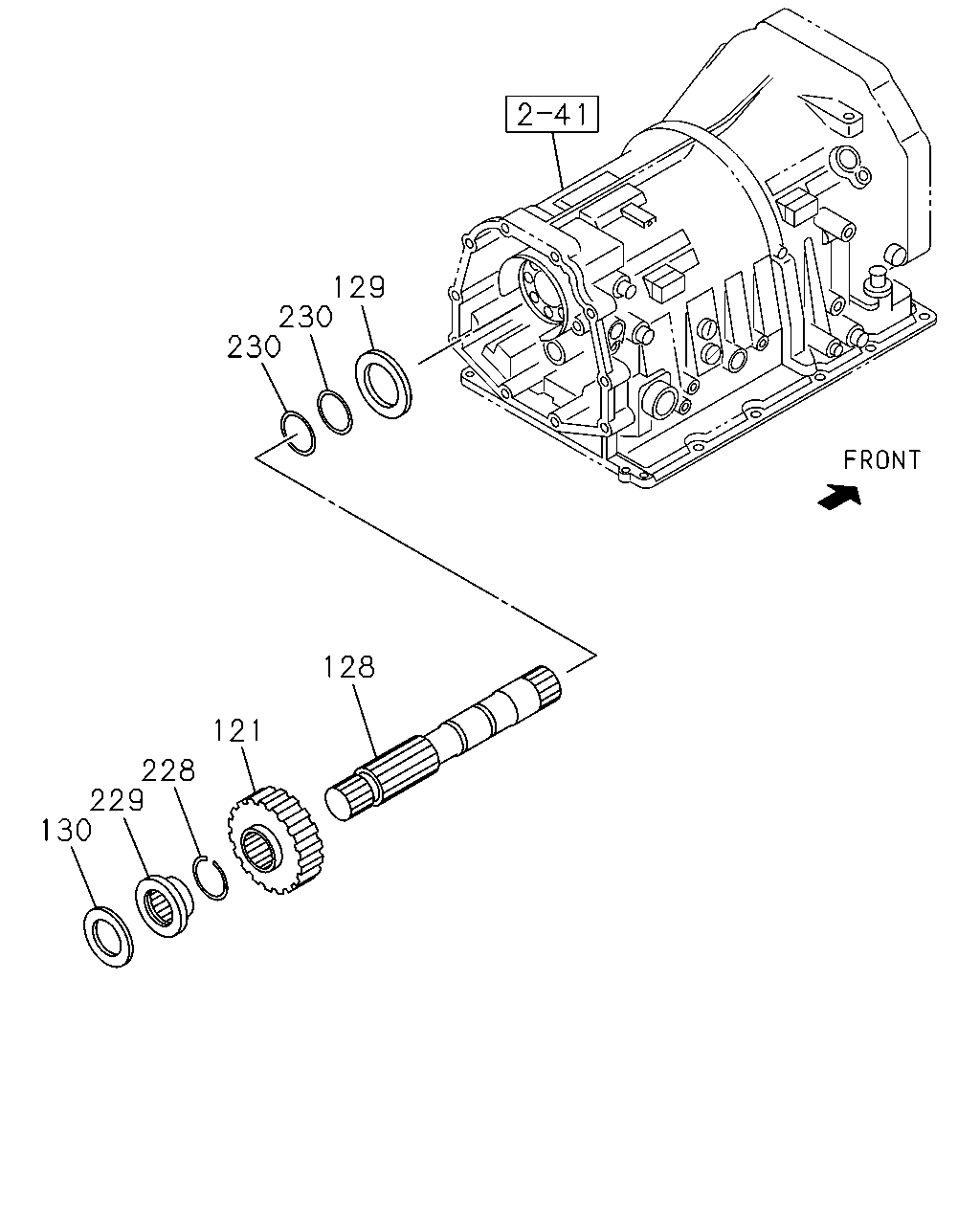

129 230 230 128 121 228 229 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
121	GEAR; PARKING LK,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-962-0	01	1	0411-0606	●
121	GEAR; PARKING LK,A/T 4X2<UCB***> THA	8-97330-962-0	01	1	0810-	●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98065-079-0	01	1	1009-		●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> THA	8-97330-960-0	01	1	0810-	●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> THA	8-97330-960-0	01	1	0411-0606	●
128	SHAFT; OUTPUT,A/T 4X4<UCS***> THA	8-97330-961-0	01	1	0411-0606	●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97184-427-0	01	1	0610-0708		●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97184-427-0	01	1	0710-1008		●
128	SHAFT; OUTPUT,A/T 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98050-557-0	01	1	0610-0708		●
128	SHAFT; OUTPUT,A/T 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98050-557-0	01	1	0710-		●
129	BEARING; OUTPUT SHAFT,FRT,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-918-0	01	1	0411-0606	●
129	BEARING; OUTPUT SHAFT,FRT,A/T 4X2<UCB***> THA	8-97330-918-0	01	1	0810-	●
130	BEARING; OUTPUT SHAFT,RR,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-918-0	01	1	0411-0606	●
130	BEARING; OUTPUT SHAFT,RR,A/T 4X2<UCB***> THA	8-97330-918-0	01	1	0810-	●
228	RING; SNAP,OUTPUT SHAFT 4X2<UCB***> THA	8-97330-963-0	02	1	0411-0606	●
228	RING; SNAP,OUTPUT SHAFT 4X2<UCB***> THA	8-97330-963-0	02	1	0810-	●
228	RING; SNAP,OUTPUT SHAFT 4X4<UCS***> THA	8-97330-963-0	01	1	0411-0606	●
229	SPACER; OUTPUT SHAFT 4JJ1-TCS ENG<LFB> THA	8-97330-951-0	01	1	0411-0606	●
229	SPACER; OUTPUT SHAFT 4X2<UCB***> THA	8-97330-951-0	01	1	0810-	●
230	RING; SEAL,OUTPUT SHAFT 4JJ1-TCS ENG<LFB> THA	8-97330-983-0	02	1	0411-0606	●
230	RING; SEAL,OUTPUT SHAFT 4X2<UCB***> THA	8-97330-983-0	02	1	0810-	●

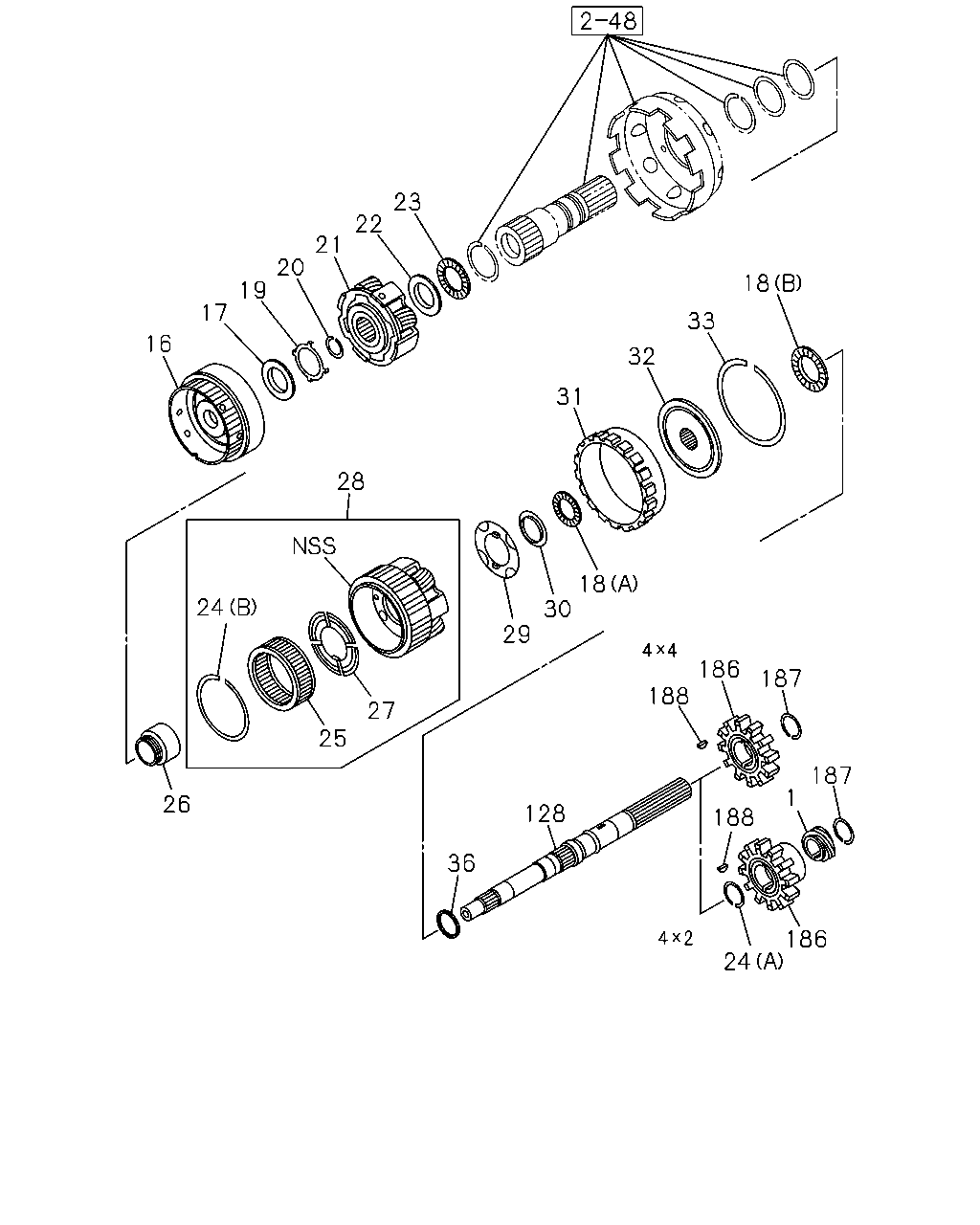

23 22 21 20 18 19 17 33 16 32 31 28 18 30 24 29 186 187 188 27 25 187 1 26 128 188 36 186 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; SPEEDOMETER DRIVE,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98056-393-0	01	1	0610-0708		●
1	GEAR; SPEEDOMETER DRIVE,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98056-393-0	01	1	0710-		●
16	GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-544-0	01	1	0610-0708		●
16	GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-544-0	01	1	0710-0801		●
16	GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-185-0	01	1	0802-		●
17	RACE; THRUST BRG,PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-545-0	01	1	0610-0708		●
17	RACE; THRUST BRG,PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-545-0	01	1	0710-		●
18	BEARING; THRUST,RR PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97249-735-0	01	1	0610-0708		●
18	BEARING; THRUST,RR PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97249-735-0	01	1	0710-		●
18	BEARING; THRUST,RR PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97331-548-0	01	1	0610-0708		●
18	BEARING; THRUST,RR PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97331-548-0	01	1	0710-		●
19	RACE; THRUST BRG,PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-546-0	01	1	0610-0708		●
19	RACE; THRUST BRG,PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-546-0	01	1	0710-		●
20	RING; RET,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-842-0	01	1	0610-0708		●
20	RING; RET,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-842-0	01	1	0710-		●
21	GEAR; PLANETARY,INTERNAL FRT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-547-0	01	1	0610-0708		●
21	GEAR; PLANETARY,INTERNAL FRT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-547-0	01	1	0710-		●
22	RACE; THRUST BRG,FRT PLANETARY SHAFT,A 4JJ1-TCX ENG<LS0> THA	8-98050-548-0	01	1	0610-0708		●
22	RACE; THRUST BRG,FRT PLANETARY SHAFT,A 4JJ1-TCX ENG<LS0> THA	8-98050-548-0	01	1	0710-		●
23	BEARING; THRUST,PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-549-0	01	1	0610-0708		●
23	BEARING; THRUST,PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-549-0	01	1	0710-		●
24	RING; RET,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97143-129-0	01	1	0610-0708		●
24	RING; RET,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97143-129-0	01	1	0710-		●
24	RING; RET,FRT PLANETARY,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> (A) THA	8-97069-457-0	01	1	0610-0708		●
24	RING; RET,FRT PLANETARY,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> (A) THA	8-97069-457-0	01	1	0710-		●
25	CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-924-0	01	1	0610-0708		●
25	CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94364-924-0	01	1	0710-		●
26	RACE; ONEWAY CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97019-542-0	01	1	0610-0708		●
26	RACE; ONEWAY CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97019-542-0	01	1	0710-		●
27	WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-550-0	01	1	0610-0708		●
27	WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-550-0	01	1	0710-		●
28	GEAR ASM; RR PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98065-077-0	01	1	1009-		●
28	GEAR ASM; RR PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-050-0	01	1	0610-0708		●
28	GEAR ASM; RR PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-97232-050-0	01	1	0710-1008		●
29	WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-551-0	01	1	0610-0708		●
29	WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-551-0	01	1	0710-		●
30	RACE; THRUST BRG,RR PLANETARY FLANGE 4JJ1-TCX ENG<LS0> THA	8-97331-549-0	01	1	0610-0708		●
30	RACE; THRUST BRG,RR PLANETARY FLANGE 4JJ1-TCX ENG<LS0> THA	8-97331-549-0	01	1	0710-		●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-953-0	01	1	0411-0606	●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4X2<UCB***> THA	8-97330-953-0	01	1	0810-	●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-854-0	01	1	0610-0708		●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-854-0	01	1	0710-		●
32	FLANGE; RING GEAR,RR PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-852-0	01	1	0610-0708		●
32	FLANGE; RING GEAR,RR PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-852-0	01	1	0710-		●
33	RING; RET,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-853-0	01	1	0610-0708		●
33	RING; RET,PLANETARY GEAR,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-853-0	01	1	0710-		●
36	RING; SEALING,FRT PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-902-0	01	1	0610-0708		●
36	RING; SEALING,FRT PLANETARY SHAFT,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-902-0	01	1	0710-		●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98065-079-0	01	1	1009-		●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> THA	8-97330-960-0	01	1	0810-	●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> THA	8-97330-960-0	01	1	0411-0606	●
128	SHAFT; OUTPUT,A/T 4X4<UCS***> THA	8-97330-961-0	01	1	0411-0606	●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97184-427-0	01	1	0610-0708		●
128	SHAFT; OUTPUT,A/T 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97184-427-0	01	1	0710-1008		●
128	SHAFT; OUTPUT,A/T 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98050-557-0	01	1	0610-0708		●
128	SHAFT; OUTPUT,A/T 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98050-557-0	01	1	0710-		●
186	ROTOR; SPEED SENSOR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97331-552-0	01	1	0610-0708		●
186	ROTOR; SPEED SENSOR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97331-552-0	01	1	0710-		●
186	ROTOR; SPEED SENSOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97331-553-0	01	1	0610-0708		●
186	ROTOR; SPEED SENSOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97331-553-0	01	1	0710-		●
187	RING; SNAP,ROTOR,SPEED SENSOR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97069-451-0	01	1	0610-0708		●
187	RING; SNAP,ROTOR,SPEED SENSOR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97069-451-0	01	1	0710-		●
187	RING; SNAP,ROTOR,SPEED SENSOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-94479-905-0	01	1	0610-0708		●
187	RING; SNAP,ROTOR,SPEED SENSOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-94479-905-0	01	1	0710-		●
188	KEY; SPEED SENSOR ROTOR 4JJ1-TCX ENG<LS0> THA	8-94479-904-0	01	1	0610-0708		●
188	KEY; SPEED SENSOR ROTOR 4JJ1-TCX ENG<LS0> THA	8-94479-904-0	01	1	0710-		●

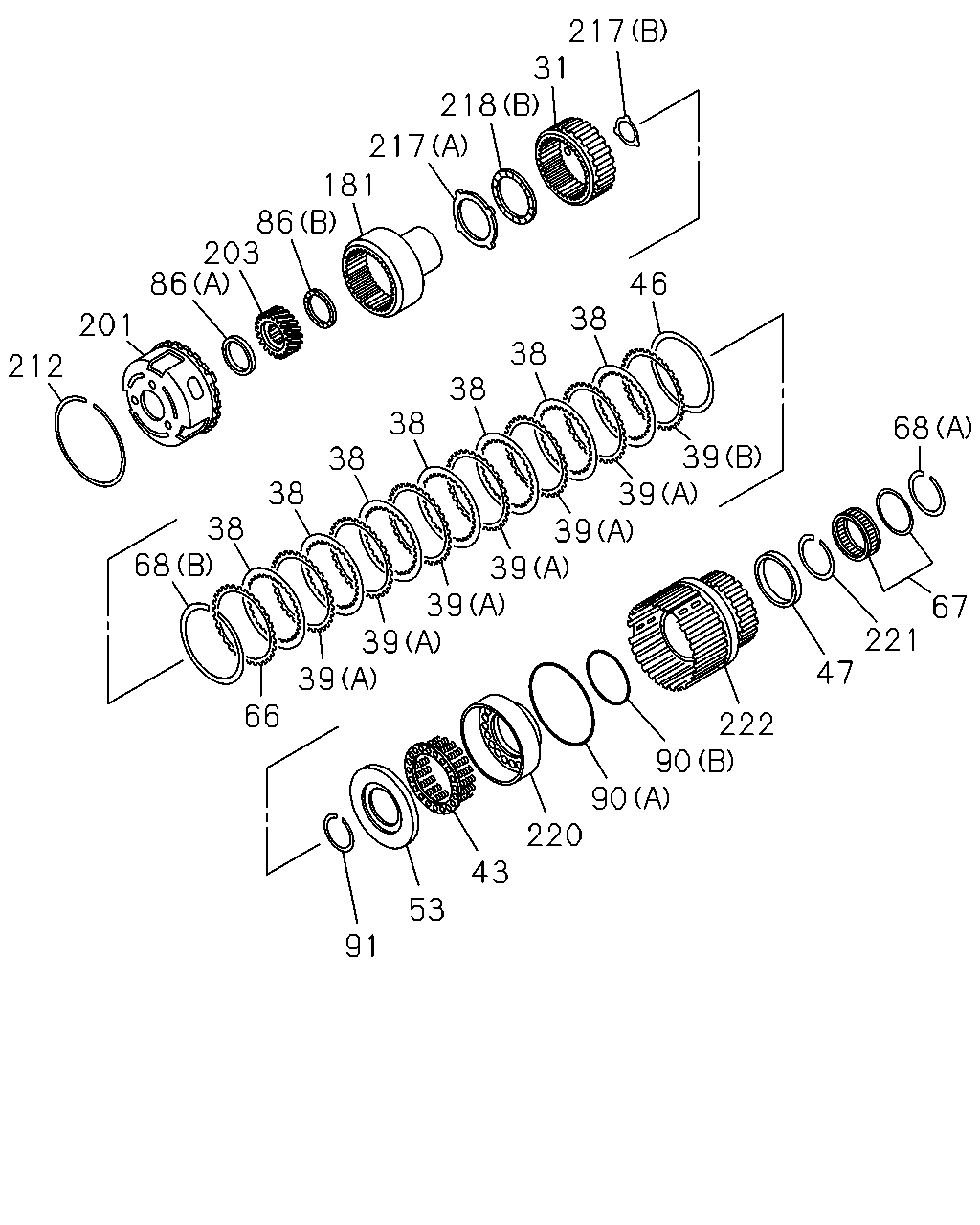

217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-953-0	01	1	0411-0606	●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4X2<UCB***> THA	8-97330-953-0	01	1	0810-	●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-854-0	01	1	0610-0708		●
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-854-0	01	1	0710-		●
38	PLATE; DRIVE,LOW & REV,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-998-0	07	1	0411-0606	●
38	PLATE; DRIVE,LOW & REV,A/T 4X2<UCB***> THA	8-98126-848-0	07	1	0810-	●
39	PLATE; DRIVEN,LOW & REV,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97331-005-0	06	1	0411-0606	●
39	PLATE; DRIVEN,LOW & REV,A/T 4X2<UCB***> (A) THA	8-97331-005-0	07	1	0810-	●
39	PLATE; DRIVEN,LOW & REV,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97331-008-0	01	1	0411-0606	●
43	SPRING; PISTON RETURN,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-981-0	01	1	0411-0606	●
43	SPRING; PISTON RETURN,A/T 4X2<UCB***> THA	8-97330-981-0	01	1	0810-	●
46	PLATE; DISHED,LOW & REV,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-004-0	01	1	0411-0606	●
46	PLATE; DISHED,LOW & REV,A/T 4X2<UCB***> THA	8-97331-004-0	01	1	0810-	●
47	BEARING; NEEDLE,LOW & REV 4JJ1-TCS ENG<LFB> THA	8-97330-954-0	01	1	0411-0606	●
47	BEARING; NEEDLE,LOW & REV 4X2<UCB***> THA	8-97330-954-0	01	1	0810-	●
53	RETAINER; LOW & REV,CLU SPR 4JJ1-TCS ENG<LFB> THA	8-97331-041-0	01	1	0411-0606	●
53	RETAINER; LOW & REV,CLU SPR 4X2<UCB***> THA	8-97331-041-0	01	1	0810-	●
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> T=3.8 THA	8-97331-010-0	01	1	0411-0606	●
66	PLATE; RET,CLU,LOW & REV,A/T 4X2<UCB***> T=3.8 THA	8-97331-010-0	01	1	0810-	●
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> T=4.0 THA	8-97331-011-0	01	1	0411-0606	●
66	PLATE; RET,CLU,LOW & REV,A/T 4X2<UCB***> T=4.0 THA	8-97331-011-0	01	1	0810-	●
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> T=4.2 THA	8-97331-012-0	01	1	0411-0606	●
66	PLATE; RET,CLU,LOW & REV,A/T 4X2<UCB***> T=4.2 THA	8-97331-012-0	01	1	0810-	●
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> T=4.4 THA	8-97331-013-0	01	1	0411-0606	●
66	PLATE; RET,CLU,LOW & REV,A/T 4X2<UCB***> T=4.4 THA	8-97331-013-0	01	1	0810-	●
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> T=4.6 THA	8-97331-014-0	01	1	0411-0606	●
66	PLATE; RET,CLU,LOW & REV,A/T 4X2<UCB***> T=4.6 THA	8-97331-014-0	01	1	0810-	●
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> T=4.8 THA	8-97331-024-0	01	1	0411-0606	●
66	PLATE; RET,CLU,LOW & REV,A/T 4X2<UCB***> T=4.8 THA	8-97331-024-0	01	1	0810-	●
67	CLUTCH ASM; ONEWAY,LOW & REV,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-959-0	01	1	0411-0606	●
67	CLUTCH ASM; ONEWAY,LOW & REV,A/T 4X2<UCB***> THA	8-97330-959-0	01	1	0810-	●
68	RING; SNAP,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97330-965-0	01	1	0411-0606	●
68	RING; SNAP,CLU,LOW & REV,A/T 4X2<UCB***> (A) THA	8-97330-965-0	01	1	0810-	●
68	RING; SNAP,CLU,LOW & REV,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97330-966-0	01	1	0411-0606	●
68	RING; SNAP,CLU,LOW & REV,A/T 4X2<UCB***> (B) THA	8-97330-966-0	01	1	0810-	●
86	BEARING; THRUST,SUN GEAR 4JJ1-TCS ENG<LFB> (A) THA	8-97330-919-0	01	1	0411-0606	●
86	BEARING; THRUST,SUN GEAR 4X2<UCB***> (A) THA	8-97330-919-0	01	1	0810-	●
86	BEARING; THRUST,SUN GEAR 4JJ1-TCS ENG<LFB> (B) THA	8-97330-920-0	01	1	0411-0606	●
86	BEARING; THRUST,SUN GEAR 4X2<UCB***> (B) THA	8-97330-920-0	01	1	0810-	●
86	BEARING; THRUST,SUN GEAR 4JJ1-TCS ENG<LFB> (C) THA	8-97330-926-0	01	1	0411-0606	●
86	BEARING; THRUST,SUN GEAR 4X2<UCB***> (C) THA	8-97374-016-0	01	1	0810-	●
90	SEAL; PISTON,LOW & REV 4JJ1-TCS ENG<LFB> (A) THA	8-97330-990-0	01	1	0411-0606	●
90	SEAL; PISTON,LOW & REV 4X2<UCB***> (A) THA	8-97330-990-0	01	1	0810-	●
90	SEAL; PISTON,LOW & REV 4JJ1-TCS ENG<LFB> (B) THA	8-97330-991-0	01	1	0411-0606	●
90	SEAL; PISTON,LOW & REV 4X2<UCB***> (B) THA	8-97330-991-0	01	1	0810-	●
91	RING; SNAP,SPRING RET 4JJ1-TCS ENG<LFB> THA	8-97330-969-0	01	1	0411-0606	●
91	RING; SNAP,SPRING RET 4X2<UCB***> THA	8-97330-969-0	01	1	0810-	●
181	CARRIER ASM; RR PLANETARY,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-952-0	01	1	0411-0606	●
181	CARRIER ASM; RR PLANETARY,A/T 4X2<UCB***> THA	8-97330-952-0	01	1	0810-	●
201	CARRIER; PLANETARY 4JJ1-TCS ENG<LFB> THA	8-97357-797-0	01	1	0411-0606	●
201	CARRIER; PLANETARY 4X2<UCB***> THA	8-97357-797-0	01	1	0810-	●
203	GEAR; SUN 4JJ1-TCS ENG<LFB> THA	8-97330-956-0	01	1	0411-0606	●
203	GEAR; SUN 4X2<UCB***> THA	8-97330-956-0	01	1	0810-	●
212	RING; SNAP,PLANETARY CARRIER 4JJ1-TCS ENG<LFB> THA	8-97330-967-0	01	1	0411-0606	●
212	RING; SNAP,PLANETARY CARRIER 4X2<UCB***> THA	8-97330-967-0	01	1	0810-	●
217	RACE; THRUST BRG,INTERNAL GEAR 4JJ1-TCS ENG<LFB> (A) THA	8-97330-939-0	01	1	0411-0606	●
217	RACE; THRUST BRG,INTERNAL GEAR 4X2<UCB***> (A) THA	8-97330-939-0	01	1	0810-	●
217	RACE; THRUST BRG,INTERNAL GEAR 4JJ1-TCS ENG<LFB> (B) THA	8-97330-947-0	01	1	0411-0606	●
217	RACE; THRUST BRG,INTERNAL GEAR 4X2<UCB***> (B) THA	8-97330-947-0	01	1	0810-	●
218	BEARING; THRUST,INTERNAL GEAR 4JJ1-TCS ENG<LFB> (A) THA	8-97330-928-0	01	1	0411-0606	●
218	BEARING; THRUST,INTERNAL GEAR 4X2<UCB***> (A) THA	8-97330-928-0	01	1	0810-	●
218	BEARING; THRUST,INTERNAL GEAR 4JJ1-TCS ENG<LFB> (B) THA	8-97330-938-0	01	1	0411-0606	●
218	BEARING; THRUST,INTERNAL GEAR 4X2<UCB***> (B) THA	8-97330-938-0	01	1	0810-	●
220	PISTON; LOW CLUTCH 4JJ1-TCS ENG<LFB> THA	8-97331-040-0	01	1	0411-0606	●
220	PISTON; LOW CLUTCH 4X2<UCB***> THA	8-97374-932-0	01	1	0810-	●
221	RING; SNAP,BRG,LOW CLUTCH 4JJ1-TCS ENG<LFB> THA	8-94483-379-0	01	1	0411-0606	●
221	RING; SNAP,BRG,LOW CLUTCH 4X2<UCB***> THA	8-94483-379-0	01	1	0810-	●
222	DRUM; LOW CLUTCH 4JJ1-TCS ENG<LFB> THA	8-97331-039-0	01	1	0411-0606	●
222	DRUM; LOW CLUTCH 4X2<UCB***> THA	8-97331-039-0	01	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
