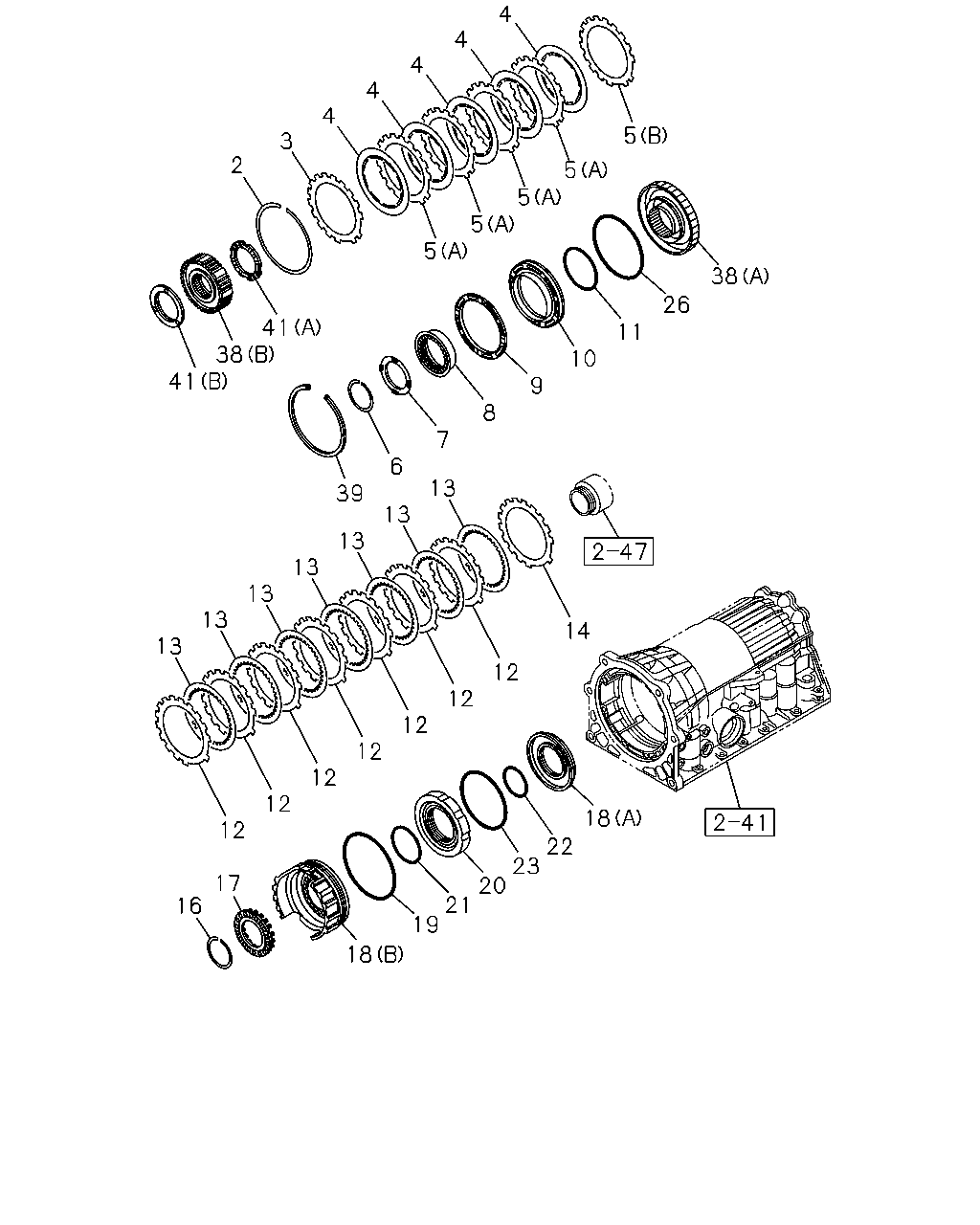

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#73771) — 72 parça

4 4 4 4 4 5 3 2 5 5 5 5 38 26 41 38 41 11 10 9 8 7 6 13 39 13 13 13 13 13 14 13 12 12 12 12 12 12 18 12 22 23 20 17 21 19 16 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; RET,FRT BRK,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-795-0	01	1	0610-0708
2	RING; RET,FRT BRK,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-795-0	01	1	0710-
3	PLATE; CLU BACKING,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-806-0	01	1	0610-0708
3	PLATE; CLU BACKING,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-806-0	01	1	0710-
4	DISC ASM; CLU & FACING,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-541-0	05	1	0610-0708
4	DISC ASM; CLU & FACING,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-541-0	05	1	0710-
5	DISC; CLU,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-807-0	04	1	0610-0708
5	DISC; CLU,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-807-0	04	1	0710-
5	DISC; CLU,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97025-835-0	01	1	0610-0708
5	DISC; CLU,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97025-835-0	01	1	0710-
6	RING; SNAP,FRT BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-804-0	01	1	0610-0708
6	RING; SNAP,FRT BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-804-0	01	1	0710-
7	RETAINER; BRK,RETURN SPR,FRT BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-803-0	01	1	0610-0708
7	RETAINER; BRK,RETURN SPR,FRT BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-803-0	01	1	0710-
8	SPRING; RETURN,FRT BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-805-0	01	1	0610-0708
8	SPRING; RETURN,FRT BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-805-0	01	1	0710-
9	SLEEVE; 2ND BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-97025-834-0	01	1	0610-0708
9	SLEEVE; 2ND BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-97025-834-0	01	1	0710-
10	PISTON; BRK,FRT,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-799-0	01	1	0610-0708
10	PISTON; BRK,FRT,2ND BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-799-0	01	1	0710-
11	GASKET; BRK PISTON,FRT,INNER,A/T 4JJ1-TCX ENG<LS0> ID=85 THA	8-94479-800-0	01	1	0610-0708
11	GASKET; BRK PISTON,FRT,INNER,A/T 4JJ1-TCX ENG<LS0> ID=85 THA	8-94479-800-0	01	1	0710-
12	PLATE; CLU,LOW & REV BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-832-0	07	1	0610-0708
12	PLATE; CLU,LOW & REV BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-832-0	07	1	0710-
13	DISC; CLU,LOW & REV BRK 4JJ1-TCX ENG<LS0> THA	8-97232-040-0	07	1	0610-0708
13	DISC; CLU,LOW & REV BRK 4JJ1-TCX ENG<LS0> THA	8-97232-040-0	07	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=5.0 THA	8-97019-534-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=5.0 THA	8-97019-534-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.8 THA	8-97019-535-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.8 THA	8-97019-535-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.6 THA	8-97019-536-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.6 THA	8-97019-536-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.4 THA	8-97019-537-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.4 THA	8-97019-537-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.2 THA	8-97019-538-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.2 THA	8-97019-538-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.0 THA	8-97019-539-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=4.0 THA	8-97019-539-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=5.2 THA	8-97184-319-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=5.2 THA	8-97184-319-0	01	1	0710-
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=5.4 THA	8-97184-320-0	01	1	0610-0708
14	FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG<LS0> T=5.4 THA	8-97184-320-0	01	1	0710-
16	RETAINER; RETURN SPR,RR BRK,A/T 4JJ1-TCX ENG<LS0> THA	5-34268-006-0	01	1	0610-0708
16	RETAINER; RETURN SPR,RR BRK,A/T 4JJ1-TCX ENG<LS0> THA	5-34268-006-0	01	1	0710-
17	SPRING; RETURN,RR BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-97214-554-0	01	1	0610-0708
17	SPRING; RETURN,RR BRK,A/T 4JJ1-TCX ENG<LS0> THA	8-97214-554-0	01	1	0710-
18	PISTON; LOW & REV BRK,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-826-0	01	1	0610-0708
18	PISTON; LOW & REV BRK,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-826-0	01	1	0710-
18	PISTON; LOW & REV BRK,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97232-056-0	01	1	0610-0708
18	PISTON; LOW & REV BRK,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97232-056-0	01	1	0710-
19	GASKET; LOW & REV BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-97264-817-0	01	1	0610-0708
19	GASKET; LOW & REV BRK PISTON 4JJ1-TCX ENG<LS0> THA	8-97264-817-0	01	1	0710-
20	SLEEVE; BRK REACTION,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-827-0	01	1	0610-0708
20	SLEEVE; BRK REACTION,A/T 4JJ1-TCX ENG<LS0> THA	8-94479-827-0	01	1	0710-
21	RING; BRK REACTION SLEEVE,INNER 4JJ1-TCX ENG<LS0> THA	8-97184-352-0	01	1	0610-0708
21	RING; BRK REACTION SLEEVE,INNER 4JJ1-TCX ENG<LS0> THA	8-97184-352-0	01	1	0710-
22	GASKET; BRK PISTON,RR,INNER,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-348-0	01	1	0610-0708
22	GASKET; BRK PISTON,RR,INNER,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-348-0	01	1	0710-
23	GASKET; BRK PISTON,RR,OUTER,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-353-0	01	1	0610-0708
23	GASKET; BRK PISTON,RR,OUTER,A/T 4JJ1-TCX ENG<LS0> THA	8-97184-353-0	01	1	0710-
26	GASKET; BRK PISTON,FRT,OUTER,A/T 4JJ1-TCX ENG<LS0> ID=124 THA	8-94479-801-0	01	1	0610-0708
26	GASKET; BRK PISTON,FRT,OUTER,A/T 4JJ1-TCX ENG<LS0> ID=124 THA	8-94479-801-0	01	1	0710-
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-798-0	01	1	0610-0708
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-94479-798-0	01	1	0710-
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97143-134-0	01	1	0610-0708
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97143-134-0	01	1	0710-
39	RING; RET,SUN GEAR TO CLU 4JJ1-TCX ENG<LS0> THA	8-94479-797-0	01	1	0610-0708
39	RING; RET,SUN GEAR TO CLU 4JJ1-TCX ENG<LS0> THA	8-94479-797-0	01	1	0710-
41	WASHER; THRUST 4JJ1-TCX ENG<LS0> (A) THA	8-94479-809-0	01	1	0610-0708
41	WASHER; THRUST 4JJ1-TCX ENG<LS0> (A) THA	8-94479-809-0	01	1	0710-
41	WASHER; THRUST 4JJ1-TCX ENG<LS0> (B) THA	8-94479-811-0	01	1	0610-0708
41	WASHER; THRUST 4JJ1-TCX ENG<LS0> (B) THA	8-94479-811-0	01	1	0710-
