◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-45 - AUTO TRANS CLUTCH AND PLANETARY GEAR ▶
2-45 — AUTO TRANS CLUTCH AND PLANETARY GEAR (#73770) — 60 parça

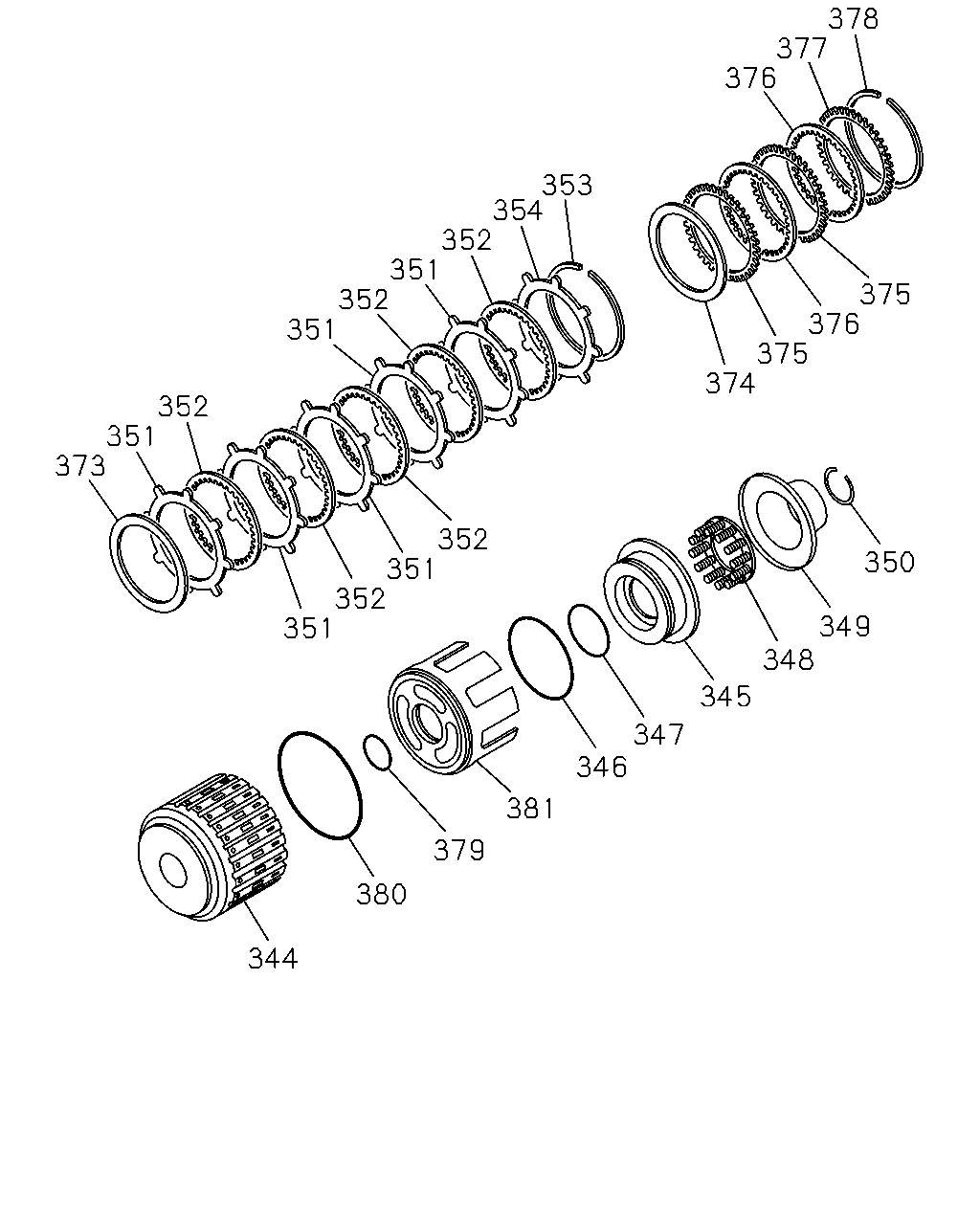

çizim 114796
378 377 376 353 354 352 351 352 351 375 376 375 374 352 351 373 352 351 352 351 350 349 348 345 347 346 381 379 380 344
BalonParca AdiParca NoAdetTipApplied Date
344 DRUM; HIGH CLU
4JJ1-TCS ENG<LFB> THA 		8-97330-978-0 01 1 0411-0606
344 DRUM; HIGH CLU
4X2<UCB***> THA 		8-97330-978-0 01 1 0810-
345 PISTON; HIGH CLU
4JJ1-TCS ENG<LFB> THA 		8-97331-033-0 01 1 0411-0606
345 PISTON; HIGH CLU
4X2<UCB***> THA 		8-97376-053-0 01 1 0810-
346 SEAL; HIGH CLU PISTON,OUTER
4JJ1-TCS ENG<LFB> THA 		8-97330-989-0 01 1 0411-0606
346 SEAL; HIGH CLU PISTON,OUTER
4X2<UCB***> THA 		8-97330-989-0 01 1 0810-
347 SEAL; HIGH CLU PISTON,INNER
4JJ1-TCS ENG<LFB> THA 		8-97331-035-0 01 1 0411-0606
347 SEAL; HIGH CLU PISTON,INNER
4X2<UCB***> THA 		8-97331-035-0 01 1 0810-
348 SPRING; RETURN,HIGH CLU PISTON
4JJ1-TCS ENG<LFB> THA 		8-97330-980-0 01 1 0411-0606
348 SPRING; RETURN,HIGH CLU PISTON
4X2<UCB***> THA 		8-97330-980-0 01 1 0810-
349 RETAINER; RETURN SPRING,CLU PISTON
4JJ1-TCS ENG<LFB> THA 		8-97331-034-0 01 1 0411-0606
349 RETAINER; RETURN SPRING,CLU PISTON
4X2<UCB***> THA 		8-97331-034-0 01 1 0810-
350 RING; SNAP,SPRING RET,HIGH CLU
4JJ1-TCS ENG<LFB> THA 		8-97330-975-0 01 1 0411-0606
350 RING; SNAP,SPRING RET,HIGH CLU
4X2<UCB***> THA 		8-97330-975-0 01 1 0810-
351 PLATE; DRIVEN,HIGH CLU,A/T
4JJ1-TCS ENG<LFB> T=2.0 THA 		8-97331-007-0 01 1 0411-0606
351 PLATE; DRIVEN,HIGH CLU,A/T
4X2<UCB***> T=2.0 THA 		8-97331-007-0 01 1 0810-
351 PLATE; DRIVEN,HIGH CLU,A/T
4JJ1-TCS ENG<LFB> T=2.9 THA 		8-97357-799-0 04 1 0411-0606
351 PLATE; DRIVEN,HIGH CLU,A/T
4X2<UCB***> T=2.9 THA 		8-97357-799-0 04 1 0810-
352 PLATE; DRIVE,HIGH CLU,A/T
4JJ1-TCS ENG<LFB> THA 		8-97331-000-0 05 1 0411-0606
352 PLATE; DRIVE,HIGH CLU,A/T
4X2<UCB***> THA 		8-97331-000-0 05 1 0810-
353 RING; SNAP,HIGH CLU PLATE
4JJ1-TCS ENG<LFB> THA 		8-97330-976-0 01 1 0411-0606
353 RING; SNAP,HIGH CLU PLATE
4X2<UCB***> THA 		8-97330-976-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4JJ1-TCS ENG<LFB> T=4.6 THA 		8-97331-019-0 01 1 0411-0606
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=4.6 THA 		8-97331-019-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4JJ1-TCS ENG<LFB> T=4.8 THA 		8-97331-020-0 01 1 0411-0606
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=4.8 THA 		8-97331-020-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4JJ1-TCS ENG<LFB> T=5.0 THA 		8-97331-021-0 01 1 0411-0606
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=5.0 THA 		8-97331-021-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4JJ1-TCS ENG<LFB> T=5.2 THA 		8-97331-022-0 01 1 0411-0606
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=5.2 THA 		8-97331-022-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4JJ1-TCS ENG<LFB> T=5.4 THA 		8-97331-023-0 01 1 0411-0606
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=5.4 THA 		8-97331-023-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=4.7 THA 		8-98126-849-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=4.9 THA 		8-98126-850-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=5.1 THA 		8-98126-851-0 01 1 0810-
354 PLATE; RET,HIGH CLU
4X2<UCB***> T=5.3 THA 		8-98126-852-0 01 1 0810-
373 PLATE; DISHED,HIGH CLU
4JJ1-TCS ENG<LFB> THA 		8-97331-003-0 01 1 0411-0606
373 PLATE; DISHED,HIGH CLU
4X2<UCB***> THA 		8-97331-003-0 01 1 0810-
374 PLATE; DISHED,REV CLU
4JJ1-TCS ENG<LFB> THA 		8-97331-049-0 01 1 0411-0606
374 PLATE; DISHED,REV CLU
4X2<UCB***> THA 		8-97331-049-0 01 1 0810-
375 PLATE; DRIVEN,REV CLU
4JJ1-TCS ENG<LFB> THA 		8-97331-006-0 02 1 0411-0606
375 PLATE; DRIVEN,REV CLU
4X2<UCB***> THA 		8-97331-006-0 02 1 0810-
376 PLATE; DRIVE,REV CLU
4JJ1-TCS ENG<LFB> THA 		8-97330-997-0 02 1 0411-0606
376 PLATE; DRIVE,REV CLU
4X2<UCB***> THA 		8-97330-997-0 02 1 0810-
377 PLATE; RET,REV CLU
4JJ1-TCS ENG<LFB> T=4.8 THA 		8-97331-015-0 01 1 0411-0606
377 PLATE; RET,REV CLU
4X2<UCB***> T=4.8 THA 		8-97331-015-0 01 1 0810-
377 PLATE; RET,REV CLU
4JJ1-TCS ENG<LFB> T=5.0 THA 		8-97331-016-0 01 1 0411-0606
377 PLATE; RET,REV CLU
4X2<UCB***> T=5.0 THA 		8-97331-016-0 01 1 0810-
377 PLATE; RET,REV CLU
4JJ1-TCS ENG<LFB> T=5.2 THA 		8-97331-017-0 01 1 0411-0606
377 PLATE; RET,REV CLU
4X2<UCB***> T=5.2 THA 		8-97331-017-0 01 1 0810-
377 PLATE; RET,REV CLU
4JJ1-TCS ENG<LFB> T=5.4 THA 		8-97331-018-0 01 1 0411-0606
377 PLATE; RET,REV CLU
4X2<UCB***> T=5.4 THA 		8-97331-018-0 01 1 0810-
378 RING; SNAP,REV CLU PLATE
4JJ1-TCS ENG<LFB> THA 		8-97330-973-0 01 1 0411-0606
378 RING; SNAP,REV CLU PLATE
4X2<UCB***> THA 		8-97330-973-0 01 1 0810-
379 SEAL; REV CLU PISTON,INNER
4JJ1-TCS ENG<LFB> THA 		8-97330-994-0 01 1 0411-0606
379 SEAL; REV CLU PISTON,INNER
4X2<UCB***> THA 		8-97330-994-0 01 1 0810-
380 SEAL; REV CLU PISTON,OUTER
4JJ1-TCS ENG<LFB> THA 		8-97330-995-0 01 1 0411-0606
380 SEAL; REV CLU PISTON,OUTER
4X2<UCB***> THA 		8-97330-995-0 01 1 0810-
381 PISTON; REV CLUTCH
4JJ1-TCS ENG<LFB> THA 		8-97357-798-0 01 1 0411-0606
381 PISTON; REV CLUTCH
4X2<UCB***> THA 		8-97357-798-0 01 1 0810-
