Sayfa 2-44 - Isuzu EPC

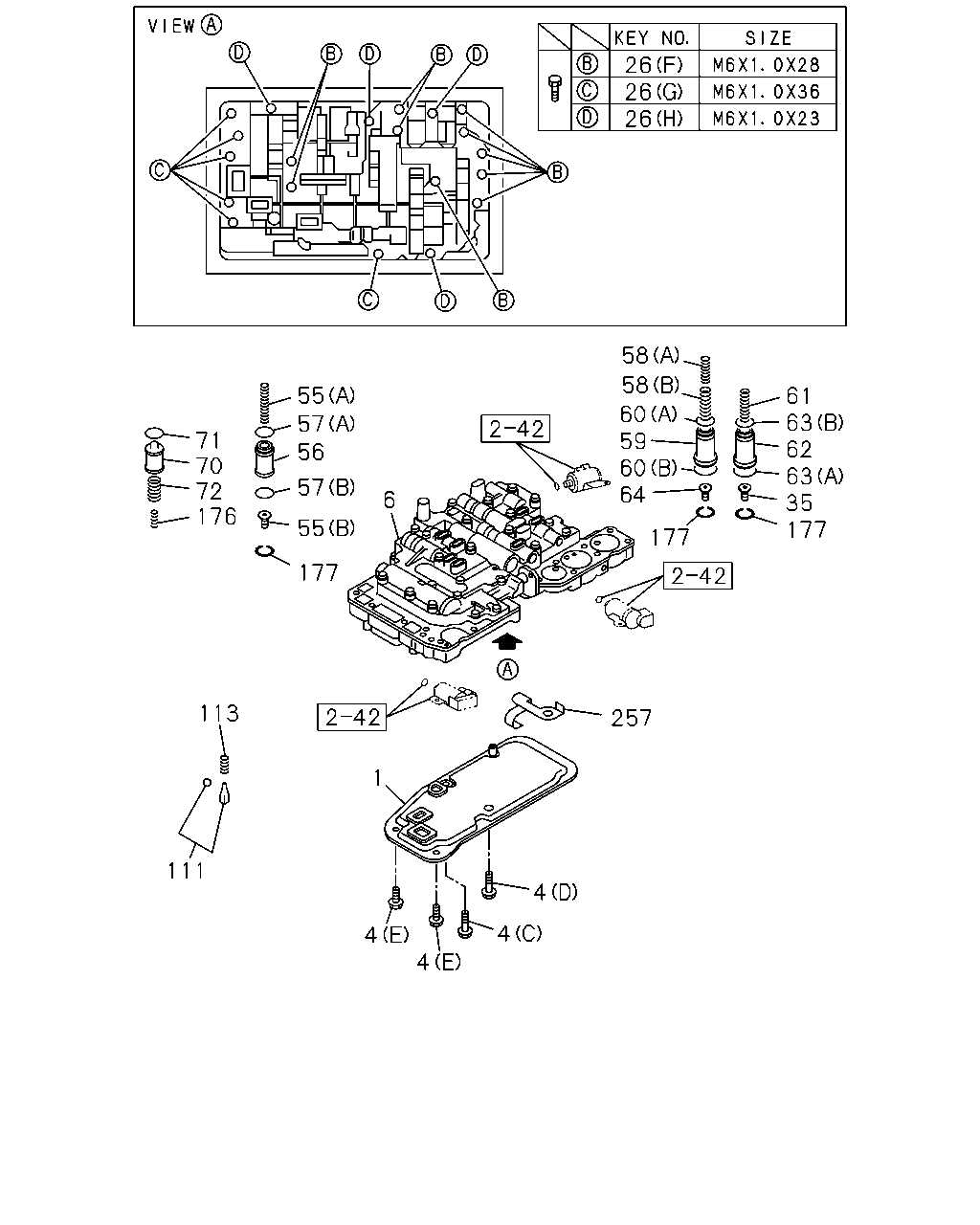

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#73769) — 200 parça

26 26 26 58 58 55 61 63 62 63 35 177 60 59 60 64 57 71 70 72 176 56 57 6 55 177 177 113 257 1 111 4 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STRAINER ASM; OIL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-063-0	01	1	0411-0606	●
1	STRAINER ASM; OIL,A/T 4X2<UCB***> THA	8-97331-063-0	01	1	0810-	●
1	STRAINER ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-143-0	01	1	0610-0708		●
1	STRAINER ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-143-0	01	1	0710-		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97331-102-0	09	1	0411-0606	●
4	BOLT; OIL STRAINER,A/T 4X2<UCB***> (A) THA	8-97331-102-0	09	1	0810-	●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (B) M6X45 FLANGE THA	8-97331-104-0	04	1	0411-0606	●
4	BOLT; OIL STRAINER,A/T 4X2<UCB***> (B) M6X45 FLANGE THA	8-97331-104-0	04	1	0810-	●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (C) M6X20 THA	8-94479-922-0	01	1	0610-0708		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (C) M6X20 THA	8-94479-922-0	01	1	0710-		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (D) M6X23 THA	8-94479-925-0	01	1	0610-0708		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (D) M6X23 THA	8-94479-925-0	01	1	0710-		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-97207-142-0	02	1	0610-0708		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-97207-142-0	02	1	0710-		●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-059-0	01	1	0411-0606	●
6	BODY ASM; VLV LWR,A/T 4X2<UCB***> THA	8-97331-059-0	01	1	0810-	●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-499-0	01	1	0610-0708		●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-499-0	01	1	0710-0801		●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-200-0	01	1	0802-		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (A) M6X40 THA	8-94385-941-0	10	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (B) M6X50 FLANGE THA	8-97331-101-0	02	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4X2<UCB***> (B) M6X50 FLANGE THA	8-97331-101-0	02	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (C) M6X35 FLANGE THA	8-97331-103-0	13	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4X2<UCB***> (C) M6X35 FLANGE THA	8-97331-103-0	13	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (D) M6X45 FLANGE THA	8-97331-104-0	02	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4X2<UCB***> (D) M6X45 FLANGE THA	8-97331-104-0	02	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (E) M6X30 FLANGE THA	8-97331-122-0	02	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (F) M6X28 THA	8-94473-611-0	10	1	0610-0708		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (G) M6X36 THA	8-94473-630-0	06	1	0610-0708		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (H) M6X23 THA	8-94479-925-0	04	1	0610-0708		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (F) M6X28 THA	8-94473-611-0	10	1	0710-		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (G) M6X36 THA	8-94473-630-0	06	1	0710-		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (H) M6X23 THA	8-94479-925-0	04	1	0710-		●
35	SPRING; LWR VLV BODY 4JJ1-TCX ENG<LS0> THA	8-97025-856-0	01	1	0610-0708		●
35	SPRING; LWR VLV BODY 4JJ1-TCX ENG<LS0> THA	8-97025-856-0	01	1	0710-		●
55	SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> (A) THA	8-97027-208-0	01	1	0610-0708		●
55	SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> (A) THA	8-97027-208-0	01	1	0710-		●
55	SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> (B) THA	8-97027-209-0	01	1	0610-0708		●
55	SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> (B) THA	8-97027-209-0	01	1	0710-		●
56	PISTON; ACCUMLATOR 4JJ1-TCX ENG<LS0> THA	8-97027-207-0	01	1	0610-0708		●
56	PISTON; ACCUMLATOR 4JJ1-TCX ENG<LS0> THA	8-97027-207-0	01	1	0710-		●
57	GASKET; 2ND SPD PISTON,A/T 4JJ1-TCX ENG<LS0> (A) ID=20 THA	8-97184-885-0	01	1	0610-0708		●
57	GASKET; 2ND SPD PISTON,A/T 4JJ1-TCX ENG<LS0> (A) ID=20 THA	8-97184-885-0	01	1	0710-		●
57	GASKET; 2ND SPD PISTON,A/T 4JJ1-TCX ENG<LS0> (B) ID=27 THA	8-97184-886-0	01	1	0610-0708		●
57	GASKET; 2ND SPD PISTON,A/T 4JJ1-TCX ENG<LS0> (B) ID=27 THA	8-97184-886-0	01	1	0710-		●
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97027-204-0	01	1	0610-0708		●
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97027-204-0	01	1	0710-		●
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JJ1-TCX ENG<LS0> (B) THA	8-98050-497-0	01	1	0610-0708		●
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JJ1-TCX ENG<LS0> (B) THA	8-98050-497-0	01	1	0710-		●
59	PISTON; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97025-819-0	01	1	0610-0708		●
59	PISTON; DIRECT CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97025-819-0	01	1	0710-		●
60	GASKET; DIRECT CLU PISTON,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97184-887-0	01	1	0610-0708		●
60	GASKET; DIRECT CLU PISTON,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97184-887-0	01	1	0710-		●
60	GASKET; DIRECT CLU PISTON,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97184-888-0	01	1	0610-0708		●
60	GASKET; DIRECT CLU PISTON,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97184-888-0	01	1	0710-		●
61	SPRING; FWD CLU,(C-1 ACUUM),A/T 4JJ1-TCX ENG<LS0> THA	8-97232-088-0	01	1	0610-0708		●
61	SPRING; FWD CLU,(C-1 ACUUM),A/T 4JJ1-TCX ENG<LS0> THA	8-97232-088-0	01	1	0710-		●
62	PISTON; FWD CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97025-817-0	01	1	0610-0708		●
62	PISTON; FWD CLU,A/T 4JJ1-TCX ENG<LS0> THA	8-97025-817-0	01	1	0710-		●
63	GASKET; FWD CLU,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97184-888-0	01	1	0610-0708		●
63	GASKET; FWD CLU,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97184-888-0	01	1	0710-		●
63	GASKET; FWD CLU,A/T 4JJ1-TCX ENG<LS0> (B) ID=24 THA	8-97184-889-0	01	1	0610-0708		●
63	GASKET; FWD CLU,A/T 4JJ1-TCX ENG<LS0> (B) ID=24 THA	8-97184-889-0	01	1	0710-		●
64	SPRING; DIRECT CLU 4JJ1-TCX ENG<LS0> THA	8-97025-820-0	01	1	0610-0708		●
64	SPRING; DIRECT CLU 4JJ1-TCX ENG<LS0> THA	8-97025-820-0	01	1	0710-0808		●
64	SPRING; DIRECT CLU 4JJ1-TCX ENG<LS0> THA	8-97025-820-0	01	1	0809-		●
70	PISTON; ACCUMLATOR 4JJ1-TCX ENG<LS0> THA	8-97027-205-0	01	1	0610-0708		●
70	PISTON; ACCUMLATOR 4JJ1-TCX ENG<LS0> THA	8-97027-205-0	01	1	0710-		●
71	GASKET; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> THA	8-97184-884-0	01	1	0610-0708		●
71	GASKET; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> THA	8-97184-884-0	01	1	0710-		●
72	SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> THA	8-97027-206-0	01	1	0610-0708		●
72	SPRING; ACCUMLATOR PISTON 4JJ1-TCX ENG<LS0> THA	8-97027-206-0	01	1	0710-		●
111	BODY; CHECK BALL 4JJ1-TCX ENG<LS0> THA	8-94479-931-0	01	1	0610-0708		●
111	BODY; CHECK BALL 4JJ1-TCX ENG<LS0> THA	8-94479-931-0	01	1	0710-		●
113	SPRING; CHECK BALL 4JJ1-TCX ENG<LS0> THA	8-94479-930-0	01	1	0610-0708		●
113	SPRING; CHECK BALL 4JJ1-TCX ENG<LS0> THA	8-94479-930-0	01	1	0710-		●
176	SPRING; ACCUM INNER 4JJ1-TCX ENG<LS0> THA	8-97025-825-0	01	1	0610-0708		●
176	SPRING; ACCUM INNER 4JJ1-TCX ENG<LS0> THA	8-97025-825-0	01	1	0710-		●
177	RING; SNAP 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97025-821-0	01	1	0610-0708		●
177	RING; SNAP 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97025-821-0	01	1	0710-1008		●
177	RING; SNAP 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97025-821-0	03	1	0610-0708		●
177	RING; SNAP 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97025-821-0	03	1	0710-1008		●
177	RING; SNAP 4JJ1-TCX ENG<LS0> ID=19 THA	8-97025-821-0	03	1	1009-		●
257	CLAMP; HARNESS 4JJ1-TCX ENG<LS0> THA	8-97232-037-0	01	1	0610-0708		●
257	CLAMP; HARNESS 4JJ1-TCX ENG<LS0> THA	8-97232-037-0	01	1	0710-		●

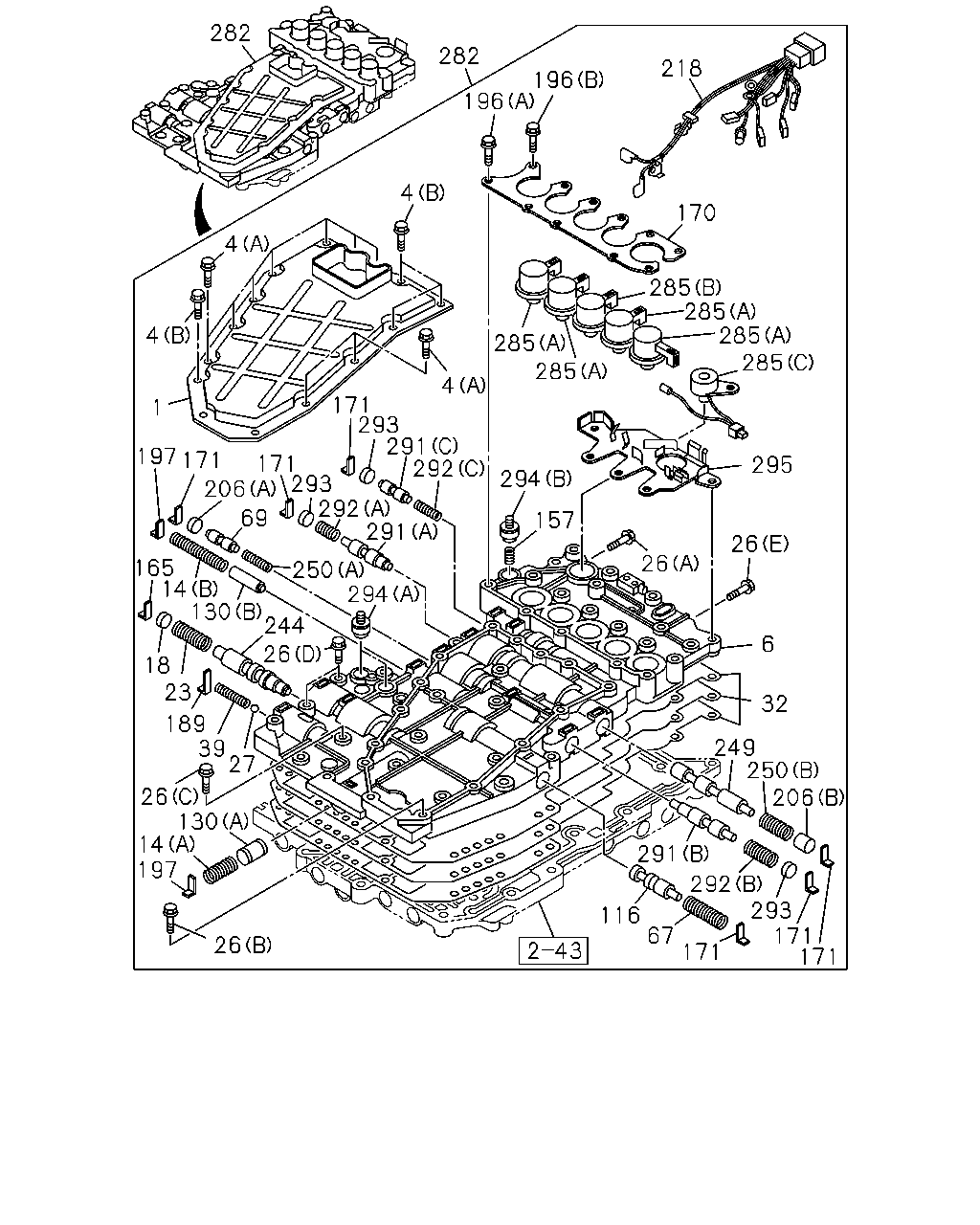

282 282 218 196 196 4 170 4 285 285 285 285 4 285 285 4 171 293 291 292 1 197 171 171 293 206 292 291 295 294 69 157 165 14 130 244 26 26 250 294 6 26 18 23 32 189 39 27 249 250 206 292 293 171 171 26 130 14 197 291 116 67 26 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STRAINER ASM; OIL,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-063-0	01	1	0411-0606	●
1	STRAINER ASM; OIL,A/T 4X2<UCB***> THA	8-97331-063-0	01	1	0810-	●
1	STRAINER ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-143-0	01	1	0610-0708		●
1	STRAINER ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-97207-143-0	01	1	0710-		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97331-102-0	09	1	0411-0606	●
4	BOLT; OIL STRAINER,A/T 4X2<UCB***> (A) THA	8-97331-102-0	09	1	0810-	●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (B) M6X45 FLANGE THA	8-97331-104-0	04	1	0411-0606	●
4	BOLT; OIL STRAINER,A/T 4X2<UCB***> (B) M6X45 FLANGE THA	8-97331-104-0	04	1	0810-	●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (C) M6X20 THA	8-94479-922-0	01	1	0610-0708		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (C) M6X20 THA	8-94479-922-0	01	1	0710-		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (D) M6X23 THA	8-94479-925-0	01	1	0610-0708		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (D) M6X23 THA	8-94479-925-0	01	1	0710-		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-97207-142-0	02	1	0610-0708		●
4	BOLT; OIL STRAINER,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-97207-142-0	02	1	0710-		●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-059-0	01	1	0411-0606	●
6	BODY ASM; VLV LWR,A/T 4X2<UCB***> THA	8-97331-059-0	01	1	0810-	●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-499-0	01	1	0610-0708		●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-499-0	01	1	0710-0801		●
6	BODY ASM; VLV LWR,A/T 4JJ1-TCX ENG<LS0> THA	8-98112-200-0	01	1	0802-		●
14	SPRING; ACCUMLATOR CONT VALVE 4JJ1-TCS ENG<LFB> (A) THA	8-97092-821-0	01	1	0411-0606	●
14	SPRING; ACCUMLATOR CONT VALVE 4X2<UCB***> (A) THA	8-97092-821-0	01	1	0810-	●
14	SPRING; ACCUMLATOR CONT VALVE 4JJ1-TCS ENG<LFB> (B) THA	8-97331-078-0	01	1	0411-0606	●
14	SPRING; ACCUMLATOR CONT VALVE 4X2<UCB***> (B) THA	8-97331-078-0	01	1	0810-	●
18	PLUG; PRESSURE 4JJ1-TCS ENG<LFB> THA	8-97331-096-0	01	1	0411-0606	●
18	PLUG; PRESSURE 4X2<UCB***> THA	8-97331-096-0	01	1	0810-	●
23	SPRING; REG VLV,VLV LWR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-075-0	01	1	0411-0606	●
23	SPRING; REG VLV,VLV LWR,A/T 4X2<UCB***> THA	8-97331-075-0	01	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (A) M6X40 THA	8-94385-941-0	10	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (B) M6X50 FLANGE THA	8-97331-101-0	02	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4X2<UCB***> (B) M6X50 FLANGE THA	8-97331-101-0	02	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (C) M6X35 FLANGE THA	8-97331-103-0	13	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4X2<UCB***> (C) M6X35 FLANGE THA	8-97331-103-0	13	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (D) M6X45 FLANGE THA	8-97331-104-0	02	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4X2<UCB***> (D) M6X45 FLANGE THA	8-97331-104-0	02	1	0810-	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (E) M6X30 FLANGE THA	8-97331-122-0	02	1	0411-0606	●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (F) M6X28 THA	8-94473-611-0	10	1	0610-0708		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (G) M6X36 THA	8-94473-630-0	06	1	0610-0708		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (H) M6X23 THA	8-94479-925-0	04	1	0610-0708		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (F) M6X28 THA	8-94473-611-0	10	1	0710-		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (G) M6X36 THA	8-94473-630-0	06	1	0710-		●
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCX ENG<LS0> (H) M6X23 THA	8-94479-925-0	04	1	0710-		●
27	BALL; STEEL,VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-895-0	01	1	0411-0606	●
27	BALL; STEEL,VLV,A/T 4X2<UCB***> THA	8-97330-895-0	01	1	0810-	●
32	PLATE; SEPARATOR,VLV BODY,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-060-0	01	1	0411-0606	●
32	PLATE; SEPARATOR,VLV BODY,A/T 4X2<UCB***> THA	8-97331-060-0	01	1	0810-	●
39	SPRING; BALL VALVE 4JJ1-TCS ENG<LFB> THA	8-97331-071-0	01	1	0411-0606	●
39	SPRING; BALL VALVE 4X2<UCB***> THA	8-97331-071-0	01	1	0810-	●
67	SPRING; PRESSURE,RELIEF VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-072-0	01	1	0411-0606	●
67	SPRING; PRESSURE,RELIEF VLV,A/T 4X2<UCB***> THA	8-97331-072-0	01	1	0810-	●
69	VALVE; SHIFT,LOW COAST,VLV LWR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-082-0	01	1	0411-0606	●
69	VALVE; SHIFT,LOW COAST,VLV LWR,A/T 4X2<UCB***> THA	8-97331-082-0	01	1	0810-	●
116	VALVE; PRESSURE RELIEF 4JJ1-TCS ENG<LFB> THA	8-97331-091-0	01	1	0411-0606	●
116	VALVE; PRESSURE RELIEF 4X2<UCB***> THA	8-97331-091-0	01	1	0810-	●
130	PISTON; ACCUMLATOR CONT 4JJ1-TCS ENG<LFB> (A) THA	8-94342-922-0	01	1	0411-0606	●
130	PISTON; ACCUMLATOR CONT 4X2<UCB***> (A) THA	8-94342-922-0	01	1	0810-	●
130	PISTON; ACCUMLATOR CONT 4JJ1-TCS ENG<LFB> (B) THA	8-97331-057-0	01	1	0411-0606	●
130	PISTON; ACCUMLATOR CONT 4X2<UCB***> (B) THA	8-97331-057-0	01	1	0810-	●
157	FILTER; OIL,LWR VALVE BODY 4JJ1-TCS ENG<LFB> THA	8-97331-062-0	01	1	0411-0606	●
157	FILTER; OIL,LWR VALVE BODY 4X2<UCB***> THA	8-97331-062-0	01	1	0810-	●
165	PLATE; PRESS REG VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-94385-905-0	01	1	0411-0606	●
165	PLATE; PRESS REG VLV,A/T 4X2<UCB***> THA	8-94385-905-0	01	1	0810-	●
170	PLATE; VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-081-0	01	1	0411-0606	●
170	PLATE; VLV,A/T 4X2<UCB***> THA	8-97331-081-0	01	1	0810-	●
171	PLATE; SHIFT VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-080-0	06	1	0411-0606	●
171	PLATE; SHIFT VLV,A/T 4X2<UCB***> THA	8-97331-080-0	06	1	0810-	●
189	RETAINER; SPR 4JJ1-TCS ENG<LFB> THA	8-94385-905-0	01	1	0411-0606	●
189	RETAINER; SPR 4X2<UCB***> THA	8-94385-905-0	01	1	0810-	●
196	BOLT; SOLENOID 4JJ1-TCS ENG<LFB> (A) M6X45 FLANGE THA	8-97331-104-0	07	1	0411-0606	●
196	BOLT; SOLENOID 4X2<UCB***> (A) M6X45 FLANGE THA	8-97331-104-0	07	1	0810-	●
196	BOLT; SOLENOID 4JJ1-TCS ENG<LFB> (B) M6X16 THA	8-97331-121-0	05	1	0411-0606	●
196	BOLT; SOLENOID 4X2<UCB***> (B) M6X16 THA	8-97331-121-0	05	1	0810-	●
197	PLATE; ACCUMLATOR CONT VLV 4JJ1-TCS ENG<LFB> THA	8-97331-080-0	02	1	0411-0606	●
197	PLATE; ACCUMLATOR CONT VLV 4X2<UCB***> THA	8-97331-080-0	02	1	0810-	●
206	PLUG; SHIFT VALVE 4JJ1-TCS ENG<LFB> (A) THA	8-97331-099-0	01	1	0411-0606	●
206	PLUG; SHIFT VALVE 4X2<UCB***> (A) THA	8-97331-099-0	01	1	0810-	●
206	PLUG; SHIFT VALVE 4JJ1-TCS ENG<LFB> (B) THA	8-97331-100-0	01	1	0411-0606	●
206	PLUG; SHIFT VALVE 4X2<UCB***> (B) THA	8-97331-100-0	01	1	0810-	●
218	HARNESS; SOLENOID WIRE 4JJ1-TCS ENG<LFB> THA	8-97331-115-0	01	1	0411-0606	●
218	HARNESS; SOLENOID WIRE 4X2<UCB***> THA	8-97331-115-0	01	1	0810-	●
244	VALVE; PRESSURE CONT 4JJ1-TCS ENG<LFB> THA	8-97331-064-0	01	1	0411-0606	●
244	VALVE; PRESSURE CONT 4X2<UCB***> THA	8-97331-064-0	01	1	0810-	●
249	VALVE; SHIFT 4JJ1-TCS ENG<LFB> THA	8-97331-083-0	01	1	0411-0606	●
249	VALVE; SHIFT 4X2<UCB***> THA	8-97331-083-0	01	1	0810-	●
250	SPRING; SHIFT VALVE 4JJ1-TCS ENG<LFB> (A) THA	8-97331-070-0	01	1	0411-0606	●
250	SPRING; SHIFT VALVE 4X2<UCB***> (A) THA	8-97331-070-0	01	1	0810-	●
250	SPRING; SHIFT VALVE 4JJ1-TCS ENG<LFB> (B) THA	8-97331-076-0	01	1	0411-0606	●
250	SPRING; SHIFT VALVE 4X2<UCB***> (B) THA	8-97331-076-0	01	1	0810-	●
282	BODY ASM; VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-97333-561-0	01	1	0411-0606	●
282	BODY ASM; VLV,A/T 4X2<UCB***> THA	8-97333-561-0	01	1	0810-	●
285	SOLENOID; LWR VLV BODY 4JJ1-TCS ENG<LFB> (A) THA	8-97331-109-0	04	1	0411-0606	●
285	SOLENOID; LWR VLV BODY 4X2<UCB***> (A) THA	8-97331-109-0	04	1	0810-	●
285	SOLENOID; LWR VLV BODY 4JJ1-TCS ENG<LFB> (B) THA	8-97331-110-0	01	1	0411-0606	●
285	SOLENOID; LWR VLV BODY 4X2<UCB***> (B) THA	8-97331-110-0	01	1	0810-	●
285	SOLENOID; LWR VLV BODY 4JJ1-TCS ENG<LFB> (C) THA	8-97331-111-0	01	1	0411-0606	●
285	SOLENOID; LWR VLV BODY 4X2<UCB***> (C) THA	8-97331-111-0	01	1	0810-	●
291	VALVE; SPOOL,LWR VLV 4JJ1-TCS ENG<LFB> (A) THA	8-97331-086-0	01	1	0411-0606	●
291	VALVE; SPOOL,LWR VLV 4X2<UCB***> (A) THA	8-97331-086-0	01	1	0810-	●
291	VALVE; SPOOL,LWR VLV 4JJ1-TCS ENG<LFB> (B) THA	8-97331-087-0	01	1	0411-0606	●
291	VALVE; SPOOL,LWR VLV 4X2<UCB***> (B) THA	8-97331-087-0	01	1	0810-	●
291	VALVE; SPOOL,LWR VLV 4JJ1-TCS ENG<LFB> (C) THA	8-97331-089-0	01	1	0411-0606	●
291	VALVE; SPOOL,LWR VLV 4X2<UCB***> (C) THA	8-97331-089-0	01	1	0810-	●
292	SPRING; SPOOL VALVE 4JJ1-TCS ENG<LFB> (A) THA	8-97331-068-0	01	1	0411-0606	●
292	SPRING; SPOOL VALVE 4X2<UCB***> (A) THA	8-97331-068-0	01	1	0810-	●
292	SPRING; SPOOL VALVE 4JJ1-TCS ENG<LFB> (B) THA	8-97331-069-0	01	1	0411-0606	●
292	SPRING; SPOOL VALVE 4X2<UCB***> (B) THA	8-97331-069-0	01	1	0810-	●
292	SPRING; SPOOL VALVE 4JJ1-TCS ENG<LFB> (C) THA	8-97331-073-0	01	1	0411-0606	●
292	SPRING; SPOOL VALVE 4X2<UCB***> (C) THA	8-97331-073-0	01	1	0810-	●
293	PLUG; SPOOL VALVE 4JJ1-TCS ENG<LFB> THA	8-97331-098-0	03	1	0411-0606	●
293	PLUG; SPOOL VALVE 4X2<UCB***> THA	8-97331-098-0	03	1	0810-	●
294	SWITCH; OIL PRESSURE 4JJ1-TCS ENG<LFB> (A) THA	8-97330-896-0	02	1	0411-0606	●
294	SWITCH; OIL PRESSURE 4X2<UCB***> (A) THA	8-97330-896-0	02	1	0810-	●
294	SWITCH; OIL PRESSURE 4JJ1-TCS ENG<LFB> (B) THA	8-97330-897-0	01	1	0411-0606	●
294	SWITCH; OIL PRESSURE 4X2<UCB***> (B) THA	8-97330-897-0	01	1	0810-	●
295	BRACKET; HARNESS,LWR VLV BODY 4JJ1-TCS ENG<LFB> THA	8-97331-061-0	01	1	0411-0606	●
295	BRACKET; HARNESS,LWR VLV BODY 4X2<UCB***> THA	8-97331-061-0	01	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
