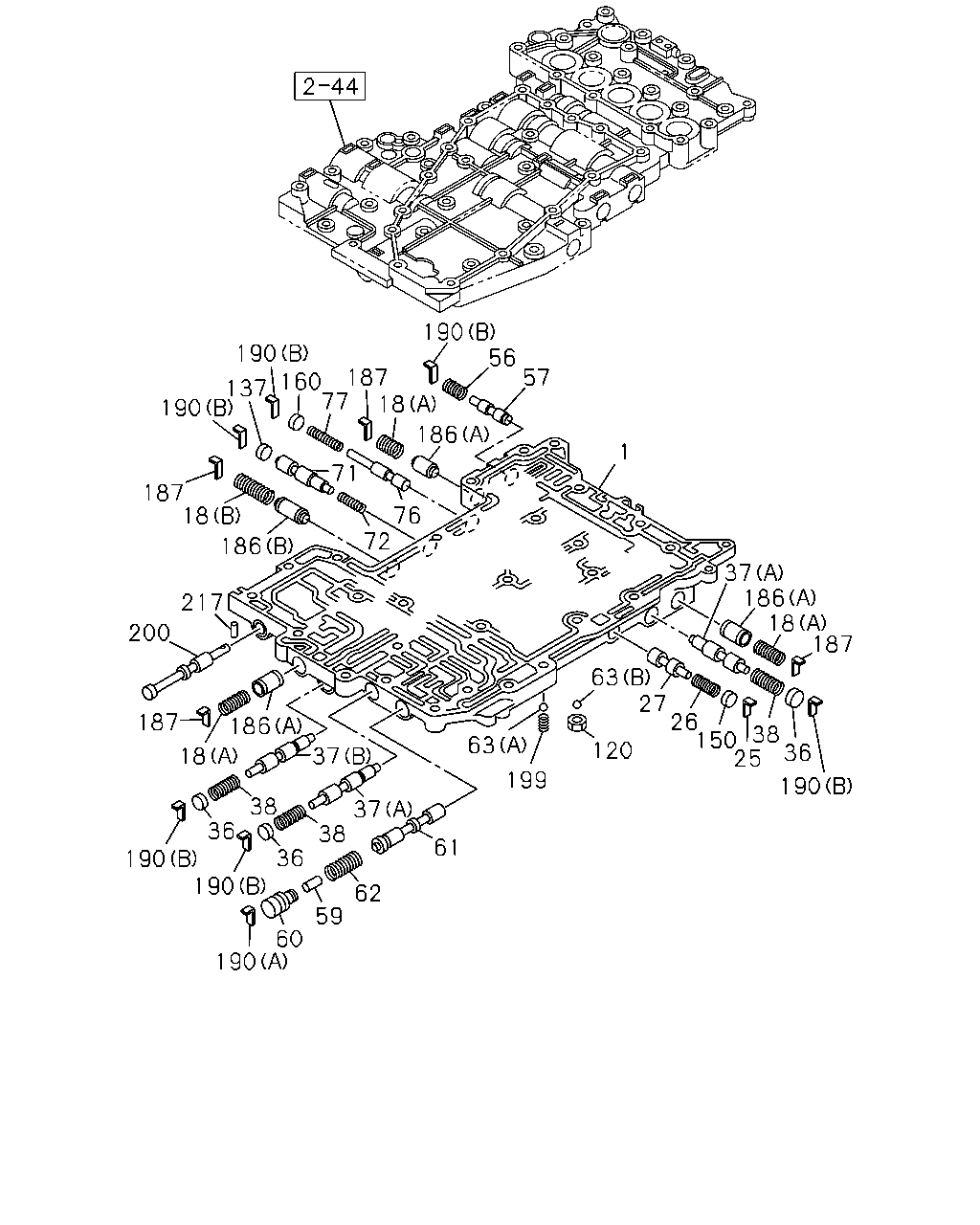

2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#73768) — 68 parça

190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BODY ASM; UPR,VALVE,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-058-0	01	1	0411-0606
1	BODY ASM; UPR,VALVE,A/T 4X2<UCB***> THA	8-97331-058-0	01	1	0810-
18	SPRING; ACCUMLATOR CONT VLV 4JJ1-TCS ENG<LFB> (A) THA	8-97092-821-0	03	1	0411-0606
18	SPRING; ACCUMLATOR CONT VLV 4X2<UCB***> (A) THA	8-97092-821-0	03	1	0810-
18	SPRING; ACCUMLATOR CONT VLV 4JJ1-TCS ENG<LFB> (B) THA	8-97331-077-0	01	1	0411-0606
18	SPRING; ACCUMLATOR CONT VLV 4X2<UCB***> (B) THA	8-97331-077-0	01	1	0810-
25	PLATE; RET,SHIFT CONT VLV 4JJ1-TCS ENG<LFB> THA	8-97331-080-0	01	1	0411-0606
25	PLATE; RET,SHIFT CONT VLV 4X2<UCB***> THA	8-97331-080-0	01	1	0810-
26	SPRING; SHIFT CONT VLV 4JJ1-TCS ENG<LFB> THA	8-97331-076-0	01	1	0411-0606
26	SPRING; SHIFT CONT VLV 4X2<UCB***> THA	8-97331-076-0	01	1	0810-
27	VALVE; SHIFT CONT,UPR BODY 4JJ1-TCS ENG<LFB> THA	8-97331-084-0	01	1	0411-0606
27	VALVE; SHIFT CONT,UPR BODY 4X2<UCB***> THA	8-97331-084-0	01	1	0810-
36	PLUG; SPOOL CONT VLV,UPR BODY 4JJ1-TCS ENG<LFB> THA	8-97331-098-0	03	1	0411-0606
36	PLUG; SPOOL CONT VLV,UPR BODY 4X2<UCB***> THA	8-97331-098-0	03	1	0810-
37	VALVE; SPOOL CONT,UPR BODY 4JJ1-TCS ENG<LFB> (A) THA	8-97331-086-0	02	1	0411-0606
37	VALVE; SPOOL CONT,UPR BODY 4X2<UCB***> (A) THA	8-97331-086-0	02	1	0810-
37	VALVE; SPOOL CONT,UPR BODY 4JJ1-TCS ENG<LFB> (B) THA	8-97331-090-0	01	1	0411-0606
37	VALVE; SPOOL CONT,UPR BODY 4X2<UCB***> (B) THA	8-97331-090-0	01	1	0810-
38	SPRING; SPOOL CONT VLV 4JJ1-TCS ENG<LFB> THA	8-97331-068-0	03	1	0411-0606
38	SPRING; SPOOL CONT VLV 4X2<UCB***> THA	8-97331-068-0	03	1	0810-
56	SPRING; PILOT VALVE,SPOOL CONT 4JJ1-TCS ENG<LFB> THA	8-97331-066-0	01	1	0411-0606
56	SPRING; PILOT VALVE,SPOOL CONT 4X2<UCB***> THA	8-97331-066-0	01	1	0810-
57	VALVE; PILOT,SPOOL CONT 4JJ1-TCS ENG<LFB> THA	8-97331-088-0	01	1	0411-0606
57	VALVE; PILOT,SPOOL CONT 4X2<UCB***> THA	8-97331-088-0	01	1	0810-
59	SLEEVE; LOCKUP CONT VALVE 4JJ1-TCS ENG<LFB> THA	8-97331-095-0	01	1	0411-0606
59	SLEEVE; LOCKUP CONT VALVE 4X2<UCB***> THA	8-97331-095-0	01	1	0810-
60	PLUG; LOCKUP CONT VALVE 4JJ1-TCS ENG<LFB> THA	8-97331-094-0	01	1	0411-0606
60	PLUG; LOCKUP CONT VALVE 4X2<UCB***> THA	8-97331-094-0	01	1	0810-
61	VALVE; LOCKUP CONT,UPR BODY 4JJ1-TCS ENG<LFB> THA	8-97331-093-0	01	1	0411-0606
61	VALVE; LOCKUP CONT,UPR BODY 4X2<UCB***> THA	8-97331-093-0	01	1	0810-
62	SPRING; LOCKUP CONT VALVE 4JJ1-TCS ENG<LFB> THA	8-97331-067-0	01	1	0411-0606
62	SPRING; LOCKUP CONT VALVE 4X2<UCB***> THA	8-97331-067-0	01	1	0810-
63	BALL; STEEL,VLV UPR,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-97135-609-0	10	1	0411-0606
63	BALL; STEEL,VLV UPR,A/T 4X2<UCB***> (A) THA	8-97135-609-0	10	1	0810-
63	BALL; STEEL,VLV UPR,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97331-092-0	01	1	0411-0606
63	BALL; STEEL,VLV UPR,A/T 4X2<UCB***> (B) THA	8-97331-092-0	01	1	0810-
71	VALVE; LOW,VLV UPR RR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-082-0	01	1	0411-0606
71	VALVE; LOW,VLV UPR RR,A/T 4X2<UCB***> THA	8-97331-082-0	01	1	0810-
72	SPRING; VLV LOW,VLV UPR RR,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-070-0	01	1	0411-0606
72	SPRING; VLV LOW,VLV UPR RR,A/T 4X2<UCB***> THA	8-97331-070-0	01	1	0810-
76	VALVE; REV CLU,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-085-0	01	1	0411-0606
76	VALVE; REV CLU,A/T 4X2<UCB***> THA	8-97331-085-0	01	1	0810-
77	SPRING; VLV,REV,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-074-0	01	1	0411-0606
77	SPRING; VLV,REV,A/T 4X2<UCB***> THA	8-97331-074-0	01	1	0810-
120	NUT; UPR BODY,VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-97112-969-0	02	1	0411-0606
120	NUT; UPR BODY,VLV,A/T 4X2<UCB***> THA	8-97112-969-0	02	1	0810-
137	PLUG; LOW MODULATOR VALVE 4JJ1-TCS ENG<LFB> THA	8-97331-099-0	01	1	0411-0606
137	PLUG; LOW MODULATOR VALVE 4X2<UCB***> THA	8-97331-099-0	01	1	0810-
150	PLUG; SHIFT VLV 4JJ1-TCS ENG<LFB> THA	8-97331-099-0	01	1	0411-0606
150	PLUG; SHIFT VLV 4X2<UCB***> THA	8-97331-099-0	01	1	0810-
160	PLUG; VLV BODY 4JJ1-TCS ENG<LFB> THA	8-97331-097-0	01	1	0411-0606
160	PLUG; VLV BODY 4X2<UCB***> THA	8-97331-097-0	01	1	0810-
186	PISTON; ACCUMLATOR VLV,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94342-922-0	03	1	0411-0606
186	PISTON; ACCUMLATOR VLV,A/T 4X2<UCB***> (A) THA	8-94342-922-0	03	1	0810-
186	PISTON; ACCUMLATOR VLV,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97331-056-0	01	1	0411-0606
186	PISTON; ACCUMLATOR VLV,A/T 4X2<UCB***> (B) THA	8-97331-056-0	01	1	0810-
187	PLATE; ACCUM CONT VLV,A/T 4JJ1-TCS ENG<LFB> THA	8-94385-905-0	04	1	0411-0606
187	PLATE; ACCUM CONT VLV,A/T 4X2<UCB***> THA	8-94385-905-0	04	1	0810-
190	PLATE; VLV RET,A/T 4JJ1-TCS ENG<LFB> (A) THA	8-94385-905-0	01	1	0411-0606
190	PLATE; VLV RET,A/T 4X2<UCB***> (A) THA	8-94385-905-0	01	1	0810-
190	PLATE; VLV RET,A/T 4JJ1-TCS ENG<LFB> (B) THA	8-97331-080-0	06	1	0411-0606
190	PLATE; VLV RET,A/T 4X2<UCB***> (B) THA	8-97331-080-0	06	1	0810-
199	SPRING; VALVE,A/T 4JJ1-TCS ENG<LFB> THA	8-97331-079-0	01	1	0411-0606
199	SPRING; VALVE,A/T 4X2<UCB***> THA	8-97331-079-0	01	1	0810-
200	VALVE; MANUAL,UPR BODY 4JJ1-TCS ENG<LFB> THA	8-97331-065-0	01	1	0411-0606
200	VALVE; MANUAL,UPR BODY 4X2<UCB***> THA	8-97331-065-0	01	1	0810-
217	PIN; DOWEL 4JJ1-TCS ENG<LFB> THA	8-97331-120-0	01	1	0411-0606
217	PIN; DOWEL 4X2<UCB***> THA	8-97331-120-0	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
