2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#73767) — 90 parça

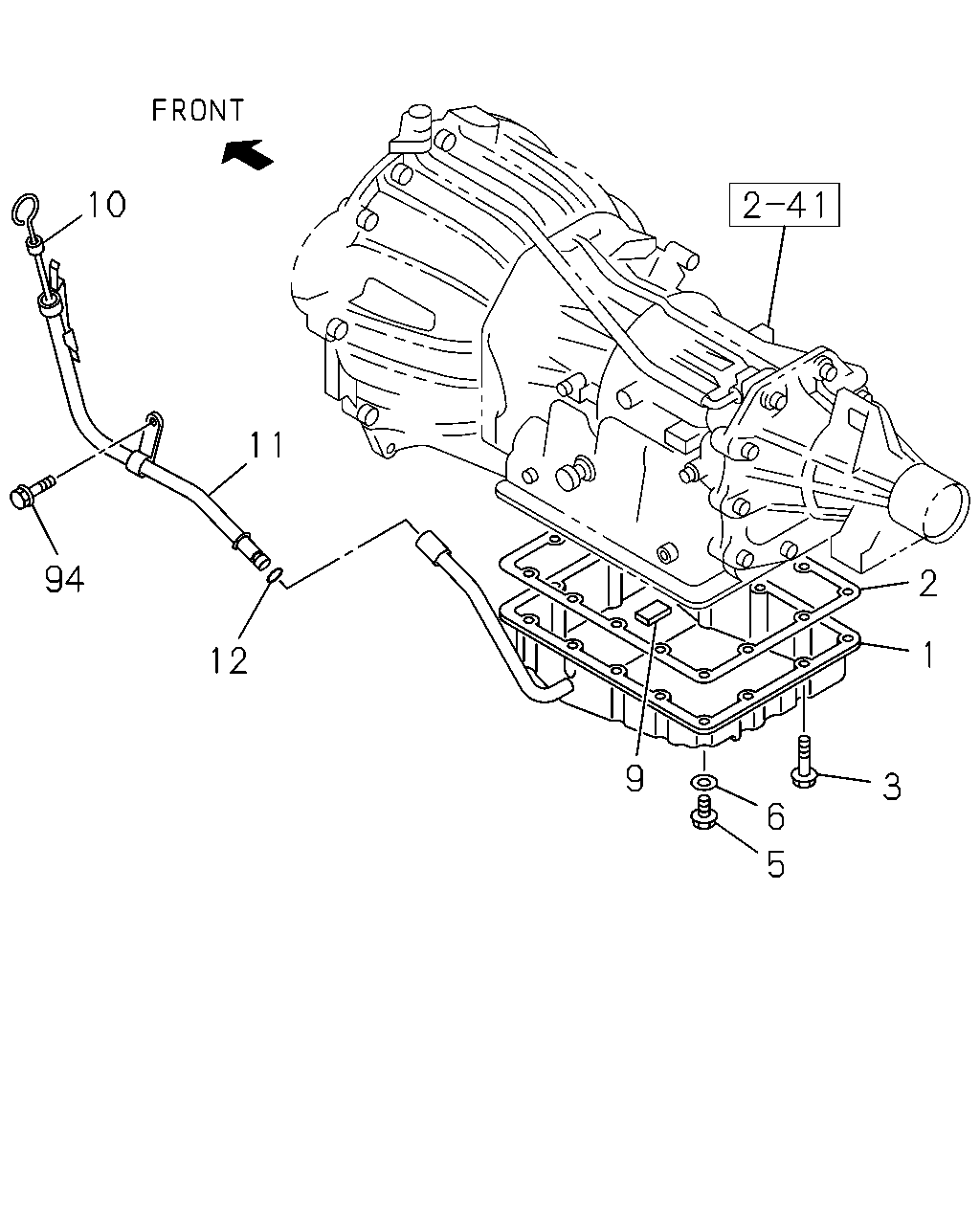

10 11 2 94 1 12 9 3 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-915-0	01	1	0411-0606	●
1	PAN ASM; OIL,A/T 4X2<UCB***> THA	8-97330-915-0	01	1	0810-	●
1	PAN ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-558-0	01	1	0610-0708		●
1	PAN ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-558-0	01	1	0710-		●
2	GASKET; OIL PAN,A/T 4X2<UCB***> THA	8-97330-916-0	01	1	0810-	●
2	GASKET; OIL PAN,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-916-0	01	1	0411-0606	●
3	BOLT; OIL PAN TO CASE 4JJ1-TCS ENG<LFB> THA	8-97330-911-0	19	1	0411-0606	●
3	BOLT; OIL PAN TO CASE 4X2<UCB***> THA	8-97330-911-0	19	1	0810-	●
3	BOLT; OIL PAN TO CASE 4JJ1-TCX ENG<LS0> THA	8-97130-928-0	19	1	0610-0708		●
3	BOLT; OIL PAN TO CASE 4JJ1-TCX ENG<LS0> THA	8-97130-928-0	19	1	0710-		●
5	PLUG; OIL PAN 4JJ1-TCS ENG<LFB> THA	8-97131-023-0	01	1	0411-0606	●
5	PLUG; OIL PAN 4X2<UCB***> THA	8-97131-023-0	01	1	0810-	●
5	PLUG; OIL PAN 4JJ1-TCX ENG<LS0> M10X9 THA	8-97367-573-0	01	1	0610-0708		●
5	PLUG; OIL PAN 4JJ1-TCX ENG<LS0> M10X9 THA	8-97367-573-0	01	1	0710-		●
6	GASKET; OIL PAN TO PLUG 4JJ1-TCS ENG<LFB> THA	8-97044-671-0	01	1	0411-0606	●
6	GASKET; OIL PAN TO PLUG 4X2<UCB***> THA	8-97044-671-0	01	1	0810-	●
6	GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG<LS0> ID=12 THA	5-34132-002-0	01	1	0610-0708		●
6	GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG<LS0> ID=12 THA	5-34132-002-0	01	1	0710-		●
9	MAGNET; OIL PAN 4JJ1-TCS ENG<LFB> THA	8-94140-738-0	01	1	0411-0606	●
9	MAGNET; OIL PAN 4X2<UCB***> THA	8-94140-738-0	01	1	0810-	●
9	MAGNET; OIL PAN 4JJ1-TCX ENG<LS0> THA	5-34138-004-0	04	1	0610-0708		●
9	MAGNET; OIL PAN 4JJ1-TCX ENG<LS0> THA	5-34138-004-0	04	1	0710-		●
10	GAUGE; OIL LEVEL 4JJ1-TCS ENG<LFB> THA	8-97371-037-0	01	1	0411-0606	●
10	GAUGE; OIL LEVEL 4JJ1-TCS ENG<LFB> THA	8-97371-037-0	01	1	0810-	●
10	GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	0610-0708		●
10	GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	0710-1008		●
10	GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	1009-		●
11	TUBE; OIL FILLER 4JJ1-TCS ENG<LFB> THA	8-97380-513-0	01	1	0411-0606	●
11	TUBE; OIL FILLER 4JJ1-TCS ENG<LFB> THA	8-97380-513-0	01	1	0810-	●
11	TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	0610-0708		●
11	TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	0710-1008		●
11	TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	1009-		●
12	GASKET; OIL FILLER TUBE TO A/T ID=9.8 THA	9-09561-110-0	01	1	0411-0606	●
12	GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG<LS0> ID=9.8 THA	9-09561-110-0	01	1	0610-0708		●
12	GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG<LS0> ID=9.8 THA	9-09561-110-0	01	1	0710-0809		●
12	GASKET; OIL FILLER TUBE TO A/T ID=9.8 THA	9-09561-110-0	01	1	0810-	●	●
94	BOLT; OIL FILLER TUBE 4JJ1-TCS ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606	●
94	BOLT; OIL FILLER TUBE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708		●
94	BOLT; OIL FILLER TUBE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	01	1	0710-0809		●
94	BOLT; OIL FILLER TUBE M8X16 FLANGE THA	0-28050-816-0	01	1	0810-	●	●

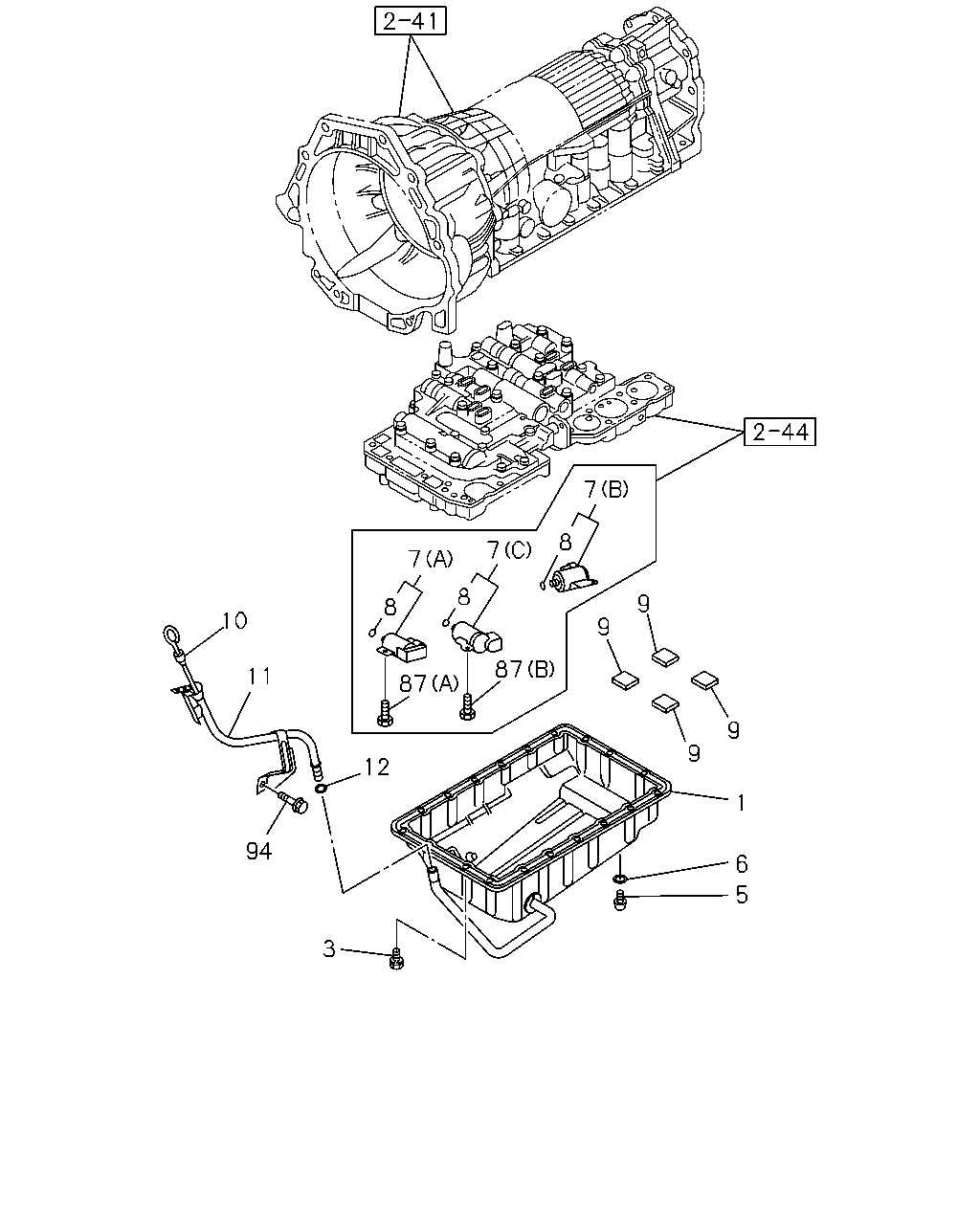

7 8 7 7 8 9 8 10 9 87 11 87 9 9 12 1 94 6 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL,A/T 4JJ1-TCS ENG<LFB> THA	8-97330-915-0	01	1	0411-0606	●
1	PAN ASM; OIL,A/T 4X2<UCB***> THA	8-97330-915-0	01	1	0810-	●
1	PAN ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-558-0	01	1	0610-0708		●
1	PAN ASM; OIL,A/T 4JJ1-TCX ENG<LS0> THA	8-98050-558-0	01	1	0710-		●
3	BOLT; OIL PAN TO CASE 4JJ1-TCS ENG<LFB> THA	8-97330-911-0	19	1	0411-0606	●
3	BOLT; OIL PAN TO CASE 4X2<UCB***> THA	8-97330-911-0	19	1	0810-	●
3	BOLT; OIL PAN TO CASE 4JJ1-TCX ENG<LS0> THA	8-97130-928-0	19	1	0610-0708		●
3	BOLT; OIL PAN TO CASE 4JJ1-TCX ENG<LS0> THA	8-97130-928-0	19	1	0710-		●
5	PLUG; OIL PAN 4JJ1-TCS ENG<LFB> THA	8-97131-023-0	01	1	0411-0606	●
5	PLUG; OIL PAN 4X2<UCB***> THA	8-97131-023-0	01	1	0810-	●
5	PLUG; OIL PAN 4JJ1-TCX ENG<LS0> M10X9 THA	8-97367-573-0	01	1	0610-0708		●
5	PLUG; OIL PAN 4JJ1-TCX ENG<LS0> M10X9 THA	8-97367-573-0	01	1	0710-		●
6	GASKET; OIL PAN TO PLUG 4JJ1-TCS ENG<LFB> THA	8-97044-671-0	01	1	0411-0606	●
6	GASKET; OIL PAN TO PLUG 4X2<UCB***> THA	8-97044-671-0	01	1	0810-	●
6	GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG<LS0> ID=12 THA	5-34132-002-0	01	1	0610-0708		●
6	GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG<LS0> ID=12 THA	5-34132-002-0	01	1	0710-		●
7	SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97214-539-0	01	1	0610-0708		●
7	SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG<LS0> (A) THA	8-97214-539-0	01	1	0710-		●
7	SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97218-986-0	01	1	0610-0708		●
7	SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG<LS0> (B) THA	8-97218-986-0	01	1	0710-		●
7	SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-97218-987-0	01	1	0610-0708		●
7	SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG<LS0> (C) THA	8-97218-987-0	01	1	0710-		●
8	GASKET; DOWN SHIFT SOLENOID,A/T 4JJ1-TCX ENG<LS0> ID=6.1 THA	8-94480-101-0	03	1	0610-0708		●
8	GASKET; DOWN SHIFT SOLENOID,A/T 4JJ1-TCX ENG<LS0> ID=6.1 THA	8-94480-101-0	03	1	0710-		●
9	MAGNET; OIL PAN 4JJ1-TCS ENG<LFB> THA	8-94140-738-0	01	1	0411-0606	●
9	MAGNET; OIL PAN 4X2<UCB***> THA	8-94140-738-0	01	1	0810-	●
9	MAGNET; OIL PAN 4JJ1-TCX ENG<LS0> THA	5-34138-004-0	04	1	0610-0708		●
9	MAGNET; OIL PAN 4JJ1-TCX ENG<LS0> THA	5-34138-004-0	04	1	0710-		●
10	GAUGE; OIL LEVEL 4JJ1-TCS ENG<LFB> THA	8-97371-037-0	01	1	0411-0606	●
10	GAUGE; OIL LEVEL 4JJ1-TCS ENG<LFB> THA	8-97371-037-0	01	1	0810-	●
10	GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	0610-0708		●
10	GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	0710-1008		●
10	GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	1009-		●
11	TUBE; OIL FILLER 4JJ1-TCS ENG<LFB> THA	8-97380-513-0	01	1	0411-0606	●
11	TUBE; OIL FILLER 4JJ1-TCS ENG<LFB> THA	8-97380-513-0	01	1	0810-	●
11	TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	0610-0708		●
11	TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	0710-1008		●
11	TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	1009-		●
12	GASKET; OIL FILLER TUBE TO A/T ID=9.8 THA	9-09561-110-0	01	1	0411-0606	●
12	GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG<LS0> ID=9.8 THA	9-09561-110-0	01	1	0610-0708		●
12	GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG<LS0> ID=9.8 THA	9-09561-110-0	01	1	0710-0809		●
12	GASKET; OIL FILLER TUBE TO A/T ID=9.8 THA	9-09561-110-0	01	1	0810-	●	●
87	BOLT; SOLENOID 4JJ1-TCX ENG<LS0> (B) M5X12 THA	8-94405-335-0	01	1	0610-0708		●
87	BOLT; SOLENOID 4JJ1-TCX ENG<LS0> (B) M5X12 THA	8-94405-335-0	01	1	0710-		●
87	BOLT; SOLENOID 4JJ1-TCX ENG<LS0> (A) M6X12 THA	8-94479-927-0	01	1	0610-0708		●
87	BOLT; SOLENOID 4JJ1-TCX ENG<LS0> (A) M6X12 THA	8-94479-927-0	01	1	0710-		●
94	BOLT; OIL FILLER TUBE 4JJ1-TCS ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606	●
94	BOLT; OIL FILLER TUBE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708		●
94	BOLT; OIL FILLER TUBE 4JJ1-TCX ENG<LS0> M8X16 FLANGE THA	0-28050-816-0	01	1	0710-0809		●
94	BOLT; OIL FILLER TUBE M8X16 FLANGE THA	0-28050-816-0	01	1	0810-	●	●
