◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#73764) — 47 parça

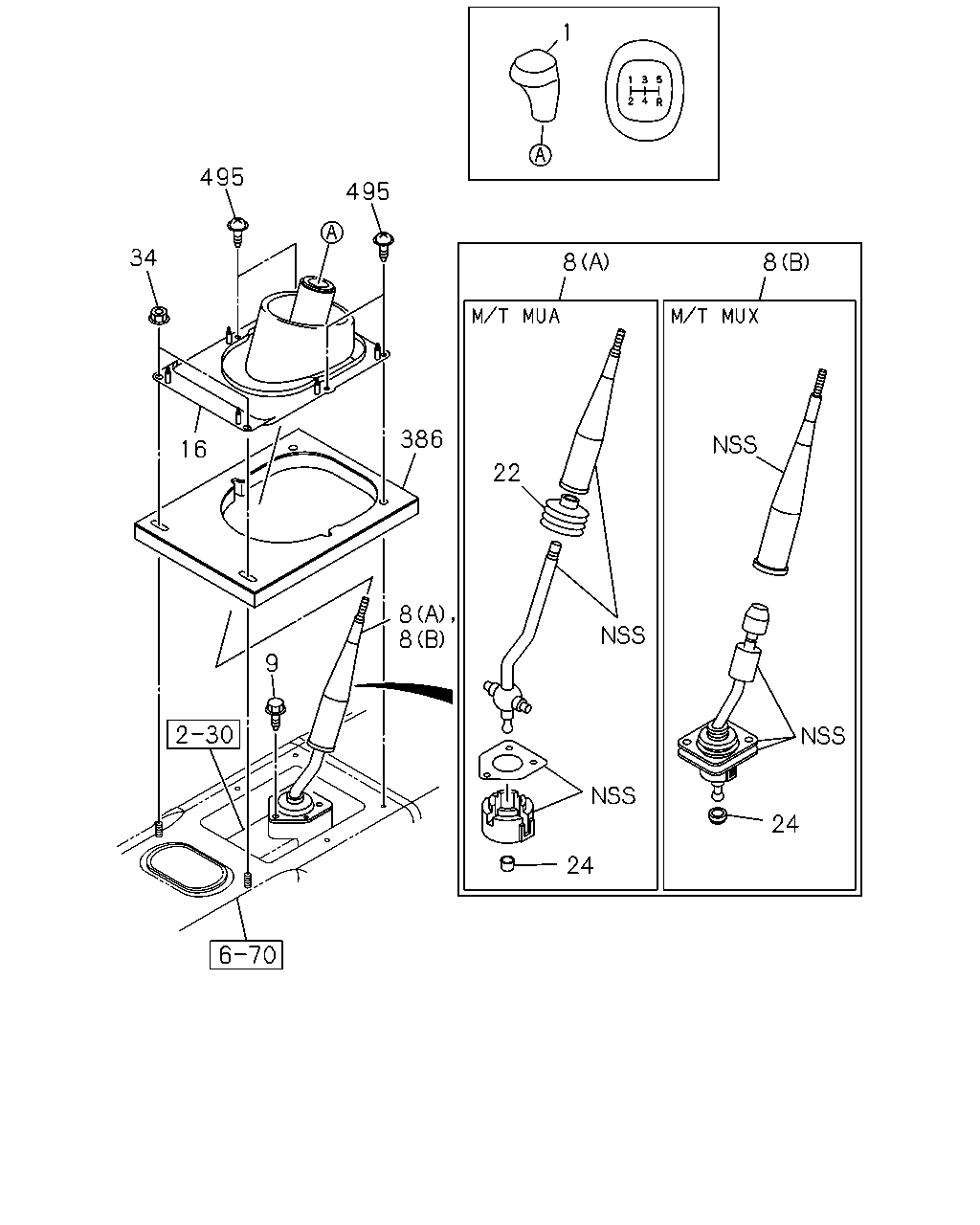

çizim 114157
1 495 495 34 8 8 386 16 22 8 8 9 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
INTERIOR COLOR VERY DARK GRAY<116> SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97423-447-0 01 1 1111- ● ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97398-543-0 01 1 0411-0508 ●
1 KNOB; CHANGE LEVER
4JJ1-TCS ENG<LFB> DARK GRAY THA 		8-97398-544-0 01 1 0509-0512 ●
1 KNOB; CHANGE LEVER
4JJ1-TCS ENG<LFB> DARK GRAY THA 		8-97406-182-0 01 1 0601-0606 ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97406-182-0 01 1 0607-0609 ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97406-182-0 01 1 0610-0708 ●
1 KNOB; CHANGE LEVER
4X4<UCS***> DARK GRAY THA 		8-97406-182-0 01 1 0610-0708 ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97406-182-0 01 1 0709-0709 ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97406-182-0 01 1 0710-1010 ● ●
1 KNOB; CHANGE LEVER
INTERIOR COLOR BEIGE<184> SHIFT KNOB LEATHER<VY7> DARK GRAY THA 		8-97406-182-0 01 1 1011-1107 ● ●
1 KNOB; CHANGE LEVER
INTERIOR COLOR BEIGE<184> DARK GRAY THA 		8-97406-182-0 01 1 1108-1110 ● ●
1 KNOB; CHANGE LEVER
INTERIOR COLOR BEIGE<184> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY THA 		8-97406-182-0 01 1 1111- ● ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97944-094-0 01 1 0411-0606 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97945-707-0 01 1 0607-0610 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97945-847-0 01 1 0611-0802 ●
8 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97947-101-1 01 1 0803- ●
8 LEVER; CHANGE
4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA 		8-97945-472-0 01 1 0610-0708 ●
8 LEVER; CHANGE
4JJ1-TCX ENG<LS0> (B) THA 		8-97945-472-0 01 1 0710- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0411-0606 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0607- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 04 1 0610-0708 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 04 1 0710- ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0411-0606 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0607-0609 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0610-0708 ● ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0709-0709 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0710- ● ●
22 COVER; DUST,CHANGE LEVER
4JJ1-TCS ENG<LFB> THA 		8-97945-801-0 01 1 0611- ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB> THA 		8-97943-618-0 01 1 0411-0606 ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB> THA 		8-97943-618-0 01 1 0607-0609 ●
24 BUSHING; CHANGE LEVER
THA 		8-97943-618-0 01 1 0610-0708 ● ●
24 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB> THA 		8-97943-618-0 01 1 0709-0709 ●
24 BUSHING; CHANGE LEVER
THA 		8-97943-618-0 01 1 0710- ● ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0411-0606 ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0607-0609 ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0610-0702 ● ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0703-0708 ● ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0709-0709 ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0710- ● ●
386 INSULATION; CHANGE LEVER
THA 		8-98063-555-0 01 1 0611-0708 ●
386 INSULATION; CHANGE LEVER
THA 		8-98063-555-0 01 1 0710- ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0411-0605 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0606-0606 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0607-0609 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0610-0708 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0709-0709 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0710- ● ●
