Sayfa 2-25 - Isuzu EPC

2-25 — SPEEDOMETER DRIVEN GEAR (#73761) — 315 parça

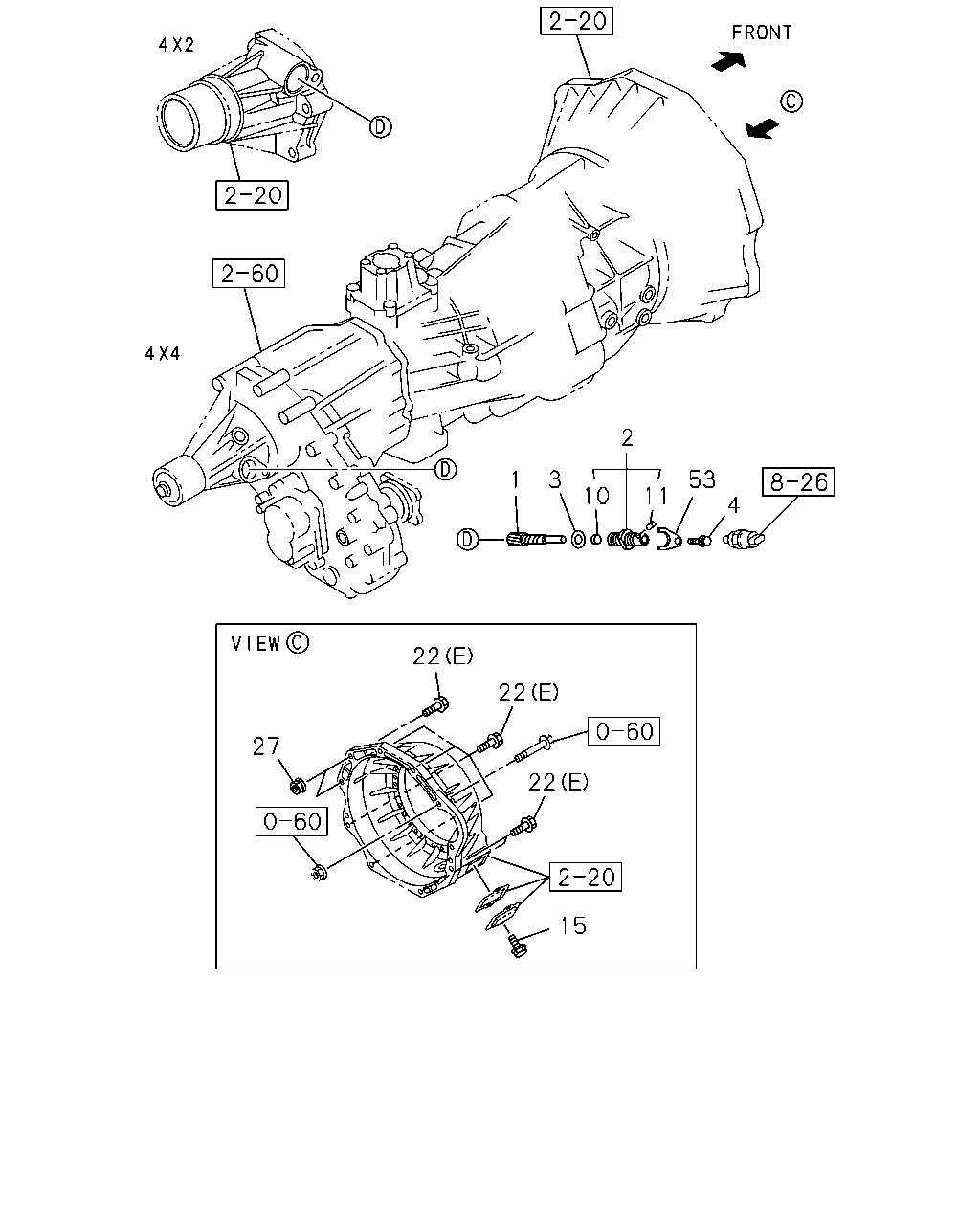

1 3 2 10 11 53 4 22 22 27 22 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD 4X2<UCB***> Z=17 IMA	8-97012-085-2	01	1	0411-0606	●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> Z=18 THA	8-97012-086-2	01	1	0607-0609		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97012-086-2	01	1	0610-0708		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> Z=18 THA	8-97012-086-2	01	1	0709-0709		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97012-086-2	01	1	0710-		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=17 IMA	8-97238-583-0	01	1	0411-0606	●		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=18 THA	8-97238-584-2	01	1	0607-0609		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97238-584-2	01	1	0610-0708		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=18 THA	8-97238-584-2	01	1	0709-0709		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97238-584-2	01	1	0710-		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98004-535-0	01	1	0710-				●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98008-940-0	01	1	0610-0708				●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98008-940-0	01	1	0710-				●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> Z=17 THA	8-98056-402-0	01	1	0610-0708					●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> Z=17 THA	8-98056-402-0	01	1	0710-					●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA	8-97238-583-0	01	1	0610-0708					●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA	8-97238-583-0	01	1	0710-					●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0411-0606	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0607-0709		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0710-		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<UCS***> IMA	8-97305-454-1	01	1	0411-0606	●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<UCS***> IMA	8-97305-454-1	01	1	0607-		●		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97181-543-0	01	1	0610-0708					●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97181-543-0	01	1	0710-					●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0411-0606	●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0411-0606			●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0607-0709		●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0607-0709				●	●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0710-		●		●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0710-					●
3	GASKET; BUSHING 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97181-545-0	01	1	0610-0708					●
3	GASKET; BUSHING 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97181-545-0	01	1	0710-					●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606	●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0709		●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0709				●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0710-		●		●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0710-					●
4	BOLT; RET,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA	8-94480-043-0	01	1	0610-0708					●
4	BOLT; RET,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA	8-94480-043-0	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0411-0606	●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0411-0606			●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0607-0709		●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0607-0709				●	●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0710-		●		●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> NOK THA	8-94480-040-0	01	1	0610-0708					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> JTEKT THA	8-97181-544-0	01	1	0610-0708					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> NOK THA	8-94480-040-0	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> JTEKT THA	8-97181-544-0	01	1	0710-					●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0411-0606	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0411-0606			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0607-0709		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0607-0709				●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0710-		●		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0710-					●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCS ENG<LFB> M6X16 FLANGE THA	0-28650-616-0	04	1	0411-0606			●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0710-				●
15	BOLT; UNDER COVER TO TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0610-0708				●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG<LS0> M6X16 FLANGE THA	0-28650-616-0	04	1	0610-0708					●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG<LS0> M6X16 FLANGE THA	0-28650-616-0	04	1	0710-0809					●
15	BOLT; UNDER COVER TO TRANS M6X16 FLANGE THA	0-28650-616-0	04	1	0810-			●		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (A) M10X60 FLANGE THA	0-28051-060-0	02	1	0411-0606	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (A) M10X60 FLANGE THA	0-28051-060-0	02	1	0607-		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (C) M12X40 FLANGE THA	0-28051-240-0	01	1	0411-0606	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (C) M12X40 FLANGE THA	0-28051-240-0	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (D) M10X40 FLANGE THA	0-28051-040-0	04	1	0411-0606	●		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (D) M12X45 FLANGE THA	0-28051-245-0	04	1	0810-			●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M12X45 FLANGE THA	0-28051-245-0	04	1	0411-0606			●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M10X40 FLANGE THA	0-28051-040-0	04	1	0607-0809		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M10X40 FLANGE THA	0-28051-040-0	04	1	0810-		●	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (E) M12X50 FLANGE THA	0-28051-250-0	08	1	0710-				●
22	BOLT; TRANS CASE TO ENG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M12X50 FLANGE THA	0-28051-250-0	08	1	0610-0708				●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	1009-					●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0411-0606	●		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0607-0609		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0610-0708		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	02	1	0610-0708					●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0709-0709		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0710-0809		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	02	1	0710-0809					●
27	NUT; CLU HSG TO TRANS M10 FLANGE THA	0-91180-110-0	02	1	0810-		●	●		●
27	NUT; CLU HSG TO TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> M12 FLANGE THA	0-91180-112-0	02	1	0610-0708				●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M12 FLANGE THA	0-91180-112-0	02	1	0710-				●
53	PLATE; LOCK,DRIVEN GEAR THA	8-97021-019-0	01	1	0411-0606	●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> THA	8-97021-019-0	01	1	0411-0606			●
53	PLATE; LOCK,DRIVEN GEAR THA	8-97021-019-0	01	1	0607-0703		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> THA	8-97021-019-0	01	1	0607-0703				●	●
53	PLATE; LOCK,DRIVEN GEAR IMA	8-98035-572-0	01	1	0704-0709		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> IMA	8-98035-572-0	01	1	0704-0709				●	●
53	PLATE; LOCK,DRIVEN GEAR IMA	8-98035-572-0	01	1	0710-		●		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> IMA	8-98035-572-0	01	1	0710-					●
53	PLATE; LOCK,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94479-720-0	01	1	0610-0708					●
53	PLATE; LOCK,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94479-720-0	01	1	0710-					●

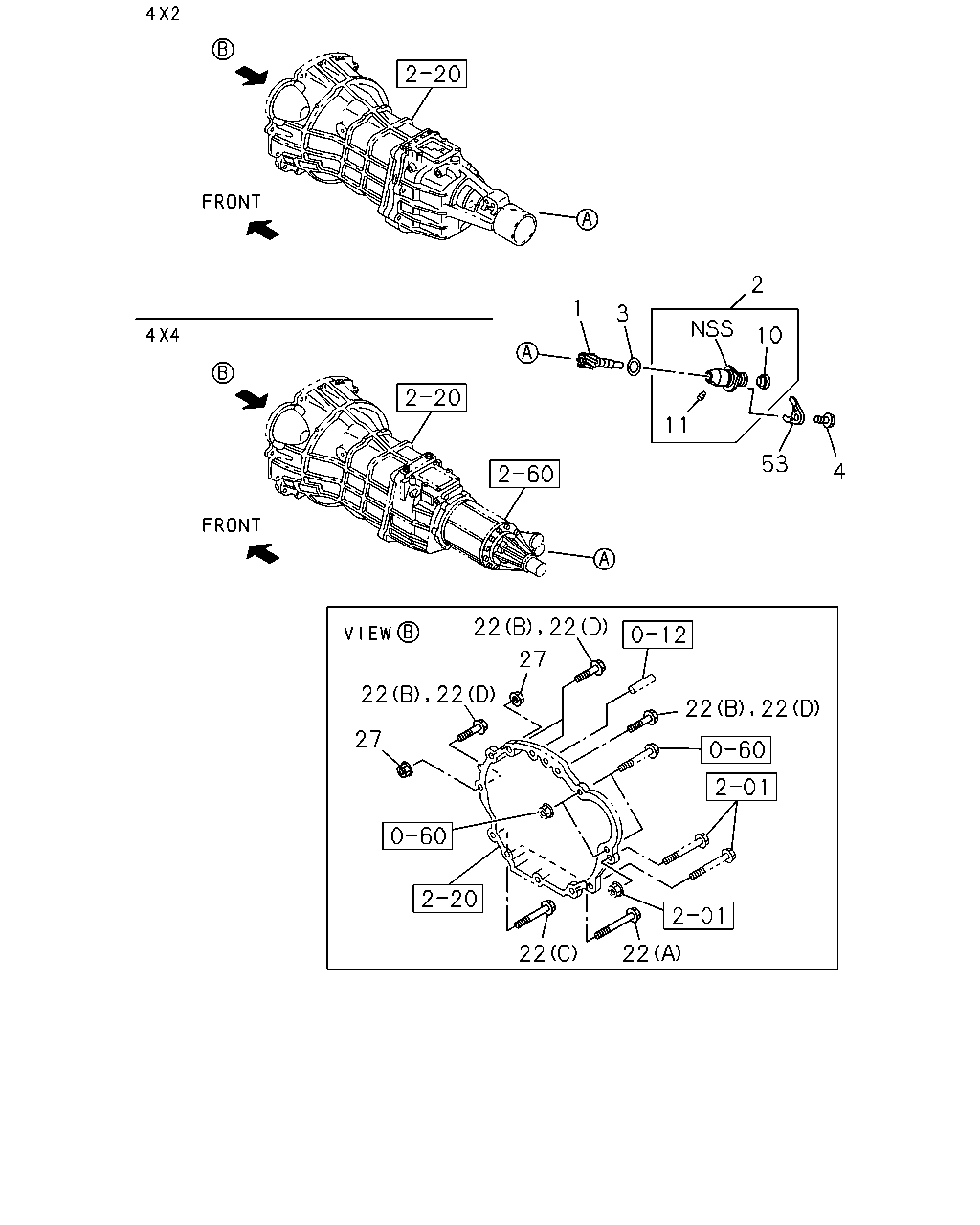

2 1 3 10 11 53 4 27 27 22 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD 4X2<UCB***> Z=17 IMA	8-97012-085-2	01	1	0411-0606	●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> Z=18 THA	8-97012-086-2	01	1	0607-0609		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97012-086-2	01	1	0610-0708		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> Z=18 THA	8-97012-086-2	01	1	0709-0709		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97012-086-2	01	1	0710-		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=17 IMA	8-97238-583-0	01	1	0411-0606	●		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=18 THA	8-97238-584-2	01	1	0607-0609		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97238-584-2	01	1	0610-0708		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=18 THA	8-97238-584-2	01	1	0709-0709		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97238-584-2	01	1	0710-		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98004-535-0	01	1	0710-				●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98008-940-0	01	1	0610-0708				●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98008-940-0	01	1	0710-				●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> Z=17 THA	8-98056-402-0	01	1	0610-0708					●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> Z=17 THA	8-98056-402-0	01	1	0710-					●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA	8-97238-583-0	01	1	0610-0708					●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA	8-97238-583-0	01	1	0710-					●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0411-0606	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0607-0709		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0710-		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<UCS***> IMA	8-97305-454-1	01	1	0411-0606	●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<UCS***> IMA	8-97305-454-1	01	1	0607-		●		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97181-543-0	01	1	0610-0708					●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97181-543-0	01	1	0710-					●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0411-0606	●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0411-0606			●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0607-0709		●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0607-0709				●	●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0710-		●		●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0710-					●
3	GASKET; BUSHING 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97181-545-0	01	1	0610-0708					●
3	GASKET; BUSHING 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97181-545-0	01	1	0710-					●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606	●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0709		●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0709				●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0710-		●		●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0710-					●
4	BOLT; RET,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA	8-94480-043-0	01	1	0610-0708					●
4	BOLT; RET,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA	8-94480-043-0	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0411-0606	●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0411-0606			●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0607-0709		●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0607-0709				●	●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0710-		●		●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> NOK THA	8-94480-040-0	01	1	0610-0708					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> JTEKT THA	8-97181-544-0	01	1	0610-0708					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> NOK THA	8-94480-040-0	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> JTEKT THA	8-97181-544-0	01	1	0710-					●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0411-0606	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0411-0606			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0607-0709		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0607-0709				●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0710-		●		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0710-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (A) M10X60 FLANGE THA	0-28051-060-0	02	1	0411-0606	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (A) M10X60 FLANGE THA	0-28051-060-0	02	1	0607-		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (C) M12X40 FLANGE THA	0-28051-240-0	01	1	0411-0606	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (C) M12X40 FLANGE THA	0-28051-240-0	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (D) M10X40 FLANGE THA	0-28051-040-0	04	1	0411-0606	●		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (D) M12X45 FLANGE THA	0-28051-245-0	04	1	0810-			●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M12X45 FLANGE THA	0-28051-245-0	04	1	0411-0606			●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M10X40 FLANGE THA	0-28051-040-0	04	1	0607-0809		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M10X40 FLANGE THA	0-28051-040-0	04	1	0810-		●	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (E) M12X50 FLANGE THA	0-28051-250-0	08	1	0710-				●
22	BOLT; TRANS CASE TO ENG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M12X50 FLANGE THA	0-28051-250-0	08	1	0610-0708				●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	1009-					●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0411-0606	●		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0607-0609		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0610-0708		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	02	1	0610-0708					●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0709-0709		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0710-0809		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	02	1	0710-0809					●
27	NUT; CLU HSG TO TRANS M10 FLANGE THA	0-91180-110-0	02	1	0810-		●	●		●
27	NUT; CLU HSG TO TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> M12 FLANGE THA	0-91180-112-0	02	1	0610-0708				●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M12 FLANGE THA	0-91180-112-0	02	1	0710-				●
53	PLATE; LOCK,DRIVEN GEAR THA	8-97021-019-0	01	1	0411-0606	●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> THA	8-97021-019-0	01	1	0411-0606			●
53	PLATE; LOCK,DRIVEN GEAR THA	8-97021-019-0	01	1	0607-0703		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> THA	8-97021-019-0	01	1	0607-0703				●	●
53	PLATE; LOCK,DRIVEN GEAR IMA	8-98035-572-0	01	1	0704-0709		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> IMA	8-98035-572-0	01	1	0704-0709				●	●
53	PLATE; LOCK,DRIVEN GEAR IMA	8-98035-572-0	01	1	0710-		●		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> IMA	8-98035-572-0	01	1	0710-					●
53	PLATE; LOCK,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94479-720-0	01	1	0610-0708					●
53	PLATE; LOCK,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94479-720-0	01	1	0710-					●

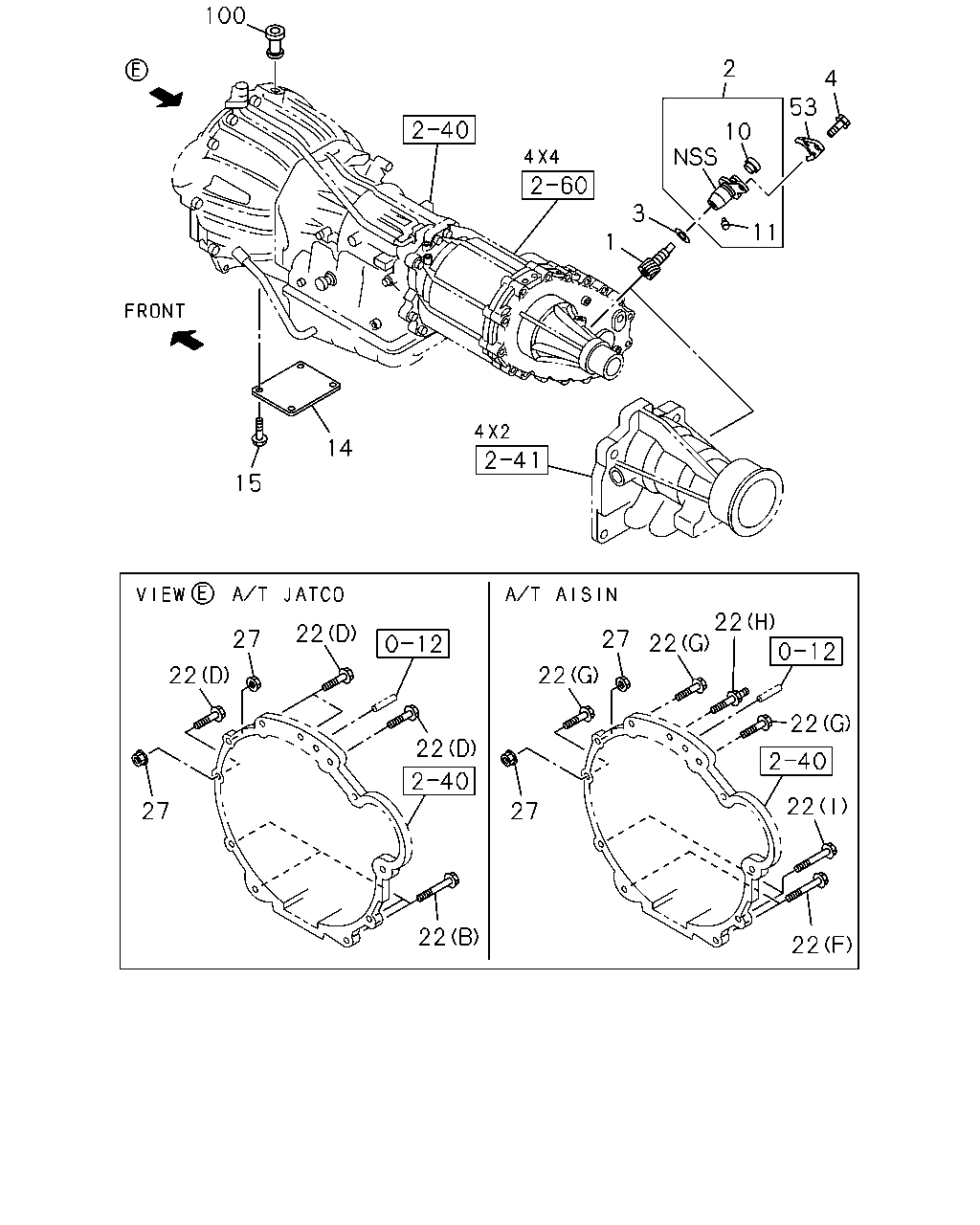

100 14 15 3 1 2 11 53 4 27 22 22 22 27 22 27 22 22 22 22 22 22 27 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GEAR; DRIVEN,SPD 4X2<UCB***> Z=17 IMA	8-97012-085-2	01	1	0411-0606	●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> Z=18 THA	8-97012-086-2	01	1	0607-0609		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97012-086-2	01	1	0610-0708		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> Z=18 THA	8-97012-086-2	01	1	0709-0709		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97012-086-2	01	1	0710-		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=17 IMA	8-97238-583-0	01	1	0411-0606	●		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=18 THA	8-97238-584-2	01	1	0607-0609		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97238-584-2	01	1	0610-0708		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> Z=18 THA	8-97238-584-2	01	1	0709-0709		●
1	GEAR; DRIVEN,SPD 4X4<UCS***> FINAL GEAR RATIO 43/10<GY2> Z=18 THA	8-97238-584-2	01	1	0710-		●
1	GEAR; DRIVEN,SPD 4X2<UCB***> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98004-535-0	01	1	0710-				●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98008-940-0	01	1	0610-0708				●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/11<GT4> Z=18 THA	8-98008-940-0	01	1	0710-				●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> Z=17 THA	8-98056-402-0	01	1	0610-0708					●
1	GEAR; DRIVEN,SPD 4X2<UCB***> 4JJ1-TCX ENG<LS0> Z=17 THA	8-98056-402-0	01	1	0710-					●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA	8-97238-583-0	01	1	0610-0708					●
1	GEAR; DRIVEN,SPD 4X4<UCS***> 4JJ1-TCX ENG<LS0> FINAL GEAR RATIO 41/10<GT5> Z=17 IMA	8-97238-583-0	01	1	0710-					●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0411-0606	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0607-0709		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> IMA	8-97021-133-4	01	1	0710-		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<UCS***> IMA	8-97305-454-1	01	1	0411-0606	●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4<UCS***> IMA	8-97305-454-1	01	1	0607-		●		●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97181-543-0	01	1	0610-0708					●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-97181-543-0	01	1	0710-					●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0411-0606	●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0411-0606			●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0607-0709		●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0607-0709				●	●
3	GASKET; BUSHING ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0710-		●		●
3	GASKET; BUSHING 4X4<UCS***> ID=21.7 OD=28.7 IMA	9-09921-100-0	01	1	0710-					●
3	GASKET; BUSHING 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97181-545-0	01	1	0610-0708					●
3	GASKET; BUSHING 4X2<UCB***> 4JJ1-TCX ENG<LS0> ID=19 THA	8-97181-545-0	01	1	0710-					●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606	●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0709		●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0709				●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28050-820-0	01	1	0710-		●		●
4	BOLT; RET,DRIVEN GEAR 4X4<UCS***> M8X20 FLANGE THA	0-28050-820-0	01	1	0710-					●
4	BOLT; RET,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA	8-94480-043-0	01	1	0610-0708					●
4	BOLT; RET,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> M8X14 W/WASHER THA	8-94480-043-0	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0411-0606	●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0411-0606			●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0607-0709		●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0607-0709				●	●
10	SEAL; OIL,DRIVE GEAR NOK IMA	8-97131-328-1	01	1	0710-		●		●
10	SEAL; OIL,DRIVE GEAR 4X4<UCS***> NOK IMA	8-97131-328-1	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> NOK THA	8-94480-040-0	01	1	0610-0708					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> JTEKT THA	8-97181-544-0	01	1	0610-0708					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> NOK THA	8-94480-040-0	01	1	0710-					●
10	SEAL; OIL,DRIVE GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> JTEKT THA	8-97181-544-0	01	1	0710-					●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0411-0606	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0411-0606			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0607-0709		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0607-0709				●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA IMA	8-94446-571-1	01	1	0710-		●		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4<UCS***> IMA	8-94446-571-1	01	1	0710-					●
14	COVER; UNDER,TRANS 4JJ1-TCS ENG<LFB> THA	8-94375-252-0	01	1	0411-0606			●
14	COVER; UNDER,TRANS 4JJ1-TCX ENG<LS0> THA	8-98049-857-0	01	1	0610-0708					●
14	COVER; UNDER,TRANS 4JJ1-TCX ENG<LS0> THA	8-98049-857-0	01	1	0710-0809					●
14	COVER; UNDER,TRANS THA	8-98049-857-0	01	1	0810-			●		●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCS ENG<LFB> M6X16 FLANGE THA	0-28650-616-0	04	1	0411-0606			●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0710-				●
15	BOLT; UNDER COVER TO TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0610-0708				●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG<LS0> M6X16 FLANGE THA	0-28650-616-0	04	1	0610-0708					●
15	BOLT; UNDER COVER TO TRANS 4JJ1-TCX ENG<LS0> M6X16 FLANGE THA	0-28650-616-0	04	1	0710-0809					●
15	BOLT; UNDER COVER TO TRANS M6X16 FLANGE THA	0-28650-616-0	04	1	0810-			●		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (A) M10X60 FLANGE THA	0-28051-060-0	02	1	0411-0606	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (A) M10X60 FLANGE THA	0-28051-060-0	02	1	0607-		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (C) M12X40 FLANGE THA	0-28051-240-0	01	1	0411-0606	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (C) M12X40 FLANGE THA	0-28051-240-0	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (D) M10X40 FLANGE THA	0-28051-040-0	04	1	0411-0606	●		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (D) M12X45 FLANGE THA	0-28051-245-0	04	1	0810-			●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M12X45 FLANGE THA	0-28051-245-0	04	1	0411-0606			●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M10X40 FLANGE THA	0-28051-040-0	04	1	0607-0809		●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCS ENG<LFB> (B) M10X40 FLANGE THA	0-28051-040-0	04	1	0810-		●	●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (E) M12X50 FLANGE THA	0-28051-250-0	08	1	0710-				●
22	BOLT; TRANS CASE TO ENG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M12X50 FLANGE THA	0-28051-250-0	08	1	0610-0708				●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	0610-0708					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (G) M10X40 FLANGE THA	0-28051-040-0	03	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (F) M12X45 FLANGE THA	0-28051-245-0	02	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (H) M10X20,M10X40 L=70 THA	8-98005-380-0	01	1	1009-					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	0710-1008					●
22	BOLT; TRANS CASE TO ENG 4JJ1-TCX ENG<LS0> (I) M12X176 FLANGE THA	8-98005-381-0	02	1	1009-					●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0411-0606	●		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0607-0609		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0610-0708		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	02	1	0610-0708					●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0709-0709		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	02	1	0710-0809		●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M10 FLANGE THA	0-91180-110-0	02	1	0710-0809					●
27	NUT; CLU HSG TO TRANS M10 FLANGE THA	0-91180-110-0	02	1	0810-		●	●		●
27	NUT; CLU HSG TO TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> M12 FLANGE THA	0-91180-112-0	02	1	0610-0708				●
27	NUT; CLU HSG TO TRANS 4JJ1-TCX ENG<LS0> M12 FLANGE THA	0-91180-112-0	02	1	0710-				●
53	PLATE; LOCK,DRIVEN GEAR THA	8-97021-019-0	01	1	0411-0606	●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> THA	8-97021-019-0	01	1	0411-0606			●
53	PLATE; LOCK,DRIVEN GEAR THA	8-97021-019-0	01	1	0607-0703		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> THA	8-97021-019-0	01	1	0607-0703				●	●
53	PLATE; LOCK,DRIVEN GEAR IMA	8-98035-572-0	01	1	0704-0709		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> IMA	8-98035-572-0	01	1	0704-0709				●	●
53	PLATE; LOCK,DRIVEN GEAR IMA	8-98035-572-0	01	1	0710-		●		●
53	PLATE; LOCK,DRIVEN GEAR 4X4<UCS***> IMA	8-98035-572-0	01	1	0710-					●
53	PLATE; LOCK,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94479-720-0	01	1	0610-0708					●
53	PLATE; LOCK,DRIVEN GEAR 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-94479-720-0	01	1	0710-					●
100	PLUG; HOLE 4JJ1-TCS ENG<LFB> THA	8-97318-961-0	01	1	0411-0606			●
100	PLUG; HOLE 4JJ1-TCS ENG<LFB> THA	8-97318-961-0	01	1	0810-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
