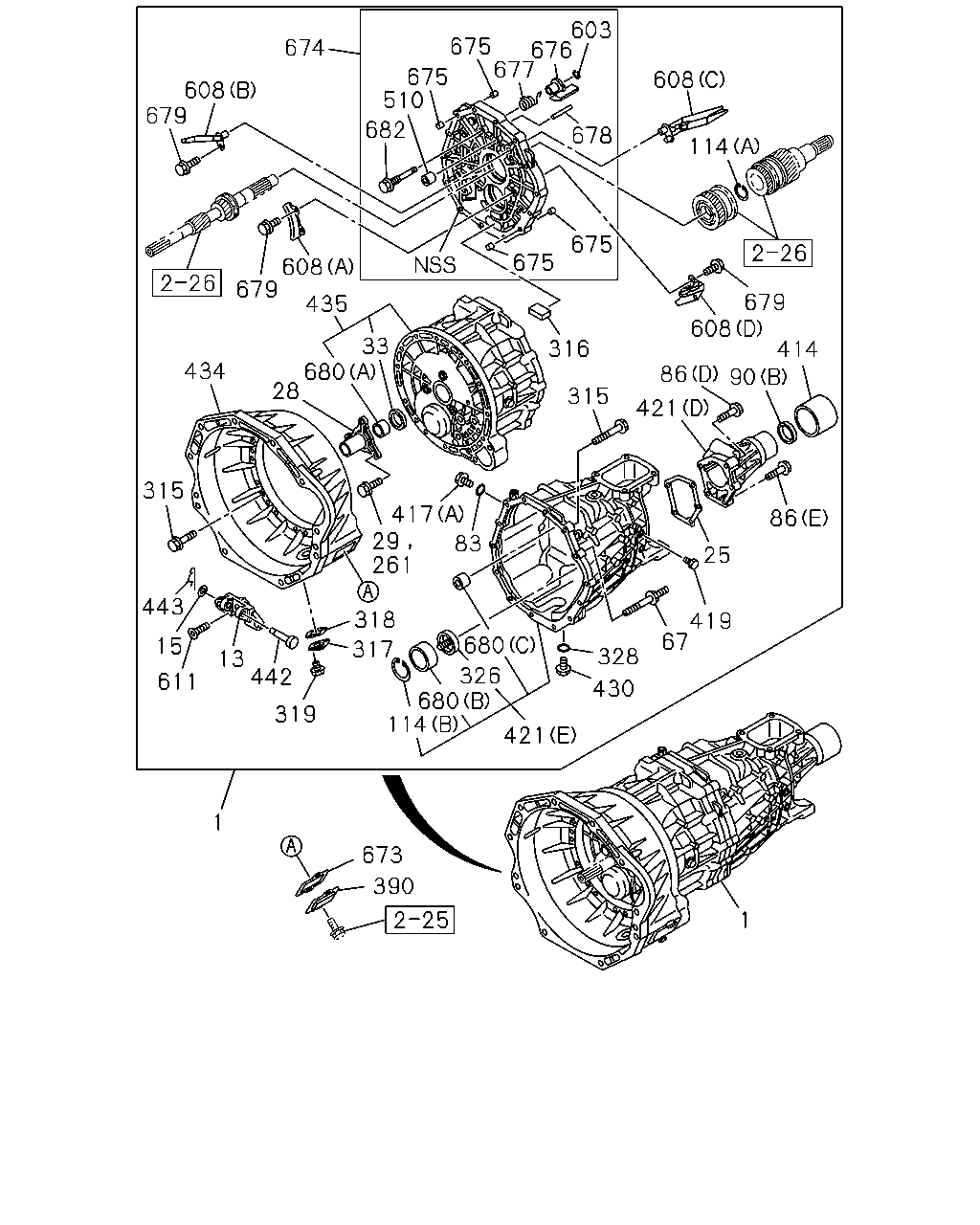

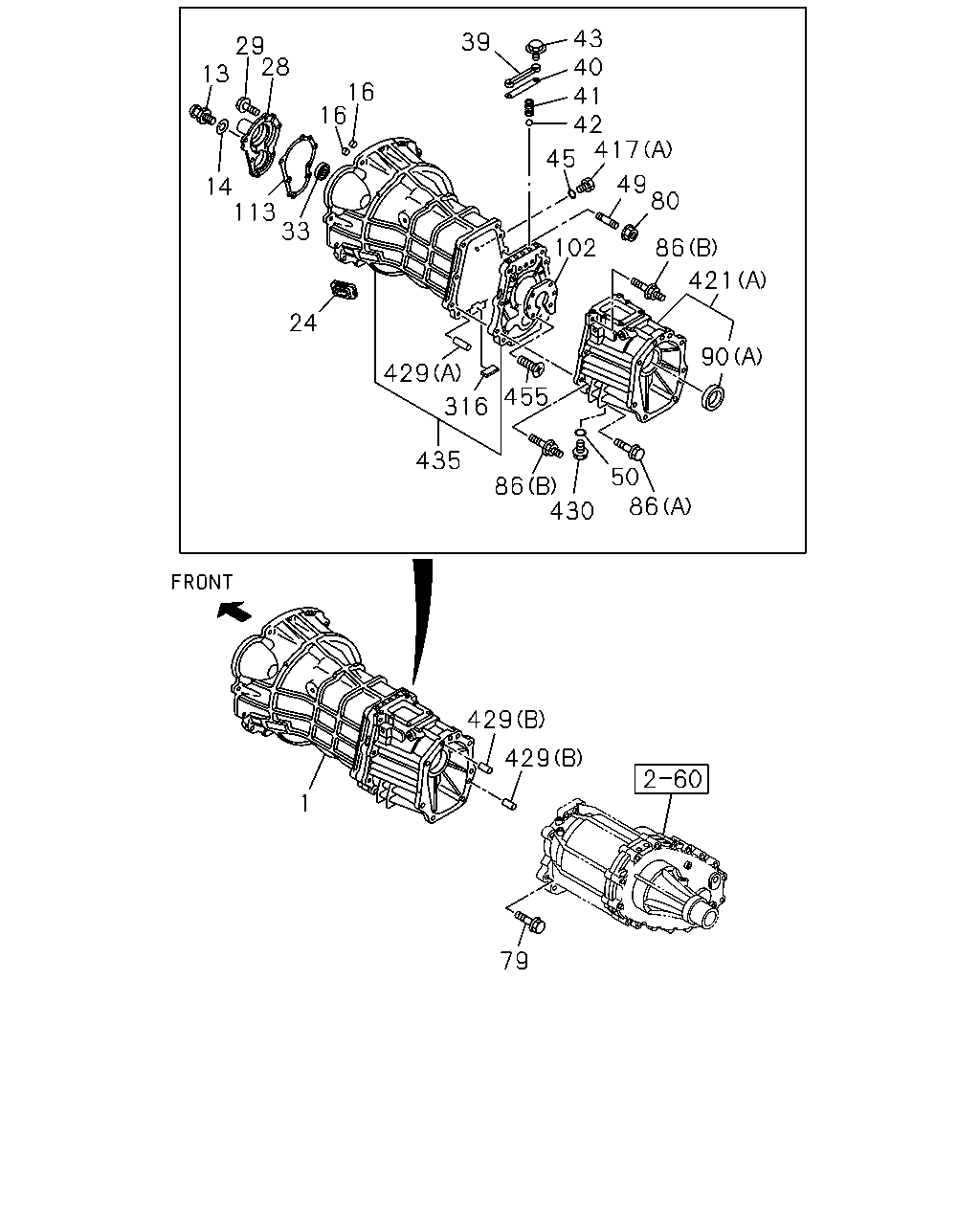

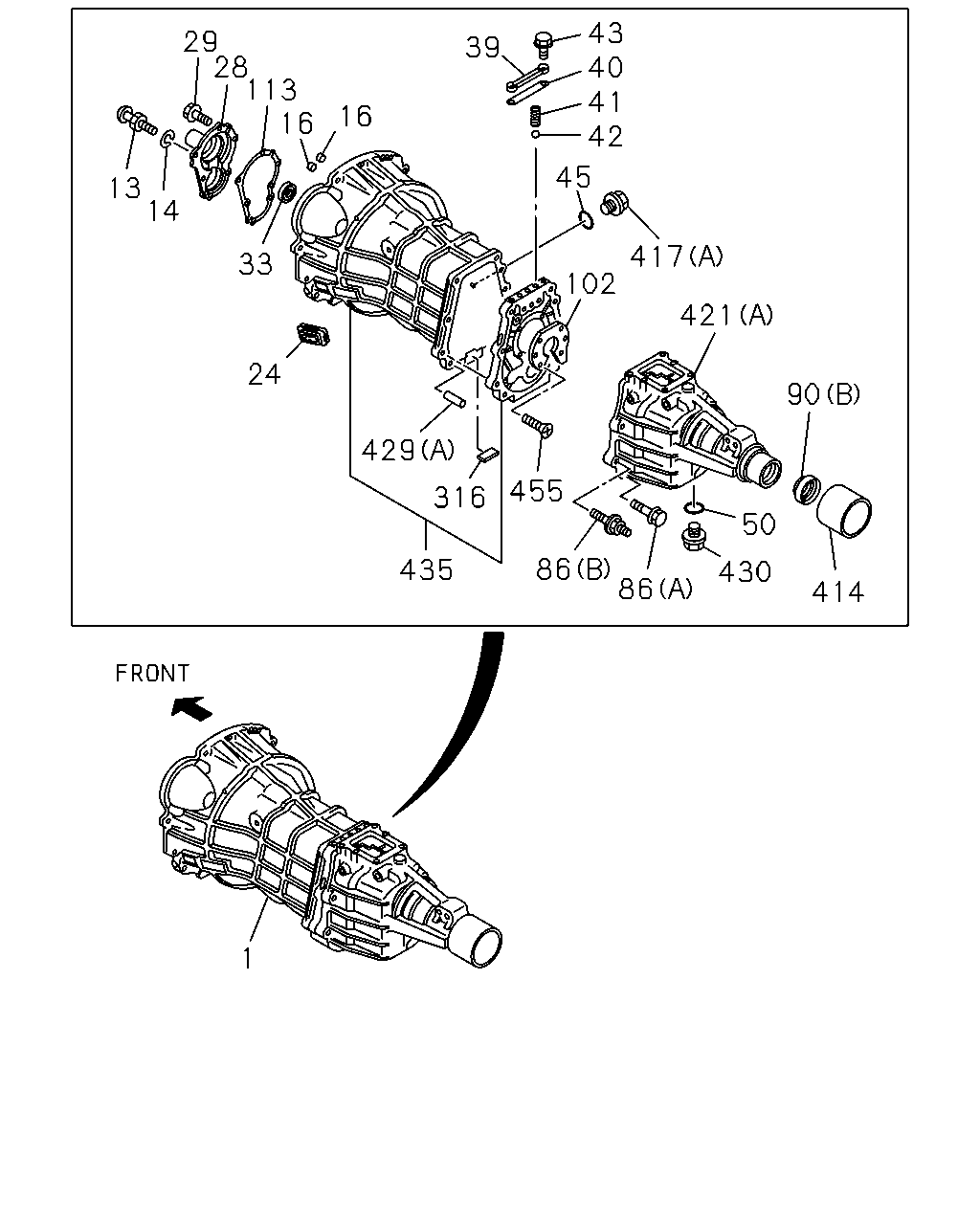

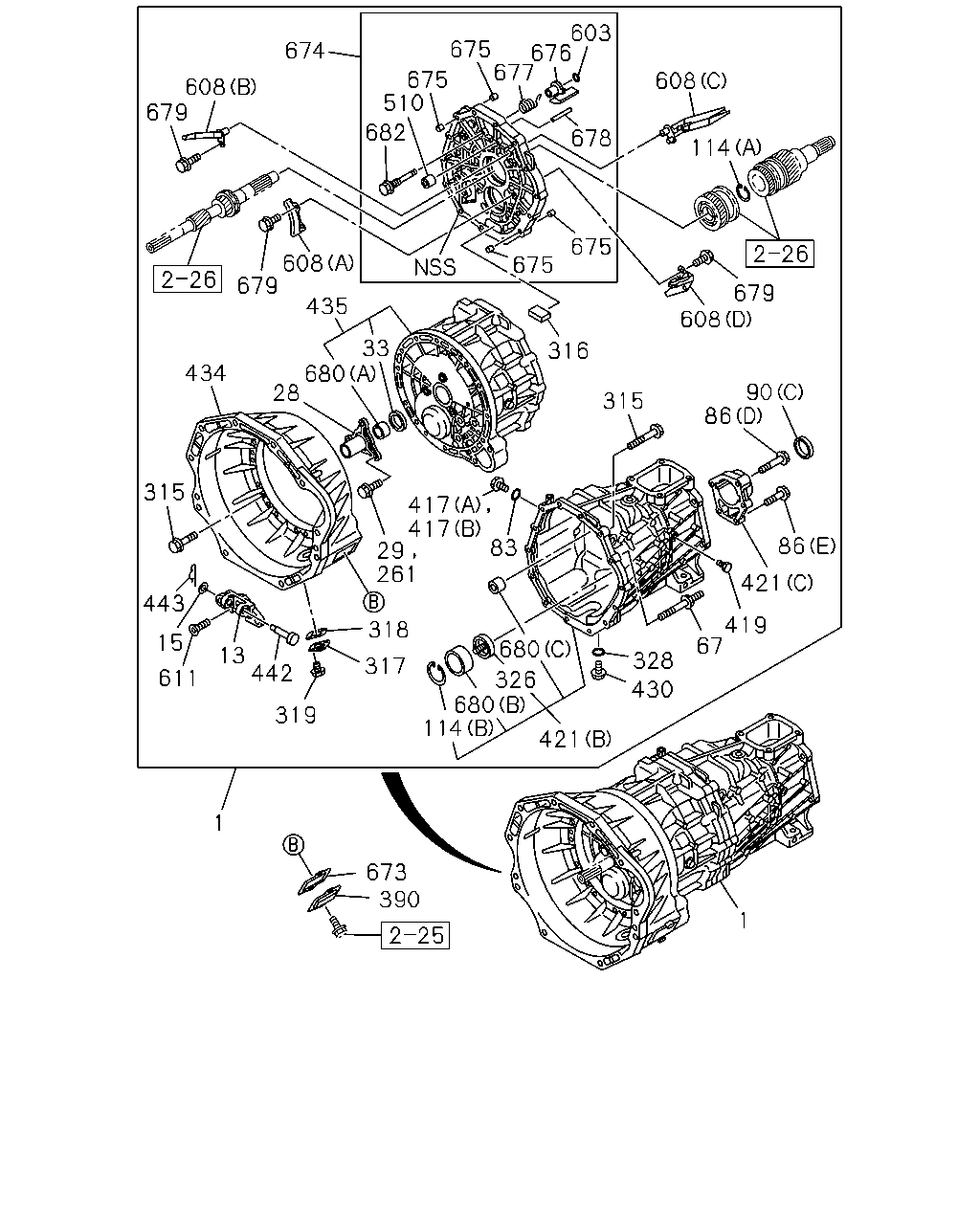

2-20 — MANUAL TRANSMISSION ASM AND CASE (#73760) — 894 parça

43 40 41 42 29 28 113 16 39 16 45 13 14 417 33 102 421 24 90 429 455 316 50 86 86 435 430 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-97376-883-0	01	1	0411-0606	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98036-628-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98087-317-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98132-809-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98150-173-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-97376-953-0	01	1	0411-0606		●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98036-624-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98087-282-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98132-813-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98150-177-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98093-549-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98094-142-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98171-012-0	01	1	1009-			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0610-0708			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98090-195-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98171-027-0	01	1	1009-			●
13	SUPPORT; SHIFT FORK 4JJ1-TCS ENG<LFB> L=47.5 IMA	8-97072-827-0	01	1	0411-0606		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	0607-	●
13	SUPPORT; SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0610-0708			●
13	SUPPORT; SHIFT FORK 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0710-			●
14	WASHER; LK,SUPPORT 4JJ1-TCS ENG<LFB> ID=12.2 THA	9-09150-512-0	01	1	0411-0603		●
14	WASHER; LK,SUPPORT 4JJ1-TCS ENG<LFB> ID=12.2 IMA	0-91510-512-0	01	1	0604-0606		●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	0607-	●
16	PLUG; SHIFT ROD 4JJ1-TCS ENG<LFB> OD=14 THA	5-09609-004-0	02	1	0411-0604		●
16	PLUG; SHIFT ROD 4JJ1-TCS ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0605-0606		●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	0607-	●
24	COVER; CHECK HOLE,DUST 4JJ1-TCS ENG<LFB> THA	8-97977-025-0	01	1	0411-0606		●
24	COVER; CHECK HOLE,DUST THA	8-97977-025-0	01	1	0607-0708	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	0709-	●
28	COVER; FRT,TRANS CASE 4JJ1-TCS ENG<LFB> THA	8-97381-406-0	01	1	0411-0606		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	0607-	●
28	COVER; FRT,TRANS CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0610-0708			●
28	COVER; FRT,TRANS CASE 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0710-			●
29	BOLT; FRT COVER 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	1009-			●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	06	1	0411-0604		●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	06	1	0605-0606		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	0607-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> TKK THA	8-97046-698-0	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	0607-1208	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> NOK IMA	8-97046-699-3	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0607-0609	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0610-0708	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0709-0709	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0710-1208	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●		●
39	PLATE; DETENT SPR 4JJ1-TCS ENG<LFB> THA	8-94373-864-1	01	1	0411-0604		●
39	PLATE; DETENT SPR 4JJ1-TCS ENG<LFB> IMA	8-98035-571-0	01	1	0605-0606		●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	0607-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-600-1	01	1	0411-0606		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	0607-	●
41	SPRING; DETENT BALL 4JJ1-TCS ENG<LFB> L=26.8 IMA	8-94320-193-0	03	1	0411-0606		●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	03	1	0607-	●
42	BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG<LFB> IMA	8-94435-335-0	03	1	0411-0606		●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	0607-	●
43	BOLT; PLATE TO PLATE 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	02	1	0411-0604		●
43	BOLT; PLATE TO PLATE 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	02	1	0605-0606		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	0607-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0411-0606		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0607-1008	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1009-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0411-0606		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0411-0606		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0607-0609	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0607-0609	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	0610-0708	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0610-0708	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0709-0709	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0709-0709	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	0710-1008	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0710-1008	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	1009-	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1009-	●		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0411-0604		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-	●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0411-0606		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-	●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0411-0601		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-0609	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0610-0708	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0709-0709	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0710-	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0710-			●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0710-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-0609	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0610-0708	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	0610-0708			●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0709-0709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0710-1208	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) NOK IMA	8-97046-705-3	01	1	0710-1208					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1209-	●		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) TKK THA	8-97046-700-0	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97046-701-2	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<UCB***> (B) NOK THA	8-97947-840-0	01	1	1209-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0610-0708			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0710-			●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1-TCS ENG<LFB> IMA	8-97138-673-0	01	1	0411-0606		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	0607-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-589-0	01	1	0411-0606		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	0607-	●
316	MAGNET; TRANS CASE 4JJ1-TCS ENG<LFB> IMA	8-94249-524-2	01	1	0411-0606		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0607-0609	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0610-0708	●		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0709-0709	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0710-	●		●
414	COVER; DUST,RR COVER 4X2<UCB***> THA	8-94310-493-0	01	1	0411-0604	●
414	COVER; DUST,RR COVER 4X2<UCB***> IMA	8-98027-802-0	01	1	0605-0709	●
414	COVER; DUST,RR COVER 4X2<UCB***> IMA	8-98027-802-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-94310-917-0	01	1	0411-0603		●		●
417	PLUG; OIL FILLER,TRANS (A) THA	8-94310-917-0	01	1	0411-0603		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) IMA	8-97365-373-0	01	1	0604-0606		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0604-0606		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0610-0704	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0610-0704	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0705-0708	●				●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0705-0708	●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0710-	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) M20X10.5 IMA	8-98009-333-0	01	1	0610-0704			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97365-373-0	02	1	0705-0708			●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97373-749-0	01	1	0411-0504	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98014-386-0	01	1	0505-1202	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-97301-224-2	01	1	0411-0606		●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-97301-224-2	01	1	0607-1208	●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-98214-237-0	01	1	1209-	●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (D) THA	8-97382-905-2	01	1	0710-			●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (E) THA	8-98035-906-0	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0710-			●
429	PIN; STRAIGHT 4JJ1-TCS ENG<LFB> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0411-0606		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0607-	●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0411-0606		●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-0609	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0610-0708	●		●		●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0709-0709	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0710-	●		●		●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0411-0606				●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	9-09662-004-0	01	1	0411-0603		●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0411-0603		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> IMA	8-97365-374-0	01	1	0604-0606		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0604-0606		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0610-0708	●				●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0610-0708	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0710-	●		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0710-	●		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97365-374-0	02	1	0610-0708			●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-97376-845-0	01	1	0411-0604		●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-98047-231-0	01	1	0605-0606		●
435	CASE; TRANS THA	8-98047-231-0	01	1	0607-1004	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1005-	●
435	CASE; TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98035-882-1	01	1	0610-0708			●
435	CASE; TRANS 4JJ1-TCX ENG<LS0> THA	8-98035-882-2	01	1	0710-			●
455	SCREW; BRG RET 4JJ1-TCS ENG<LFB> M8X22 THA	8-97062-754-0	04	1	0411-0604		●
455	SCREW; BRG RET 4JJ1-TCS ENG<LFB> M8X22 IMA	8-98035-654-0	04	1	0605-0606		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	0607-	●

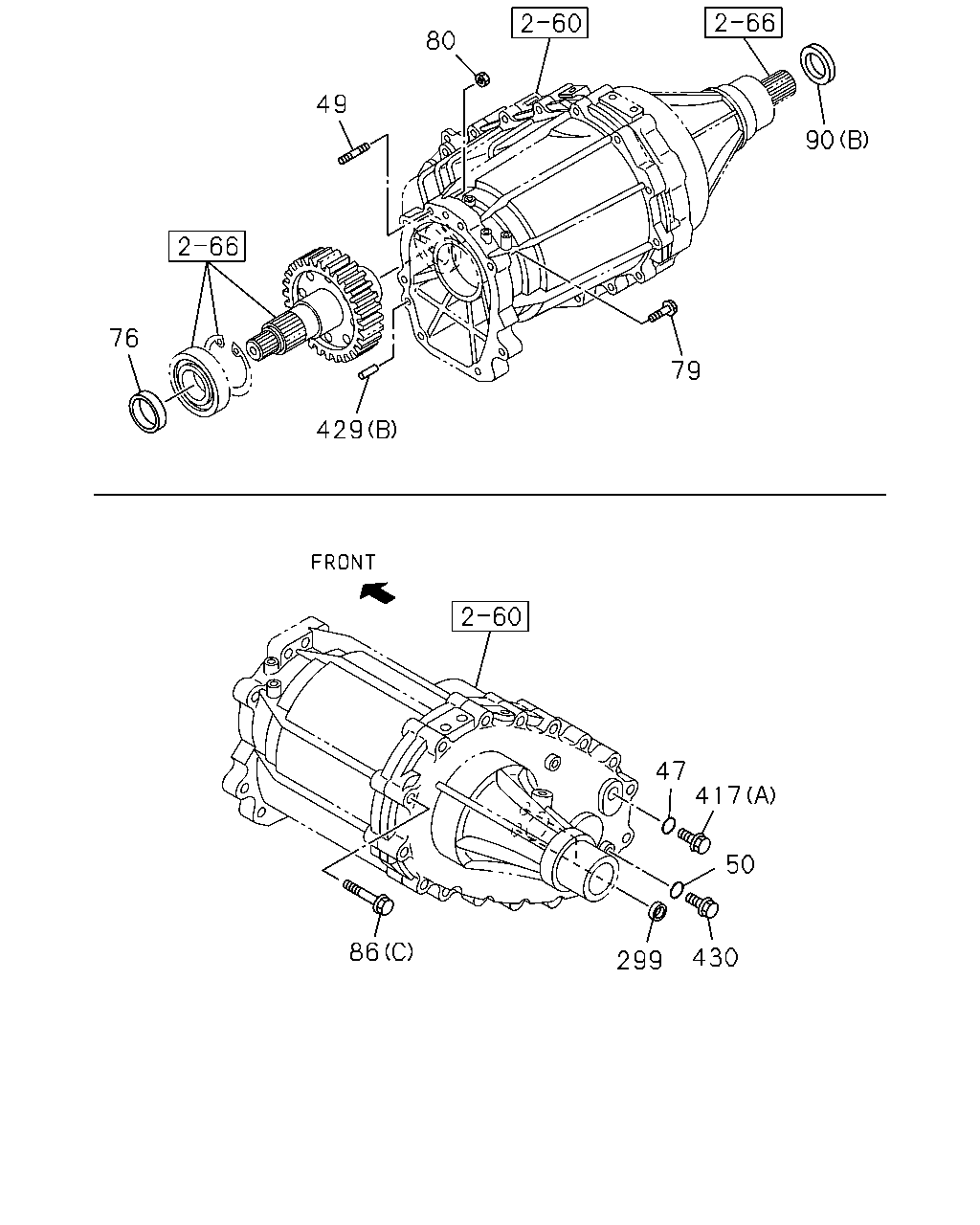

80 49 90 76 79 429 47 417 50 86 430 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0411-0606		●		●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0607-0609	●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0610-0708	●		●		●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0709-0709	●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0710-	●		●		●
49	STUD; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	1-09300-013-0	01	1	0411-0604		●
49	STUD; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X30 L=45 IMA	8-98035-675-0	01	1	0605-0606		●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0607-0609	●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0610-0708	●		●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0709-0709	●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0710-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0411-0606		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0411-0606		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0607-0609	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0607-0609	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	0610-0708	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0610-0708	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0709-0709	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0709-0709	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	0710-1008	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0710-1008	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	1009-	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1009-	●		●
76	SEAL; OIL,TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> NOK IMA	8-97238-999-0	01	1	0411-0606		●		●
76	SEAL; OIL,TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> NOK IMA	8-97238-999-0	01	1	0607-0609	●
76	SEAL; OIL,TRANSFER CASE 4X4<UCS***> NOK IMA	8-97238-999-0	01	1	0610-0708	●		●		●
76	SEAL; OIL,TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> NOK IMA	8-97238-999-0	01	1	0709-0709	●
76	SEAL; OIL,TRANSFER CASE 4X4<UCS***> NOK IMA	8-97238-999-0	01	1	0710-	●		●		●
79	BOLT; TRANSFER CASE 4X4<UCS***> M10X35 FLANGE THA	0-28051-035-0	07	1	1009-					●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28081-035-0	06	1	0411-0512		●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0601-0606		●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0607-0609	●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0610-0708	●
79	BOLT; TRANSFER CASE M10X35 FLANGE THA	0-28051-035-0	06	1	0610-0708			●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0709-0709	●
79	BOLT; TRANSFER CASE 4X4<UCS***> M10X35 FLANGE THA	0-28051-035-0	06	1	0710-	●		●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91150-110-0	01	1	0411-0602		●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0603-0606		●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0607-0609	●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0610-0708	●
80	NUT; TRANSFER CASE M10 FLANGE THA	0-91180-110-0	01	1	0610-0708			●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0709-0709	●
80	NUT; TRANSFER CASE 4X4<UCS***> M10 FLANGE THA	0-91180-110-0	01	1	0710-	●		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0411-0604		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-	●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0411-0606		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-	●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0411-0601		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-0609	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0610-0708	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0709-0709	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0710-	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0710-			●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0710-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-0609	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0610-0708	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	0610-0708			●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0709-0709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0710-1208	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) NOK IMA	8-97046-705-3	01	1	0710-1208					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1209-	●		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) TKK THA	8-97046-700-0	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97046-701-2	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<UCB***> (B) NOK THA	8-97947-840-0	01	1	1209-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0610-0708			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0710-			●
299	PLUG; SHIFTER ROD 4X4<UCS***> 4JJ1-TCS ENG<LFB> OD=14 THA	5-09609-004-0	02	1	0411-0603		●		●
299	PLUG; SHIFTER ROD 4X4<UCS***> 4JJ1-TCS ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0604-0606		●		●
299	PLUG; SHIFTER ROD 4X4<UCS***> 4JJ1-TCS ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0607-0609	●
299	PLUG; SHIFTER ROD 4X4<UCS***> OD=14 IMA	8-97358-601-0	02	1	0610-0708	●		●		●
299	PLUG; SHIFTER ROD 4X4<UCS***> 4JJ1-TCS ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0709-0709	●
299	PLUG; SHIFTER ROD 4X4<UCS***> OD=14 IMA	8-97358-601-0	02	1	0710-	●		●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-94310-917-0	01	1	0411-0603		●		●
417	PLUG; OIL FILLER,TRANS (A) THA	8-94310-917-0	01	1	0411-0603		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) IMA	8-97365-373-0	01	1	0604-0606		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0604-0606		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0610-0704	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0610-0704	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0705-0708	●				●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0705-0708	●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0710-	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) M20X10.5 IMA	8-98009-333-0	01	1	0610-0704			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97365-373-0	02	1	0705-0708			●
429	PIN; STRAIGHT 4JJ1-TCS ENG<LFB> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0411-0606		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0607-	●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0411-0606		●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-0609	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0610-0708	●		●		●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0709-0709	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0710-	●		●		●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0411-0606				●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	9-09662-004-0	01	1	0411-0603		●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0411-0603		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> IMA	8-97365-374-0	01	1	0604-0606		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0604-0606		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0610-0708	●				●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0610-0708	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0710-	●		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0710-	●		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97365-374-0	02	1	0610-0708			●

603 675 676 677 674 675 510 608 608 679 682 678 114 675 675 608 679 679 608 435 33 680 28 316 414 90 434 86 315 421 315 417 29 261 86 83 25 443 318 419 67 15 680 317 328 13 442 326 680 114 611 430 319 421 1 673 390 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-97376-883-0	01	1	0411-0606	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98036-628-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98087-317-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98132-809-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98150-173-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-97376-953-0	01	1	0411-0606		●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98036-624-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98087-282-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98132-813-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98150-177-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98093-549-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98094-142-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98171-012-0	01	1	1009-			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0610-0708			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98090-195-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98171-027-0	01	1	1009-			●
13	SUPPORT; SHIFT FORK 4JJ1-TCS ENG<LFB> L=47.5 IMA	8-97072-827-0	01	1	0411-0606		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	0607-	●
13	SUPPORT; SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0610-0708			●
13	SUPPORT; SHIFT FORK 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0710-			●
15	WASHER; PL 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0610-0708			●
15	WASHER; PL 4JJ1-TCX ENG<LS0> ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0710-			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<UCB***> 4JJ1-TCX ENG<LS0> IMA	8-98004-774-0	01	1	0710-			●
28	COVER; FRT,TRANS CASE 4JJ1-TCS ENG<LFB> THA	8-97381-406-0	01	1	0411-0606		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	0607-	●
28	COVER; FRT,TRANS CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0610-0708			●
28	COVER; FRT,TRANS CASE 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0710-			●
29	BOLT; FRT COVER 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	1009-			●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	06	1	0411-0604		●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	06	1	0605-0606		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	0607-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> TKK THA	8-97046-698-0	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	0607-1208	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> NOK IMA	8-97046-699-3	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0607-0609	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0610-0708	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0709-0709	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0710-1208	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●		●
67	STUD; CASE TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98004-519-0	02	1	0610-0708			●
67	STUD; CASE TRANS 4JJ1-TCX ENG<LS0> THA	8-98004-519-0	02	1	0710-			●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0610-0708			●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0710-1008			●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0411-0604		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-	●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0411-0606		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-	●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0411-0601		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-0609	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0610-0708	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0709-0709	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0710-	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0710-			●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0710-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-0609	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0610-0708	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	0610-0708			●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0709-0709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0710-1208	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) NOK IMA	8-97046-705-3	01	1	0710-1208					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1209-	●		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) TKK THA	8-97046-700-0	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97046-701-2	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<UCB***> (B) NOK THA	8-97947-840-0	01	1	1209-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0610-0708			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0710-			●
114	RING; SNAP,BALL BRG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) OD=77 IMA	8-98024-221-0	01	1	0610-0708			●
114	RING; SNAP,BALL BRG 4JJ1-TCX ENG<LS0> (A) OD=77 IMA	8-98024-221-0	01	1	0710-			●
114	RING; SNAP,BALL BRG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) OD=60.2 IMA	9-09180-156-0	01	1	0610-0708			●
114	RING; SNAP,BALL BRG 4JJ1-TCX ENG<LS0> (B) OD=60.2 IMA	9-09180-156-0	01	1	0710-			●
261	BOLT; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	0610-0708			●
261	BOLT; COVER 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	0710-1008			●
315	BOLT; CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> M8X60 FLANGE THA	0-28050-860-0	12	1	0610-0708			●
315	BOLT; CASE 4JJ1-TCX ENG<LS0> M8X60 FLANGE THA	0-28050-860-0	12	1	0710-			●
315	BOLT; CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> M8X40 FLANGE THA	0-28650-840-0	12	1	0610-0708			●
315	BOLT; CASE 4JJ1-TCX ENG<LS0> M8X40 FLANGE THA	0-28650-840-0	12	1	0710-			●
316	MAGNET; TRANS CASE 4JJ1-TCS ENG<LFB> IMA	8-94249-524-2	01	1	0411-0606		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0607-0609	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0610-0708	●		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0709-0709	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0710-	●		●
317	COVER; CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97034-422-1	01	1	0610-0708			●
317	COVER; CASE 4JJ1-TCX ENG<LS0> THA	8-97034-422-1	01	1	0710-			●
318	GASKET; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97035-567-0	01	1	0610-0708			●
318	GASKET; COVER 4JJ1-TCX ENG<LS0> THA	8-97035-567-0	01	1	0710-			●
319	BOLT; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0610-0708			●
319	BOLT; COVER 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0710-			●
326	NOZZLE; OIL,OUTLET 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-98023-517-0	01	1	0610-0708			●
326	NOZZLE; OIL,OUTLET 4JJ1-TCX ENG<LS0> IMA	8-98023-517-0	01	1	0710-			●
328	GASKET; PLUG 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0610-0708			●
328	GASKET; PLUG 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0710-1008			●
390	COVER; DUST,CLU SHIFT 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98007-103-0	01	1	0610-0708			●
390	COVER; DUST,CLU SHIFT 4JJ1-TCX ENG<LS0> THA	8-98007-103-0	01	1	0710-			●
414	COVER; DUST,RR COVER 4X2<UCB***> THA	8-94310-493-0	01	1	0411-0604	●
414	COVER; DUST,RR COVER 4X2<UCB***> IMA	8-98027-802-0	01	1	0605-0709	●
414	COVER; DUST,RR COVER 4X2<UCB***> IMA	8-98027-802-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-94310-917-0	01	1	0411-0603		●		●
417	PLUG; OIL FILLER,TRANS (A) THA	8-94310-917-0	01	1	0411-0603		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) IMA	8-97365-373-0	01	1	0604-0606		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0604-0606		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0610-0704	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0610-0704	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0705-0708	●				●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0705-0708	●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0710-	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) M20X10.5 IMA	8-98009-333-0	01	1	0610-0704			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97365-373-0	02	1	0705-0708			●
419	PLUG; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M12X9 IMA	8-98047-054-0	01	1	0610-0708			●
419	PLUG; RR COVER 4JJ1-TCX ENG<LS0> M12X9 IMA	8-98047-054-0	01	1	0710-			●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97373-749-0	01	1	0411-0504	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98014-386-0	01	1	0505-1202	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-97301-224-2	01	1	0411-0606		●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-97301-224-2	01	1	0607-1208	●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-98214-237-0	01	1	1209-	●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (D) THA	8-97382-905-2	01	1	0710-			●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (E) THA	8-98035-906-0	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0710-			●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	9-09662-004-0	01	1	0411-0603		●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0411-0603		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> IMA	8-97365-374-0	01	1	0604-0606		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0604-0606		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0610-0708	●				●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0610-0708	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0710-	●		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0710-	●		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97365-374-0	02	1	0610-0708			●
434	HOUSING; CLU 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-384-0	01	1	0610-0708			●
434	HOUSING; CLU 4JJ1-TCX ENG<LS0> THA	8-97362-384-0	01	1	0710-			●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-97376-845-0	01	1	0411-0604		●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-98047-231-0	01	1	0605-0606		●
435	CASE; TRANS THA	8-98047-231-0	01	1	0607-1004	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1005-	●
435	CASE; TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98035-882-1	01	1	0610-0708			●
435	CASE; TRANS 4JJ1-TCX ENG<LS0> THA	8-98035-882-2	01	1	0710-			●
442	PIN; SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98024-123-0	01	1	0610-0708			●
442	PIN; SHIFT FORK 4JJ1-TCX ENG<LS0> THA	8-98024-123-0	01	1	0710-			●
443	PIN; SNAP,SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> L=27.7 THA	1-09747-005-0	01	1	0610-0708			●
443	PIN; SNAP,SHIFT FORK 4JJ1-TCX ENG<LS0> L=27.7 THA	1-09747-005-0	01	1	0710-			●
510	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	01	1	0610-0708			●
510	BEARING 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	01	1	0710-			●
603	RING; SNAP 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-98039-270-0	01	1	0610-0708			●
603	RING; SNAP 4JJ1-TCX ENG<LS0> IMA	8-98039-270-0	01	1	0710-			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-391-0	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-391-0	01	1	0710-			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-564-1	01	1	0710-0808			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-564-1	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-564-1	01	1	0809-			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-565-1	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (C) THA	8-97362-565-1	01	1	0710-0902			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (C) IMA	8-98142-574-0	01	1	0903-			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) IMA	8-98004-505-0	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (D) IMA	8-98004-505-0	01	1	0710-			●
611	SCREW 4X4<UCS***> 4JJ1-TCX ENG<LS0> M10X27 TORQUES IMA	8-97365-354-0	03	1	0610-0708			●
611	SCREW 4JJ1-TCX ENG<LS0> M10X27 TORQUES IMA	8-97365-354-0	03	1	0710-			●
673	SEAL; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98007-102-0	01	1	0610-0708			●
673	SEAL; COVER 4JJ1-TCX ENG<LS0> THA	8-98007-102-0	01	1	0710-			●
674	PLATE; INTERMEDIATE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98042-863-0	01	1	0610-0708			●
674	PLATE; INTERMEDIATE 4JJ1-TCX ENG<LS0> THA	8-98042-863-0	01	1	0710-			●
675	DOWEL 4X4<UCS***> 4JJ1-TCX ENG<LS0> OD=11 L=8 IMA	9-11229-058-1	04	1	0610-0708			●
675	DOWEL 4JJ1-TCX ENG<LS0> OD=11 L=8 IMA	9-11229-058-1	04	1	0710-			●
676	INHIBITOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-98037-604-1	01	1	0610-0708			●
676	INHIBITOR 4JJ1-TCX ENG<LS0> IMA	8-98037-604-1	01	1	0710-			●
677	SPRING; INHIBITOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97362-852-0	01	1	0610-0708			●
677	SPRING; INHIBITOR 4JJ1-TCX ENG<LS0> IMA	8-97362-852-0	01	1	0710-			●
678	PIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	9-08160-436-0	01	1	0610-0708			●
678	PIN 4JJ1-TCX ENG<LS0> IMA	9-08160-436-0	01	1	0710-			●
679	BOLT; GUTTER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	04	1	0610-0708			●
679	BOLT; GUTTER 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	04	1	0710-			●
680	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-720-1	01	1	0610-0708			●
680	BEARING 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-720-1	01	1	0710-			●
680	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-853-0	01	1	0610-0708			●
680	BEARING 4JJ1-TCX ENG<LS0> (C) THA	8-97362-853-0	01	1	0710-			●
680	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) IMA	8-98024-431-0	01	1	0610-0708			●
680	BEARING 4JJ1-TCX ENG<LS0> (B) IMA	8-98024-431-0	01	1	0710-			●
682	BOLT; INHIBITOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> M10X50 IMA	8-98042-618-0	01	1	0610-0708			●
682	BOLT; INHIBITOR 4JJ1-TCX ENG<LS0> M10X50 IMA	8-98042-618-0	01	1	0710-			●

43 40 41 42 417 39 29 28 13 16 16 45 49 80 14 113 33 102 86 421 24 90 429 455 316 435 50 86 86 430 429 429 1 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-97376-883-0	01	1	0411-0606	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98036-628-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98087-317-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98132-809-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98150-173-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-97376-953-0	01	1	0411-0606		●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98036-624-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98087-282-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98132-813-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98150-177-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98093-549-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98094-142-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98171-012-0	01	1	1009-			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0610-0708			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98090-195-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98171-027-0	01	1	1009-			●
13	SUPPORT; SHIFT FORK 4JJ1-TCS ENG<LFB> L=47.5 IMA	8-97072-827-0	01	1	0411-0606		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	0607-	●
13	SUPPORT; SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0610-0708			●
13	SUPPORT; SHIFT FORK 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0710-			●
14	WASHER; LK,SUPPORT 4JJ1-TCS ENG<LFB> ID=12.2 THA	9-09150-512-0	01	1	0411-0603		●
14	WASHER; LK,SUPPORT 4JJ1-TCS ENG<LFB> ID=12.2 IMA	0-91510-512-0	01	1	0604-0606		●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	0607-	●
16	PLUG; SHIFT ROD 4JJ1-TCS ENG<LFB> OD=14 THA	5-09609-004-0	02	1	0411-0604		●
16	PLUG; SHIFT ROD 4JJ1-TCS ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0605-0606		●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	0607-	●
24	COVER; CHECK HOLE,DUST 4JJ1-TCS ENG<LFB> THA	8-97977-025-0	01	1	0411-0606		●
24	COVER; CHECK HOLE,DUST THA	8-97977-025-0	01	1	0607-0708	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	0709-	●
28	COVER; FRT,TRANS CASE 4JJ1-TCS ENG<LFB> THA	8-97381-406-0	01	1	0411-0606		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	0607-	●
28	COVER; FRT,TRANS CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0610-0708			●
28	COVER; FRT,TRANS CASE 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0710-			●
29	BOLT; FRT COVER 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	1009-			●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	06	1	0411-0604		●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	06	1	0605-0606		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	0607-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> TKK THA	8-97046-698-0	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	0607-1208	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> NOK IMA	8-97046-699-3	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0607-0609	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0610-0708	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0709-0709	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0710-1208	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●		●
39	PLATE; DETENT SPR 4JJ1-TCS ENG<LFB> THA	8-94373-864-1	01	1	0411-0604		●
39	PLATE; DETENT SPR 4JJ1-TCS ENG<LFB> IMA	8-98035-571-0	01	1	0605-0606		●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	0607-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-600-1	01	1	0411-0606		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	0607-	●
41	SPRING; DETENT BALL 4JJ1-TCS ENG<LFB> L=26.8 IMA	8-94320-193-0	03	1	0411-0606		●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	03	1	0607-	●
42	BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG<LFB> IMA	8-94435-335-0	03	1	0411-0606		●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	0607-	●
43	BOLT; PLATE TO PLATE 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	02	1	0411-0604		●
43	BOLT; PLATE TO PLATE 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	02	1	0605-0606		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	0607-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0411-0606		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0607-1008	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1009-	●		●
49	STUD; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	1-09300-013-0	01	1	0411-0604		●
49	STUD; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X30 L=45 IMA	8-98035-675-0	01	1	0605-0606		●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0607-0609	●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0610-0708	●		●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0709-0709	●
49	STUD; TRANSFER CASE 4X4<UCS***> M10X30 L=45 IMA	8-98035-675-0	01	1	0710-	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0411-0606		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0411-0606		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0607-0609	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0607-0609	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	0610-0708	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0610-0708	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0709-0709	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> ID=17 IMA	8-97115-712-0	01	1	0709-0709	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	0710-1008	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0710-1008	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***>. ID=17 IMA	8-97115-712-0	01	1	1009-	●		●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1009-	●		●
79	BOLT; TRANSFER CASE 4X4<UCS***> M10X35 FLANGE THA	0-28051-035-0	07	1	1009-					●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28081-035-0	06	1	0411-0512		●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0601-0606		●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0607-0609	●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0610-0708	●
79	BOLT; TRANSFER CASE M10X35 FLANGE THA	0-28051-035-0	06	1	0610-0708			●
79	BOLT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0709-0709	●
79	BOLT; TRANSFER CASE 4X4<UCS***> M10X35 FLANGE THA	0-28051-035-0	06	1	0710-	●		●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91150-110-0	01	1	0411-0602		●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0603-0606		●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0607-0609	●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0610-0708	●
80	NUT; TRANSFER CASE M10 FLANGE THA	0-91180-110-0	01	1	0610-0708			●
80	NUT; TRANSFER CASE 4X4<UCS***> 4JJ1-TCS ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0709-0709	●
80	NUT; TRANSFER CASE 4X4<UCS***> M10 FLANGE THA	0-91180-110-0	01	1	0710-	●		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0411-0604		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-	●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0411-0606		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-	●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0411-0601		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-0609	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0610-0708	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0709-0709	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0710-	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0710-			●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0710-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-0609	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0610-0708	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	0610-0708			●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0709-0709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0710-1208	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) NOK IMA	8-97046-705-3	01	1	0710-1208					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1209-	●		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) TKK THA	8-97046-700-0	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97046-701-2	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<UCB***> (B) NOK THA	8-97947-840-0	01	1	1209-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0610-0708			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0710-			●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1-TCS ENG<LFB> IMA	8-97138-673-0	01	1	0411-0606		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	0607-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> IMA	8-97083-589-0	01	1	0411-0606		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	0607-	●
316	MAGNET; TRANS CASE 4JJ1-TCS ENG<LFB> IMA	8-94249-524-2	01	1	0411-0606		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0607-0609	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0610-0708	●		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0709-0709	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-94310-917-0	01	1	0411-0603		●		●
417	PLUG; OIL FILLER,TRANS (A) THA	8-94310-917-0	01	1	0411-0603		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) IMA	8-97365-373-0	01	1	0604-0606		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0604-0606		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0610-0704	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0610-0704	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0705-0708	●				●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0705-0708	●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0710-	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) M20X10.5 IMA	8-98009-333-0	01	1	0610-0704			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97365-373-0	02	1	0705-0708			●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97373-749-0	01	1	0411-0504	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98014-386-0	01	1	0505-1202	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-97301-224-2	01	1	0411-0606		●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-97301-224-2	01	1	0607-1208	●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-98214-237-0	01	1	1209-	●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (D) THA	8-97382-905-2	01	1	0710-			●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (E) THA	8-98035-906-0	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0710-			●
429	PIN; STRAIGHT 4JJ1-TCS ENG<LFB> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0411-0606		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0607-	●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0411-0606		●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-0609	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0610-0708	●		●		●
429	PIN; STRAIGHT 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0709-0709	●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0710-	●		●		●
429	PIN; STRAIGHT 4X4<UCS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0411-0606				●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	9-09662-004-0	01	1	0411-0603		●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0411-0603		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> IMA	8-97365-374-0	01	1	0604-0606		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0604-0606		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0610-0708	●				●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0610-0708	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0710-	●		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0710-	●		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97365-374-0	02	1	0610-0708			●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-97376-845-0	01	1	0411-0604		●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-98047-231-0	01	1	0605-0606		●
435	CASE; TRANS THA	8-98047-231-0	01	1	0607-1004	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1005-	●
435	CASE; TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98035-882-1	01	1	0610-0708			●
435	CASE; TRANS 4JJ1-TCX ENG<LS0> THA	8-98035-882-2	01	1	0710-			●
455	SCREW; BRG RET 4JJ1-TCS ENG<LFB> M8X22 THA	8-97062-754-0	04	1	0411-0604		●
455	SCREW; BRG RET 4JJ1-TCS ENG<LFB> M8X22 IMA	8-98035-654-0	04	1	0605-0606		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	0607-	●

603 675 676 677 674 675 510 608 608 679 682 678 114 675 608 679 675 679 608 435 33 680 28 316 434 90 86 315 315 417 417 29 83 261 86 421 443 419 67 318 15 680 13 442 328 317 611 326 680 114 430 319 421 1 673 390 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-97376-883-0	01	1	0411-0606	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98036-628-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98087-317-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98132-809-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> THA	8-98150-173-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-97376-953-0	01	1	0411-0606		●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98036-624-0	01	1	0607-0712	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98087-282-0	01	1	0801-0809	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98132-813-0	01	1	0810-1004	●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	8-98150-177-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98093-549-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98094-142-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X2<UCB***> 4JJ1-TCX ENG<LS0> THA	8-98171-012-0	01	1	1009-			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0610-0708			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98008-948-0	01	1	0710-0711			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98090-195-0	01	1	0712-1008			●
1	TRANSMISSION ASM; MANUAL 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98171-027-0	01	1	1009-			●
13	SUPPORT; SHIFT FORK 4JJ1-TCS ENG<LFB> L=47.5 IMA	8-97072-827-0	01	1	0411-0606		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	0607-	●
13	SUPPORT; SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0610-0708			●
13	SUPPORT; SHIFT FORK 4JJ1-TCX ENG<LS0> THA	8-98004-443-1	01	1	0710-			●
15	WASHER; PL 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0610-0708			●
15	WASHER; PL 4JJ1-TCX ENG<LS0> ID=8.4 OD=22 IMA	0-91610-708-0	01	1	0710-			●
28	COVER; FRT,TRANS CASE 4JJ1-TCS ENG<LFB> THA	8-97381-406-0	01	1	0411-0606		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	0607-	●
28	COVER; FRT,TRANS CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0610-0708			●
28	COVER; FRT,TRANS CASE 4JJ1-TCX ENG<LS0> THA	8-97362-409-0	01	1	0710-			●
29	BOLT; FRT COVER 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	1009-			●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	06	1	0411-0604		●
29	BOLT; FRT COVER 4JJ1-TCS ENG<LFB> M8X22 FLANGE IMA	8-97365-376-0	06	1	0605-0606		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	0607-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> TKK THA	8-97046-698-0	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	0607-1208	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> NOK IMA	8-97046-699-3	01	1	0411-0606		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0607-0609	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0610-0708	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0709-0709	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0710-1208	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1209-	●		●
67	STUD; CASE TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98004-519-0	02	1	0610-0708			●
67	STUD; CASE TRANS 4JJ1-TCX ENG<LS0> THA	8-98004-519-0	02	1	0710-			●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0610-0708			●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0710-1008			●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0411-0604		●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-	●
86	BOLT; RR COVER 4JJ1-TCS ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0411-0606		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-	●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0411-0601		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-0609	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0610-0708	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCS ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0709-0709	●
86	BOLT; RR COVER 4X4<UCS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0710-	●		●		●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (D) M8X50 FLANGE THA	0-28050-850-0	02	1	0710-			●
86	BOLT; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0610-0708			●
86	BOLT; RR COVER 4JJ1-TCX ENG<LS0> (E) M8X35 FLANGE THA	0-28650-835-0	03	1	0710-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0411-0606				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-0609	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0610-0708	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	0610-0708			●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0709-0709	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0710-1208	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) NOK IMA	8-97046-705-3	01	1	0710-1208					●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (B) NOK IMA	8-97046-705-3	01	1	1209-	●		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) TKK THA	8-97046-700-0	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97947-841-0	01	1	1209-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0411-0606		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> (A) NOK THA	8-97046-701-2	01	1	0607-1208	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<UCB***> (B) NOK THA	8-97947-840-0	01	1	1209-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0610-0708			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) JTEKT IMA	8-98004-531-0	01	1	0710-			●
114	RING; SNAP,BALL BRG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) OD=77 IMA	8-98024-221-0	01	1	0610-0708			●
114	RING; SNAP,BALL BRG 4JJ1-TCX ENG<LS0> (A) OD=77 IMA	8-98024-221-0	01	1	0710-			●
114	RING; SNAP,BALL BRG 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) OD=60.2 IMA	9-09180-156-0	01	1	0610-0708			●
114	RING; SNAP,BALL BRG 4JJ1-TCX ENG<LS0> (B) OD=60.2 IMA	9-09180-156-0	01	1	0710-			●
261	BOLT; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	0610-0708			●
261	BOLT; COVER 4JJ1-TCX ENG<LS0> M8X20 FLANGE THA	0-28650-820-0	03	1	0710-1008			●
315	BOLT; CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> M8X60 FLANGE THA	0-28050-860-0	12	1	0610-0708			●
315	BOLT; CASE 4JJ1-TCX ENG<LS0> M8X60 FLANGE THA	0-28050-860-0	12	1	0710-			●
315	BOLT; CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> M8X40 FLANGE THA	0-28650-840-0	12	1	0610-0708			●
315	BOLT; CASE 4JJ1-TCX ENG<LS0> M8X40 FLANGE THA	0-28650-840-0	12	1	0710-			●
316	MAGNET; TRANS CASE 4JJ1-TCS ENG<LFB> IMA	8-94249-524-2	01	1	0411-0606		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0607-0609	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0610-0708	●		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0709-0709	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0710-	●		●
317	COVER; CASE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97034-422-1	01	1	0610-0708			●
317	COVER; CASE 4JJ1-TCX ENG<LS0> THA	8-97034-422-1	01	1	0710-			●
318	GASKET; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97035-567-0	01	1	0610-0708			●
318	GASKET; COVER 4JJ1-TCX ENG<LS0> THA	8-97035-567-0	01	1	0710-			●
319	BOLT; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0610-0708			●
319	BOLT; COVER 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	02	1	0710-			●
326	NOZZLE; OIL,OUTLET 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-98023-517-0	01	1	0610-0708			●
326	NOZZLE; OIL,OUTLET 4JJ1-TCX ENG<LS0> IMA	8-98023-517-0	01	1	0710-			●
328	GASKET; PLUG 4X4<UCS***> 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0610-0708			●
328	GASKET; PLUG 4JJ1-TCX ENG<LS0> ID=17 IMA	8-97115-712-0	01	1	0710-1008			●
390	COVER; DUST,CLU SHIFT 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98007-103-0	01	1	0610-0708			●
390	COVER; DUST,CLU SHIFT 4JJ1-TCX ENG<LS0> THA	8-98007-103-0	01	1	0710-			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-94310-917-0	01	1	0411-0603		●		●
417	PLUG; OIL FILLER,TRANS (A) THA	8-94310-917-0	01	1	0411-0603		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) IMA	8-97365-373-0	01	1	0604-0606		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0604-0606		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0607-0609	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0610-0704	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0610-0704	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0705-0708	●				●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0705-0708	●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0709-0709	●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> (A) IMA	8-97365-373-0	01	1	0710-	●		●		●
417	PLUG; OIL FILLER,TRANS (A) IMA	8-97365-373-0	01	1	0710-	●		●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) M20X10.5 IMA	8-98009-333-0	01	1	0610-0704			●
417	PLUG; OIL FILLER,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97365-373-0	02	1	0705-0708			●
419	PLUG; RR COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M12X9 IMA	8-98047-054-0	01	1	0610-0708			●
419	PLUG; RR COVER 4JJ1-TCX ENG<LS0> M12X9 IMA	8-98047-054-0	01	1	0710-			●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97373-749-0	01	1	0411-0504	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98014-386-0	01	1	0505-1202	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-98191-921-0	01	1	1203-1405	●
421	COVER; RR,TRANS 4X2<UCB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCS ENG<LFB> (A) THA	8-97301-224-2	01	1	0411-0606		●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-97301-224-2	01	1	0607-1208	●
421	COVER; RR,TRANS 4X4<UCS***> (A) THA	8-98214-237-0	01	1	1209-	●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (D) THA	8-97382-905-2	01	1	0710-			●
421	COVER; RR,TRANS 4X2<UCB***> 4JJ1-TCX ENG<LS0> (E) THA	8-98035-906-0	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0610-0708			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-423-1	01	1	0710-			●
421	COVER; RR,TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) THA	8-98048-277-0	01	1	0710-			●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> THA	9-09662-004-0	01	1	0411-0603		●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0411-0603		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCS ENG<LFB> IMA	8-97365-374-0	01	1	0604-0606		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0604-0606		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0607-0609	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0610-0708	●				●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0610-0708	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0709-0709	●
430	PLUG; OIL DRAIN 4X4<UCS***> IMA	8-97365-374-0	01	1	0710-	●		●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0710-	●		●
430	PLUG; OIL DRAIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97365-374-0	02	1	0610-0708			●
434	HOUSING; CLU 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-384-0	01	1	0610-0708			●
434	HOUSING; CLU 4JJ1-TCX ENG<LS0> THA	8-97362-384-0	01	1	0710-			●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-97376-845-0	01	1	0411-0604		●
435	CASE; TRANS 4JJ1-TCS ENG<LFB> THA	8-98047-231-0	01	1	0605-0606		●
435	CASE; TRANS THA	8-98047-231-0	01	1	0607-1004	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1005-	●
435	CASE; TRANS 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98035-882-1	01	1	0610-0708			●
435	CASE; TRANS 4JJ1-TCX ENG<LS0> THA	8-98035-882-2	01	1	0710-			●
442	PIN; SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98024-123-0	01	1	0610-0708			●
442	PIN; SHIFT FORK 4JJ1-TCX ENG<LS0> THA	8-98024-123-0	01	1	0710-			●
443	PIN; SNAP,SHIFT FORK 4X4<UCS***> 4JJ1-TCX ENG<LS0> L=27.7 THA	1-09747-005-0	01	1	0610-0708			●
443	PIN; SNAP,SHIFT FORK 4JJ1-TCX ENG<LS0> L=27.7 THA	1-09747-005-0	01	1	0710-			●
510	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	01	1	0610-0708			●
510	BEARING 4JJ1-TCX ENG<LS0> THA	8-97362-853-0	01	1	0710-			●
603	RING; SNAP 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-98039-270-0	01	1	0610-0708			●
603	RING; SNAP 4JJ1-TCX ENG<LS0> IMA	8-98039-270-0	01	1	0710-			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-391-0	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-391-0	01	1	0710-			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-564-1	01	1	0710-0808			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-564-1	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (B) IMA	8-97362-564-1	01	1	0809-			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-565-1	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (C) THA	8-97362-565-1	01	1	0710-0902			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (C) IMA	8-98142-574-0	01	1	0903-			●
608	GUTTER; OIL 4X4<UCS***> 4JJ1-TCX ENG<LS0> (D) IMA	8-98004-505-0	01	1	0610-0708			●
608	GUTTER; OIL 4JJ1-TCX ENG<LS0> (D) IMA	8-98004-505-0	01	1	0710-			●
611	SCREW 4X4<UCS***> 4JJ1-TCX ENG<LS0> M10X27 TORQUES IMA	8-97365-354-0	03	1	0610-0708			●
611	SCREW 4JJ1-TCX ENG<LS0> M10X27 TORQUES IMA	8-97365-354-0	03	1	0710-			●
673	SEAL; COVER 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98007-102-0	01	1	0610-0708			●
673	SEAL; COVER 4JJ1-TCX ENG<LS0> THA	8-98007-102-0	01	1	0710-			●
674	PLATE; INTERMEDIATE 4X4<UCS***> 4JJ1-TCX ENG<LS0> THA	8-98042-863-0	01	1	0610-0708			●
674	PLATE; INTERMEDIATE 4JJ1-TCX ENG<LS0> THA	8-98042-863-0	01	1	0710-			●
675	DOWEL 4X4<UCS***> 4JJ1-TCX ENG<LS0> OD=11 L=8 IMA	9-11229-058-1	04	1	0610-0708			●
675	DOWEL 4JJ1-TCX ENG<LS0> OD=11 L=8 IMA	9-11229-058-1	04	1	0710-			●
676	INHIBITOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-98037-604-1	01	1	0610-0708			●
676	INHIBITOR 4JJ1-TCX ENG<LS0> IMA	8-98037-604-1	01	1	0710-			●
677	SPRING; INHIBITOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	8-97362-852-0	01	1	0610-0708			●
677	SPRING; INHIBITOR 4JJ1-TCX ENG<LS0> IMA	8-97362-852-0	01	1	0710-			●
678	PIN 4X4<UCS***> 4JJ1-TCX ENG<LS0> IMA	9-08160-436-0	01	1	0610-0708			●
678	PIN 4JJ1-TCX ENG<LS0> IMA	9-08160-436-0	01	1	0710-			●
679	BOLT; GUTTER 4X4<UCS***> 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	04	1	0610-0708			●
679	BOLT; GUTTER 4JJ1-TCX ENG<LS0> M6X12 FLANGE THA	0-28050-612-0	04	1	0710-			●
680	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-720-1	01	1	0610-0708			●
680	BEARING 4JJ1-TCX ENG<LS0> (A) IMA	8-97362-720-1	01	1	0710-			●
680	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> (C) THA	8-97362-853-0	01	1	0610-0708			●
680	BEARING 4JJ1-TCX ENG<LS0> (C) THA	8-97362-853-0	01	1	0710-			●
680	BEARING 4X4<UCS***> 4JJ1-TCX ENG<LS0> (B) IMA	8-98024-431-0	01	1	0610-0708			●
680	BEARING 4JJ1-TCX ENG<LS0> (B) IMA	8-98024-431-0	01	1	0710-			●
682	BOLT; INHIBITOR 4X4<UCS***> 4JJ1-TCX ENG<LS0> M10X50 IMA	8-98042-618-0	01	1	0610-0708			●
682	BOLT; INHIBITOR 4JJ1-TCX ENG<LS0> M10X50 IMA	8-98042-618-0	01	1	0710-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
