2-08 — CLUTCH MASTER CYLINDER (#73758) — 103 parça

1 1 11 12 3 13 10 42 87 4 31 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5G<RSP> THA	8-97943-432-0	01	1	0411-0606	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-438-0	01	1	0607-	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-509-1	01	1	0610-0708		●
1	CYLINDER ASM; CLUTCH MASTER M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-509-1	01	1	0710-		●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-201-0	01	1	0411-0606	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-449-0	01	1	0607-0609	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-449-0	01	1	0610-0708	●	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-449-0	01	1	0709-0709	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-449-0	01	1	0710-	●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5G<RSP> M8 THA	9-09111-408-0	01	1	0411-0512	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5G<RSP> M8 IMA	0-91111-508-0	01	1	0601-0606	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ> M8 IMA	0-91111-508-0	01	1	0607-0609	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 IMA	0-91111-508-0	01	1	0610-0708	●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ> M8 IMA	0-91111-508-0	01	1	0709-0709	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 IMA	0-91111-508-0	01	1	0710-	●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97184-654-0	01	1	0411-0606	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-654-0	01	1	0607-0609	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97184-654-0	01	1	0610-0708	●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-654-0	01	1	0709-0709	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97184-654-0	01	1	0710-	●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-836-0	01	1	0411-0606	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-836-0	01	1	0607-0609	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-836-0	01	1	0610-0708	●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-836-0	01	1	0709-0709	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-836-0	01	1	0710-	●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-206-0	01	1	0411-0606	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-206-0	01	1	0607-0609	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-206-0	01	1	0610-0708	●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-206-0	01	1	0709-0709	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-206-0	01	1	0710-	●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5G<RSP> THA	8-94412-205-0	01	1	0411-0606	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-205-0	01	1	0607-0609	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-205-0	01	1	0610-0708	●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-205-0	01	1	0709-0709	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-205-0	01	1	0710-	●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-992-0	01	1	0411-0606	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-452-0	01	1	0607-0609	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-452-0	01	1	0610-0708	●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-452-0	01	1	0709-0709	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-452-0	01	1	0710-	●	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-835-0	01	1	0607-	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5G<RSP> THA	8-97942-835-0	01	1	0411-0606	●
42	TANK; OIL,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-451-0	01	1	0610-0708		●
42	TANK; OIL,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-451-0	01	1	0710-		●
83	CYLINDER SUB ASM; CLUTCH MASTER M/T MUA 5 SPEED 5G<RSP> THA	8-97942-830-0	01	1	0411-0606	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-834-0	01	1	0411-0606	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-834-0	01	1	0607-0609	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-834-0	01	1	0610-0708	●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-834-0	01	1	0709-0709	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-834-0	01	1	0710-	●	●

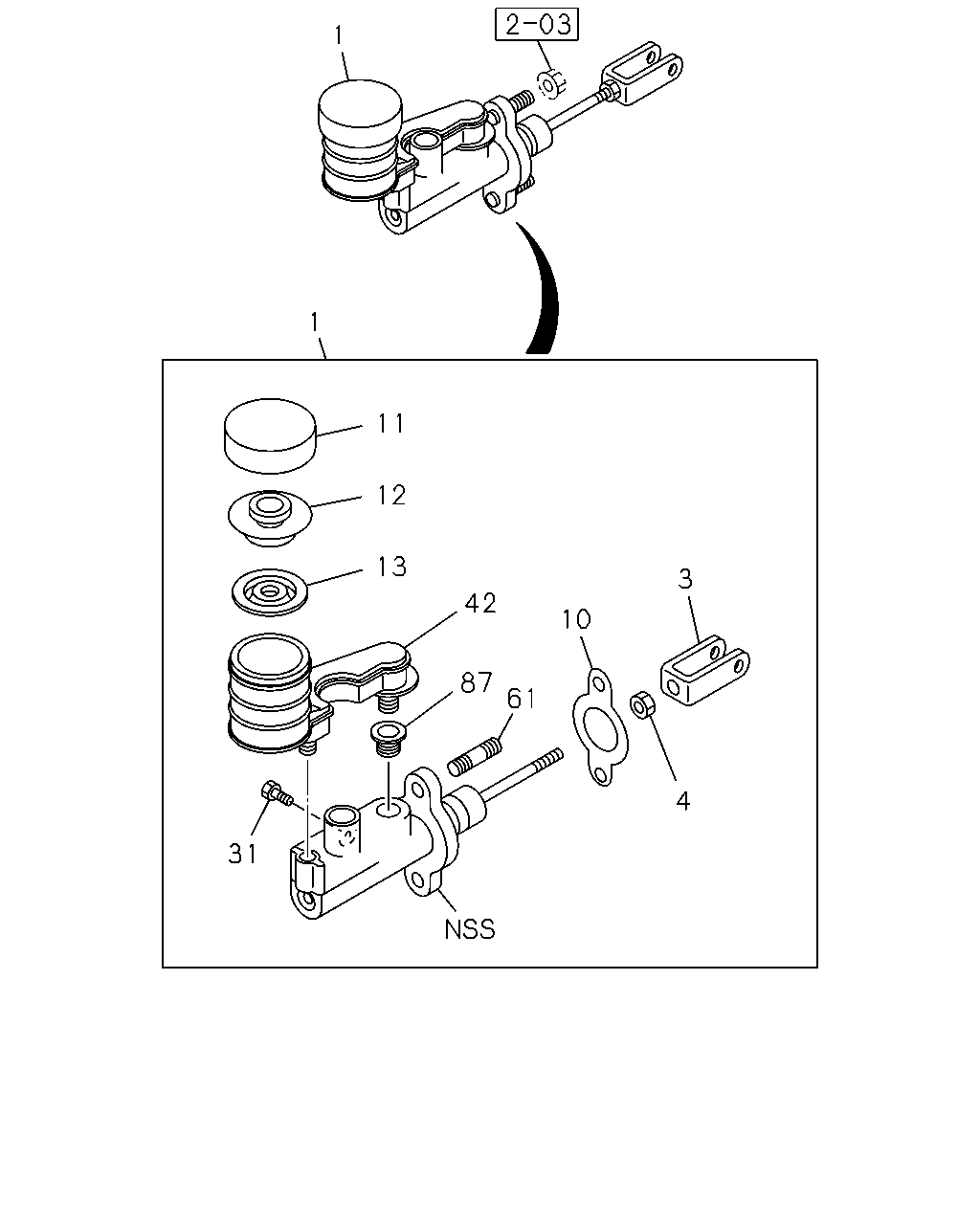

1 1 11 12 13 3 42 10 87 61 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5G<RSP> THA	8-97943-432-0	01	1	0411-0606	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-438-0	01	1	0607-	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-509-1	01	1	0610-0708		●
1	CYLINDER ASM; CLUTCH MASTER M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-509-1	01	1	0710-		●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-201-0	01	1	0411-0606	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-449-0	01	1	0607-0609	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-449-0	01	1	0610-0708	●	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-449-0	01	1	0709-0709	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-449-0	01	1	0710-	●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5G<RSP> M8 THA	9-09111-408-0	01	1	0411-0512	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5G<RSP> M8 IMA	0-91111-508-0	01	1	0601-0606	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ> M8 IMA	0-91111-508-0	01	1	0607-0609	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 IMA	0-91111-508-0	01	1	0610-0708	●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ> M8 IMA	0-91111-508-0	01	1	0709-0709	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 IMA	0-91111-508-0	01	1	0710-	●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97184-654-0	01	1	0411-0606	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-654-0	01	1	0607-0609	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97184-654-0	01	1	0610-0708	●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-654-0	01	1	0709-0709	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97184-654-0	01	1	0710-	●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-836-0	01	1	0411-0606	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-836-0	01	1	0607-0609	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-836-0	01	1	0610-0708	●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-836-0	01	1	0709-0709	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-836-0	01	1	0710-	●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-206-0	01	1	0411-0606	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-206-0	01	1	0607-0609	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-206-0	01	1	0610-0708	●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-206-0	01	1	0709-0709	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-206-0	01	1	0710-	●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5G<RSP> THA	8-94412-205-0	01	1	0411-0606	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-205-0	01	1	0607-0609	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-205-0	01	1	0610-0708	●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-205-0	01	1	0709-0709	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-94412-205-0	01	1	0710-	●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-992-0	01	1	0411-0606	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-452-0	01	1	0607-0609	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-452-0	01	1	0610-0708	●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-452-0	01	1	0709-0709	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-452-0	01	1	0710-	●	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-835-0	01	1	0607-	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5G<RSP> THA	8-97942-835-0	01	1	0411-0606	●
42	TANK; OIL,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-451-0	01	1	0610-0708		●
42	TANK; OIL,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-451-0	01	1	0710-		●
61	BOLT; STUD M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-450-0	02	1	0607-0609	●
61	BOLT; STUD M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-450-0	02	1	0610-0708	●	●
61	BOLT; STUD M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-450-0	02	1	0709-0709	●
61	BOLT; STUD M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-450-0	02	1	0710-	●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-834-0	01	1	0411-0606	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-834-0	01	1	0607-0609	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-834-0	01	1	0610-0708	●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-834-0	01	1	0709-0709	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-834-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
