2-06 — CLUTCH SLAVE CYLINDER (#73757) — 58 parça

1 1 3 5 8 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; SLAVE,CLU M/T MUA 5 SPEED 5G<RSP> THA	8-97941-515-0	01	1	0411-0606	●
1	CYLINDER; SLAVE,CLU M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-177-0	01	1	0607-	●
1	CYLINDER; SLAVE,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-513-3	01	1	0610-0708		●
1	CYLINDER; SLAVE,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-513-3	01	1	0710-1108		●
1	CYLINDER; SLAVE,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97947-765-0	01	1	1109-		●
2	REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED 5G<RSP> THA	5-87832-048-0	01	1	0411-0606	●
2	REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> THA	5-87832-048-0	01	1	0607-	●
2	REPAIR KIT; CLU SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	5-87832-067-0	01	1	0610-0708		●
2	REPAIR KIT; CLU SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	5-87832-067-0	01	1	0710-1102		●
2	REPAIR KIT; CLU SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	5-87832-264-0	01	1	1103-		●
3	ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-803-0	01	1	0411-0606	●
3	ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-722-0	01	1	0607-	●
3	ROD; PUSH,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-721-0	01	1	0610-0708		●
3	ROD; PUSH,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-721-0	01	1	0710-1108		●
3	ROD; PUSH,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97947-769-0	01	1	1109-		●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-801-0	01	1	0411-0606	●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-801-0	01	1	0607-	●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97028-736-0	01	1	0610-0708		●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97028-736-0	01	1	0710-		●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> M8X16.5 THA	8-94115-113-0	01	1	0411-0606	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA	8-98020-477-0	01	1	0607-0609	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA	8-98020-477-0	01	1	0610-0708	●	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA	8-98020-477-0	01	1	0709-0709	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA	8-98020-477-0	01	1	0710-	●	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> OD=10 IMA	8-97940-638-0	01	1	0411-0606	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA	8-97940-638-0	01	1	0607-0609	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA	8-97940-638-0	01	1	0610-0708	●	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA	8-97940-638-0	01	1	0709-0709	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA	8-97940-638-0	01	1	0710-	●	●

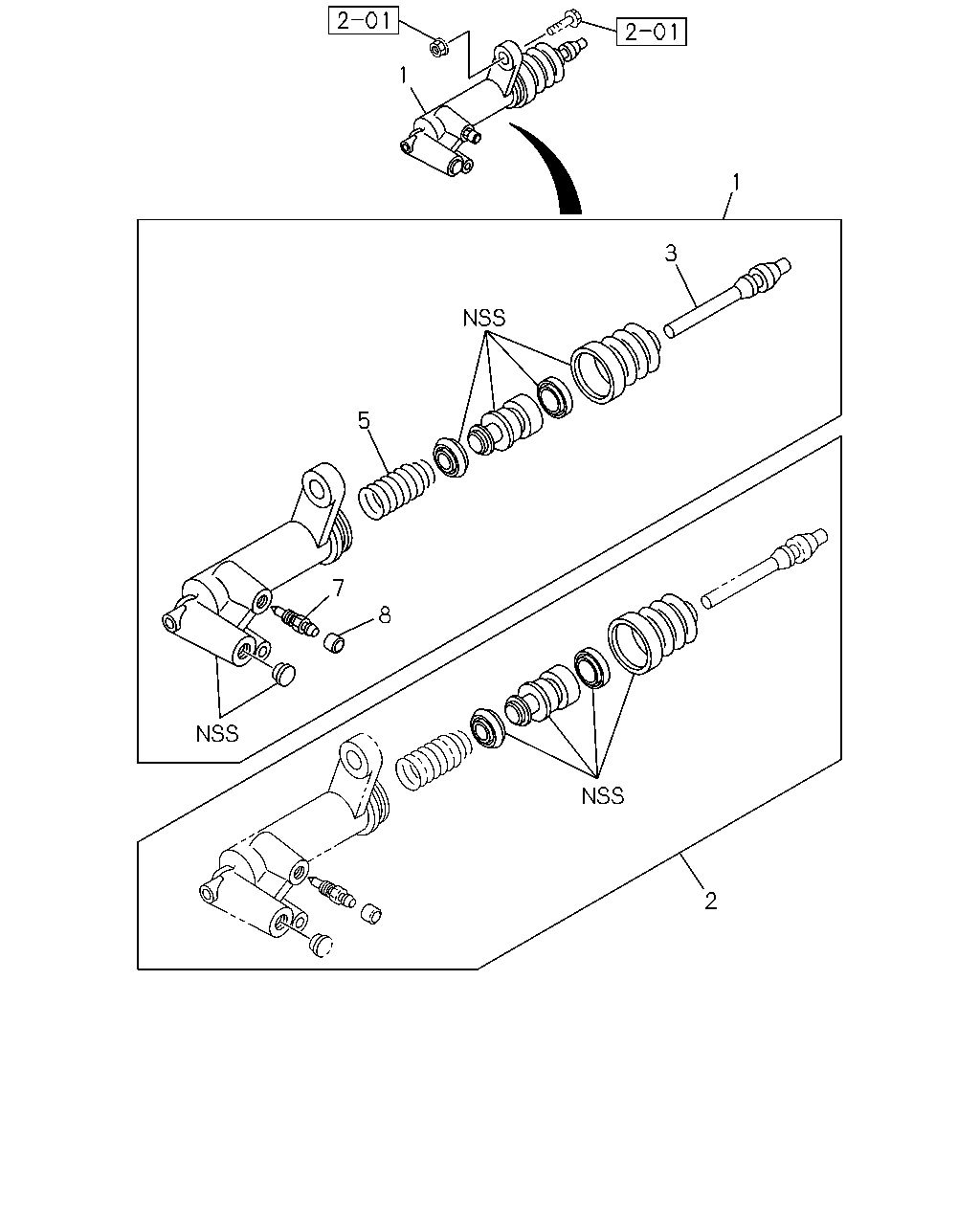

1 1 3 5 7 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; SLAVE,CLU M/T MUA 5 SPEED 5G<RSP> THA	8-97941-515-0	01	1	0411-0606	●
1	CYLINDER; SLAVE,CLU M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-177-0	01	1	0607-	●
1	CYLINDER; SLAVE,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-513-3	01	1	0610-0708		●
1	CYLINDER; SLAVE,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-513-3	01	1	0710-1108		●
1	CYLINDER; SLAVE,CLU M/T MUX 5 SPEED 5S<MZJ> THA	8-97947-765-0	01	1	1109-		●
2	REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED 5G<RSP> THA	5-87832-048-0	01	1	0411-0606	●
2	REPAIR KIT; CLU SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> THA	5-87832-048-0	01	1	0607-	●
2	REPAIR KIT; CLU SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	5-87832-067-0	01	1	0610-0708		●
2	REPAIR KIT; CLU SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	5-87832-067-0	01	1	0710-1102		●
2	REPAIR KIT; CLU SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	5-87832-264-0	01	1	1103-		●
3	ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-803-0	01	1	0411-0606	●
3	ROD; PUSH,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-722-0	01	1	0607-	●
3	ROD; PUSH,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-721-0	01	1	0610-0708		●
3	ROD; PUSH,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-721-0	01	1	0710-1108		●
3	ROD; PUSH,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97947-769-0	01	1	1109-		●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-801-0	01	1	0411-0606	●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-801-0	01	1	0607-	●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97028-736-0	01	1	0610-0708		●
5	SPRING ASM; PISTON,SLAVE CYL M/T MUX 5 SPEED 5S<MZJ> THA	8-97028-736-0	01	1	0710-		●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> M8X16.5 THA	8-94115-113-0	01	1	0411-0606	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA	8-98020-477-0	01	1	0607-0609	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA	8-98020-477-0	01	1	0610-0708	●	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> M8X10 IMA	8-98020-477-0	01	1	0709-0709	●
7	SCREW; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8X10 IMA	8-98020-477-0	01	1	0710-	●	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5G<RSP> OD=10 IMA	8-97940-638-0	01	1	0411-0606	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA	8-97940-638-0	01	1	0607-0609	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA	8-97940-638-0	01	1	0610-0708	●	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ> OD=10 IMA	8-97940-638-0	01	1	0709-0709	●
8	CAP; BLEEDER,SLAVE CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=10 IMA	8-97940-638-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
