◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#73756) — 51 parça

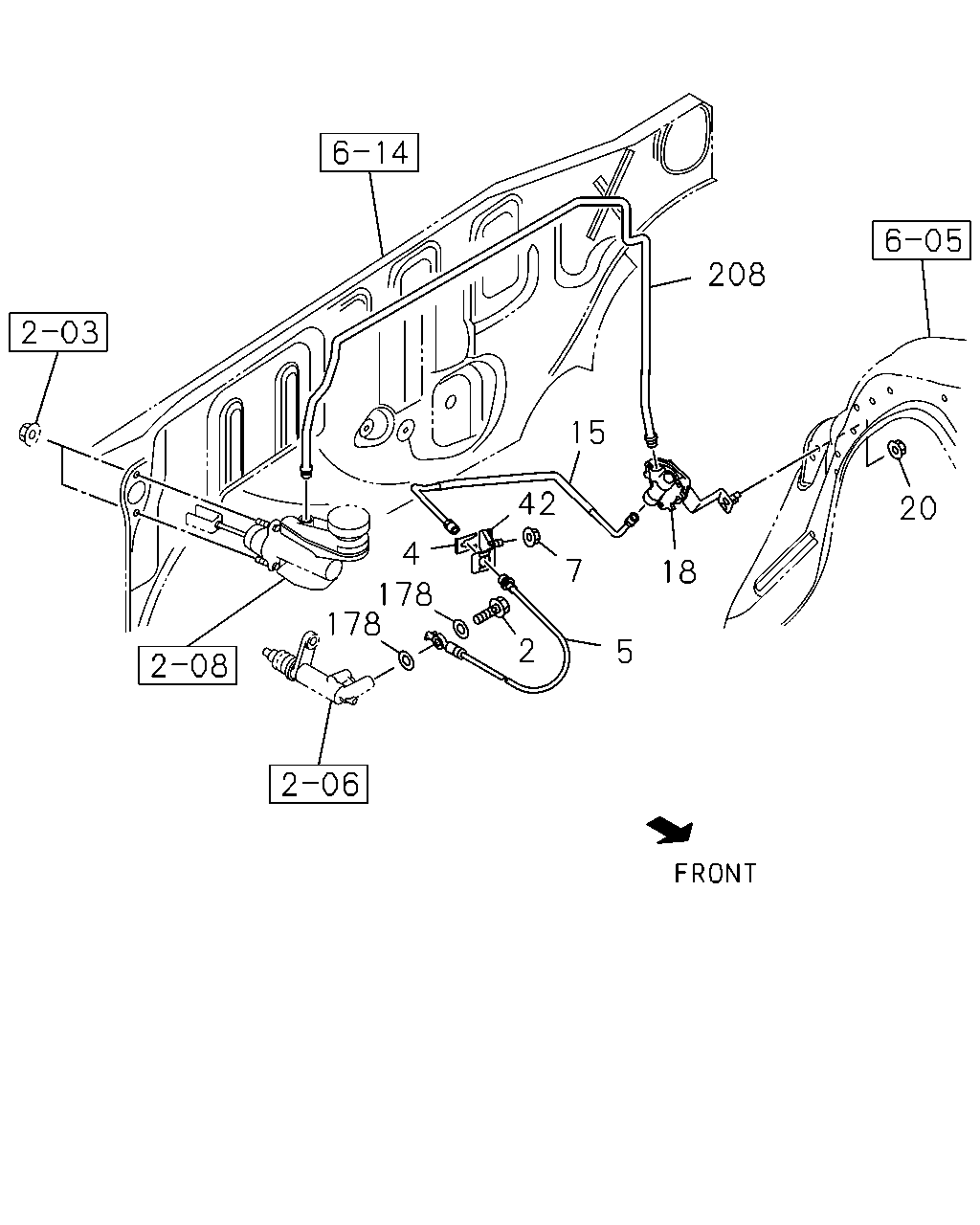

çizim 102411
208 15 42 20 4 7 18 178 178 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> M10X22 THA 		5-09675-017-0 01 1 0411-0508 ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> M10X22 THA 		5-09675-017-0 01 1 0509-0606 ● ●
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-97359-818-0 01 1 0607-0609 ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA 		8-97359-818-0 01 1 0610-0708 ● ●
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-97359-818-0 01 1 0709-0709 ●
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA 		8-97359-818-0 01 1 0710- ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5G<RSP> THA 		8-94436-216-0 01 1 0411-0606 ●
4 CLIP; FLEX HOSE,CLU CONT
THA 		8-94436-216-0 01 1 0607-0609 ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-94436-216-0 01 1 0610-0705 ● ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97946-552-0 01 1 0706-0708 ● ●
4 CLIP; FLEX HOSE,CLU CONT
THA 		8-97946-552-0 01 1 0709-0709 ●
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97946-552-0 01 1 0710- ● ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-683-0 01 1 0411-0606 ●
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-178-0 01 1 0607- ●
5 HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-870-0 01 1 0610-0708 ●
5 HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-870-0 01 1 0710- ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 01 1 0411-0606 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 01 1 0607-0609 ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA 		0-91180-108-0 01 1 0610-0708 ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 01 1 0709-0709 ●
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA 		0-91180-108-0 01 1 0710- ● ●
15 PIPE; CLU,FLEX HOSE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97363-806-1 01 1 0411-0606 ●
15 PIPE; CLU,FLEX HOSE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-805-0 01 1 0607- ●
15 PIPE; CLU,FLEX HOSE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-806-0 01 1 0610-0708 ●
15 PIPE; CLU,FLEX HOSE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-806-0 01 1 0710- ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-171-0 01 1 0411-0606 ●
18 DAMPER ASM; CLU OIL
THA 		8-97945-174-0 01 1 0607-0609 ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-174-0 01 1 0610-0708 ● ●
18 DAMPER ASM; CLU OIL
THA 		8-97945-174-0 01 1 0709-0709 ●
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-174-0 01 1 0710- ● ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5G<RSP> M6 FLANGE THA 		0-91180-106-0 02 1 0411-0508 ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5G<RSP> M6 FLANGE THA 		0-91180-106-0 02 1 0509-0606 ● ●
20 NUT; CLU OIL DAMPER
M6 FLANGE THA 		0-91180-106-0 02 1 0607-0609 ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-106-0 02 1 0610-0708 ● ●
20 NUT; CLU OIL DAMPER
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ●
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5G<RSP> THA 		8-97943-835-0 01 1 0411-0606 ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97943-835-0 01 1 0607- ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-508-0 01 1 0610-0708 ●
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-508-0 01 1 0710- ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5G<RSP> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0411-0508 ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5G<RSP> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0509-0606 ● ●
178 GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0607-0609 ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0610-0708 ● ●
178 GASKET; FLEX HOSE TO M/CYL
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0709-0709 ●
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0710- ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5G<RSP> THA 		8-97236-459-1 01 1 0411-0606 ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
THA 		8-97944-795-0 01 1 0607-0609 ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-795-0 01 1 0610-0708 ● ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
THA 		8-97944-795-0 01 1 0709-0709 ●
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-795-0 01 1 0710- ● ●
