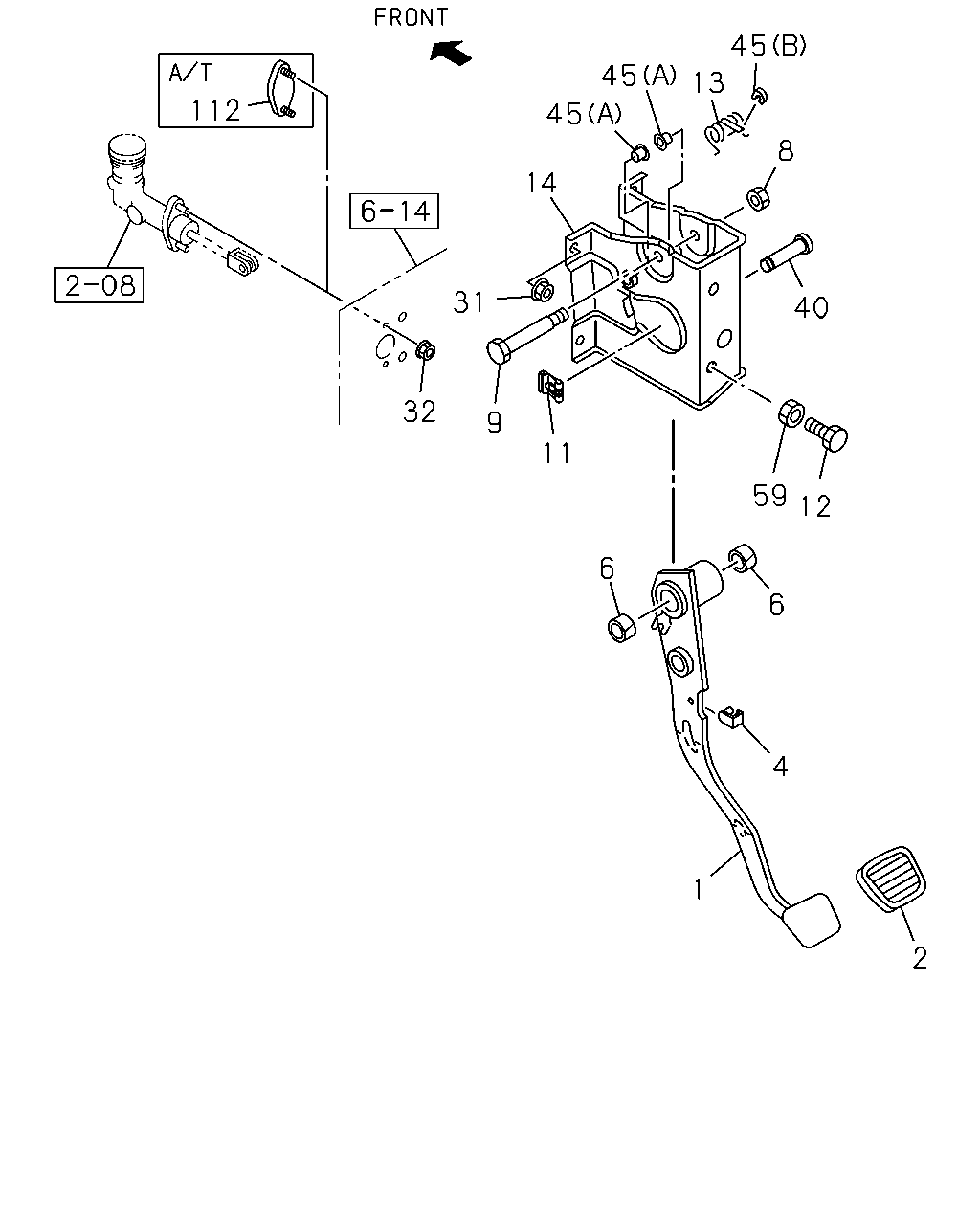

1 |
PEDAL; CLU
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97942-311-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
1 |
PEDAL; CLU
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-311-0 |
01 |
1 |
0607- |
● |
● |
| |
1 |
PEDAL; CLU
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-742-0 |
01 |
1 |
0610-0708 |
|
● |
| |
1 |
PEDAL; CLU
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-742-0 |
01 |
1 |
0710- |
● |
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97318-799-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97318-799-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97318-799-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97318-799-0 |
01 |
1 |
0610-0708 |
|
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97318-799-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97318-799-0 |
01 |
1 |
0710- |
● |
● |
| |
2 |
COVER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97318-799-0 |
01 |
1 |
0710- |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-94463-258-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-94463-258-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-94463-258-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-94463-258-0 |
01 |
1 |
0610-0708 |
|
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-94463-258-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-94463-258-0 |
01 |
1 |
0710- |
● |
● |
| |
4 |
STOPPER; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-94463-258-0 |
01 |
1 |
0710- |
● |
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97301-688-0 |
02 |
1 |
0411-0606 |
● |
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97301-688-0 |
02 |
1 |
0607-0609 |
● |
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97301-688-0 |
02 |
1 |
0610-0708 |
● |
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97301-688-0 |
02 |
1 |
0610-0708 |
|
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97301-688-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97301-688-0 |
02 |
1 |
0710-1008 |
● |
● |
| |
6 |
BUSHING; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97301-688-0 |
02 |
1 |
0710-1008 |
● |
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
M10 LOCK NUT FLANGE
THA
|
0-91303-610-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10 LOCK NUT FLANGE
THA
|
0-91380-010-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10 LOCK NUT FLANGE
THA
|
0-91380-010-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
M10 LOCK NUT FLANGE
THA
|
0-91380-010-0 |
01 |
1 |
0610-0708 |
|
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10 LOCK NUT FLANGE
THA
|
0-91380-010-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
M10 LOCK NUT FLANGE
THA
|
0-91380-010-0 |
01 |
1 |
0710- |
● |
● |
| |
8 |
NUT; PIN TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10 LOCK NUT FLANGE
THA
|
0-91380-010-0 |
01 |
1 |
0710- |
● |
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97942-315-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-315-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-315-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-315-0 |
01 |
1 |
0610-0708 |
|
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-315-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-315-0 |
01 |
1 |
0710- |
● |
● |
| |
9 |
PIN; CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-315-0 |
01 |
1 |
0710- |
● |
● |
| |
11 |
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97311-594-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
11 |
PIN; SNAP,PUSH ROD TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
IMA
|
8-98007-161-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
11 |
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H<MWQ>
IMA
|
8-98007-161-0 |
01 |
1 |
0610-0708 |
● |
|
| |
11 |
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
IMA
|
8-98007-161-0 |
01 |
1 |
0610-0708 |
|
● |
| |
11 |
PIN; SNAP,PUSH ROD TO PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
IMA
|
8-98007-161-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
11 |
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
IMA
|
8-98007-161-0 |
01 |
1 |
0710- |
● |
● |
| |
12 |
BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
M10X35
THA
|
0-20851-035-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
12 |
BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10X35 FLANGE
THA
|
0-28651-035-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
12 |
BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ>
M10X35 FLANGE
THA
|
0-28651-035-0 |
01 |
1 |
0610-0708 |
● |
|
| |
12 |
BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
M10X35 FLANGE
THA
|
0-28651-035-0 |
01 |
1 |
0610-0708 |
|
● |
| |
12 |
BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10X35 FLANGE
THA
|
0-28651-035-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
12 |
BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
M10X35 FLANGE
THA
|
0-28651-035-0 |
01 |
1 |
0710- |
● |
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97942-312-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-312-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-312-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-312-0 |
01 |
1 |
0610-0708 |
|
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-312-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-312-0 |
01 |
1 |
0710- |
● |
● |
| |
13 |
SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-312-0 |
01 |
1 |
0710- |
● |
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
THA
|
8-97942-310-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-310-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-310-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-310-0 |
01 |
1 |
0610-0708 |
|
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-310-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
THA
|
8-97942-310-0 |
01 |
1 |
0710- |
● |
● |
| |
14 |
BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
THA
|
8-97942-310-0 |
01 |
1 |
0710- |
● |
● |
| |
31 |
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5G<RSP>
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
0411-0606 |
● |
● |
| |
31 |
NUT; MTG BRKT TO BODY
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
0607-0609 |
● |
● |
| |
31 |
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H<MWQ>
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
0610-0708 |
● |
|
| |
31 |
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
0610-0708 |
|
● |
| |
31 |
NUT; MTG BRKT TO BODY
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
0709-0709 |
● |
● |
| |
31 |
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
0710- |
● |
● |
| |
32 |
NUT; BRKT TO CLU M/CYL
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
0411- |
● |
● |
| |
40 |
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5G<RSP>
OD=7.9 L=27.5
IMA
|
8-97312-338-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
40 |
PIN; JOINT,CLU DAMPER
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
OD=7.9 L=27.5
IMA
|
8-97312-338-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
40 |
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H<MWQ>
OD=7.9 L=27.5
IMA
|
8-97312-338-0 |
01 |
1 |
0610-0708 |
● |
|
| |
40 |
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
OD=7.9 L=27.5
IMA
|
8-97312-338-0 |
01 |
1 |
0610-0708 |
|
● |
| |
40 |
PIN; JOINT,CLU DAMPER
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
OD=7.9 L=27.5
IMA
|
8-97312-338-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
40 |
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
OD=7.9 L=27.5
IMA
|
8-97312-338-0 |
01 |
1 |
0710- |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0411-0606 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0607-0609 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0610-0708 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0610-0708 |
|
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0709-0709 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0710- |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(A)
THA
|
8-97942-313-0 |
02 |
1 |
0710- |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0610-0708 |
|
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCX ENG<LS0>
M/T MUX 5 SPEED 5S<MZJ>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0710- |
● |
● |
| |
45 |
BUSHING; ASSIST SPRING,CLU PEDAL
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
(B)
THA
|
8-97942-314-0 |
01 |
1 |
0710- |
● |
● |
| |
59 |
NUT; CLU PEDAL ADJ
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5G<RSP>
M10
THA
|
0-91110-510-0 |
01 |
1 |
0411-0606 |
● |
● |
| |
59 |
NUT; CLU PEDAL ADJ
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10
THA
|
0-91110-510-0 |
01 |
1 |
0607-0609 |
● |
● |
| |
59 |
NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ>
M10
THA
|
0-91110-510-0 |
01 |
1 |
0610-0708 |
● |
|
| |
59 |
NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
M10
THA
|
0-91110-510-0 |
01 |
1 |
0610-0708 |
|
● |
| |
59 |
NUT; CLU PEDAL ADJ
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
M10
THA
|
0-91110-510-0 |
01 |
1 |
0709-0709 |
● |
● |
| |
59 |
NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>
M10
THA
|
0-91110-510-0 |
01 |
1 |
0710- |
● |
● |
| |
112 |
PLUG; METAL,M/CYL
A/T AISIN<RMD>
THA
|
8-97945-168-0 |
01 |
1 |
0610-0708 |
● |
● |
| |
112 |
PLUG; METAL,M/CYL
A/T AISIN<RMD>
THA
|
8-97945-168-0 |
01 |
1 |
0710-0809 |
● |
● |
| |
112 |
PLUG; METAL,M/CYL
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK>
THA
|
8-97945-168-0 |
01 |
1 |
0810- |
● |
|
| |
112 |
PLUG; METAL,M/CYL
A/T AISIN<RMD>
THA
|
8-97945-168-0 |
01 |
1 |
0810- |
|
● |
| |
112 |
PLUG; METAL,M/CYL
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
THA
|
8-97911-271-1 |
01 |
1 |
0411-0606 |
● |
● |
