◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#73754) — 66 parça

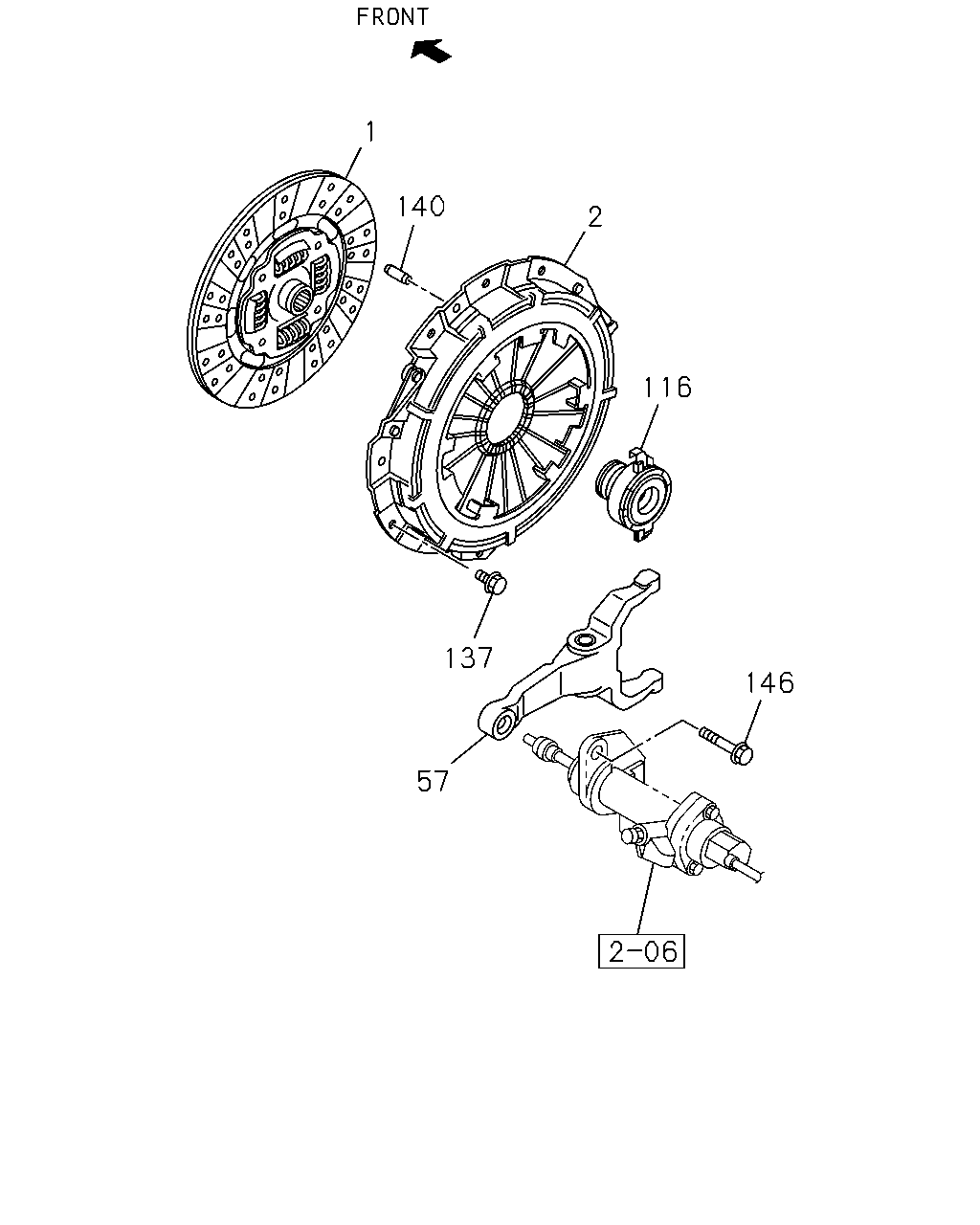

çizim 97697
1 140 2 116 137 146 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97946-002-0 01 1 0807-0809 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-523-0 01 1 0411-0412 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5G<RSP> THA 		8-97944-277-0 01 1 0501-0606 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-679-0 01 1 0607-0806 ●
1 DISC; CLUTCH
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-679-0 01 1 0807-0809 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97947-166-0 01 1 0810- ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-775-0 01 1 0610-0611 ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97946-171-0 01 1 0612-0701 ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-774-0 01 1 0702-0708 ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-774-0 01 1 0710- ●
2 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-522-0 01 1 0411-0606 ●
2 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97941-522-0 01 1 0607- ●
2 PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-507-2 01 1 0610-0708 ●
2 PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-507-2 01 1 0710- ●
57 FORK; SHIFT,CLU
M/T MUA 5 SPEED 5G<RSP> IMA 		8-97365-654-0 01 1 0411-0606 ●
57 FORK; SHIFT,CLU
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97365-654-0 01 1 0607- ●
57 FORK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-94370-379-3 01 1 0610-0708 ●
57 FORK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98086-423-0 01 1 0710- ●
116 BLOCK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-94377-417-1 01 1 0610-0708 ●
116 BLOCK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-94377-417-1 01 1 0710- ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED 5G<RSP> M8X16 FLANGE THA 		0-28050-816-0 06 1 0411-0606 ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA 		0-28050-816-0 06 1 0607- ●
137 BOLT; CLU COVER
M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 09 1 0610-0708 ●
137 BOLT; CLU COVER
M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 09 1 0710- ●
140 PIN; STRAIGHT
M/T MUA 5 SPEED 5G<RSP> OD=6 L=24 THA 		8-97920-965-0 02 1 0411-0606 ●
140 PIN; STRAIGHT
M/T MUA 5 SPEED 5H<MWQ> OD=6 L=27 THA 		8-97945-592-0 02 1 0607- ●
140 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA 		8-97945-592-0 03 1 0610-0708 ●
140 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA 		8-97945-592-0 03 1 0710- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5G<RSP> M12X90 FLANGE THA 		0-28051-290-0 02 1 0411-0606 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5H<MWQ> M12X90 FLANGE THA 		0-28051-290-0 02 1 0607- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUX 5 SPEED 5S<MZJ> M10X60 FLANGE IMA 		0-28151-060-0 02 1 0610-0708 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUX 5 SPEED 5S<MZJ> M10X60 FLANGE IMA 		0-28151-060-0 02 1 0710- ●

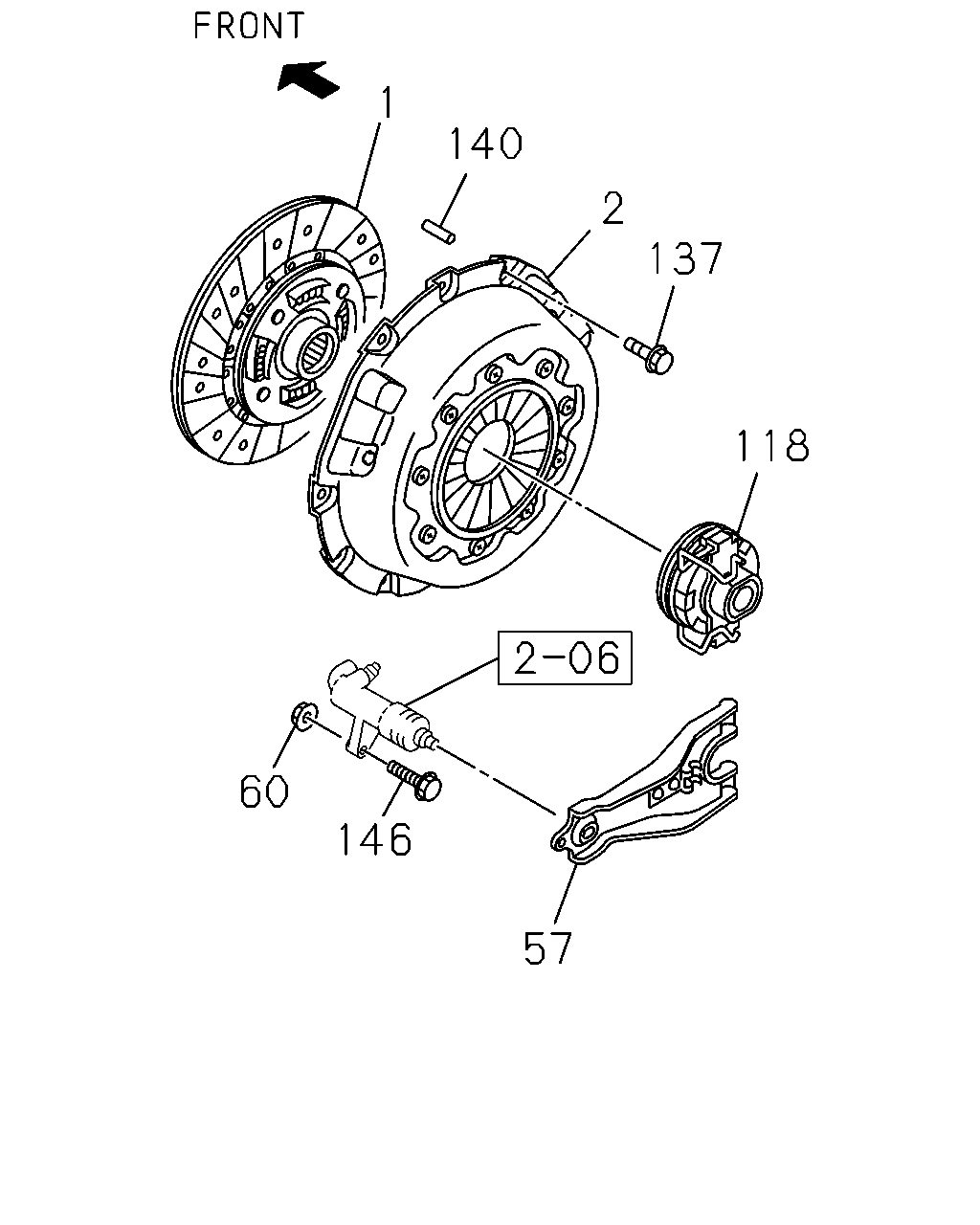

çizim 185386
1 140 2 137 118 60 146 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97946-002-0 01 1 0807-0809 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-523-0 01 1 0411-0412 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5G<RSP> THA 		8-97944-277-0 01 1 0501-0606 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-679-0 01 1 0607-0806 ●
1 DISC; CLUTCH
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-679-0 01 1 0807-0809 ●
1 DISC; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97947-166-0 01 1 0810- ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-775-0 01 1 0610-0611 ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97946-171-0 01 1 0612-0701 ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-774-0 01 1 0702-0708 ●
1 DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-774-0 01 1 0710- ●
2 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5G<RSP> THA 		8-97941-522-0 01 1 0411-0606 ●
2 PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97941-522-0 01 1 0607- ●
2 PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-507-2 01 1 0610-0708 ●
2 PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-97944-507-2 01 1 0710- ●
57 FORK; SHIFT,CLU
M/T MUA 5 SPEED 5G<RSP> IMA 		8-97365-654-0 01 1 0411-0606 ●
57 FORK; SHIFT,CLU
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97365-654-0 01 1 0607- ●
57 FORK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-94370-379-3 01 1 0610-0708 ●
57 FORK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98086-423-0 01 1 0710- ●
60 NUT; SLAVE CYL
M/T MUA 5 SPEED 5G<RSP> M12 FLANGE THA 		0-91180-112-0 01 1 0411-0606 ●
60 NUT; SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M12 FLANGE THA 		0-91180-112-0 01 1 0607- ●
118 BEARING; CLU RELEASE
M/T MUA 5 SPEED 5G<RSP> NSK THA 		8-97316-591-0 01 1 0411-0606 ●
118 BEARING; CLU RELEASE
M/T MUA 5 SPEED 5H<MWQ> NSK THA 		8-97316-591-0 01 1 0607- ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED 5G<RSP> M8X16 FLANGE THA 		0-28050-816-0 06 1 0411-0606 ●
137 BOLT; CLU COVER
M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA 		0-28050-816-0 06 1 0607- ●
137 BOLT; CLU COVER
M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 09 1 0610-0708 ●
137 BOLT; CLU COVER
M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 09 1 0710- ●
140 PIN; STRAIGHT
M/T MUA 5 SPEED 5G<RSP> OD=6 L=24 THA 		8-97920-965-0 02 1 0411-0606 ●
140 PIN; STRAIGHT
M/T MUA 5 SPEED 5H<MWQ> OD=6 L=27 THA 		8-97945-592-0 02 1 0607- ●
140 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA 		8-97945-592-0 03 1 0610-0708 ●
140 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA 		8-97945-592-0 03 1 0710- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5G<RSP> M12X90 FLANGE THA 		0-28051-290-0 02 1 0411-0606 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5H<MWQ> M12X90 FLANGE THA 		0-28051-290-0 02 1 0607- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUX 5 SPEED 5S<MZJ> M10X60 FLANGE IMA 		0-28151-060-0 02 1 0610-0708 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M/T MUX 5 SPEED 5S<MZJ> M10X60 FLANGE IMA 		0-28151-060-0 02 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
