1-50 — EXHAUST PIPE AND SILENCER (#73753) — 139 parça

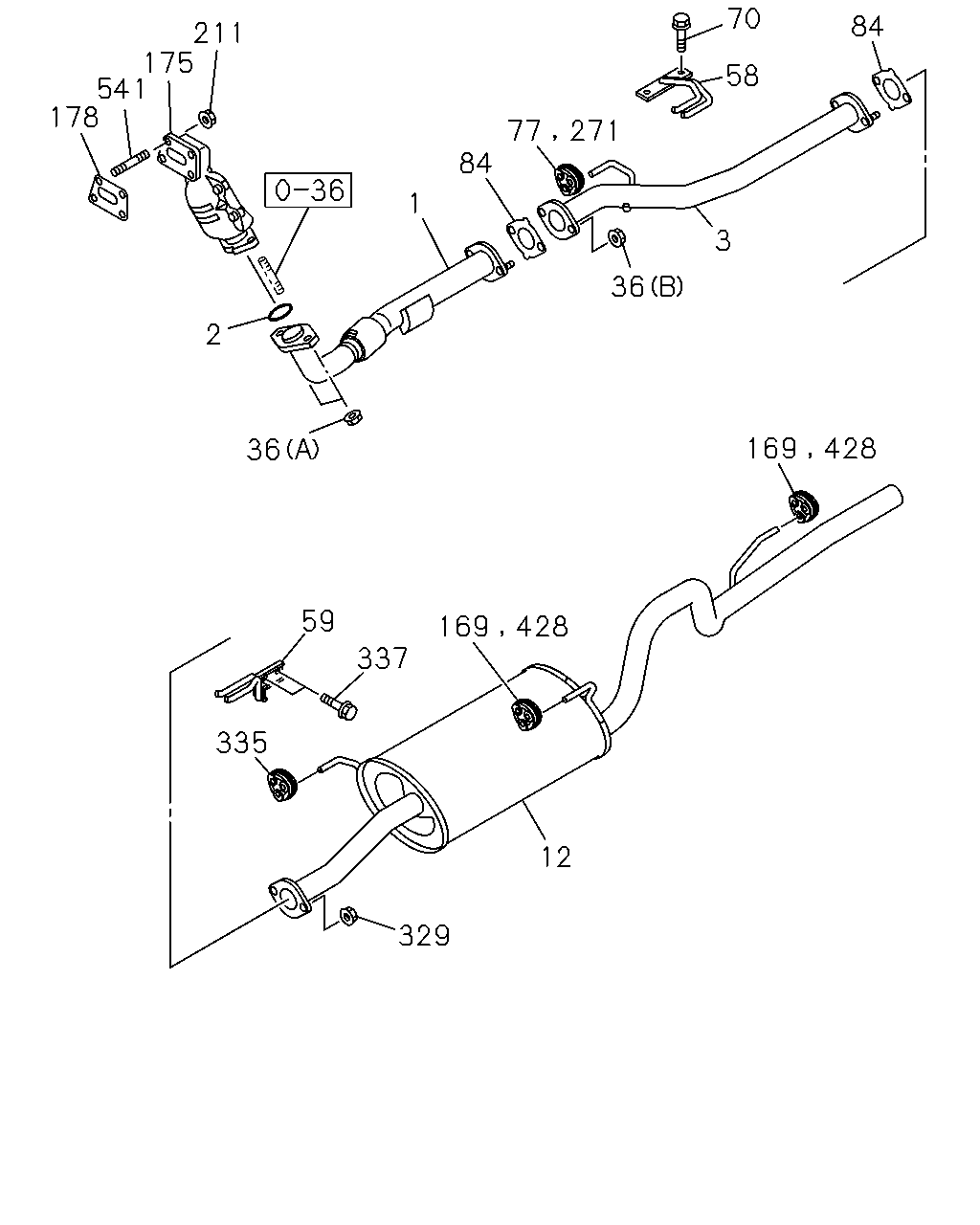

70 84 211 175 541 178 58 84 1 3 36 2 36 59 337 335 12 329 77 271 169 428 169 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97370-792-0	01	1	0411-0508	●
1	PIPE; EXH THA	8-98008-408-0	01	1	0509-	●
1	PIPE; EXH THA	8-97380-258-1	01	1	0610-0708		●
1	PIPE; EXH THA	8-97380-258-1	01	1	0710-		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0411-0509	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0510-0606	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0607-	●	●
3	PIPE; EXH,CENTER THA	8-97363-498-0	01	1	0411-0508	●
3	PIPE; EXH,CENTER THA	8-98008-409-0	01	1	0509-	●
3	PIPE; EXH,CENTER THA	8-98029-203-0	01	1	0610-0708		●
3	PIPE; EXH,CENTER THA	8-98029-203-0	01	1	0710-		●
12	SILENCER ASM; EXH THA	8-97363-500-0	01	1	0411-0508	●
12	SILENCER ASM; EXH THA	8-98008-411-0	01	1	0509-0708	●
12	SILENCER ASM; EXH THA	8-98083-094-0	01	1	0709-	●
12	SILENCER ASM; EXH THA	8-97381-442-1	01	1	0610-0708		●
12	SILENCER ASM; EXH THA	8-97381-442-1	01	1	0710-		●
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-110-0	02	1	0411-0606	●
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-110-0	02	1	0607-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0411-0606	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0607-	●	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0411-0606	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0607-	●	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0411-	●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0411-0605	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0606-0606	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-	●	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0411-0606	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0607-1008	●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0411-0606	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0411-0606	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0607-	●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0607-	●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	01	1	1009-	●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0411-1008	●	●
175	CONVERTER; CATALYST THA	8-97374-822-0	01	1	0411-0508	●
175	CONVERTER; CATALYST THA	8-98005-182-0	01	1	0509-0606	●
175	CONVERTER; CATALYST M/T MUA 5 SPEED 5H<MWQ> THA	8-98005-182-1	01	1	0607-0808	●
175	CONVERTER; CATALYST THA	8-98005-182-2	01	1	0809-	●
175	CONVERTER; CATALYST THA	8-98038-426-0	01	1	0610-0708		●
175	CONVERTER; CATALYST THA	8-98038-426-0	01	1	0710-0911		●
175	CONVERTER; CATALYST THA	8-98153-894-0	01	1	0912-1008		●
175	CONVERTER; CATALYST THA	8-98156-387-0	01	1	1009-		●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0411-0606	●
178	GASKET; CONV TO MANIF M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-284-1	01	1	0607-0808	●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0809-	●
178	GASKET; CONV TO MANIF THA	8-98011-532-0	01	1	0610-0708		●
178	GASKET; CONV TO MANIF THA	8-98011-532-0	01	1	0710-1008		●
178	GASKET; CONV TO MANIF THA	8-98132-538-0	01	1	1009-		●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	02	1	1009-		●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0411-0606	●
211	NUT; CONV M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	8-97379-384-0	04	1	0607-0609	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0610-0708	●	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0709-0709	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0710-1008	●	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	1009-	●
271	RUBBER; HANGER,RR PIPE THA	8-97289-169-0	01	1	1009-	●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0411-	●	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0411-	●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0411-0605	●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0606-	●	●
428	RUBBER; MTG,CLAMP,EXH PIPE THA	8-97289-169-0	01	1	1009-	●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	02	1	1009-		●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0411-0606	●
541	STUD; CONV TO PIPE M/T MUA 5 SPEED 5H<MWQ> M8X25 L=36 THA	8-97378-062-0	04	1	0607-0609	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0610-0708	●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0709-0709	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0710-1008	●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	1009-	●

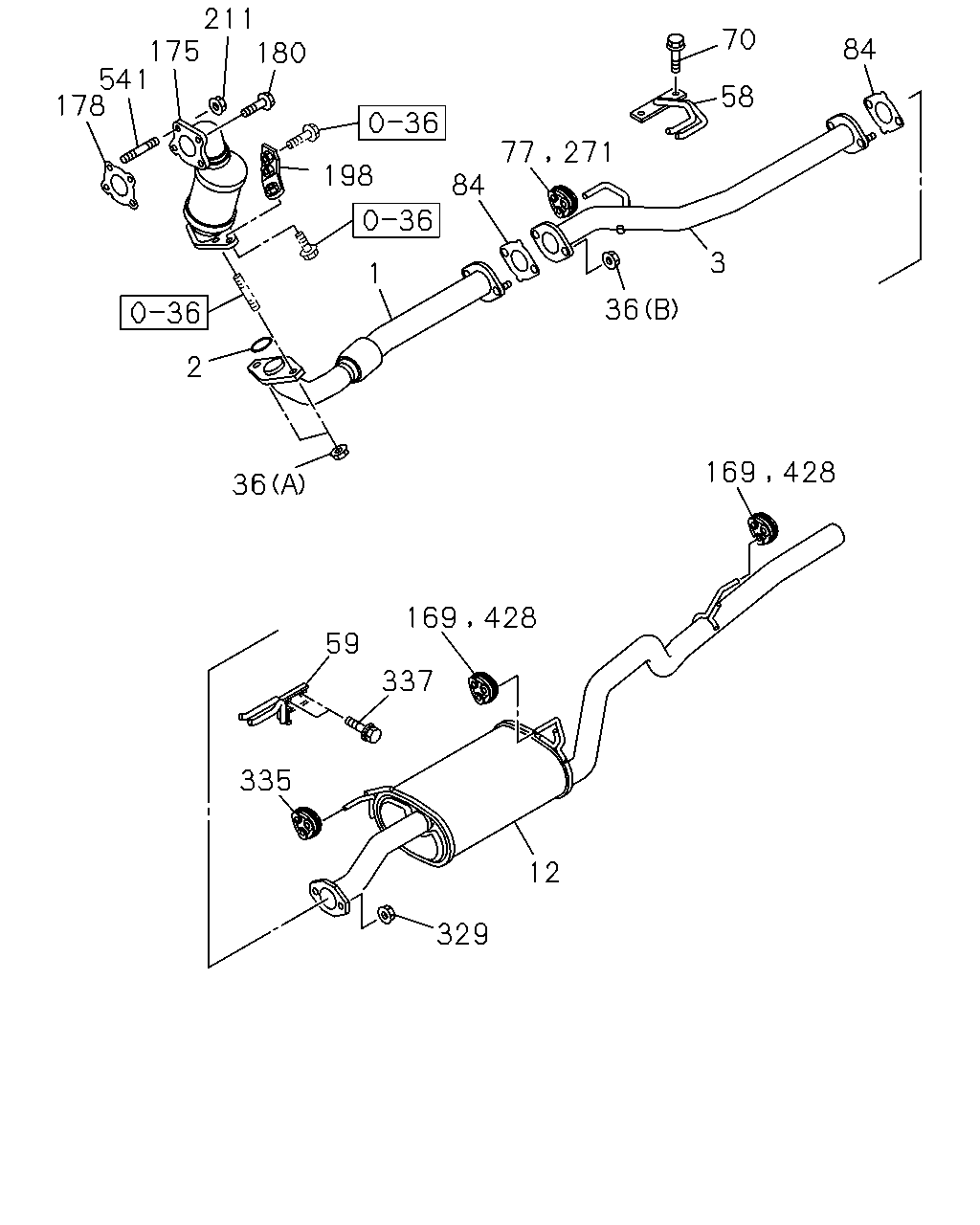

211 175 180 541 178 70 84 58 198 84 3 1 36 2 36 59 337 335 12 329 169 428 169 428 77 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97370-792-0	01	1	0411-0508	●
1	PIPE; EXH THA	8-98008-408-0	01	1	0509-	●
1	PIPE; EXH THA	8-97380-258-1	01	1	0610-0708		●
1	PIPE; EXH THA	8-97380-258-1	01	1	0710-		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0411-0509	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0510-0606	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0607-	●	●
3	PIPE; EXH,CENTER THA	8-97363-498-0	01	1	0411-0508	●
3	PIPE; EXH,CENTER THA	8-98008-409-0	01	1	0509-	●
3	PIPE; EXH,CENTER THA	8-98029-203-0	01	1	0610-0708		●
3	PIPE; EXH,CENTER THA	8-98029-203-0	01	1	0710-		●
12	SILENCER ASM; EXH THA	8-97363-500-0	01	1	0411-0508	●
12	SILENCER ASM; EXH THA	8-98008-411-0	01	1	0509-0708	●
12	SILENCER ASM; EXH THA	8-98083-094-0	01	1	0709-	●
12	SILENCER ASM; EXH THA	8-97381-442-1	01	1	0610-0708		●
12	SILENCER ASM; EXH THA	8-97381-442-1	01	1	0710-		●
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-110-0	02	1	0411-0606	●
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-110-0	02	1	0607-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0411-0606	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0607-	●	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0411-0606	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0607-	●	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0411-	●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0411-0605	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0606-0606	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-	●	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0411-0606	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0607-1008	●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0411-0606	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0411-0606	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0607-	●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0607-	●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	01	1	1009-	●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0411-1008	●	●
175	CONVERTER; CATALYST THA	8-97374-822-0	01	1	0411-0508	●
175	CONVERTER; CATALYST THA	8-98005-182-0	01	1	0509-0606	●
175	CONVERTER; CATALYST M/T MUA 5 SPEED 5H<MWQ> THA	8-98005-182-1	01	1	0607-0808	●
175	CONVERTER; CATALYST THA	8-98005-182-2	01	1	0809-	●
175	CONVERTER; CATALYST THA	8-98038-426-0	01	1	0610-0708		●
175	CONVERTER; CATALYST THA	8-98038-426-0	01	1	0710-0911		●
175	CONVERTER; CATALYST THA	8-98153-894-0	01	1	0912-1008		●
175	CONVERTER; CATALYST THA	8-98156-387-0	01	1	1009-		●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0411-0606	●
178	GASKET; CONV TO MANIF M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-284-1	01	1	0607-0808	●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0809-	●
178	GASKET; CONV TO MANIF THA	8-98011-532-0	01	1	0610-0708		●
178	GASKET; CONV TO MANIF THA	8-98011-532-0	01	1	0710-1008		●
178	GASKET; CONV TO MANIF THA	8-98132-538-0	01	1	1009-		●
180	BOLT; CONV TO PIPE M8X23 FLANGE IMA	8-97378-077-0	02	1	1009-		●
198	BRACKET; CONV MTG THA	8-98020-516-1	01	1	0610-0708		●
198	BRACKET; CONV MTG THA	8-98020-516-1	01	1	0710-		●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	02	1	1009-		●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0411-0606	●
211	NUT; CONV M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	8-97379-384-0	04	1	0607-0609	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0610-0708	●	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0709-0709	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0710-1008	●	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	1009-	●
271	RUBBER; HANGER,RR PIPE THA	8-97289-169-0	01	1	1009-	●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0411-	●	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0411-	●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0411-0605	●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0606-	●	●
428	RUBBER; MTG,CLAMP,EXH PIPE THA	8-97289-169-0	01	1	1009-	●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	02	1	1009-		●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0411-0606	●
541	STUD; CONV TO PIPE M/T MUA 5 SPEED 5H<MWQ> M8X25 L=36 THA	8-97378-062-0	04	1	0607-0609	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0610-0708	●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0709-0709	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0710-1008	●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	1009-	●
