Sayfa 1-41 - Isuzu EPC

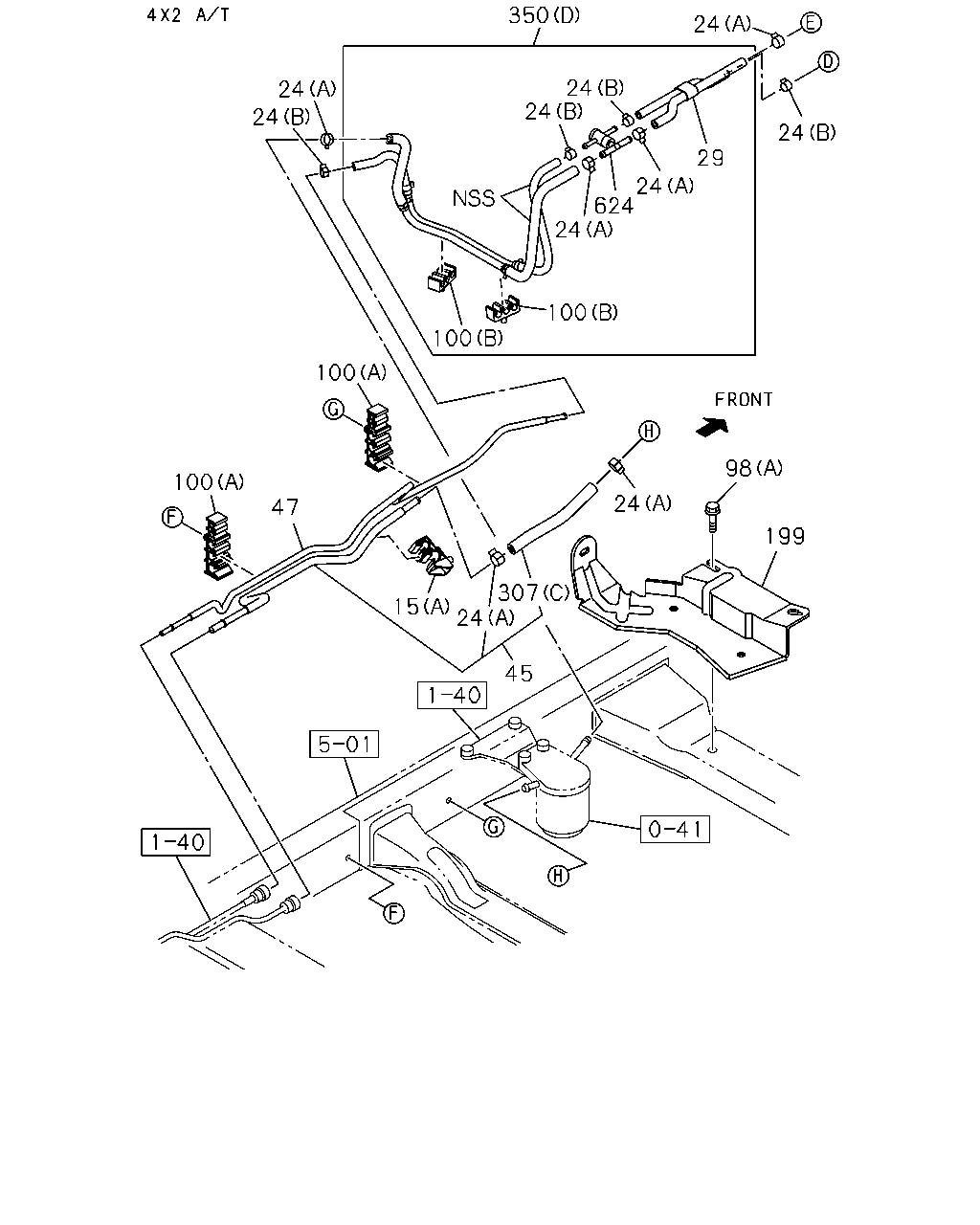

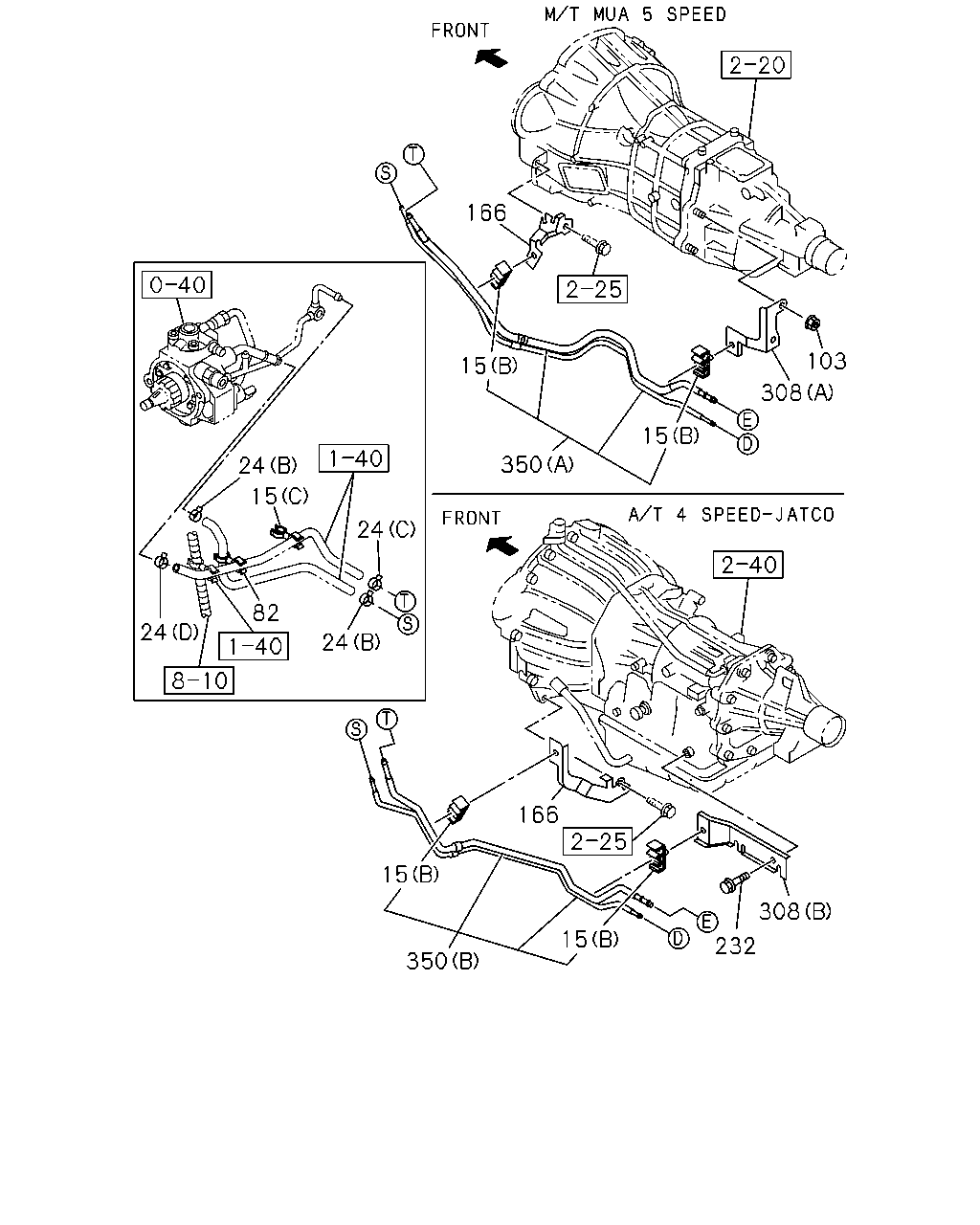

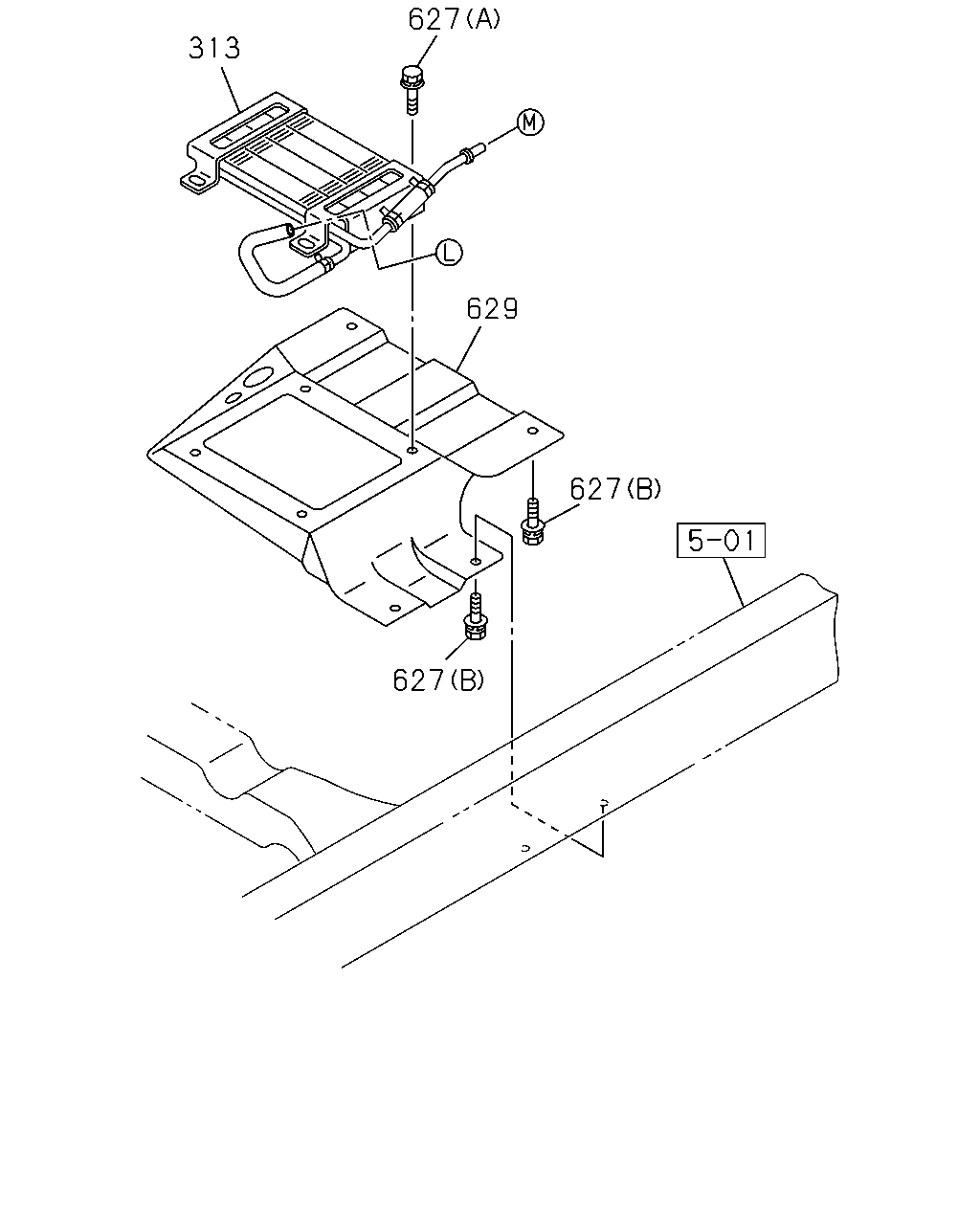

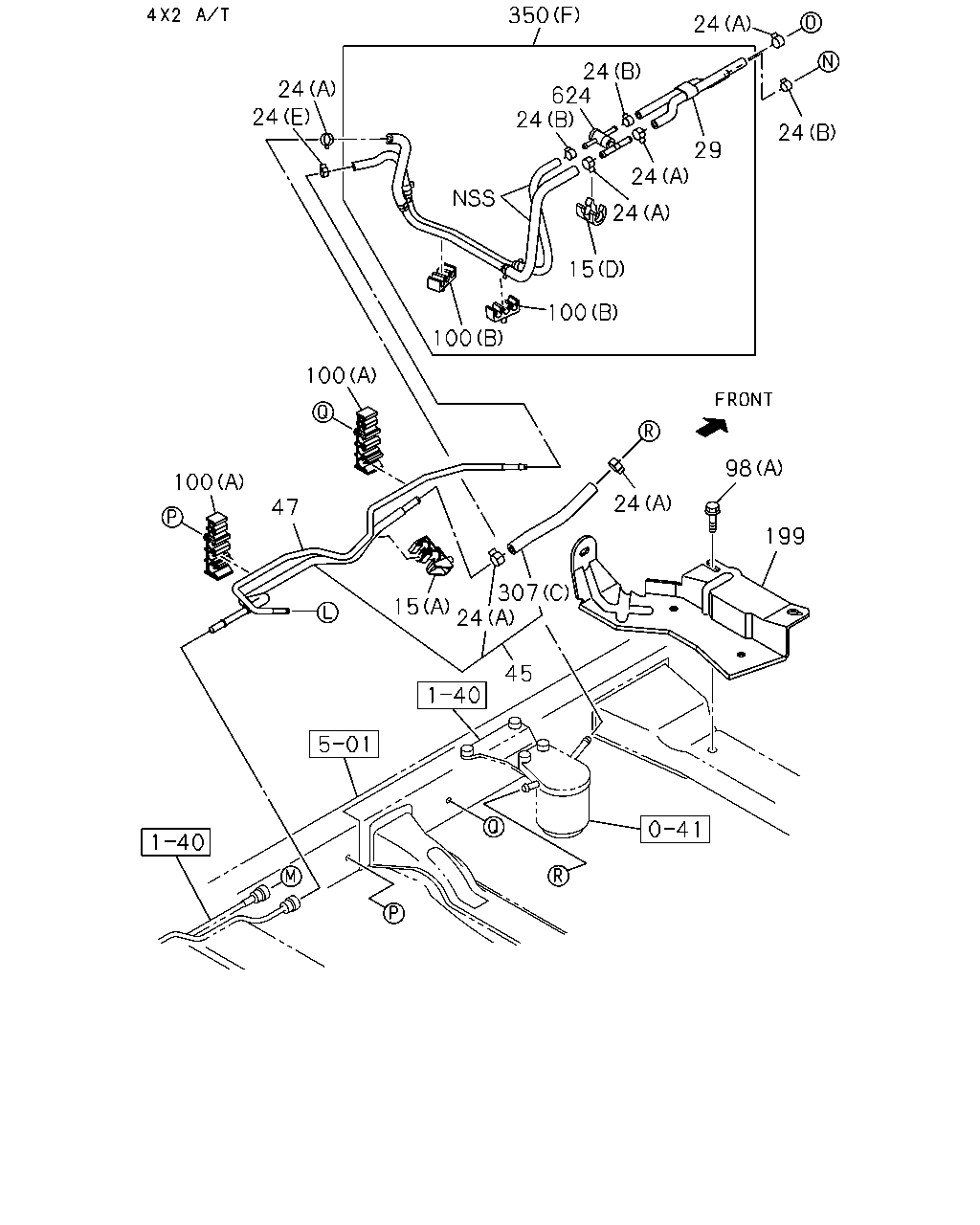

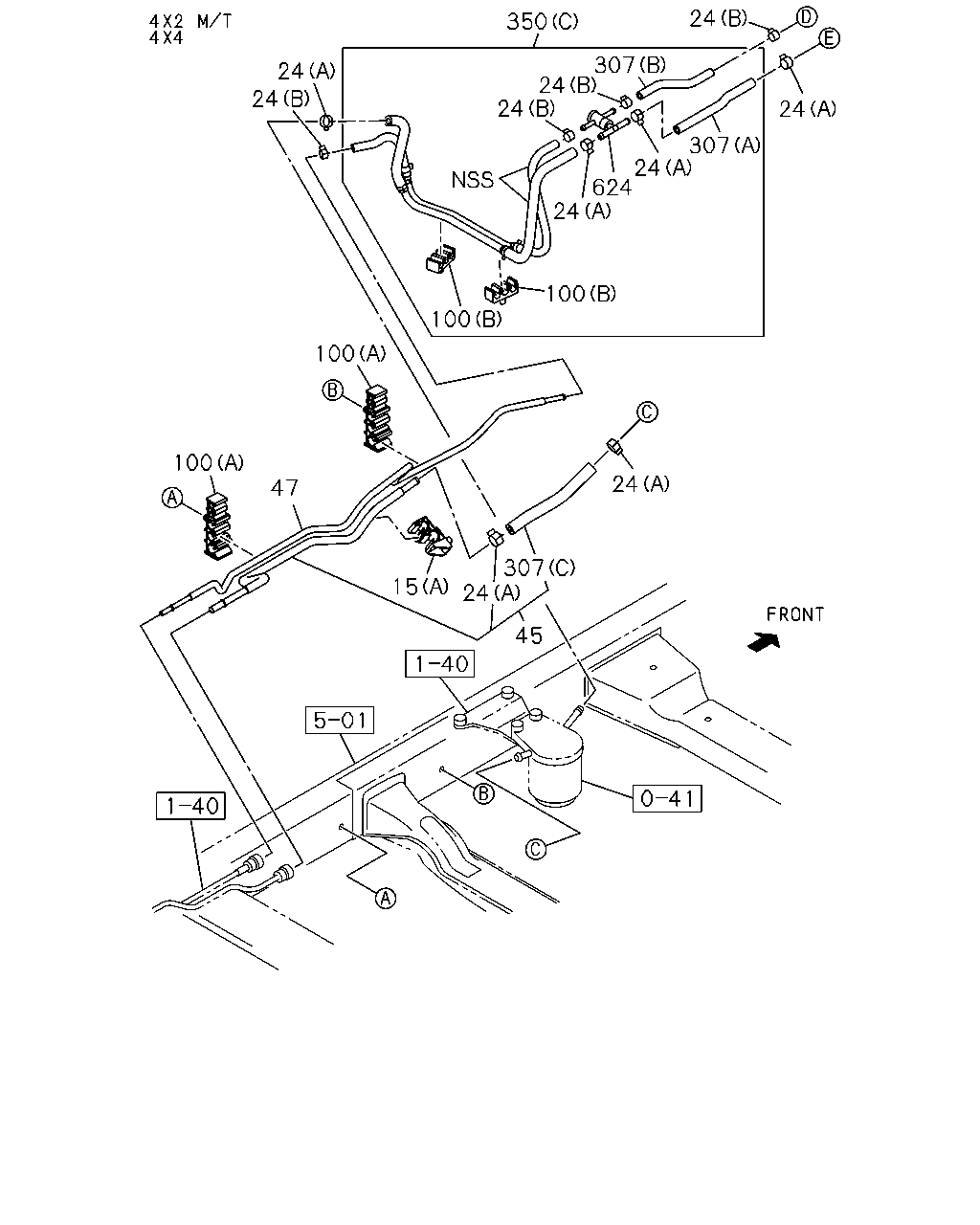

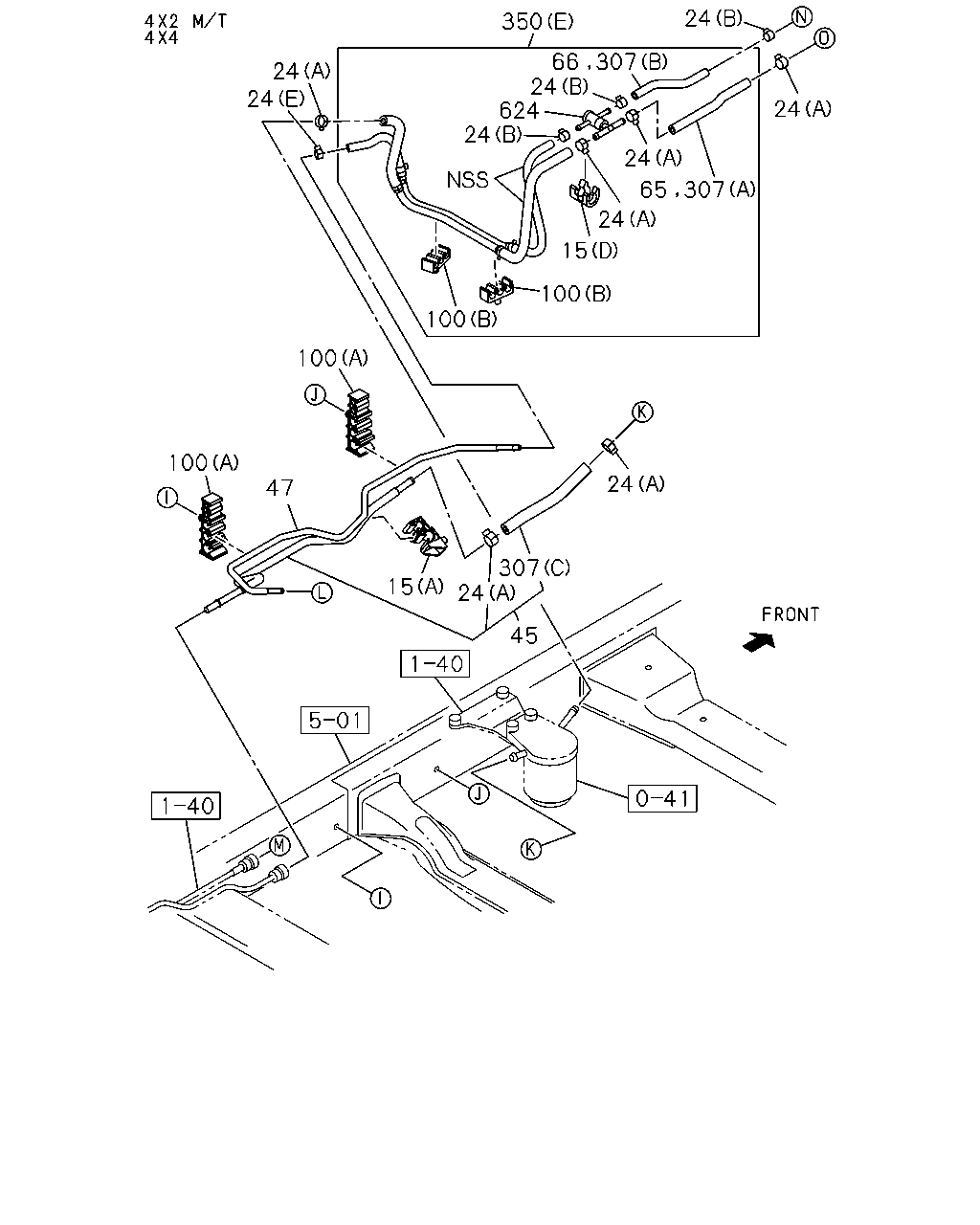

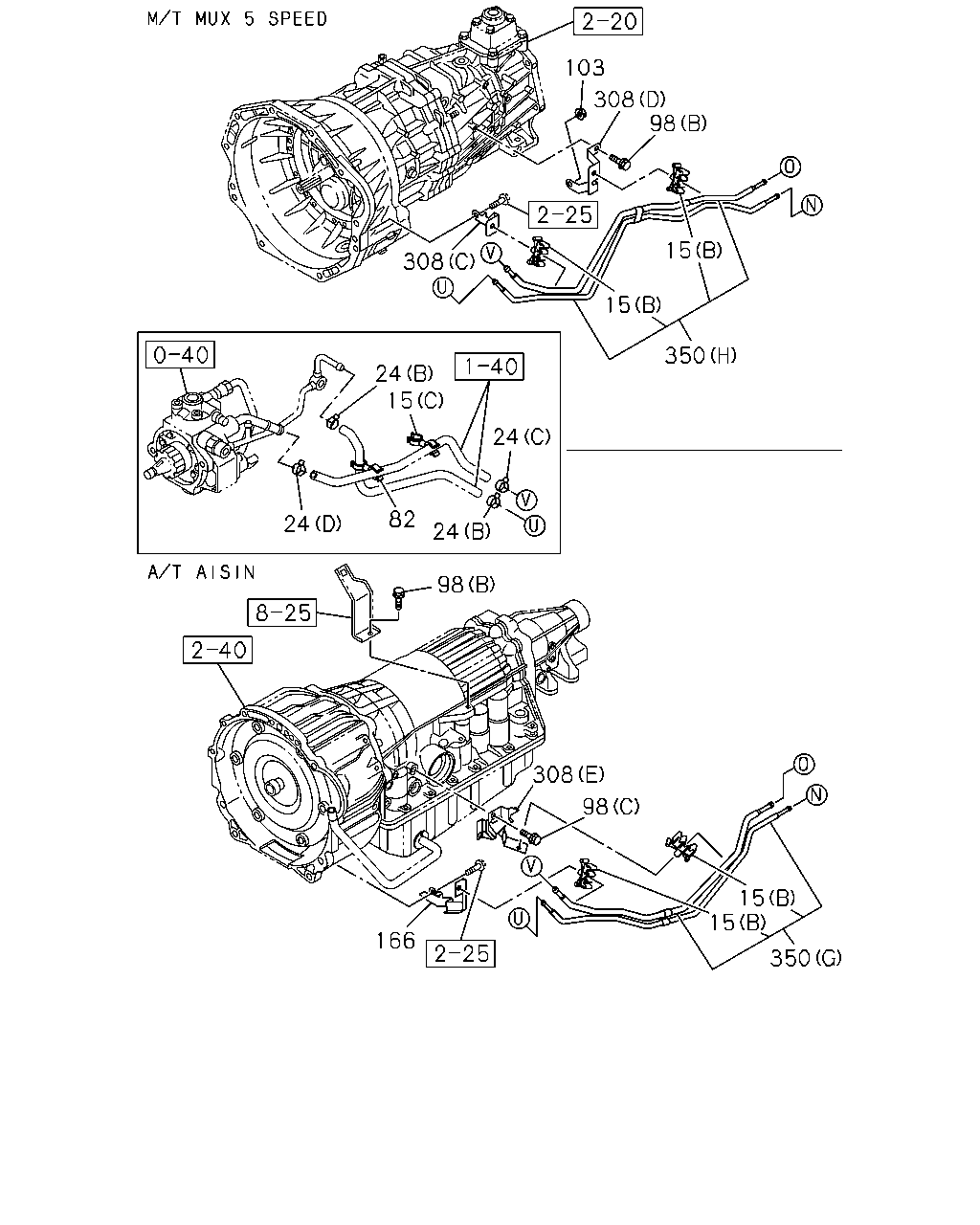

1-41 — FUEL PIPING; CHASSIS (#73752) — 704 parça

24 24 24 24 350 307 24 24 307 24 624 24 100 100 100 100 47 15 24 24 307 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (D) THA	8-98179-603-0	01	1	1012-	●	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0411-0508	●
15	CLIP; FUEL PIPE A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-137-0	02	1	0509-0606	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0607-0609	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97944-137-0	02	1	0610-0708	●	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0709-0709	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0710-	●	●
24	CLIP; FUEL HOSE (C) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	04	1	0605-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	03	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0509-0602	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0509-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	02	1	0411-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	04	1	0411-0604	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97351-697-0	01	1	0411-0606	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97944-611-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0603-0606	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0607-	●	●
24	CLIP; FUEL HOSE (E) ID=11.5 THA	8-98051-892-0	01	1	0607-	●	●
45	PIPE; FUEL,DELIVERY THA	8-97375-470-1	01	1	0411-0606	●
45	PIPE; FUEL,DELIVERY THA	8-97944-626-1	01	1	0607-	●	●
47	PIPE; FUEL,RETURN THA	8-97250-548-3	01	1	0411-0606	●
47	PIPE; FUEL,RETURN THA	8-98051-783-1	01	1	0607-	●	●
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0607-	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0607-0609	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0610-0703	●	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0709-0709	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE (B) ID=10.3X3 THA	8-98051-899-0	02	1	0809-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0607-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97944-713-1	01	1	0810-	●
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO<RMK> (B) THA	8-97378-425-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97378-427-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-716-1	01	1	0607-	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (D) THA	8-97378-416-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0607-0609	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0610-0708	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0709-0709	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98051-788-0	01	1	0610-0612		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0701-0703		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (F) THA	8-98060-310-0	01	1	0704-0708		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0710-0805		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-97946-522-0	01	1	0806-0809		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-97946-522-0	01	1	0810-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-98177-462-0	01	1	1012-	●	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0411-0606	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0809-	●	●
624	VALVE; 1 WAY,FUEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97375-919-0	01	1	0607-0609	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0610-0808	●	●

24 45 24 15 47 100 100 100 100 307 65 15 24 24 24 24 350 24 24 66 307 624 24 24 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (D) THA	8-98179-603-0	01	1	1012-	●	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0411-0508	●
15	CLIP; FUEL PIPE A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-137-0	02	1	0509-0606	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0607-0609	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97944-137-0	02	1	0610-0708	●	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0709-0709	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0710-	●	●
24	CLIP; FUEL HOSE (C) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	04	1	0605-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	03	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0509-0602	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0509-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	02	1	0411-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	04	1	0411-0604	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97351-697-0	01	1	0411-0606	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97944-611-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0603-0606	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0607-	●	●
24	CLIP; FUEL HOSE (E) ID=11.5 THA	8-98051-892-0	01	1	0607-	●	●
45	PIPE; FUEL,DELIVERY THA	8-97375-470-1	01	1	0411-0606	●
45	PIPE; FUEL,DELIVERY THA	8-97944-626-1	01	1	0607-	●	●
47	PIPE; FUEL,RETURN THA	8-97250-548-3	01	1	0411-0606	●
47	PIPE; FUEL,RETURN THA	8-98051-783-1	01	1	0607-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-133-0	01	1	1009-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4X4<UCS***> THA	8-97944-133-0	01	1	1009-	●	●
66	HOSE; FUEL,RETURN PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97944-134-0	01	1	1009-	●	●
66	HOSE; FUEL,RETURN PIPE 4X4<UCS***> THA	8-97944-134-0	01	1	1009-	●	●
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0607-	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0607-0609	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0610-0703	●	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0709-0709	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE (B) ID=10.3X3 THA	8-98051-899-0	02	1	0809-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0607-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97944-713-1	01	1	0810-	●
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO<RMK> (B) THA	8-97378-425-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97378-427-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-716-1	01	1	0607-	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (D) THA	8-97378-416-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0607-0609	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0610-0708	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0709-0709	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98051-788-0	01	1	0610-0612		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0701-0703		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (F) THA	8-98060-310-0	01	1	0704-0708		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0710-0805		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-97946-522-0	01	1	0806-0809		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-97946-522-0	01	1	0810-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-98177-462-0	01	1	1012-	●	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0411-0606	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0809-	●	●
624	VALVE; 1 WAY,FUEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97375-919-0	01	1	0607-0609	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0610-0808	●	●

24 98 199 307 24 15 100 47 100 100 100 24 624 24 29 24 24 24 24 350 24 24 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (D) THA	8-98179-603-0	01	1	1012-	●	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0411-0508	●
15	CLIP; FUEL PIPE A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-137-0	02	1	0509-0606	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0607-0609	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97944-137-0	02	1	0610-0708	●	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0709-0709	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0710-	●	●
24	CLIP; FUEL HOSE (C) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	04	1	0605-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	03	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0509-0602	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0509-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	02	1	0411-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	04	1	0411-0604	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97351-697-0	01	1	0411-0606	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97944-611-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0603-0606	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0607-	●	●
24	CLIP; FUEL HOSE (E) ID=11.5 THA	8-98051-892-0	01	1	0607-	●	●
29	HOSE; FUEL 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> THA	8-97944-132-0	01	1	0411-0606	●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> THA	8-97944-132-0	01	1	0610-0612		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> THA	8-98060-820-0	01	1	0701-0703		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> THA	8-98060-820-0	01	1	0704-0708		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> THA	8-98060-820-0	01	1	0710-0809		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98060-820-0	01	1	0810-	●	●
45	PIPE; FUEL,DELIVERY THA	8-97375-470-1	01	1	0411-0606	●
45	PIPE; FUEL,DELIVERY THA	8-97944-626-1	01	1	0607-	●	●
47	PIPE; FUEL,RETURN THA	8-97250-548-3	01	1	0411-0606	●
47	PIPE; FUEL,RETURN THA	8-98051-783-1	01	1	0607-	●	●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0411-0606	●
98	BOLT; BRKT,FUEL PIPE A/T AISIN<RMD> (C) M6X10 FLANGE THA	0-28050-610-0	01	1	0610-0708		●
98	BOLT; BRKT,FUEL PIPE A/T AISIN<RMD> (C) M6X10 FLANGE THA	0-28050-610-0	01	1	0710-		●
98	BOLT; BRKT,FUEL PIPE M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0708		●
98	BOLT; BRKT,FUEL PIPE M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0610-0703		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0704-0708		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0710-0809		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0810-	●	●
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0607-	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0607-0609	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0610-0703	●	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0709-0709	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE (B) ID=10.3X3 THA	8-98051-899-0	02	1	0809-	●	●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> THA	8-97365-105-0	01	1	0411-0606	●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> THA	8-97944-851-0	01	1	0610-0703		●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> THA	8-97944-851-0	01	1	0704-0708		●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> THA	8-97944-851-0	01	1	0710-0809		●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97944-851-0	01	1	0810-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0607-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97944-713-1	01	1	0810-	●
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO<RMK> (B) THA	8-97378-425-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97378-427-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-716-1	01	1	0607-	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (D) THA	8-97378-416-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0607-0609	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0610-0708	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0709-0709	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98051-788-0	01	1	0610-0612		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0701-0703		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (F) THA	8-98060-310-0	01	1	0704-0708		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0710-0805		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-97946-522-0	01	1	0806-0809		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-97946-522-0	01	1	0810-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-98177-462-0	01	1	1012-	●	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0411-0606	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0809-	●	●
624	VALVE; 1 WAY,FUEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97375-919-0	01	1	0607-0609	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0610-0808	●	●

98 199 24 307 45 15 24 100 100 100 15 24 24 29 24 24 24 624 24 350 24 24 100 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (D) THA	8-98179-603-0	01	1	1012-	●	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0411-0508	●
15	CLIP; FUEL PIPE A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-137-0	02	1	0509-0606	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0607-0609	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97944-137-0	02	1	0610-0708	●	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0709-0709	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0710-	●	●
24	CLIP; FUEL HOSE (C) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	04	1	0605-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	03	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0509-0602	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0509-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	02	1	0411-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	04	1	0411-0604	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97351-697-0	01	1	0411-0606	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97944-611-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0603-0606	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0607-	●	●
24	CLIP; FUEL HOSE (E) ID=11.5 THA	8-98051-892-0	01	1	0607-	●	●
29	HOSE; FUEL 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> THA	8-97944-132-0	01	1	0411-0606	●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> THA	8-97944-132-0	01	1	0610-0612		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> THA	8-98060-820-0	01	1	0701-0703		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> THA	8-98060-820-0	01	1	0704-0708		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD> THA	8-98060-820-0	01	1	0710-0809		●
29	HOSE; FUEL 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98060-820-0	01	1	0810-	●	●
45	PIPE; FUEL,DELIVERY THA	8-97375-470-1	01	1	0411-0606	●
45	PIPE; FUEL,DELIVERY THA	8-97944-626-1	01	1	0607-	●	●
47	PIPE; FUEL,RETURN THA	8-97250-548-3	01	1	0411-0606	●
47	PIPE; FUEL,RETURN THA	8-98051-783-1	01	1	0607-	●	●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0411-0606	●
98	BOLT; BRKT,FUEL PIPE A/T AISIN<RMD> (C) M6X10 FLANGE THA	0-28050-610-0	01	1	0610-0708		●
98	BOLT; BRKT,FUEL PIPE A/T AISIN<RMD> (C) M6X10 FLANGE THA	0-28050-610-0	01	1	0710-		●
98	BOLT; BRKT,FUEL PIPE M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0708		●
98	BOLT; BRKT,FUEL PIPE M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0610-0703		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0704-0708		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0710-0809		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0810-	●	●
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0411-0606	●
100	CLIP; FUEL PIPE (A) THA	8-97251-128-0	02	1	0607-	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0607-0609	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0610-0703	●	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0704-0708	●	●
100	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0709-0709	●
100	CLIP; FUEL PIPE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE 4X4<UCS***> (B) ID=10.3X3 THA	8-98051-899-0	02	1	0710-0808	●	●
100	CLIP; FUEL PIPE (B) ID=10.3X3 THA	8-98051-899-0	02	1	0809-	●	●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> THA	8-97365-105-0	01	1	0411-0606	●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> THA	8-97944-851-0	01	1	0610-0703		●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> THA	8-97944-851-0	01	1	0704-0708		●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> THA	8-97944-851-0	01	1	0710-0809		●
199	PROTECTOR; FUEL PIPE 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97944-851-0	01	1	0810-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000 THA	0-01658-300-0	01	1	0607-	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-133-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (A) THA	8-97944-133-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0411-0606	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0607-0609	●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0610-0708	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0610-0708		●
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-134-0	01	1	0709-0709	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4<UCS***> (B) THA	8-97944-134-0	01	1	0710-1008	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97944-713-1	01	1	0810-	●
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO<RMK> (B) THA	8-97378-425-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97378-427-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-716-1	01	1	0607-	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (D) THA	8-97378-416-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0607-0609	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0610-0708	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0709-0709	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98051-788-0	01	1	0610-0612		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0701-0703		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (F) THA	8-98060-310-0	01	1	0704-0708		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0710-0805		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-97946-522-0	01	1	0806-0809		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-97946-522-0	01	1	0810-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-98177-462-0	01	1	1012-	●	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0411-0606	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0809-	●	●
624	VALVE; 1 WAY,FUEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97375-919-0	01	1	0607-0609	●
624	VALVE; 1 WAY,FUEL THA	8-97375-919-0	01	1	0610-0808	●	●

350 98 15 166 350 15 308 98 24 24 82 24 15 24 308 15 15 308 103 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (D) THA	8-98179-603-0	01	1	1012-	●	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0411-0508	●
15	CLIP; FUEL PIPE A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-137-0	02	1	0509-0606	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0607-0609	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97944-137-0	02	1	0610-0708	●	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0709-0709	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0710-	●	●
24	CLIP; FUEL HOSE (C) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	04	1	0605-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	03	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0509-0602	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0509-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	02	1	0411-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	04	1	0411-0604	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97351-697-0	01	1	0411-0606	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97944-611-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0603-0606	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0607-	●	●
24	CLIP; FUEL HOSE (E) ID=11.5 THA	8-98051-892-0	01	1	0607-	●	●
82	CLIP; FUEL HOSE ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
82	CLIP; FUEL HOSE ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0411-0606	●
98	BOLT; BRKT,FUEL PIPE A/T AISIN<RMD> (C) M6X10 FLANGE THA	0-28050-610-0	01	1	0610-0708		●
98	BOLT; BRKT,FUEL PIPE A/T AISIN<RMD> (C) M6X10 FLANGE THA	0-28050-610-0	01	1	0710-		●
98	BOLT; BRKT,FUEL PIPE M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0708		●
98	BOLT; BRKT,FUEL PIPE M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0610-0703		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0704-0708		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0710-0809		●
98	BOLT; BRKT,FUEL PIPE 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M6X20 FLANGE THA	0-28650-620-0	03	1	0810-	●	●
103	NUT; BRKT M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA	8-94242-425-0	02	1	0411-0606	●
103	NUT; BRKT M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA	8-94242-425-0	02	1	0607-	●
103	NUT; BRKT M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA	0-91180-106-0	01	1	0610-0708		●
103	NUT; BRKT M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA	0-91180-106-0	01	1	0710-		●
166	PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO<RMK> THA	8-97215-314-2	01	1	0411-0606	●
166	PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> THA	8-97944-738-0	01	1	0607-	●
166	PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G<RSP> THA	8-97215-311-3	01	1	0411-0606	●
166	PROTECTOR; FUEL HOSE A/T AISIN<RMD> THA	8-97944-739-0	01	1	0610-0708		●
166	PROTECTOR; FUEL HOSE A/T AISIN<RMD> THA	8-97944-739-0	01	1	0710-0809		●
166	PROTECTOR; FUEL HOSE A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97944-739-0	01	1	0810-	●	●
308	BRACKET; FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-98050-708-0	01	1	0810-	●
308	BRACKET; FUEL PIPE A/T 4 SPEED-JATCO<RMK> (B) THA	8-97328-217-0	01	1	0411-0606	●
308	BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-746-0	01	1	0607-	●
308	BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97215-294-1	01	1	0411-0606	●
308	BRACKET; FUEL PIPE A/T AISIN<RMD> (E) THA	8-97944-741-0	01	1	0610-		●
308	BRACKET; FUEL PIPE M/T MUX 5 SPEED 5S<MZJ> (C) THA	8-97944-743-0	01	1	0610-		●
308	BRACKET; FUEL PIPE M/T MUX 5 SPEED 5S<MZJ> (D) THA	8-97944-747-0	01	1	0610-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97944-713-1	01	1	0810-	●
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO<RMK> (B) THA	8-97378-425-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97378-427-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-716-1	01	1	0607-	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (D) THA	8-97378-416-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0607-0609	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0610-0708	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0709-0709	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98051-788-0	01	1	0610-0612		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0701-0703		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (F) THA	8-98060-310-0	01	1	0704-0708		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0710-0805		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-97946-522-0	01	1	0806-0809		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-97946-522-0	01	1	0810-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-98177-462-0	01	1	1012-	●	●

627 627 629 627 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	COOLER ASM; FUEL THA	8-97945-750-0	01	1	0607-0609	●
313	COOLER ASM; FUEL THA	8-97945-750-0	01	1	0610-0708	●	●
313	COOLER ASM; FUEL THA	8-97945-750-0	01	1	0709-0709	●
313	COOLER ASM; FUEL THA	8-97945-750-0	01	1	0710-0803	●	●
313	COOLER ASM; FUEL THA	8-97946-973-0	01	1	0804-	●	●
627	BOLT; FUEL CLR (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0607-0609	●
627	BOLT; FUEL CLR (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0610-0708	●	●
627	BOLT; FUEL CLR (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0709-0709	●
627	BOLT; FUEL CLR (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0710-	●	●
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER THA	8-97943-077-0	04	1	0607-0609	●
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER THA	8-97943-077-0	04	1	0610-0611	●	●
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER THA	8-97945-706-0	04	1	0612-0708	●	●
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER THA	8-97945-706-0	04	1	0709-0709	●
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER THA	8-97945-706-0	04	1	0710-	●	●
629	BRACKET; FUEL CLR M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-719-0	01	1	0607-0609	●
629	BRACKET; FUEL CLR 4X2<UCB***> THA	8-97945-719-0	01	1	0610-0708	●	●
629	BRACKET; FUEL CLR 4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-719-0	01	1	0610-0708	●	●
629	BRACKET; FUEL CLR M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-719-0	01	1	0709-0709	●
629	BRACKET; FUEL CLR 4X2<UCB***> THA	8-97945-719-0	01	1	0710-0907	●	●
629	BRACKET; FUEL CLR 4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-719-0	01	1	0710-0907	●	●
629	BRACKET; FUEL CLR 4X2<UCB***> THA	8-97945-577-0	01	1	0908-	●	●
629	BRACKET; FUEL CLR 4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97945-577-0	01	1	0908-	●	●
629	BRACKET; FUEL CLR 4X4<UCS***> A/T AISIN<RMD> THA	8-97945-720-0	01	1	0610-0708		●
629	BRACKET; FUEL CLR 4X4<UCS***> A/T AISIN<RMD> THA	8-97945-720-0	01	1	0710-0907		●
629	BRACKET; FUEL CLR 4X4<UCS***> A/T AISIN<RMD> THA	8-97945-578-0	01	1	0908-		●

166 15 15 350 308 103 24 82 24 24 24 15 15 350 15 232 166 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE (D) THA	8-98179-603-0	01	1	1012-	●	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (A) THA	8-97251-125-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0411-0508	●
15	CLIP; FUEL PIPE A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97944-137-0	02	1	0509-0606	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0607-0609	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97944-137-0	02	1	0610-0708	●	●
15	CLIP; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-137-0	02	1	0709-0709	●
15	CLIP; FUEL PIPE (B) THA	8-97944-137-0	02	1	0710-	●	●
24	CLIP; FUEL HOSE (C) ID=16 IMA	8-94392-924-0	01	1	0411-0604	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	04	1	0605-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	03	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0509-0602	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	02	1	0411-0508	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-97087-056-1	04	1	0509-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	02	1	0411-0602	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0603-0606	●
24	CLIP; FUEL HOSE (B) ID=11.5 IMA	8-97138-011-0	04	1	0411-0604	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97351-697-0	01	1	0411-0606	●
24	CLIP; FUEL HOSE (D) ID=17.8 THA	8-97944-611-0	01	1	0607-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0603-0606	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (B) ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (B) ID=11.5 THA	8-98008-096-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (B) ID=11.5 THA	8-98008-096-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0607-0609	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0610-0703	●	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0704-0708	●	●
24	CLIP; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> (A) ID=14.2 THA	8-98035-873-0	02	1	0709-0709	●
24	CLIP; FUEL HOSE 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE 4X4<UCS***> (A) ID=14.2 THA	8-98035-873-0	02	1	0710-0808	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	02	1	0809-	●	●
24	CLIP; FUEL HOSE (A) ID=14.2 THA	8-98035-873-0	04	1	0607-	●	●
24	CLIP; FUEL HOSE (E) ID=11.5 THA	8-98051-892-0	01	1	0607-	●	●
82	CLIP; FUEL HOSE ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0411-0606	●
82	CLIP; FUEL HOSE ID=11.8 & ID=18.6 THA	8-97333-094-0	01	1	0607-	●	●
103	NUT; BRKT M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA	8-94242-425-0	02	1	0411-0606	●
103	NUT; BRKT M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA	8-94242-425-0	02	1	0607-	●
103	NUT; BRKT M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA	0-91180-106-0	01	1	0610-0708		●
103	NUT; BRKT M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA	0-91180-106-0	01	1	0710-		●
166	PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO<RMK> THA	8-97215-314-2	01	1	0411-0606	●
166	PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H<MWQ> THA	8-97944-738-0	01	1	0607-	●
166	PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G<RSP> THA	8-97215-311-3	01	1	0411-0606	●
166	PROTECTOR; FUEL HOSE A/T AISIN<RMD> THA	8-97944-739-0	01	1	0610-0708		●
166	PROTECTOR; FUEL HOSE A/T AISIN<RMD> THA	8-97944-739-0	01	1	0710-0809		●
166	PROTECTOR; FUEL HOSE A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97944-739-0	01	1	0810-	●	●
232	BOLT; CLIP,PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> M6X12 FLANGE THA	0-28050-612-0	01	1	0810-	●
232	BOLT; CLIP,PIPE A/T 4 SPEED-JATCO<RMK> M6X12 FLANGE THA	0-28050-612-0	01	1	0411-0606	●
308	BRACKET; FUEL PIPE 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-98050-708-0	01	1	0810-	●
308	BRACKET; FUEL PIPE A/T 4 SPEED-JATCO<RMK> (B) THA	8-97328-217-0	01	1	0411-0606	●
308	BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-746-0	01	1	0607-	●
308	BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97215-294-1	01	1	0411-0606	●
308	BRACKET; FUEL PIPE A/T AISIN<RMD> (E) THA	8-97944-741-0	01	1	0610-		●
308	BRACKET; FUEL PIPE M/T MUX 5 SPEED 5S<MZJ> (C) THA	8-97944-743-0	01	1	0610-		●
308	BRACKET; FUEL PIPE M/T MUX 5 SPEED 5S<MZJ> (D) THA	8-97944-747-0	01	1	0610-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97944-713-1	01	1	0810-	●
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO<RMK> (B) THA	8-97378-425-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97378-427-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97944-716-1	01	1	0607-	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T 4 SPEED-JATCO<RMK> (D) THA	8-97378-416-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0607-0609	●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0610-0708	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H<MWQ> (E) THA	8-98051-790-0	01	1	0709-0709	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98051-790-0	01	1	0710-0804	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-97946-526-0	01	1	0805-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (E) THA	8-98177-463-0	01	1	1012-	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> M/T MUA 5 SPEED 5G<RSP> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET 4X4<UCS***> (C) THA	8-97378-419-0	01	1	0411-0606	●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET A/T AISIN<RMD> (G) THA	8-97944-726-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0610-0708		●
350	PIPE; FUEL,DEL & RET M/T MUX 5 SPEED 5S<MZJ> (H) THA	8-97944-729-1	01	1	0710-		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98051-788-0	01	1	0610-0612		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0701-0703		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> HIGH RIDE SUSPENSION<7YC> (F) THA	8-98060-310-0	01	1	0704-0708		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-98060-310-0	01	1	0710-0805		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD> (F) THA	8-97946-522-0	01	1	0806-0809		●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-97946-522-0	01	1	0810-1011	●	●
350	PIPE; FUEL,DEL & RET 4X2<UCB***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) THA	8-98177-462-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
