1-40 — FUEL TANK (#73751) — 103 parça

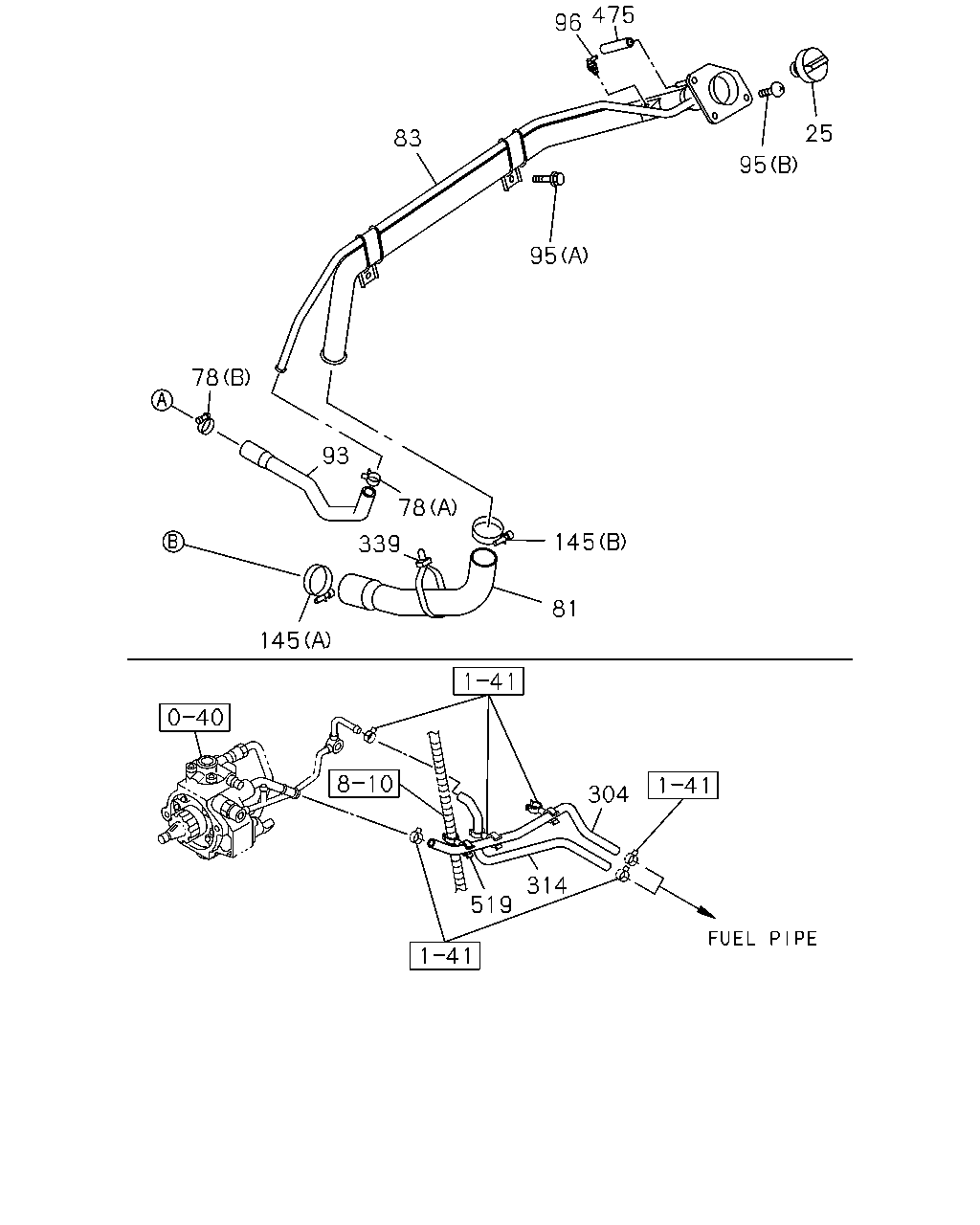

çizim 92975
475 96 25 83 95 95 78 93 78 145 339 81 145 304 314 519
BalonParca AdiParca NoAdetTipApplied Date A B
25 CAP; FILLER,FUEL TANK
THA 		8-94310-199-4 01 1 0411- ● ●
78 CLIP; BREATHER HOSE
(A) ID=21 IMA 		8-94242-034-0 01 1 0411- ● ●
78 CLIP; BREATHER HOSE
(B) ID=28 THA 		9-09915-421-1 01 1 0411- ● ●
81 HOSE; FUEL FILLER
THA 		8-97943-434-0 01 1 0411- ● ●
83 NECK; FUEL FILLER
THA 		8-97943-427-0 01 1 0411-0606 ●
83 NECK; FUEL FILLER
THA 		8-97945-337-0 01 1 0607-0609 ●
83 NECK; FUEL FILLER
THA 		8-97945-337-0 01 1 0610-0708 ● ●
83 NECK; FUEL FILLER
THA 		8-97945-337-0 01 1 0709-0709 ●
83 NECK; FUEL FILLER
THA 		8-97945-337-0 01 1 0710- ● ●
93 HOSE; BREATHER,FUEL TANK
THA 		8-97943-433-0 01 1 0411- ● ●
95 SCREW; FILLER NECK
(A) M6X12 FLANGE THA 		0-28480-612-0 02 1 0411-0601 ● ●
95 SCREW; FILLER NECK
(A) M6X12 FLANGE THA 		0-28450-612-0 02 1 0602- ● ●
95 SCREW; FILLER NECK
(B) M6X16 THA 		8-97371-038-0 03 1 0411-0606 ● ●
95 SCREW; FILLER NECK
(B) M6X16 THA 		8-98022-271-0 03 1 0607- ● ●
96 VALVE ASM; CHECK,FUEL FILTER
THA 		8-97363-586-0 01 1 0411- ● ●
145 CLIP; HOSE,FILLER NECK
(A) ID=54 THA 		9-09915-412-1 01 1 0411- ● ●
145 CLIP; HOSE,FILLER NECK
(B) ID=48 THA 		9-09915-512-1 01 1 0411- ● ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
THA 		8-97370-498-1 01 1 0411-0606 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
THA 		8-97944-783-0 01 1 0607-0609 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
THA 		8-97944-783-0 01 1 0610-0708 ● ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
THA 		8-97944-783-0 01 1 0709-0709 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
THA 		8-97944-783-0 01 1 0710- ● ●
314 HOSE; RUBBER,FUEL RETURN
THA 		8-97367-164-1 01 1 0411-0606 ●
314 HOSE; RUBBER,FUEL RETURN
THA 		8-97944-784-2 01 1 0607-0609 ●
314 HOSE; RUBBER,FUEL RETURN
THA 		8-97944-784-2 01 1 0610-0708 ● ●
314 HOSE; RUBBER,FUEL RETURN
THA 		8-97944-784-2 01 1 0709-0709 ●
314 HOSE; RUBBER,FUEL RETURN
THA 		8-97944-784-2 01 1 0710- ● ●
339 CLIP; BAND,FUEL HOSE
L=330 IMA 		5-09709-118-0 01 1 0411- ● ●
475 HOSE; FUEL TANK TO EVAP PIPE
L=80 SERVICED BY L=3000 IMA 		0-04750-300-0 01 1 0411- ● ●
519 RETAINER; FUEL PUMP
ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0607-0609 ●
519 RETAINER; FUEL PUMP
ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0610-0708 ● ●
519 RETAINER; FUEL PUMP
ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0709-0709 ●
519 RETAINER; FUEL PUMP
ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0710- ● ●

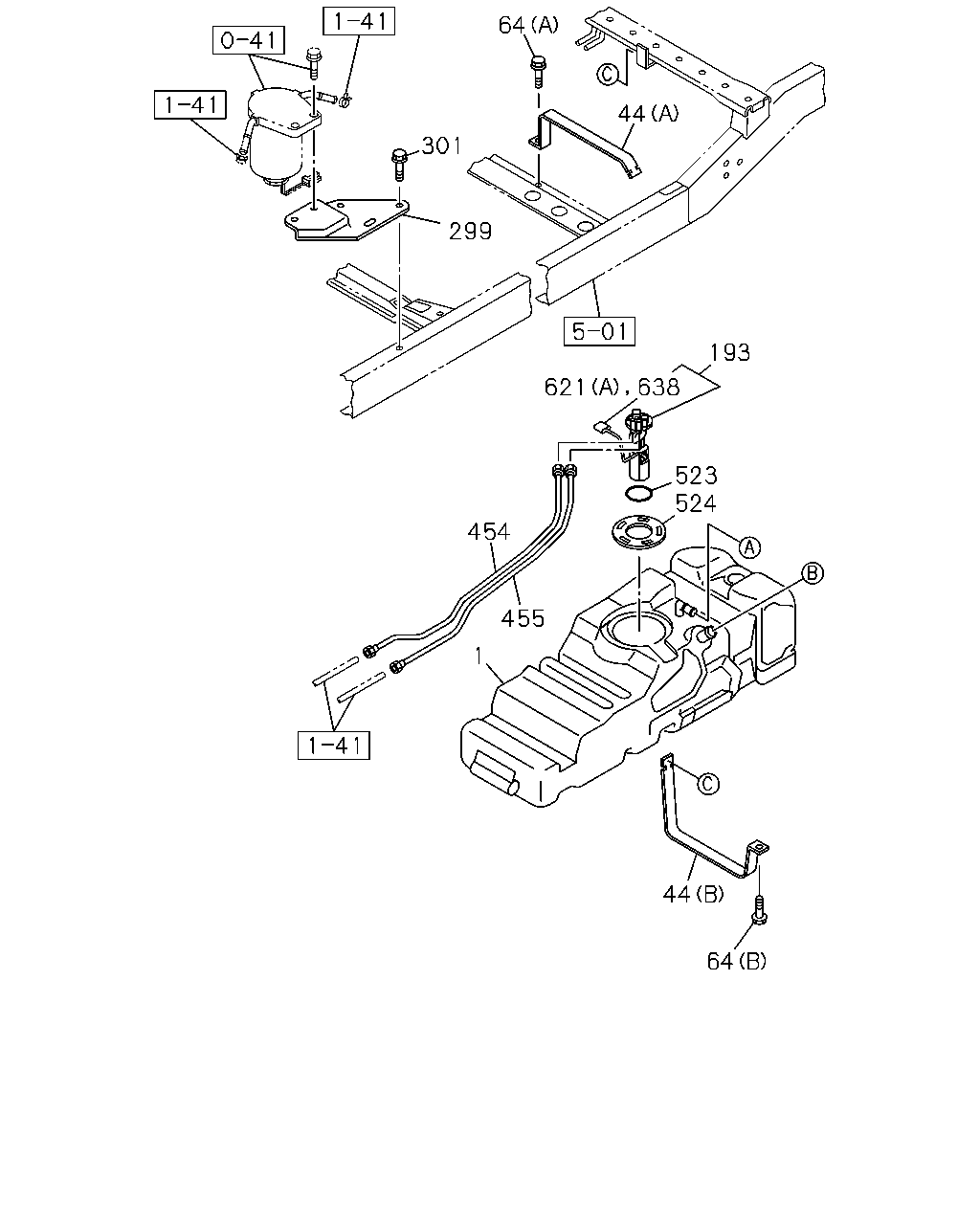

çizim 93126
64 44 301 299 193 621 638 523 524 454 455 1 44 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
THA 		8-97943-135-0 01 1 0411-0609 ●
1 TANK; FUEL
THA 		8-97943-135-0 01 1 0610-0708 ● ●
1 TANK; FUEL
THA 		8-97943-135-0 01 1 0709-0709 ●
1 TANK; FUEL
THA 		8-97943-135-0 01 1 0710- ● ●
44 BAND; FUEL TANK
4X2<UCB***> (B) THA 		8-97942-718-0 01 1 0411-0501 ●
44 BAND; FUEL TANK
4X4<UCS***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97942-718-0 01 1 0411-0501 ●
44 BAND; FUEL TANK
4X2<UCB***> (B) THA 		8-97944-282-0 01 1 0502-0606 ●
44 BAND; FUEL TANK
4X4<UCS***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-282-0 01 1 0502-0606 ●
44 BAND; FUEL TANK
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-282-0 01 1 0607-0609 ●
44 BAND; FUEL TANK
4X2<UCB***> (B) THA 		8-97944-282-0 01 1 0610-0708 ● ●
44 BAND; FUEL TANK
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-282-0 01 1 0610-0708 ● ●
44 BAND; FUEL TANK
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-282-0 01 1 0709-0709 ●
44 BAND; FUEL TANK
4X2<UCB***> (B) THA 		8-97944-282-0 01 1 0710- ● ●
44 BAND; FUEL TANK
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-282-0 01 1 0710- ● ●
44 BAND; FUEL TANK
4X4<UCS***> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-157-1 01 1 0411-0501 ●
44 BAND; FUEL TANK
4X4<UCS***> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-283-0 01 1 0502-0606 ●
44 BAND; FUEL TANK
(A) THA 		8-97942-717-0 01 1 0411-0501 ● ●
44 BAND; FUEL TANK
(A) THA 		8-97944-281-0 01 1 0502- ● ●
44 BAND; FUEL TANK
4X4<UCS***> A/T AISIN<RMD> (B) THA 		8-97944-283-0 01 1 0610-0708 ●
44 BAND; FUEL TANK
4X4<UCS***> A/T AISIN<RMD> (B) THA 		8-97944-283-0 01 1 0710- ●
64 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0411- ● ●
64 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0411- ● ●
193 PUMP; FUEL
THA 		8-97944-092-0 01 1 0411-0606 ●
193 PUMP; FUEL
THA 		8-97945-524-0 01 1 0607-0609 ●
193 PUMP; FUEL
THA 		8-97945-524-0 01 1 0610-0708 ● ●
193 PUMP; FUEL
THA 		8-97945-524-0 01 1 0709-0709 ●
193 PUMP; FUEL
THA 		8-97945-524-0 01 1 0710-1002 ● ●
193 PUMP; FUEL
THA 		8-97945-713-0 01 1 1003- ● ●
299 BRACKET; FUEL FILTER
THA 		8-97944-051-0 01 1 0411-0606 ●
299 BRACKET; FUEL FILTER
THA 		8-97945-336-0 01 1 0607-0609 ●
299 BRACKET; FUEL FILTER
THA 		8-97945-336-0 01 1 0610-0708 ● ●
299 BRACKET; FUEL FILTER
THA 		8-97945-336-0 01 1 0709-0709 ●
299 BRACKET; FUEL FILTER
THA 		8-97945-336-0 01 1 0710-0804 ● ●
299 BRACKET; FUEL FILTER
THA 		8-98099-657-0 01 1 0805-0907 ● ●
299 BRACKET; FUEL FILTER
THA 		8-97945-336-0 01 1 0908- ● ●
301 BOLT; BRKT TO SEDIMENTER
M10X25 FLANGE THA 		0-28681-025-0 02 1 0411-0601 ●
301 BOLT; BRKT TO SEDIMENTER
M10X25 FLANGE THA 		0-28651-025-0 02 1 0602-0609 ●
301 BOLT; BRKT TO SEDIMENTER
M10X25 FLANGE THA 		0-28651-025-0 02 1 0610-0708 ● ●
301 BOLT; BRKT TO SEDIMENTER
M10X25 FLANGE THA 		0-28651-025-0 02 1 0709-0709 ●
301 BOLT; BRKT TO SEDIMENTER
M10X25 FLANGE THA 		0-28651-025-0 02 1 0710- ● ●
454 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0411-0609 ●
454 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0610-0708 ● ●
454 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0709-0709 ●
454 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0710- ● ●
455 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0411-0606 ●
455 PIPE; FUEL,RETURN
THA 		8-97945-528-0 01 1 0607-0609 ●
455 PIPE; FUEL,RETURN
THA 		8-97945-528-0 01 1 0610-0708 ● ●
455 PIPE; FUEL,RETURN
THA 		8-97945-528-0 01 1 0709-0709 ●
455 PIPE; FUEL,RETURN
THA 		8-97945-528-0 01 1 0710- ● ●
523 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0411-0609 ●
523 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0610-0708 ● ●
523 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0709-0709 ●
523 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0710- ● ●
524 RING; RETAINER
THA 		8-97942-306-0 01 1 0411-0609 ●
524 RING; RETAINER
THA 		8-97942-306-0 01 1 0610-0708 ● ●
524 RING; RETAINER
THA 		8-97942-306-0 01 1 0709-0709 ●
524 RING; RETAINER
THA 		8-97942-306-0 01 1 0710- ● ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0411-0609 ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0610-0708 ● ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0709-0709 ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0710-0908 ● ●
621 RESISTOR ASM; FUEL PUMP
(B) THA 		8-98041-186-0 01 1 0607- ● ●
638 SENSOR; FUEL LEVEL
THA 		8-97943-178-0 01 1 0909-1002 ● ●
638 SENSOR; FUEL LEVEL
THA 		8-97945-259-0 01 1 1003- ● ●

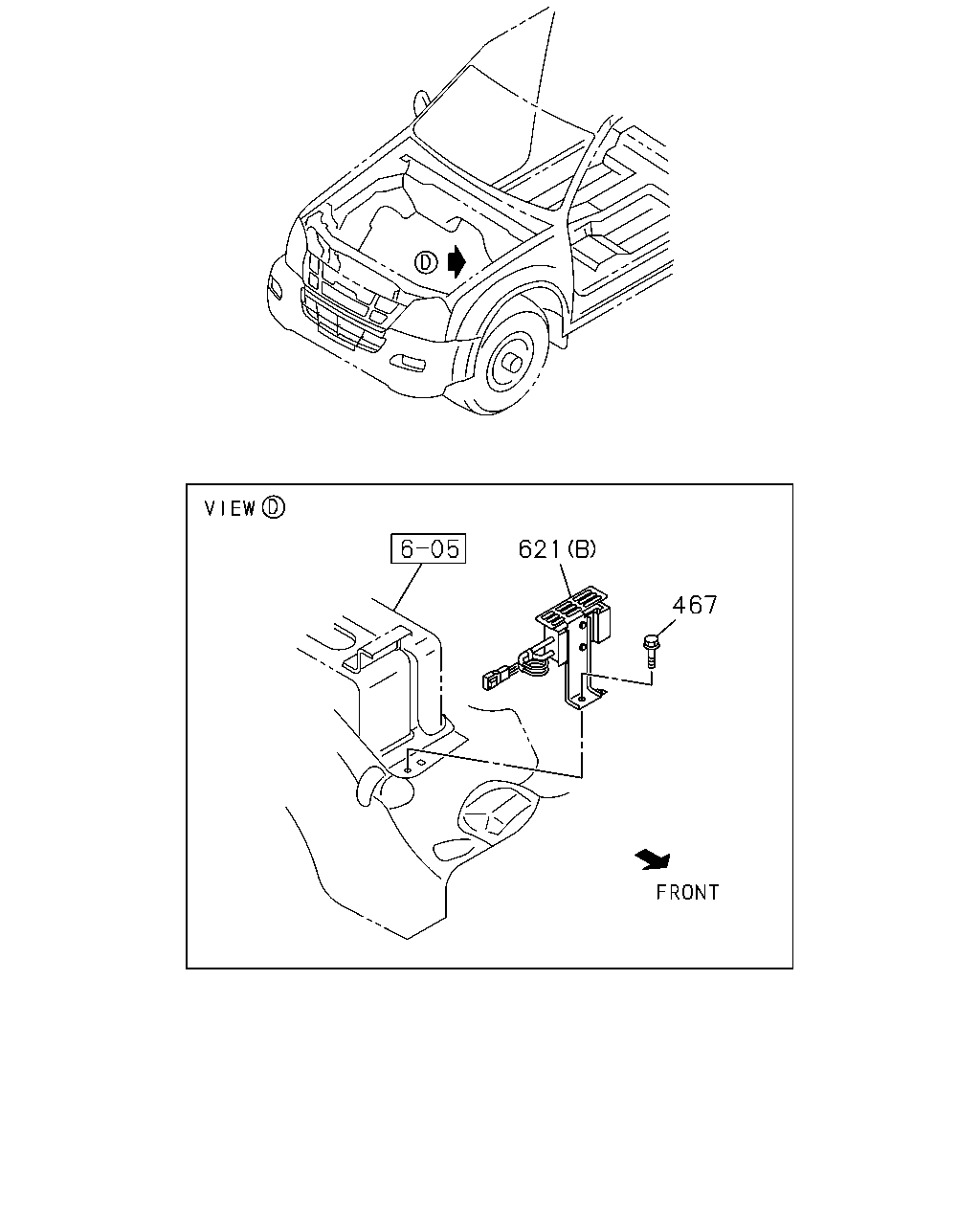

çizim 185385
621 467
BalonParca AdiParca NoAdetTipApplied Date A B
467 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 0607- ● ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0411-0609 ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0610-0708 ● ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0709-0709 ●
621 RESISTOR ASM; FUEL PUMP
(A) THA 		8-97943-178-0 01 1 0710-0908 ● ●
621 RESISTOR ASM; FUEL PUMP
(B) THA 		8-98041-186-0 01 1 0607- ● ●
