◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#73750) — 134 parça

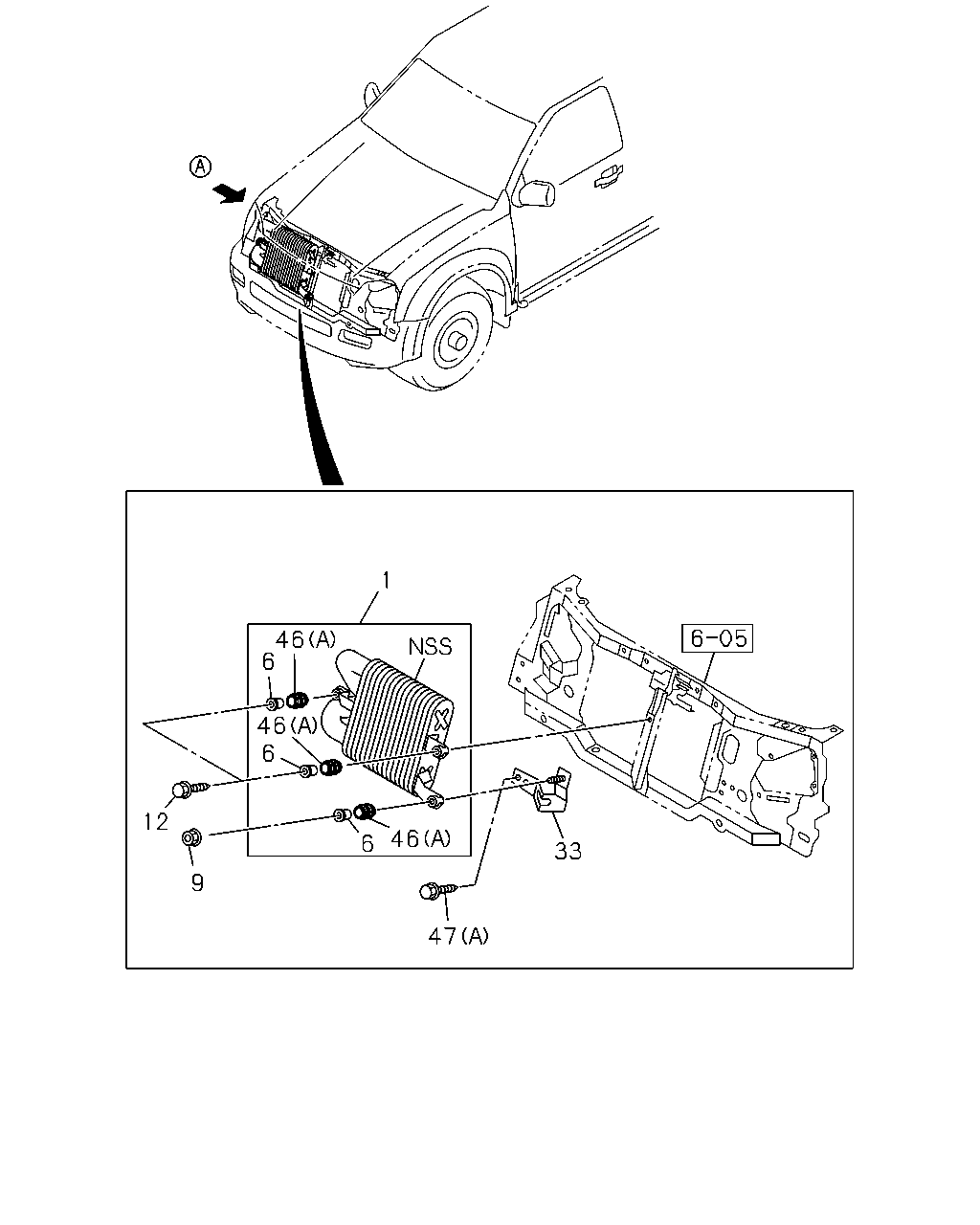

çizim 92353
1 6 46 6 46 6 12 46 6 33 9 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
THA 		8-97376-147-1 01 1 0411-0412 ●
1 COOLER; CHARGE AIR
THA 		8-98000-270-1 01 1 0501- ●
1 COOLER; CHARGE AIR
THA 		8-97389-185-3 01 1 0610-0708 ●
1 COOLER; CHARGE AIR
THA 		8-97389-185-4 01 1 0710-0802 ●
1 COOLER; CHARGE AIR
THA 		8-98114-815-0 01 1 0803- ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97386-100-0 03 1 0411- ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97107-898-0 04 1 0610-0708 ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97107-898-0 04 1 0710- ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE IMA 		0-91150-108-0 01 1 0411-0603 ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE THA 		0-91180-108-0 01 1 0604- ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE THA 		0-91180-108-0 02 1 0610-0708 ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
12 BOLT; CHARGE AIR COOLER
THA 		8-97943-079-0 02 1 0411-0812 ●
12 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 0901- ●
12 BOLT; CHARGE AIR COOLER
THA 		8-98044-006-0 02 1 0610-0708 ●
12 BOLT; CHARGE AIR COOLER
THA 		8-98044-006-0 02 1 0710- ●
33 BRACKET; CHARGE AIR COOLER,FRT
THA 		8-97326-994-0 01 1 0411- ●
33 BRACKET; CHARGE AIR COOLER,FRT
THA 		8-97389-214-2 01 1 0610-0708 ●
33 BRACKET; CHARGE AIR COOLER,FRT
THA 		8-97389-214-2 01 1 0710- ●
46 RUBBER; MTG,CHARGE AIR COOLER
(A) THA 		8-97942-930-0 03 1 0411- ●
46 RUBBER; MTG,CHARGE AIR COOLER
(B) THA 		8-97181-886-0 04 1 0610-0708 ●
46 RUBBER; MTG,CHARGE AIR COOLER
(C) THA 		8-97232-774-0 04 1 0610-0708 ●
46 RUBBER; MTG,CHARGE AIR COOLER
(B) THA 		8-97181-886-0 04 1 0710- ●
46 RUBBER; MTG,CHARGE AIR COOLER
(C) THA 		8-97232-774-0 04 1 0710- ●
47 BOLT; CHARGE AIR COOLER BRKT
(A) M8X20 FLANGE THA 		0-28680-820-0 02 1 0411-0601 ●
47 BOLT; CHARGE AIR COOLER BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0602- ●
47 BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0610-0708 ●
47 BOLT; CHARGE AIR COOLER BRKT
(C) M6X16 FLANGE THA 		0-28650-616-0 01 1 0610-0708 ●
47 BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ●
47 BOLT; CHARGE AIR COOLER BRKT
(C) M6X16 FLANGE THA 		0-28650-616-0 01 1 0710- ●

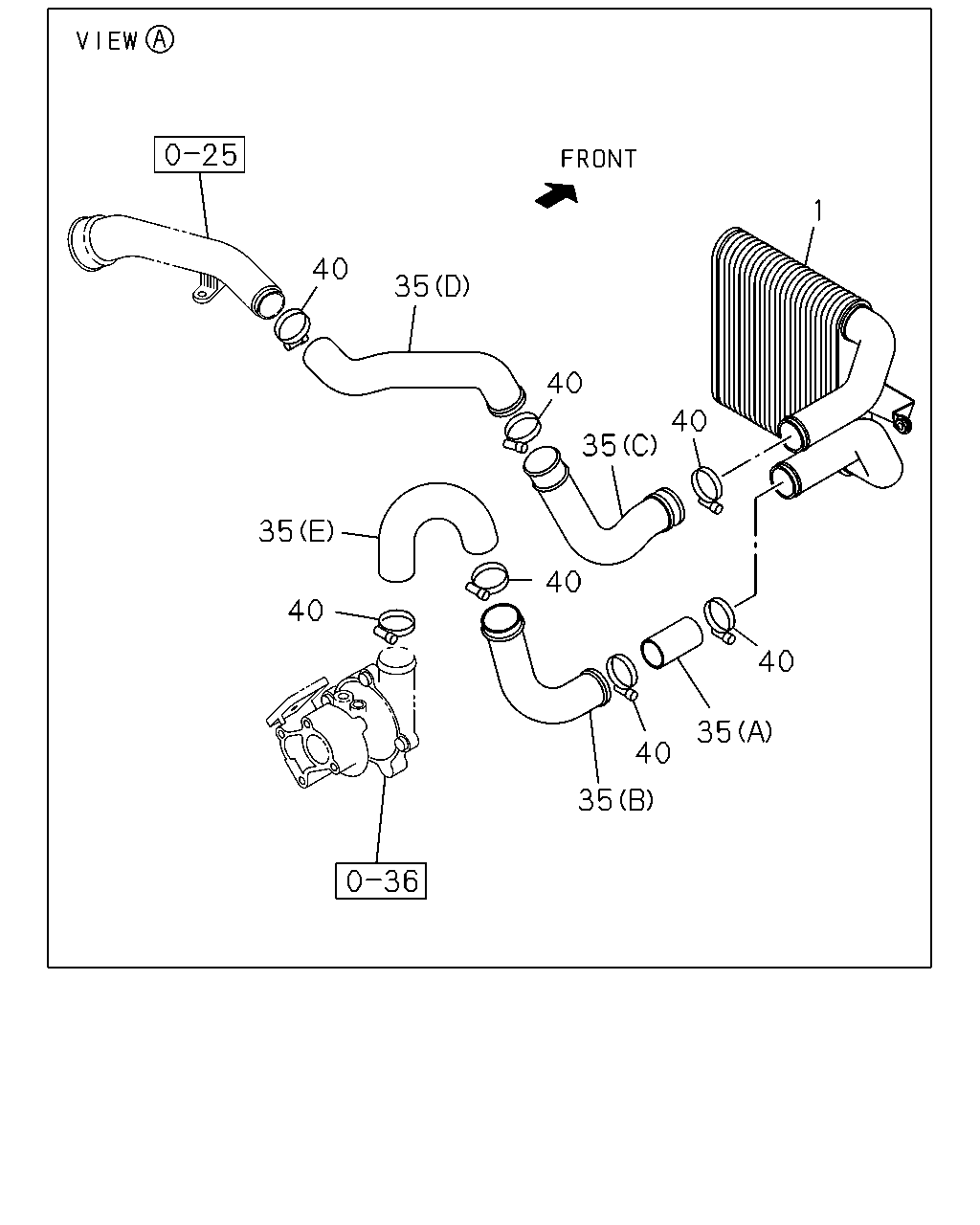

çizim 92425
1 40 35 40 40 35 35 40 40 40 35 40 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
THA 		8-97376-147-1 01 1 0411-0412 ●
1 COOLER; CHARGE AIR
THA 		8-98000-270-1 01 1 0501- ●
1 COOLER; CHARGE AIR
THA 		8-97389-185-3 01 1 0610-0708 ●
1 COOLER; CHARGE AIR
THA 		8-97389-185-4 01 1 0710-0802 ●
1 COOLER; CHARGE AIR
THA 		8-98114-815-0 01 1 0803- ●
35 HOSE; CONNECTING
(A) THA 		8-97320-881-2 01 1 0411- ●
35 HOSE; CONNECTING
(B) THA 		8-97370-538-1 01 1 0411-0707 ●
35 HOSE; CONNECTING
(B) THA 		8-98092-322-0 01 1 0708- ●
35 HOSE; CONNECTING
(D) THA 		8-97370-563-1 01 1 0411- ●
35 HOSE; CONNECTING
(E) THA 		8-97370-564-2 01 1 0411-0411 ●
35 HOSE; CONNECTING
(E) THA 		8-98002-516-0 01 1 0411- ●
35 HOSE; CONNECTING
(C) THA 		8-97385-978-0 01 1 0411- ●
35 HOSE; CONNECTING
(F) THA 		8-98003-588-2 01 1 0610-0708 ●
35 HOSE; CONNECTING
(G) THA 		8-98031-469-0 01 1 0610-0706 ●
35 HOSE; CONNECTING
(G) THA 		8-98076-084-0 01 1 0707-0708 ●
35 HOSE; CONNECTING
(F) THA 		8-98003-588-2 01 1 0710-0807 ●
35 HOSE; CONNECTING
(F) THA 		8-98099-947-0 01 1 0808-1008 ●
35 HOSE; CONNECTING
(F) THA 		8-98160-197-0 01 1 1009- ●
35 HOSE; CONNECTING
(G) THA 		8-98076-084-0 01 1 0710- ●
40 CLIP; RUBBER HOSE
ID=55-75 THA 		8-98141-459-0 01 1 0903-0911 ●
40 CLIP; RUBBER HOSE
ID=50-70 THA 		8-98141-460-0 06 1 0912- ●
40 CLIP; RUBBER HOSE
ID=50-65 THA 		8-98000-117-0 02 1 0710-0803 ●
40 CLIP; RUBBER HOSE
ID=60-65 IMA 		8-98096-418-0 02 1 0804- ●
40 CLIP; RUBBER HOSE
ID=50-69 THA 		1-09707-135-0 07 1 0411-0501 ●
40 CLIP; RUBBER HOSE
ID=50-65 THA 		8-98000-117-0 07 1 0502-0902 ●
40 CLIP; RUBBER HOSE
ID=45-65 THA 		8-98133-396-0 06 1 0903-0911 ●
40 CLIP; RUBBER HOSE
ID=45-65 THA 		8-98133-396-0 01 1 0912- ●
40 CLIP; RUBBER HOSE
ID=50-69 THA 		1-09707-135-0 02 1 0610-0708 ●

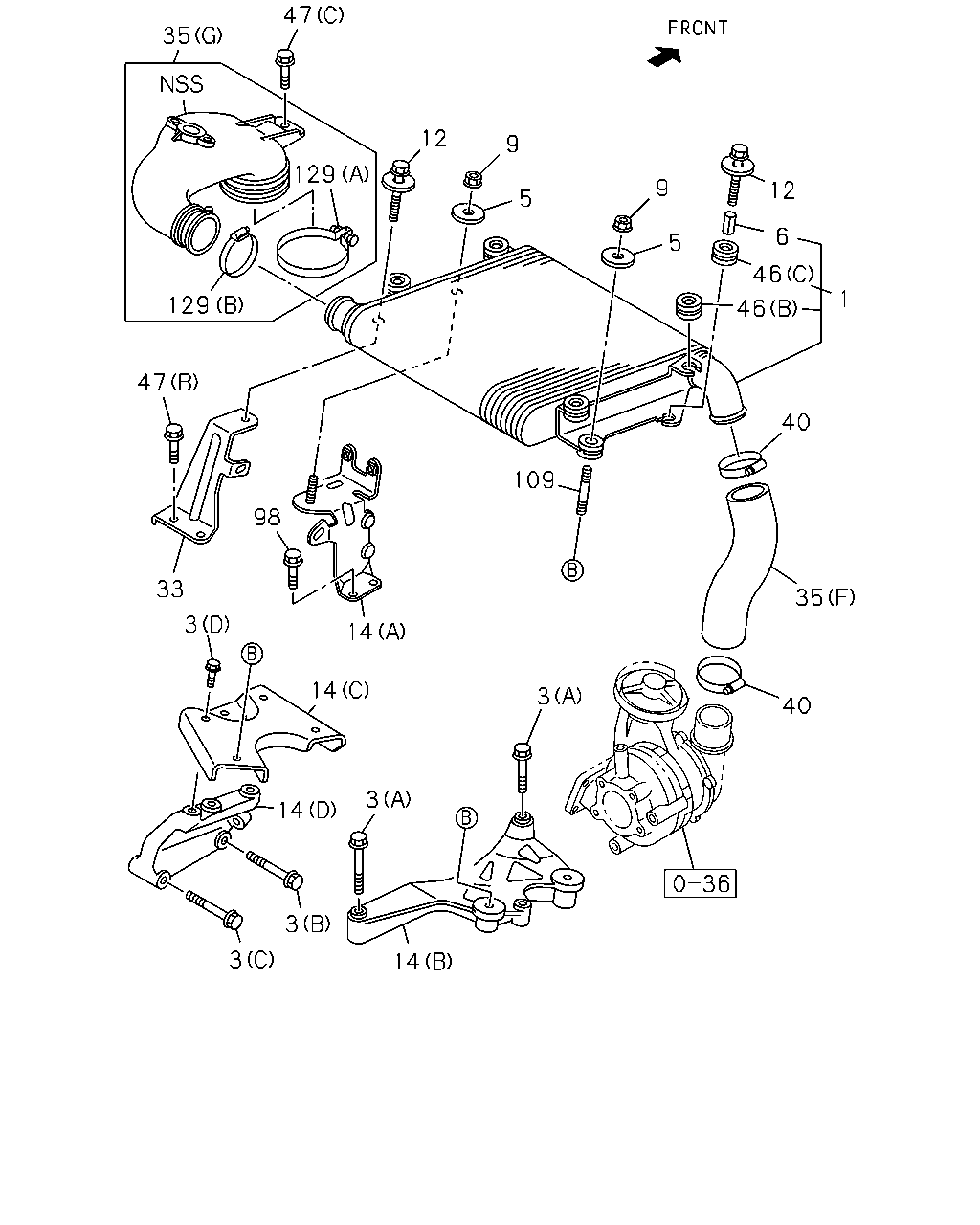

çizim 92604
47 35 12 9 129 9 12 5 6 5 46 1 129 46 47 40 109 98 33 35 3 14 14 3 40 3 14 3 3 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
THA 		8-97376-147-1 01 1 0411-0412 ●
1 COOLER; CHARGE AIR
THA 		8-98000-270-1 01 1 0501- ●
1 COOLER; CHARGE AIR
THA 		8-97389-185-3 01 1 0610-0708 ●
1 COOLER; CHARGE AIR
THA 		8-97389-185-4 01 1 0710-0802 ●
1 COOLER; CHARGE AIR
THA 		8-98114-815-0 01 1 0803- ●
3 BOLT; CHARGE AIR COOLER
(B) M10X45 FLANGE THA 		0-28151-045-0 01 1 1009- ●
3 BOLT; CHARGE AIR COOLER
(A) M8X50 FLANGE THA 		0-28050-850-0 01 1 0610-0708 ●
3 BOLT; CHARGE AIR COOLER
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0610-0708 ●
3 BOLT; CHARGE AIR COOLER
(A) M8X50 FLANGE THA 		0-28050-850-0 01 1 0710-1008 ●
3 BOLT; CHARGE AIR COOLER
(C) M6X45 FLANGE THA 		0-28050-645-0 01 1 1009- ●
3 BOLT; CHARGE AIR COOLER
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0710-1008 ●
3 BOLT; CHARGE AIR COOLER
(D) M8X20 FLANGE THA 		0-28050-820-0 03 1 1009- ●
5 WASHER; PL,CHARGE AIR COOLER
ID=8.5 OD=36 THA 		8-94221-082-0 02 1 0610-0708 ●
5 WASHER; PL,CHARGE AIR COOLER
ID=8.5 OD=36 THA 		8-94221-082-0 02 1 0710- ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97386-100-0 03 1 0411- ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97107-898-0 04 1 0610-0708 ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97107-898-0 04 1 0710- ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE IMA 		0-91150-108-0 01 1 0411-0603 ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE THA 		0-91180-108-0 01 1 0604- ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE THA 		0-91180-108-0 02 1 0610-0708 ●
9 NUT; CHARGE AIR COOLER
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
12 BOLT; CHARGE AIR COOLER
THA 		8-97943-079-0 02 1 0411-0812 ●
12 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 0901- ●
12 BOLT; CHARGE AIR COOLER
THA 		8-98044-006-0 02 1 0610-0708 ●
12 BOLT; CHARGE AIR COOLER
THA 		8-98044-006-0 02 1 0710- ●
14 BRACKET; CHARGE AIR COOLER
(D) THA 		8-98156-391-1 01 1 1009- ●
14 BRACKET; CHARGE AIR COOLER
(A) THA 		8-98012-016-3 01 1 0610-0708 ●
14 BRACKET; CHARGE AIR COOLER
(B) THA 		8-98039-405-0 01 1 0610-0708 ●
14 BRACKET; CHARGE AIR COOLER
(A) THA 		8-98012-016-3 01 1 0710- ●
14 BRACKET; CHARGE AIR COOLER
(B) THA 		8-98039-405-0 01 1 0710-1008 ●
14 BRACKET; CHARGE AIR COOLER
(C) THA 		8-98156-390-1 01 1 1009- ●
33 BRACKET; CHARGE AIR COOLER,FRT
THA 		8-97326-994-0 01 1 0411- ●
33 BRACKET; CHARGE AIR COOLER,FRT
THA 		8-97389-214-2 01 1 0610-0708 ●
33 BRACKET; CHARGE AIR COOLER,FRT
THA 		8-97389-214-2 01 1 0710- ●
35 HOSE; CONNECTING
(A) THA 		8-97320-881-2 01 1 0411- ●
35 HOSE; CONNECTING
(B) THA 		8-97370-538-1 01 1 0411-0707 ●
35 HOSE; CONNECTING
(B) THA 		8-98092-322-0 01 1 0708- ●
35 HOSE; CONNECTING
(D) THA 		8-97370-563-1 01 1 0411- ●
35 HOSE; CONNECTING
(E) THA 		8-97370-564-2 01 1 0411-0411 ●
35 HOSE; CONNECTING
(E) THA 		8-98002-516-0 01 1 0411- ●
35 HOSE; CONNECTING
(C) THA 		8-97385-978-0 01 1 0411- ●
35 HOSE; CONNECTING
(F) THA 		8-98003-588-2 01 1 0610-0708 ●
35 HOSE; CONNECTING
(G) THA 		8-98031-469-0 01 1 0610-0706 ●
35 HOSE; CONNECTING
(G) THA 		8-98076-084-0 01 1 0707-0708 ●
35 HOSE; CONNECTING
(F) THA 		8-98003-588-2 01 1 0710-0807 ●
35 HOSE; CONNECTING
(F) THA 		8-98099-947-0 01 1 0808-1008 ●
35 HOSE; CONNECTING
(F) THA 		8-98160-197-0 01 1 1009- ●
35 HOSE; CONNECTING
(G) THA 		8-98076-084-0 01 1 0710- ●
40 CLIP; RUBBER HOSE
ID=55-75 THA 		8-98141-459-0 01 1 0903-0911 ●
40 CLIP; RUBBER HOSE
ID=50-70 THA 		8-98141-460-0 06 1 0912- ●
40 CLIP; RUBBER HOSE
ID=50-65 THA 		8-98000-117-0 02 1 0710-0803 ●
40 CLIP; RUBBER HOSE
ID=60-65 IMA 		8-98096-418-0 02 1 0804- ●
40 CLIP; RUBBER HOSE
ID=50-69 THA 		1-09707-135-0 07 1 0411-0501 ●
40 CLIP; RUBBER HOSE
ID=50-65 THA 		8-98000-117-0 07 1 0502-0902 ●
40 CLIP; RUBBER HOSE
ID=45-65 THA 		8-98133-396-0 06 1 0903-0911 ●
40 CLIP; RUBBER HOSE
ID=45-65 THA 		8-98133-396-0 01 1 0912- ●
40 CLIP; RUBBER HOSE
ID=50-69 THA 		1-09707-135-0 02 1 0610-0708 ●
46 RUBBER; MTG,CHARGE AIR COOLER
(A) THA 		8-97942-930-0 03 1 0411- ●
46 RUBBER; MTG,CHARGE AIR COOLER
(B) THA 		8-97181-886-0 04 1 0610-0708 ●
46 RUBBER; MTG,CHARGE AIR COOLER
(C) THA 		8-97232-774-0 04 1 0610-0708 ●
46 RUBBER; MTG,CHARGE AIR COOLER
(B) THA 		8-97181-886-0 04 1 0710- ●
46 RUBBER; MTG,CHARGE AIR COOLER
(C) THA 		8-97232-774-0 04 1 0710- ●
47 BOLT; CHARGE AIR COOLER BRKT
(A) M8X20 FLANGE THA 		0-28680-820-0 02 1 0411-0601 ●
47 BOLT; CHARGE AIR COOLER BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0602- ●
47 BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0610-0708 ●
47 BOLT; CHARGE AIR COOLER BRKT
(C) M6X16 FLANGE THA 		0-28650-616-0 01 1 0610-0708 ●
47 BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ●
47 BOLT; CHARGE AIR COOLER BRKT
(C) M6X16 FLANGE THA 		0-28650-616-0 01 1 0710- ●
98 BOLT; BRKT TO CHARGE AIR COOLER
M8X16 FLANGE THA 		0-28050-816-0 02 1 0610-0708 ●
98 BOLT; BRKT TO CHARGE AIR COOLER
M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ●
109 STUD; BRKT
M8X40 L=52 IMA 		0-41010-840-0 01 1 0610-0708 ●
109 STUD; BRKT
M8X40 L=52 IMA 		0-41010-840-0 01 1 0710- ●
129 CLAMP; HOSE
(A) THA 		8-98080-783-0 01 1 0707-0708 ●
129 CLAMP; HOSE
(B) THA 		8-98080-785-0 01 1 0707-0708 ●
129 CLAMP; HOSE
(A) THA 		8-98080-783-0 01 1 0710- ●
129 CLAMP; HOSE
(B) THA 		8-98080-785-0 01 1 0710- ●
