1-31 — AIR DUCT (#73749) — 58 parça

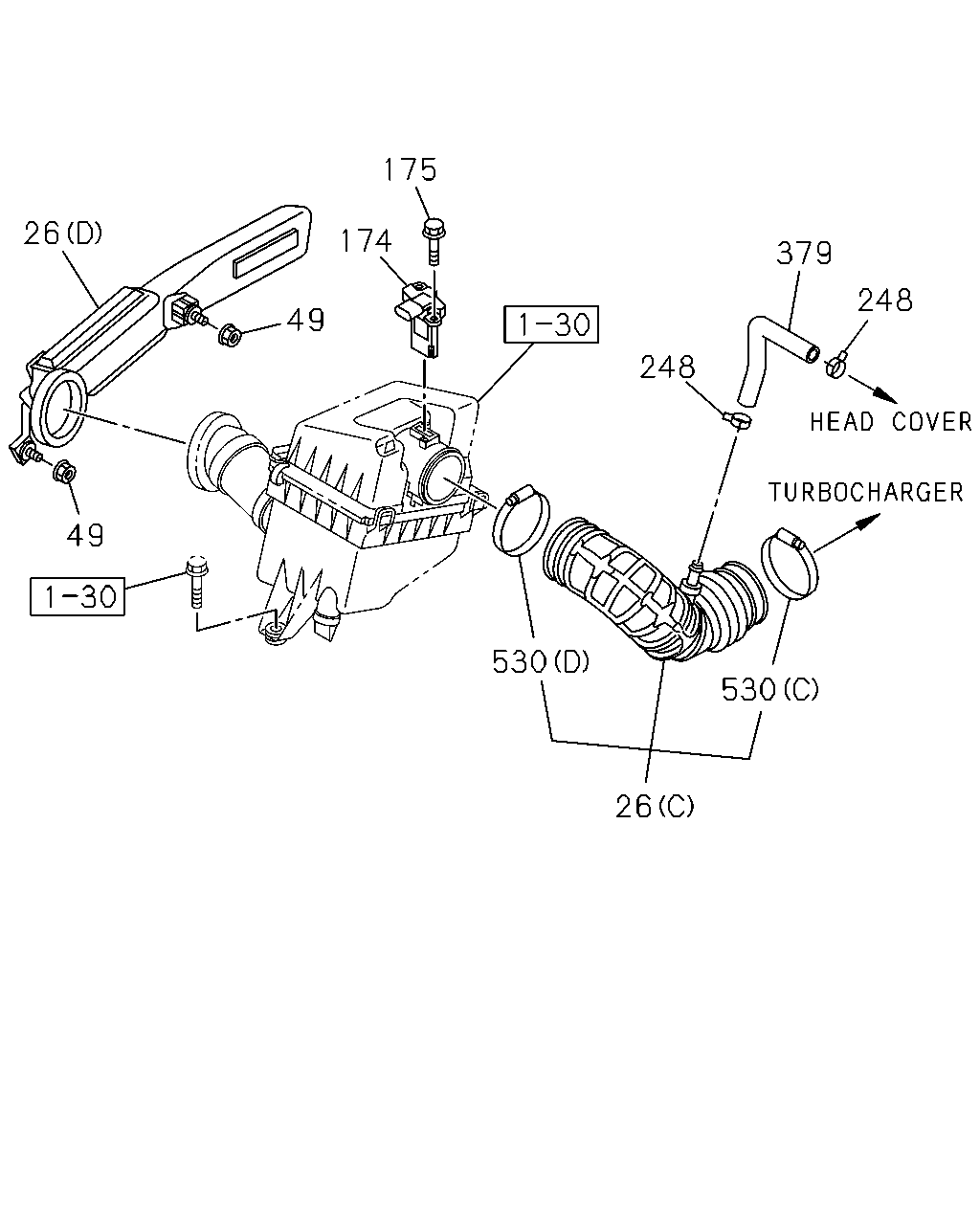

çizim 91969
175 26 174 379 248 49 248 49 530 530 26
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT
(B) THA 		8-97375-945-2 01 1 0411- ●
26 DUCT; AIR INT
(A) THA 		8-97387-946-0 01 1 0411- ●
26 DUCT; AIR INT
(C) THA 		8-98000-986-0 01 1 0610-0708 ●
26 DUCT; AIR INT
(D) THA 		8-98029-373-1 01 1 0610-0708 ●
26 DUCT; AIR INT
(C) THA 		8-98000-986-0 01 1 0710- ●
26 DUCT; AIR INT
(D) THA 		8-98029-373-1 01 1 0710- ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0411-0606 ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0607- ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0411-0609 ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0610-0708 ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0709-0709 ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0710- ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		9-03920-410-0 02 1 0411-0606 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0607-0609 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0610-0708 ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0709-0709 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0710- ● ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 0411-0606 ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 0607- ● ●
379 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0411- ●
379 HOSE; RUBBER
THA 		8-98008-134-0 01 1 0610-0708 ●
379 HOSE; RUBBER
THA 		8-98008-134-0 01 1 0710- ●
530 CLAMP; AIR DUCT
(B) THA 		8-98000-140-0 01 1 0411- ●
530 CLAMP; AIR DUCT
(A) THA 		8-98000-141-0 01 1 0411- ●
530 CLAMP; AIR DUCT
(C) THA 		8-98052-417-0 01 1 0610-0708 ●
530 CLAMP; AIR DUCT
(D) THA 		8-98052-418-0 01 1 0610-0708 ●
530 CLAMP; AIR DUCT
(C) THA 		8-98052-417-0 01 1 0710- ●
530 CLAMP; AIR DUCT
(D) THA 		8-98052-418-0 01 1 0710- ●

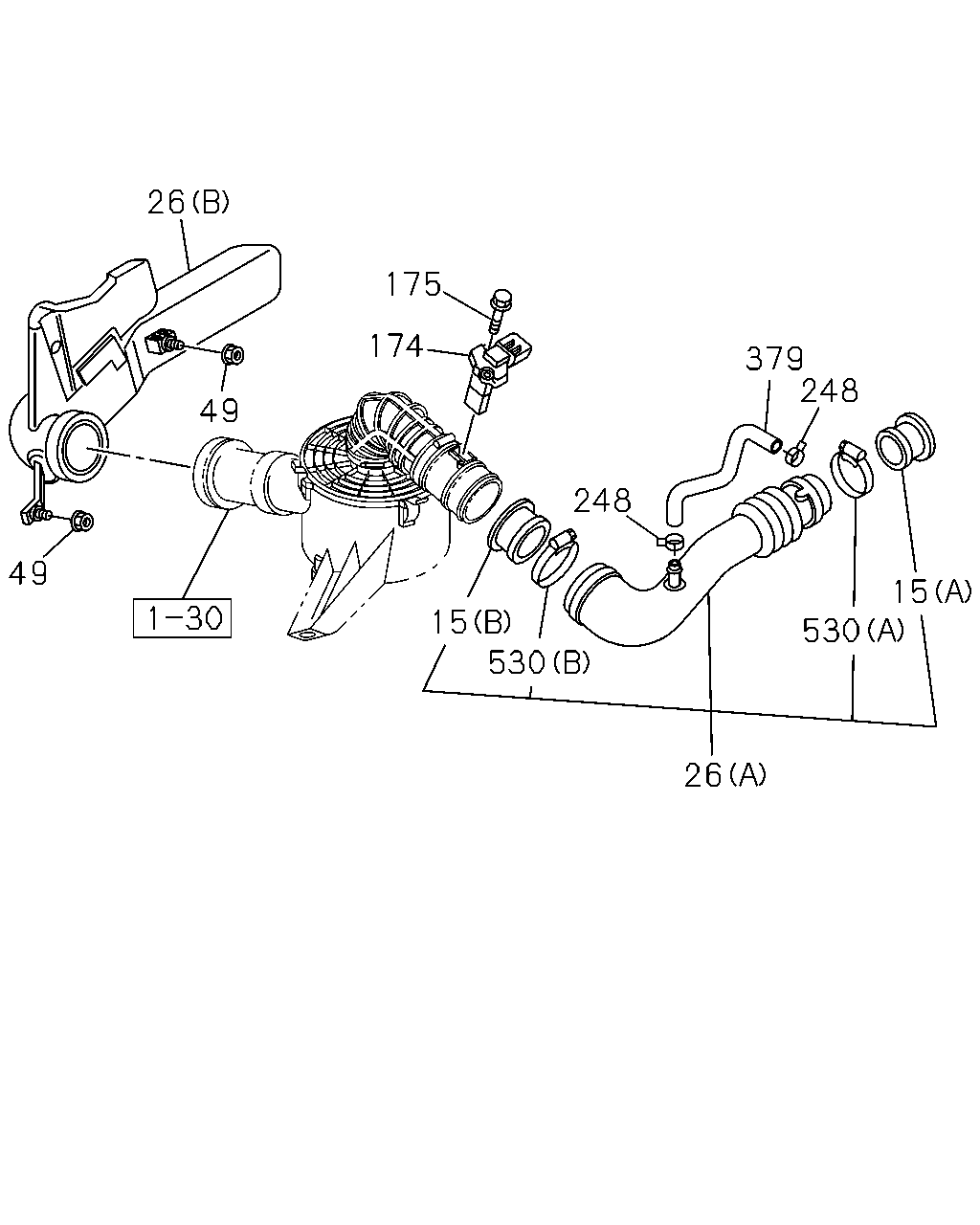

çizim 185384
26 175 174 379 248 49 248 49 15 15 530 530 26
BalonParca AdiParca NoAdetTipApplied Date A B
15 INSULATOR
(A) THA 		8-98000-142-0 01 1 0411- ●
15 INSULATOR
(B) THA 		8-98000-143-0 01 1 0411- ●
26 DUCT; AIR INT
(B) THA 		8-97375-945-2 01 1 0411- ●
26 DUCT; AIR INT
(A) THA 		8-97387-946-0 01 1 0411- ●
26 DUCT; AIR INT
(C) THA 		8-98000-986-0 01 1 0610-0708 ●
26 DUCT; AIR INT
(D) THA 		8-98029-373-1 01 1 0610-0708 ●
26 DUCT; AIR INT
(C) THA 		8-98000-986-0 01 1 0710- ●
26 DUCT; AIR INT
(D) THA 		8-98029-373-1 01 1 0710- ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0411-0606 ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0607- ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0411-0609 ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0610-0708 ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0709-0709 ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0710- ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		9-03920-410-0 02 1 0411-0606 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0607-0609 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0610-0708 ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0709-0709 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0710- ● ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 0411-0606 ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 0607- ● ●
379 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0411- ●
379 HOSE; RUBBER
THA 		8-98008-134-0 01 1 0610-0708 ●
379 HOSE; RUBBER
THA 		8-98008-134-0 01 1 0710- ●
530 CLAMP; AIR DUCT
(B) THA 		8-98000-140-0 01 1 0411- ●
530 CLAMP; AIR DUCT
(A) THA 		8-98000-141-0 01 1 0411- ●
530 CLAMP; AIR DUCT
(C) THA 		8-98052-417-0 01 1 0610-0708 ●
530 CLAMP; AIR DUCT
(D) THA 		8-98052-418-0 01 1 0610-0708 ●
530 CLAMP; AIR DUCT
(C) THA 		8-98052-417-0 01 1 0710- ●
530 CLAMP; AIR DUCT
(D) THA 		8-98052-418-0 01 1 0710- ●
