Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

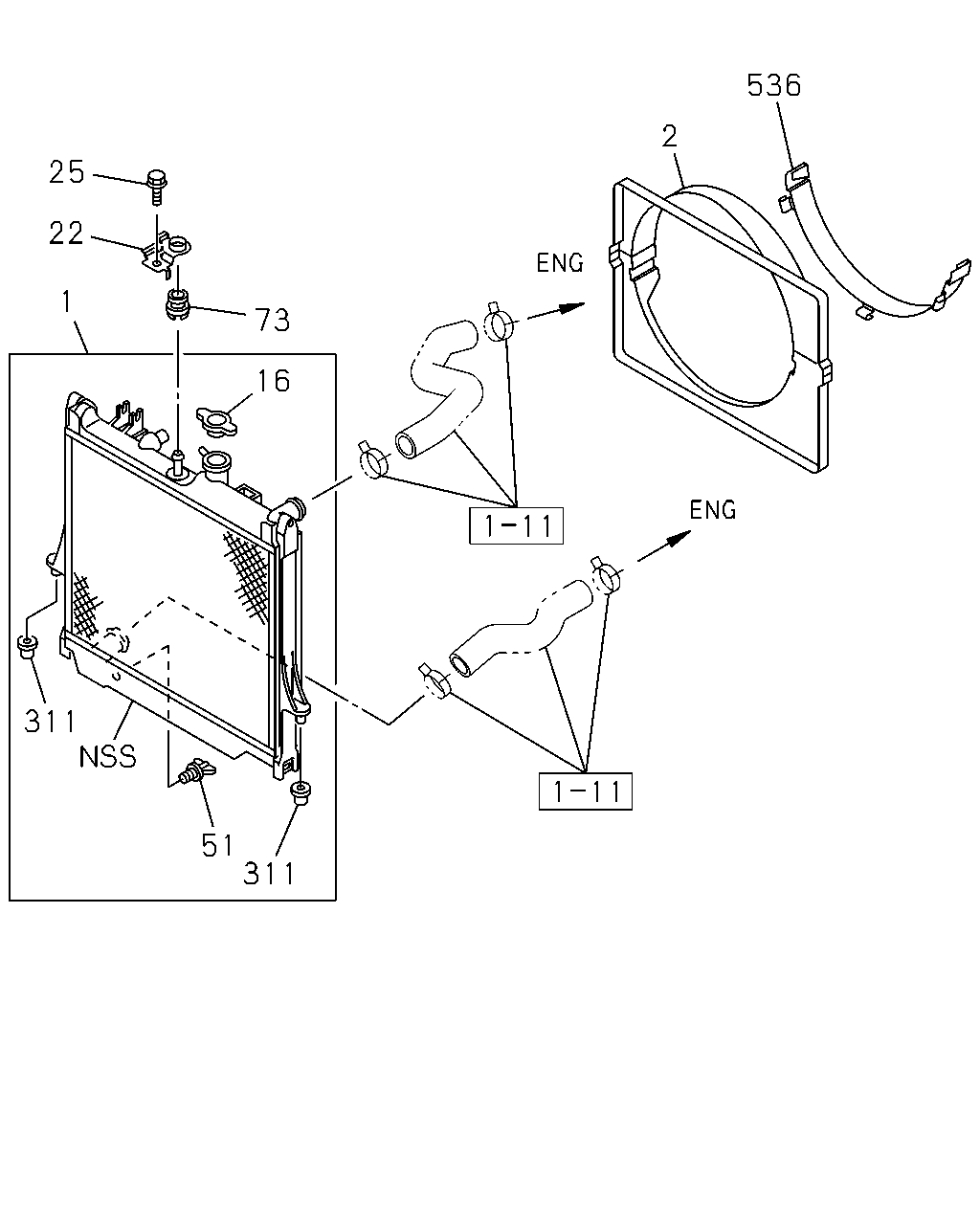

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#73746) — 38 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JJ1-TCX ENG
536
2
25
22
1
73
16
311
51
311
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA
8-97371-440-1
01
1
0411-0606
●
1
RADIATOR ASM
M/T MUA 5 SPEED 5G<RSP> THA
8-97333-350-3
01
1
0411-0606
●
1
RADIATOR ASM
THA
8-97333-350-3
01
1
0607-0609
●
1
RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA
8-97333-350-3
01
1
0610-0708
●
1
RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA
8-97333-350-3
01
1
0610-0708
●
1
RADIATOR ASM
THA
8-97333-350-3
01
1
0709-0709
●
1
RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA
8-97333-350-3
01
1
0710-1002
●
1
RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA
8-97333-350-3
01
1
0710-1002
●
1
RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA
8-98164-742-0
01
1
1003-
●
1
RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA
8-98164-742-0
01
1
1003-
●
1
RADIATOR ASM
A/T AISIN<RMD> THA
8-97371-440-1
01
1
0610-0708
●
1
RADIATOR ASM
A/T AISIN<RMD> THA
8-97371-440-1
01
1
0710-0809
●
1
RADIATOR ASM
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA
8-97371-440-1
01
1
0810-1002
●
●
1
RADIATOR ASM
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA
8-98164-741-0
01
1
1003-
●
●
2
GUIDE; FAN
THA
8-97371-447-2
01
1
0411-0609
●
2
GUIDE; FAN
THA
8-97371-447-2
01
1
0610-0708
●
●
2
GUIDE; FAN
THA
8-97371-447-2
01
1
0709-0709
●
2
GUIDE; FAN
THA
8-97371-447-2
01
1
0710-
●
●
16
CAP; RAD
THA
8-97942-268-1
01
1
0411-0609
●
16
CAP; RAD
THA
8-97942-268-1
01
1
0610-0708
●
●
16
CAP; RAD
THA
8-97942-268-1
01
1
0709-0709
●
16
CAP; RAD
THA
8-97942-268-1
01
1
0710-
●
●
22
BRACKET; RAD MTG
THA
8-97941-547-0
01
1
0411-
●
●
25
BOLT; BRKT
M8X12 FLANGE THA
0-28080-812-0
01
1
0411-0601
●
●
25
BOLT; BRKT
M8X12 FLANGE THA
0-28050-812-0
01
1
0602-
●
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
0411-0609
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
0610-0708
●
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
0709-0709
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
0710-
●
●
73
RUBBER; CUSHION,RAD MTG
THA
8-97249-541-1
01
1
0411-
●
●
311
RUBBER; MTG,RAD
THA
8-97942-297-0
02
1
0411-0609
●
311
RUBBER; MTG,RAD
THA
8-97942-297-0
02
1
0610-0708
●
●
311
RUBBER; MTG,RAD
THA
8-97942-297-0
02
1
0709-0709
●
311
RUBBER; MTG,RAD
THA
8-97942-297-0
02
1
0710-
●
●
536
SHROUD; FAN
THA
8-97372-866-1
01
1
0411-0609
●
536
SHROUD; FAN
THA
8-97372-866-1
01
1
0610-0708
●
●
536
SHROUD; FAN
THA
8-97372-866-1
01
1
0709-0709
●
536
SHROUD; FAN
THA
8-97372-866-1
01
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
