◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#73742) — 13 parça

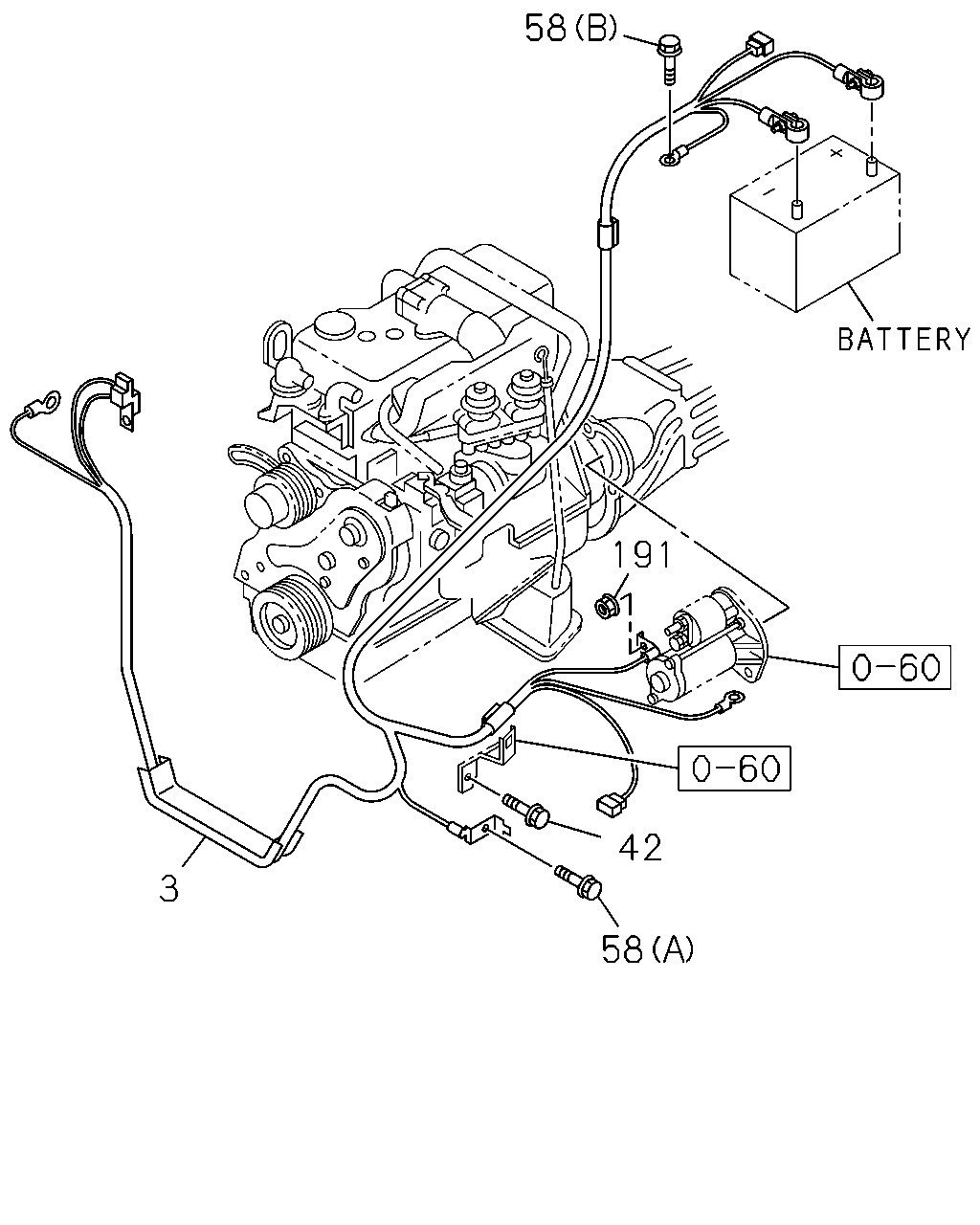

çizim 185383
58 191 42 3 58
BalonParca AdiParca NoAdetTipApplied Date A B
3 HARNESS; CABLE,BATTERY TO STARTER
4X2<UCB***> THA 		8-97371-019-4 01 1 0411-0606 ●
3 HARNESS; CABLE,BATTERY TO STARTER
THA 		8-98007-622-1 01 1 0607-0609 ●
3 HARNESS; CABLE,BATTERY TO STARTER
THA 		8-98007-622-1 01 1 0610-0708 ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
THA 		8-98007-622-1 01 1 0709-0709 ●
3 HARNESS; CABLE,BATTERY TO STARTER
THA 		8-98007-622-1 01 1 0710- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
4X4<UCS***> THA 		8-97371-020-4 01 1 0411-0606 ●
42 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 0411- ● ●
58 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE THA 		0-28651-020-0 01 1 0411-0609 ●
58 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE THA 		0-28651-020-0 01 1 0610-0708 ● ●
58 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE THA 		0-28651-020-0 01 1 0709-0709 ●
58 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE THA 		0-28651-020-0 01 1 0710- ● ●
58 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER IMA 		8-97086-823-0 01 1 0411- ● ●
191 NUT; STARTER
M8 FLANGE THA 		0-91180-108-0 01 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
