◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#73741) — 150 parça
çizim 72903
748 601 606 613 748 606 748 748 606 601 748 748 606 613
BalonParca AdiParca NoAdetTipApplied Date A B
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0411-0606 ●
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0607- ● ●
606 BRACKET; CONT UNIT
(A) THA 		8-97364-729-2 01 1 0411-0606 ●
606 BRACKET; CONT UNIT
(A) THA 		8-97364-729-2 01 1 0607-0708 ● ●
606 BRACKET; CONT UNIT
(C) THA 		8-98064-201-2 01 1 0709-0709 ●
606 BRACKET; CONT UNIT
(C) THA 		8-98064-201-2 01 1 0710-0808 ● ●
606 BRACKET; CONT UNIT
(C) THA 		8-98113-306-0 01 1 0809- ● ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0411-0606 ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0607-0708 ● ●
606 BRACKET; CONT UNIT
(D) THA 		8-98064-202-0 01 1 0709-0709 ●
606 BRACKET; CONT UNIT
(D) THA 		8-98064-202-0 01 1 0710- ● ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-98126-953-0 01 1 0810-0901 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-98135-352-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-98152-081-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-98170-811-1 01 1 1009- ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98002-454-0 01 1 0411-0412 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98006-353-0 01 1 0501-0603 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98029-983-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98017-335-8 01 1 0607-0704 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98079-705-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98057-395-3 01 1 0709-0808 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98126-951-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98135-350-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98152-079-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98170-809-1 01 1 1009- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-98002-453-0 01 1 0411-0412 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-98006-351-0 01 1 0501-0603 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-98029-982-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (A) THA 		8-98017-340-8 01 1 0610-0704 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (A) THA 		8-98079-710-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (B) THA 		8-98057-401-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (B) THA 		8-98126-957-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (B) THA 		8-98135-357-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (B) THA 		8-98152-085-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> (B) THA 		8-98160-139-2 01 1 1009- ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98017-339-8 01 1 0610-0704 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98079-709-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98057-399-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98126-955-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98135-354-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98152-083-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98160-137-2 01 1 1009- ●
748 BOLT; CONT UNIT
(A) M6X20 FLANGE THA 		0-28650-620-0 03 1 0411-0606 ●
748 BOLT; CONT UNIT
(A) M6X20 FLANGE THA 		0-28650-620-0 03 1 0607- ● ●
748 BOLT; CONT UNIT
(B) M6X25 HEX SOCKET THA 		0-58310-625-0 04 1 0411-0601 ●
748 BOLT; CONT UNIT
(B) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0602-0609 ●
748 BOLT; CONT UNIT
(B) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0610-0708 ● ●
748 BOLT; CONT UNIT
(C) M6X16 FLANGE THA 		0-28650-616-0 03 1 0709-0709 ●
748 BOLT; CONT UNIT
(C) M6X16 FLANGE THA 		0-28650-616-0 03 1 0710- ● ●

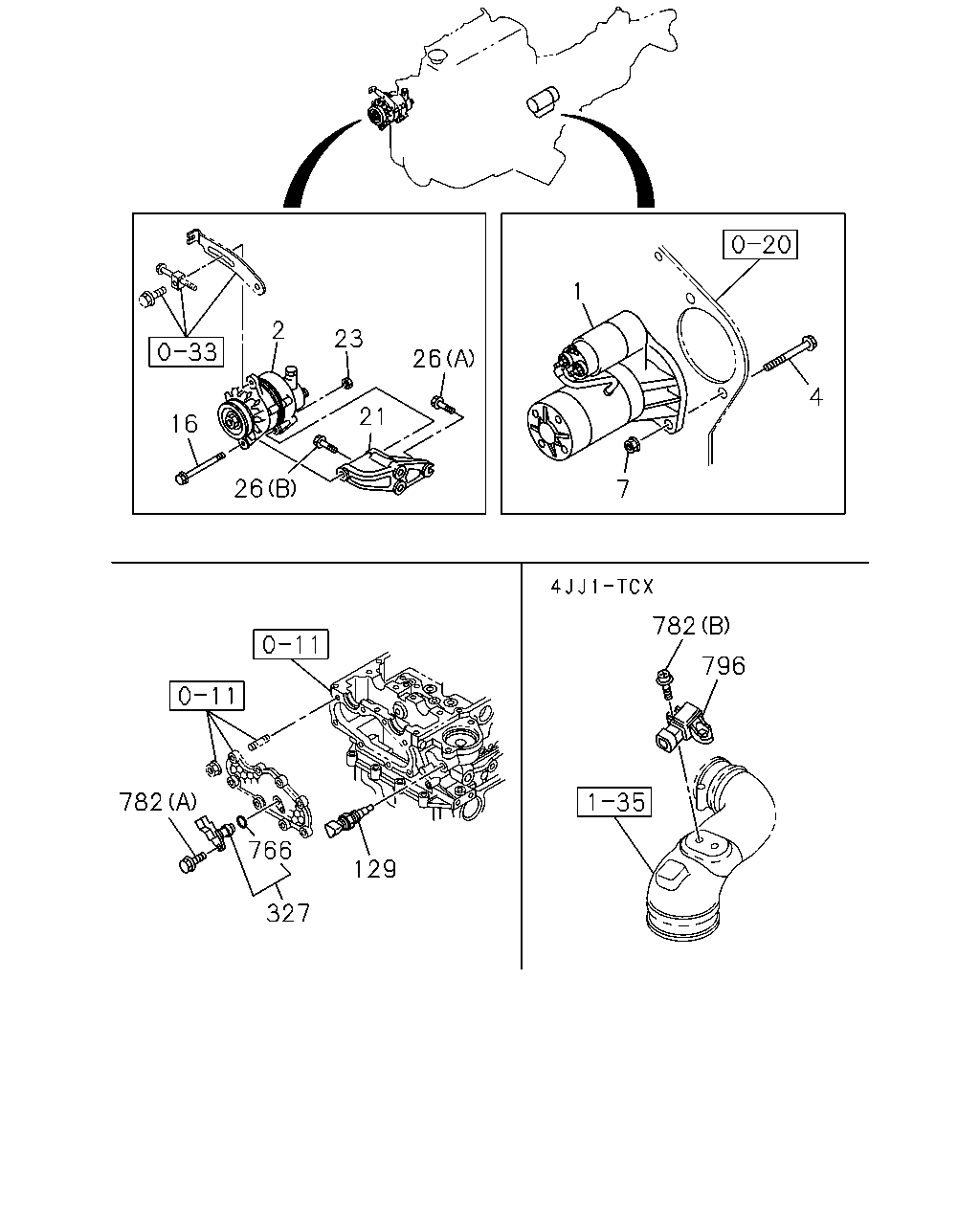

çizim 72926
1 2 23 26 4 21 16 26 7 782 796 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-97357-756-1 01 1 0411-0511 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 0512-0606 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> 12V 2.3KW THA 		8-98028-199-0 01 1 0607-0609 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 0610-0708 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 0709-0709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 0710- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A THA 		8-97369-714-0 01 1 0411-0606 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> 12V 110A THA 		8-98006-085-0 01 1 0607-0609 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 110A THA 		8-98006-085-0 01 1 0610-0708 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 110A THA 		8-98006-085-0 01 1 0709-0709 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 110A THA 		8-98006-085-0 01 1 0710- ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0411-0606 ●
4 BOLT; STARTER
M/T MUA 5 SPEED 5H<MWQ> M12X60 THA 		8-97161-846-0 02 1 0607-0609 ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0610-0708 ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0709-0709 ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0710- ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0411-0606 ●
7 NUT; STARTER
M/T MUA 5 SPEED 5H<MWQ> M12 FLANGE THA 		0-91180-112-0 02 1 0607-0609 ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0610-0708 ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0709-0709 ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0710- ● ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-0 01 1 0411-0606 ●
16 BOLT; GEN
M/T MUA 5 SPEED 5H<MWQ> M10X125 FLANGE THA 		8-97226-470-0 01 1 0607-0609 ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0610-0708 ● ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0709-0709 ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0710- ● ●
21 BRACKET; GEN
THA 		8-97356-020-1 01 1 0411-0606 ●
21 BRACKET; GEN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97356-020-1 01 1 0607-0609 ●
21 BRACKET; GEN
THA 		8-97356-020-1 01 1 0610-0708 ● ●
21 BRACKET; GEN
THA 		8-97356-020-1 01 1 0709-0709 ●
21 BRACKET; GEN
THA 		8-97356-020-1 01 1 0710- ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0411-0606 ●
23 NUT; GEN
M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 01 1 0607-0609 ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0610-0708 ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0709-0709 ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0710- ● ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0411-0606 ●
26 BOLT; GEN BRKT
M/T MUA 5 SPEED 5H<MWQ> (A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0607-0609 ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0610-0708 ● ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0709-0709 ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0710- ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0411-0606 ●
26 BOLT; GEN BRKT
M/T MUA 5 SPEED 5H<MWQ> (B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0607-0609 ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0610-0708 ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0709-0709 ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0710- ● ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON THA 		8-97170-327-0 01 1 0411-0606 ●
129 SENSOR; GLOW PLUG,THERMO
M/T MUA 5 SPEED 5H<MWQ> NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0607-0609 ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0610-0708 ● ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0709-0709 ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0710- ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0411-0606 ●
327 SENSOR; CAMSHAFT POSITION
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97312-108-1 01 1 0607-0609 ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0610-0708 ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0709-0709 ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0710- ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0411-0606 ●
766 GASKET; SENSOR
M/T MUA 5 SPEED 5H<MWQ> ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0607-0609 ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0610-0708 ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0709-0709 ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0710- ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0411-0606 ●
782 BOLT; SENSOR
M/T MUA 5 SPEED 5H<MWQ> (A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0607-0609 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0610-0708 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0709-0709 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0710- ● ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0610-0708 ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0710- ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 0610-0708 ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 0710- ●
çizim 73330
46 46 424 10 10 424
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 0909- ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0411-0609 ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0610-0708 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0709-0709 ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0710-0908 ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-98146-837-0 01 1 0909- ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0411-0609 ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0610-0708 ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0709-0709 ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0710-0908 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0411-0609 ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0610-0708 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0709-0709 ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0710- ● ●

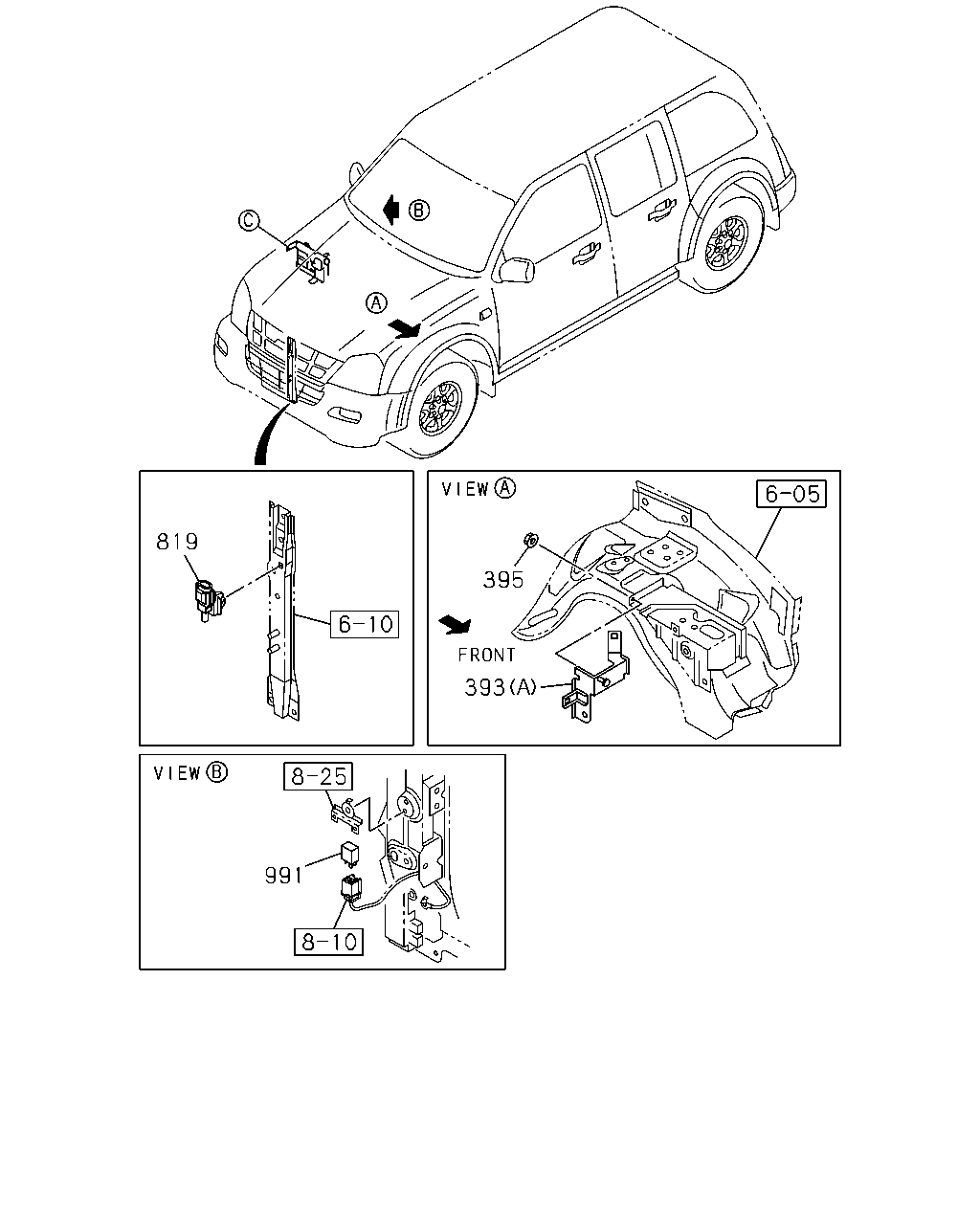

çizim 185381
819 395 393 991
BalonParca AdiParca NoAdetTipApplied Date A B
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0411-0608 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609- ● ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-97378-730-0 01 1 0411-0608 ● ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-98050-884-0 01 1 0609- ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91150-106-0 01 1 0411-0603 ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0604- ● ●
819 SENSOR; MASS AIR FLOW (MAF)
IMA 		8-98008-687-0 01 1 0607- ●
991 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 0709- ● ●

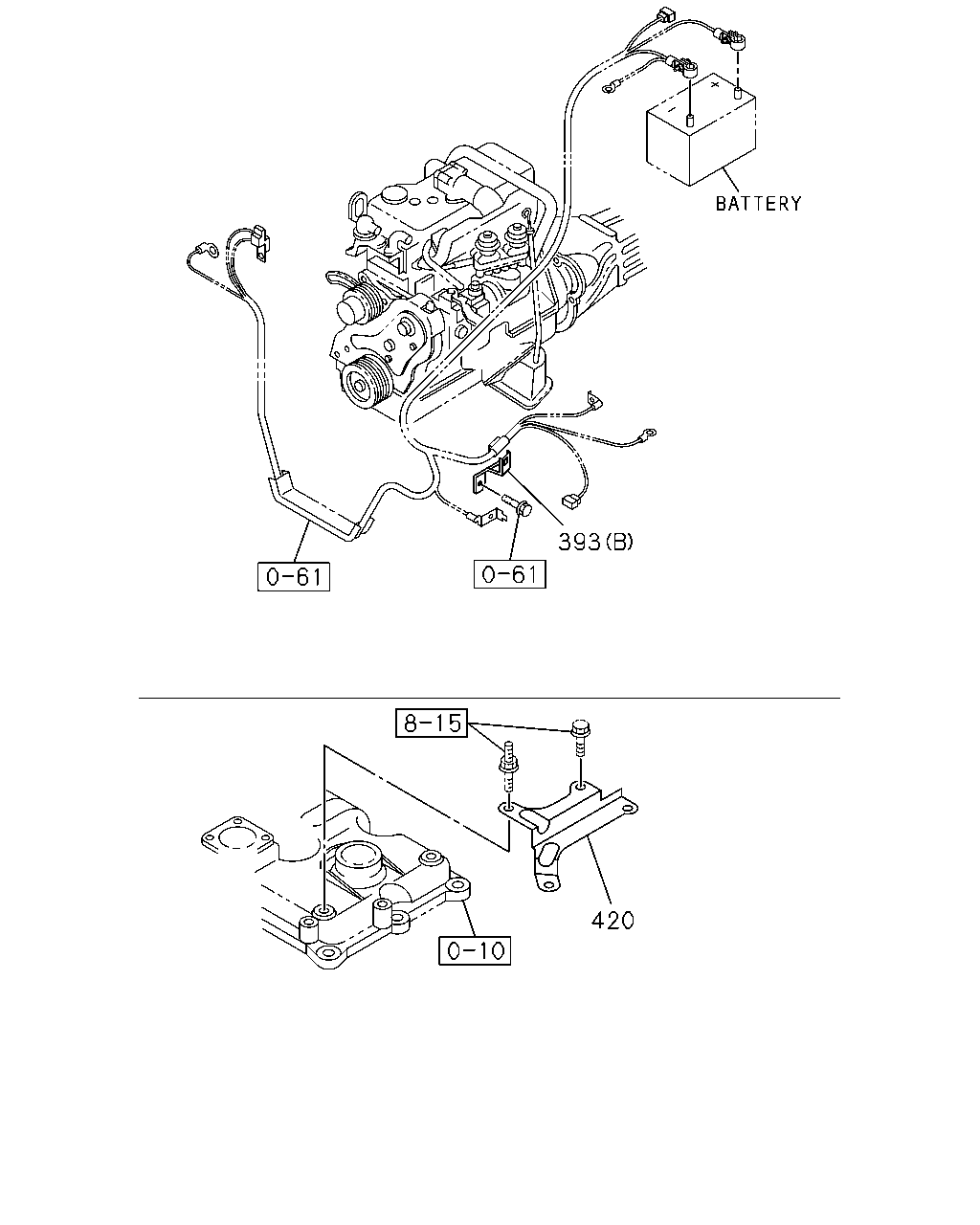

çizim 185382
393 420
BalonParca AdiParca NoAdetTipApplied Date A B
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0411-0608 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609- ● ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-97378-730-0 01 1 0411-0608 ● ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-98050-884-0 01 1 0609- ● ●
420 BRACKET; HARNESS
THA 		8-97370-591-1 01 1 0411-0606 ●
420 BRACKET; HARNESS
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-538-0 01 1 0607-0609 ●
420 BRACKET; HARNESS
THA 		8-98011-538-0 01 1 0610-0708 ● ●
420 BRACKET; HARNESS
THA 		8-98011-538-0 01 1 0709-0709 ●
420 BRACKET; HARNESS
THA 		8-98011-538-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
