◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#73740) — 260 parça

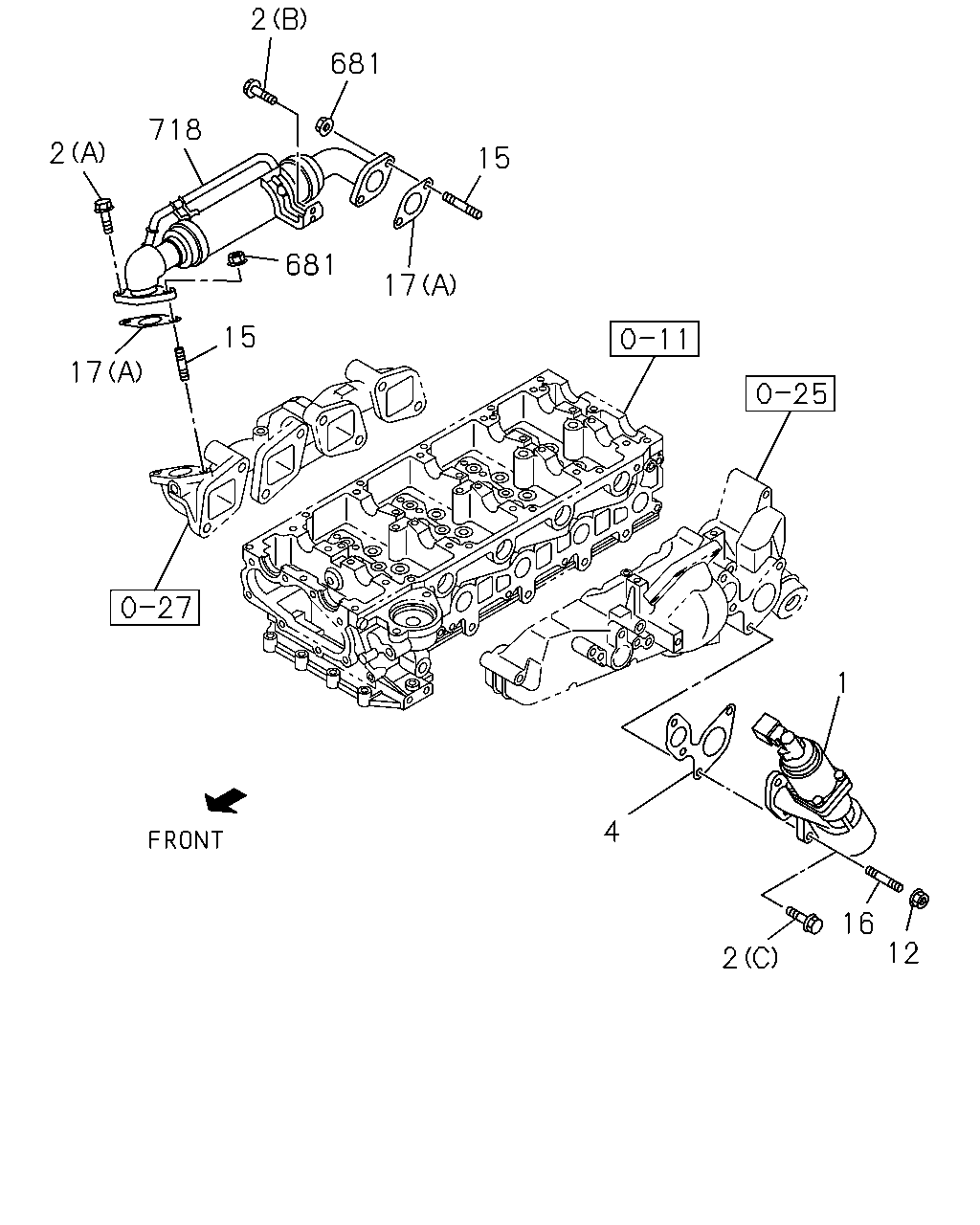

çizim 65707
2 681 718 2 15 681 17 15 17 1 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0411-0503 ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ●
1 VALVE; EGR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-911-0 01 1 0607-0609 ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0610-0708 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0808 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0809-1008 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009- ● ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0411-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0607-0808 ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0809-1008 ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009- ● ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0607-0609 ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0610-0708 ● ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0610-0708 ●
2 BOLT; EGR VLV
(D) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0610-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(D) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0411-0606 ●
4 GASKET; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97356-711-2 01 1 0607-0609 ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0610-0708 ● ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0709-0709 ●
4 GASKET; EGR VLV
THA 		8-97356-711-3 01 1 0710- ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0411-0507 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0606 ●
12 NUT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 02 1 0607-0609 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ●
15 STUD; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 0411-0808 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0809-1008 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009- ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0610-1008 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0411-0507 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0606 ●
16 STUD; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=40 THA 		0-49140-822-0 02 1 0607-0609 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0610-0708 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 02 1 0411-0606 ●
17 GASKET; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97357-684-2 02 1 0607-0609 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0610-0708 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0610-0708 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 02 1 0709-0709 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0710-1008 ●
17 GASKET; EGR PIPE
(A) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009- ● ●
17 GASKET; EGR PIPE
(B) THA 		8-98017-551-0 01 1 0610-0708 ●
17 GASKET; EGR PIPE
(B) THA 		8-98017-551-0 01 1 0710-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0411-0606 ●
681 NUT; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 0607-0808 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0809-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009- ● ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0411-0510 ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0511-0606 ●
718 COOLER; EGR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98031-836-0 01 1 0607-0808 ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0809-0907 ●
718 COOLER; EGR
THA 		8-98150-750-2 01 1 0908- ●
718 COOLER; EGR
THA 		8-98011-524-2 01 1 0610-0708 ●
718 COOLER; EGR
THA 		8-98011-524-3 01 1 0710-0907 ●
718 COOLER; EGR
THA 		8-98150-749-1 01 1 0908-1008 ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1009- ●

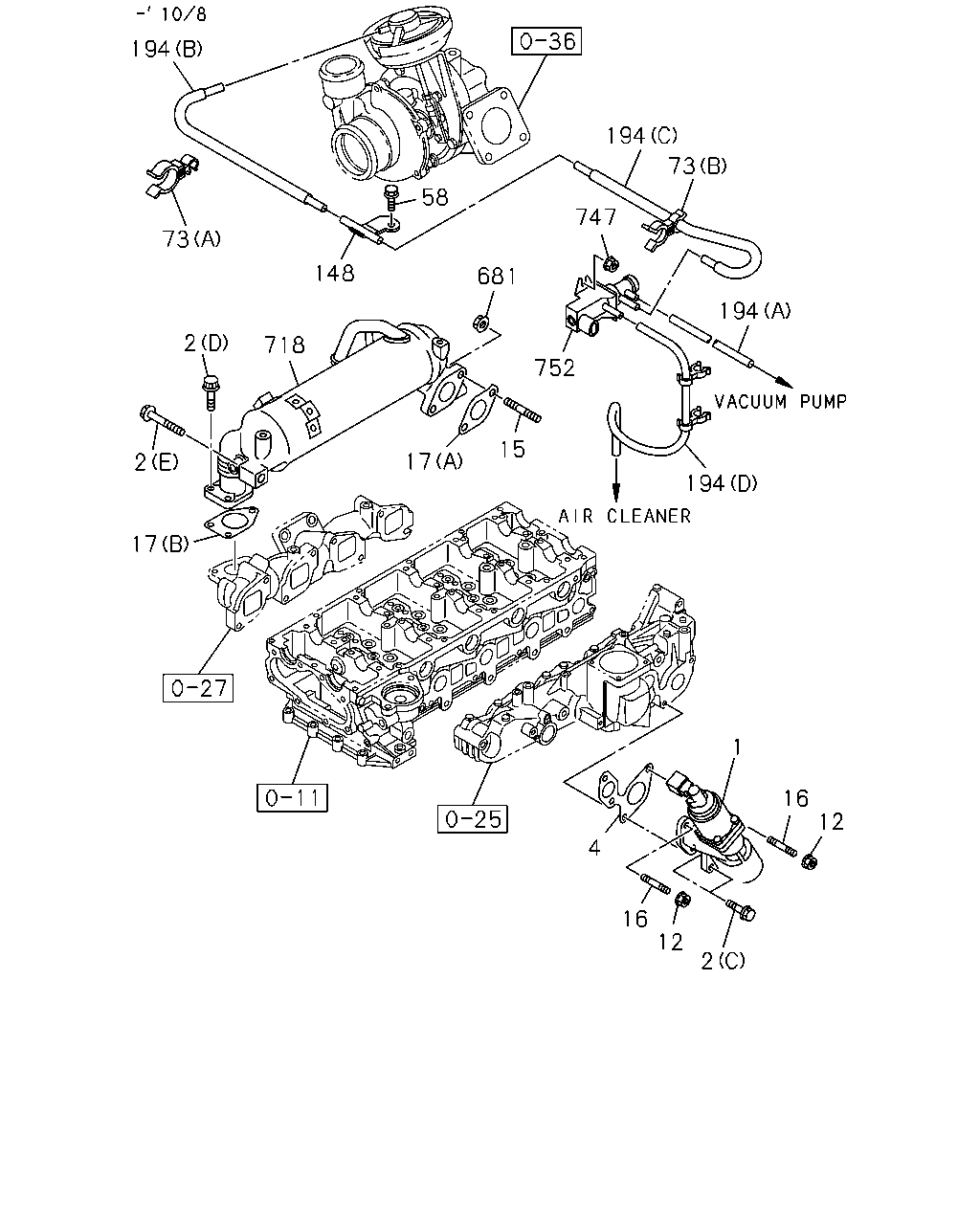

çizim 68289
194 194 73 58 747 73 148 681 194 2 718 752 15 17 2 194 17 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0411-0503 ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ●
1 VALVE; EGR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-911-0 01 1 0607-0609 ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0610-0708 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0808 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0809-1008 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009- ● ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0411-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0607-0808 ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0809-1008 ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009- ● ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0607-0609 ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0610-0708 ● ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0610-0708 ●
2 BOLT; EGR VLV
(D) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0610-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(D) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0411-0606 ●
4 GASKET; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97356-711-2 01 1 0607-0609 ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0610-0708 ● ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0709-0709 ●
4 GASKET; EGR VLV
THA 		8-97356-711-3 01 1 0710- ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0411-0507 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0606 ●
12 NUT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 02 1 0607-0609 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ●
15 STUD; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 0411-0808 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0809-1008 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009- ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0610-1008 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0411-0507 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0606 ●
16 STUD; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=40 THA 		0-49140-822-0 02 1 0607-0609 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0610-0708 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 02 1 0411-0606 ●
17 GASKET; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97357-684-2 02 1 0607-0609 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0610-0708 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0610-0708 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 02 1 0709-0709 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0710-1008 ●
17 GASKET; EGR PIPE
(A) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009- ● ●
17 GASKET; EGR PIPE
(B) THA 		8-98017-551-0 01 1 0610-0708 ●
17 GASKET; EGR PIPE
(B) THA 		8-98017-551-0 01 1 0710-1008 ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0610-0708 ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0610-0708 ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0610-0708 ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0710- ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0710- ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0610-0708 ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0710- ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0610-0708 ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0610-0708 ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0610-0708 ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0610-0708 ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0710- ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0710- ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0710- ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0710- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0411-0606 ●
681 NUT; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 0607-0808 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0809-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009- ● ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0411-0510 ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0511-0606 ●
718 COOLER; EGR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98031-836-0 01 1 0607-0808 ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0809-0907 ●
718 COOLER; EGR
THA 		8-98150-750-2 01 1 0908- ●
718 COOLER; EGR
THA 		8-98011-524-2 01 1 0610-0708 ●
718 COOLER; EGR
THA 		8-98011-524-3 01 1 0710-0907 ●
718 COOLER; EGR
THA 		8-98150-749-1 01 1 0908-1008 ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1009- ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0610-0708 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0610-0708 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0710-0803 ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 0804- ●
çizim 72792
221 221
BalonParca AdiParca NoAdetTipApplied Date A B
221 RELAY; MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 0909- ● ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0411-0606 ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0607-0609 ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0610-0708 ● ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0709-0709 ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0710-0908 ● ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0709-0709 ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0710-0908 ● ●

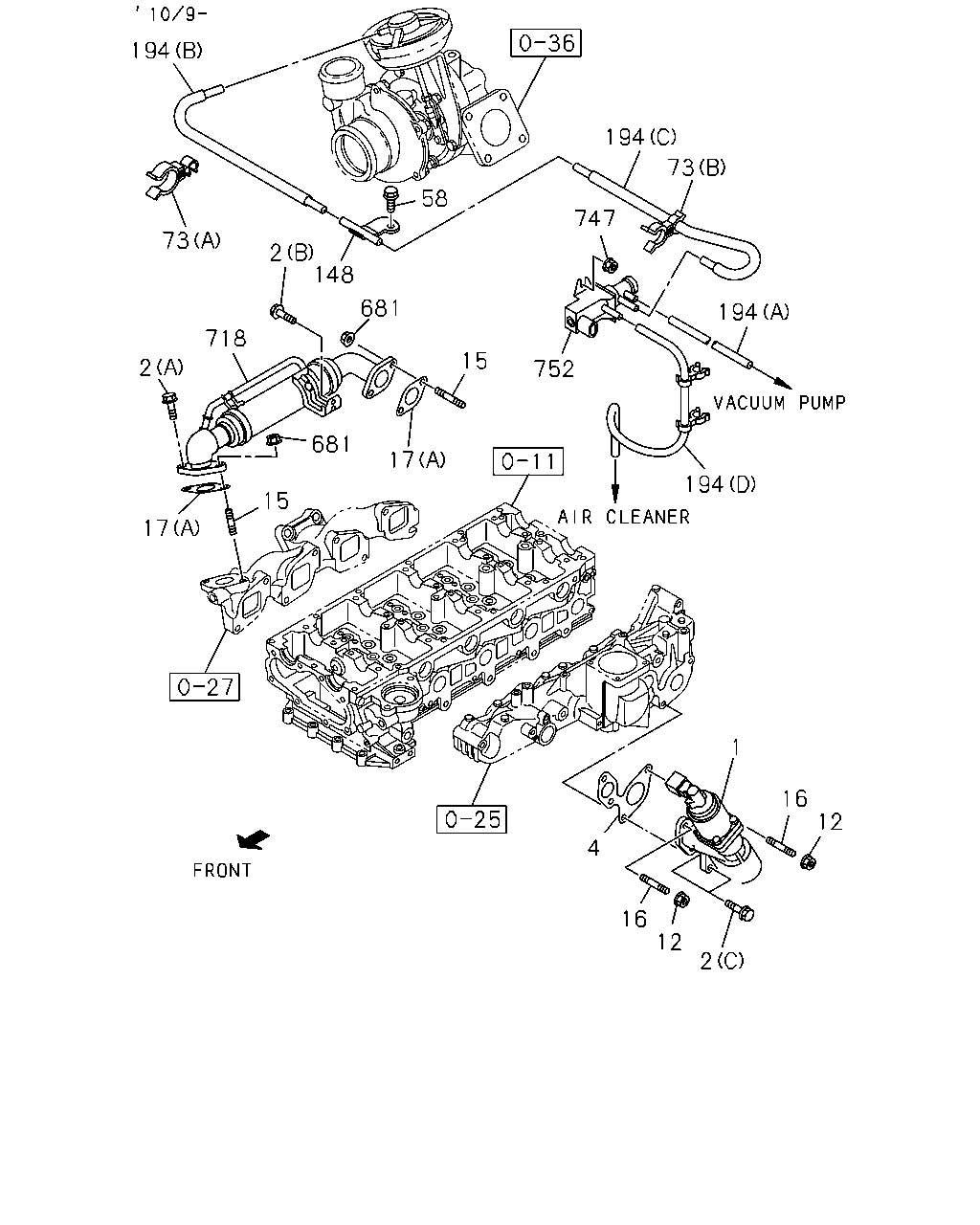

çizim 72822
194 194 73 58 747 73 2 148 681 194 718 15 2 752 681 17 194 15 17 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0411-0503 ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ●
1 VALVE; EGR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-911-0 01 1 0607-0609 ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0610-0708 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0808 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0809-1008 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009- ● ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0411-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0607-0808 ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0809-1008 ●
2 BOLT; EGR VLV
(A) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009- ● ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0606 ●
2 BOLT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> (C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0607-0609 ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0610-0708 ● ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ●
2 BOLT; EGR VLV
(C) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0610-0708 ●
2 BOLT; EGR VLV
(D) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0610-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(D) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0411-0606 ●
4 GASKET; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97356-711-2 01 1 0607-0609 ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0610-0708 ● ●
4 GASKET; EGR VLV
THA 		8-97356-711-2 01 1 0709-0709 ●
4 GASKET; EGR VLV
THA 		8-97356-711-3 01 1 0710- ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0411-0507 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0606 ●
12 NUT; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 02 1 0607-0609 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ●
15 STUD; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 0411-0808 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0809-1008 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009- ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0610-1008 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0411-0507 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0606 ●
16 STUD; EGR VLV
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=40 THA 		0-49140-822-0 02 1 0607-0609 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0610-0708 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 02 1 0411-0606 ●
17 GASKET; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97357-684-2 02 1 0607-0609 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0610-0708 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0610-0708 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 02 1 0709-0709 ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97357-684-2 01 1 0710-1008 ●
17 GASKET; EGR PIPE
(A) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009- ● ●
17 GASKET; EGR PIPE
(B) THA 		8-98017-551-0 01 1 0610-0708 ●
17 GASKET; EGR PIPE
(B) THA 		8-98017-551-0 01 1 0710-1008 ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0610-0708 ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0610-0708 ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0610-0708 ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0710- ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0710- ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0610-0708 ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0710- ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0610-0708 ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0610-0708 ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0610-0708 ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0610-0708 ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0710- ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0710- ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0710- ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0710- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0411-0606 ●
681 NUT; EGR PIPE
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 0607-0808 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0809-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009- ● ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0411-0510 ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0511-0606 ●
718 COOLER; EGR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98031-836-0 01 1 0607-0808 ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0809-0907 ●
718 COOLER; EGR
THA 		8-98150-750-2 01 1 0908- ●
718 COOLER; EGR
THA 		8-98011-524-2 01 1 0610-0708 ●
718 COOLER; EGR
THA 		8-98011-524-3 01 1 0710-0907 ●
718 COOLER; EGR
THA 		8-98150-749-1 01 1 0908-1008 ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1009- ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0610-0708 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0610-0708 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0710-0803 ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
