Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#73739) — 409 parça

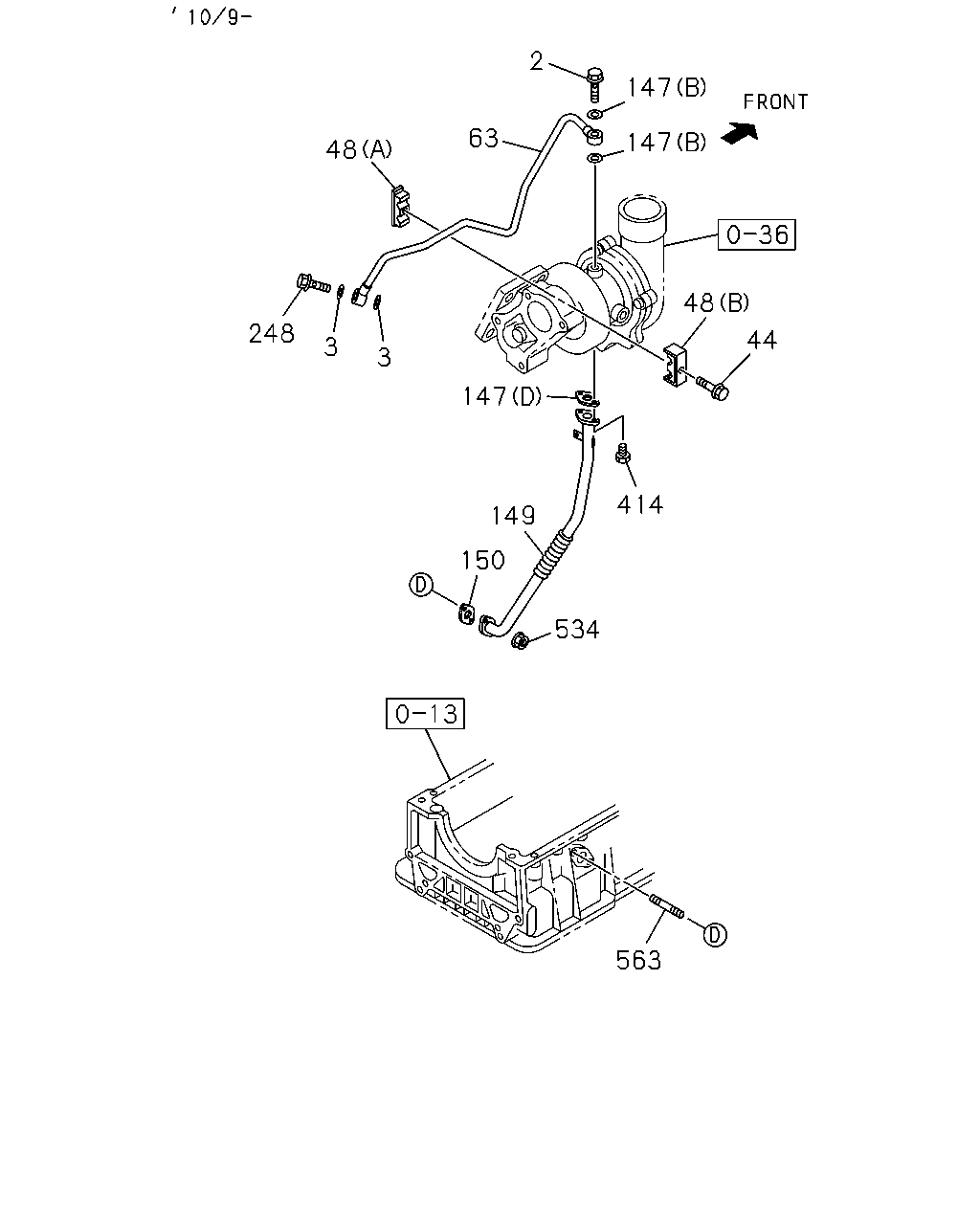

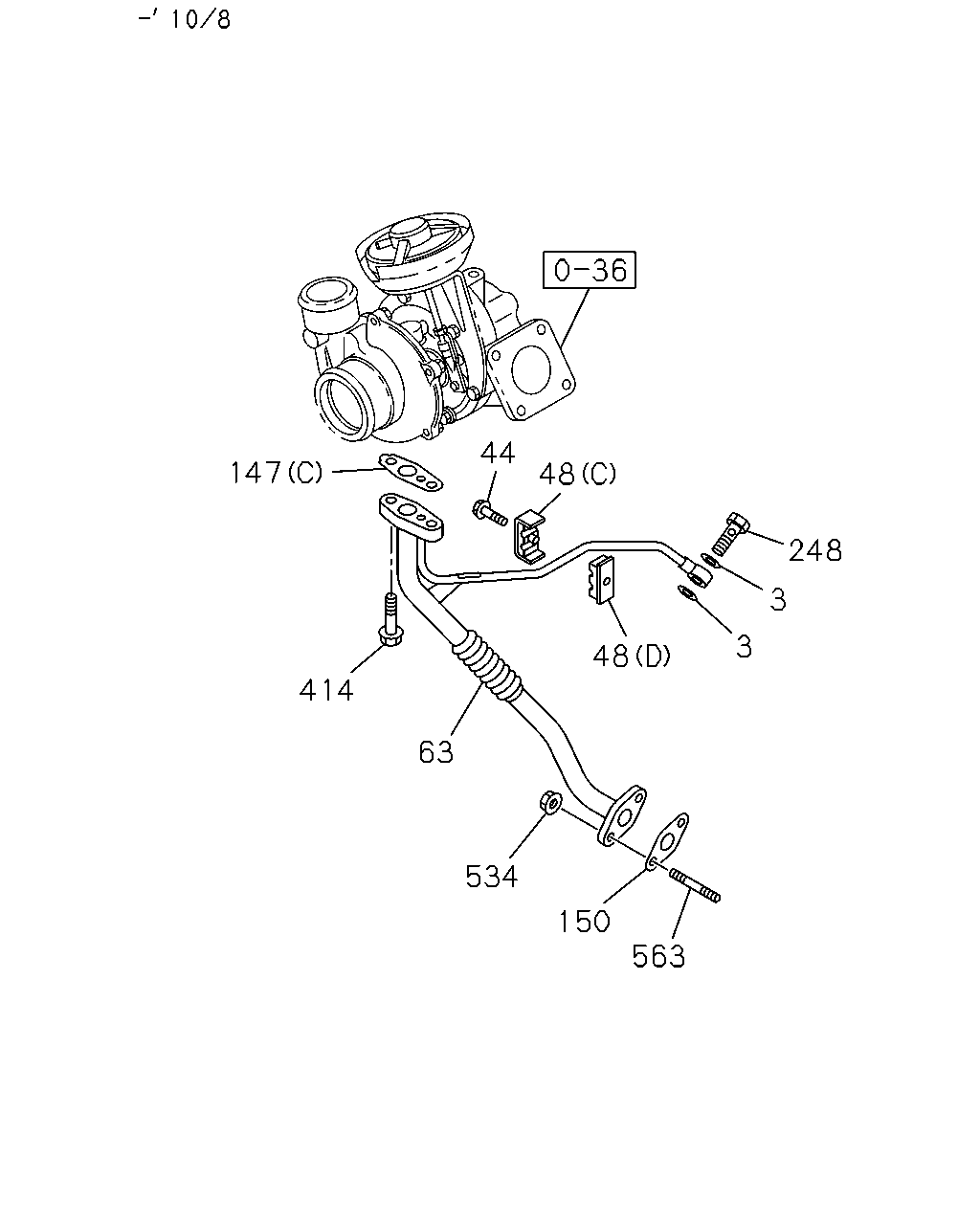

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE M10X25 FLANGE THA	8-98151-063-1	01	1	1009-	●
2	BOLT; EYE,OIL PIPE M10X24 IMA	9-09906-205-1	01	1	0411-0506		●
2	BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●
2	BOLT; EYE,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M10X27 FLANGE IMA	8-94443-535-0	01	1	0607-0808		●
2	BOLT; EYE,OIL PIPE M10X27 FLANGE IMA	8-94443-535-0	01	1	0809-		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0411-0606		●
3	GASKET; EYE BOLT,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0607-0609		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-0708	●	●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0709-0709		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0710-	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0411-0601		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0606		●
44	BOLT; CLIP,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M6X30 FLANGE THA	0-28650-630-0	01	1	0607-0609		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0610-0708	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0709-0709		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0710-	●	●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	0809-1008		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	1009-	●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25 THA	1-09701-228-2	01	1	0411-0411		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-0	01	1	0412-0606		●
48	CLIP; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97389-843-1	01	1	0607-0808		●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25 THA	1-09701-229-1	01	1	0411-0411		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0412-0606		●
48	CLIP; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97389-844-0	01	1	0607-0808		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0809-1008		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	1009-	●	●
48	CLIP; OIL PIPE (C) ID=8 & 9 L=25 IMA	8-97603-522-0	01	1	0610-0707	●
48	CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0708-0708	●
48	CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0710-1008	●
48	CLIP; OIL PIPE (D) ID=8 & 9 L=25 IMA	8-97603-523-0	01	1	0610-0707	●
48	CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0708-0708	●
48	CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0710-1008	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0411-0606		●
63	PIPE; OIL,TURBOCHARGER FEED M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-899-0	01	1	0607-0808		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0809-		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-0708	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0710-1008	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1009-	●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0411-0606		●
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97354-056-0	01	1	0607-0808		●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0809-		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0411-0606		●
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0607-0808		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0809-1008		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE). THA	9-09571-410-0	02	1	1009-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-0708	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0710-1008	●
147	GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1009-	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-98156-381-0	01	1	1009-	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0411-0606		●
149	PIPE; OIL RETURN,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-900-0	01	1	0607-0808		●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0809-		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0411-0606		●
150	GASKET; OIL PIPE TO C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-587-0	01	1	0607-0609		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-0708	●	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0709-0709		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0710-1008	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1009-	●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0411-0506		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M/T MUA 5 SPEED 5H<MWQ> M10X24 THA	8-97944-505-1	01	1	0607-0808		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-1	01	1	0809-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X22 IMA	1-09675-028-0	01	1	0610-0708	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X22 IMA	1-09675-028-0	01	1	0710-	●
414	BOLT; OIL PIPE M6X16 FLANGE THA	0-28050-616-0	02	1	1202-	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0411-0606		●
414	BOLT; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M6X20 FLANGE THA	0-28650-620-0	02	1	0607-0609		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0610-0708	●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0709-0709		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0710-1201	●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	1202-		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0411-0606		●
534	NUT; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	02	1	0607-0609		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0610-0708	●	●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0709-0709		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0710-	●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0411-0606		●
563	STUD; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8X20 L=32 THA	0-41010-820-0	02	1	0607-0609		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0610-0708	●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0709-0709		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0710-	●	●

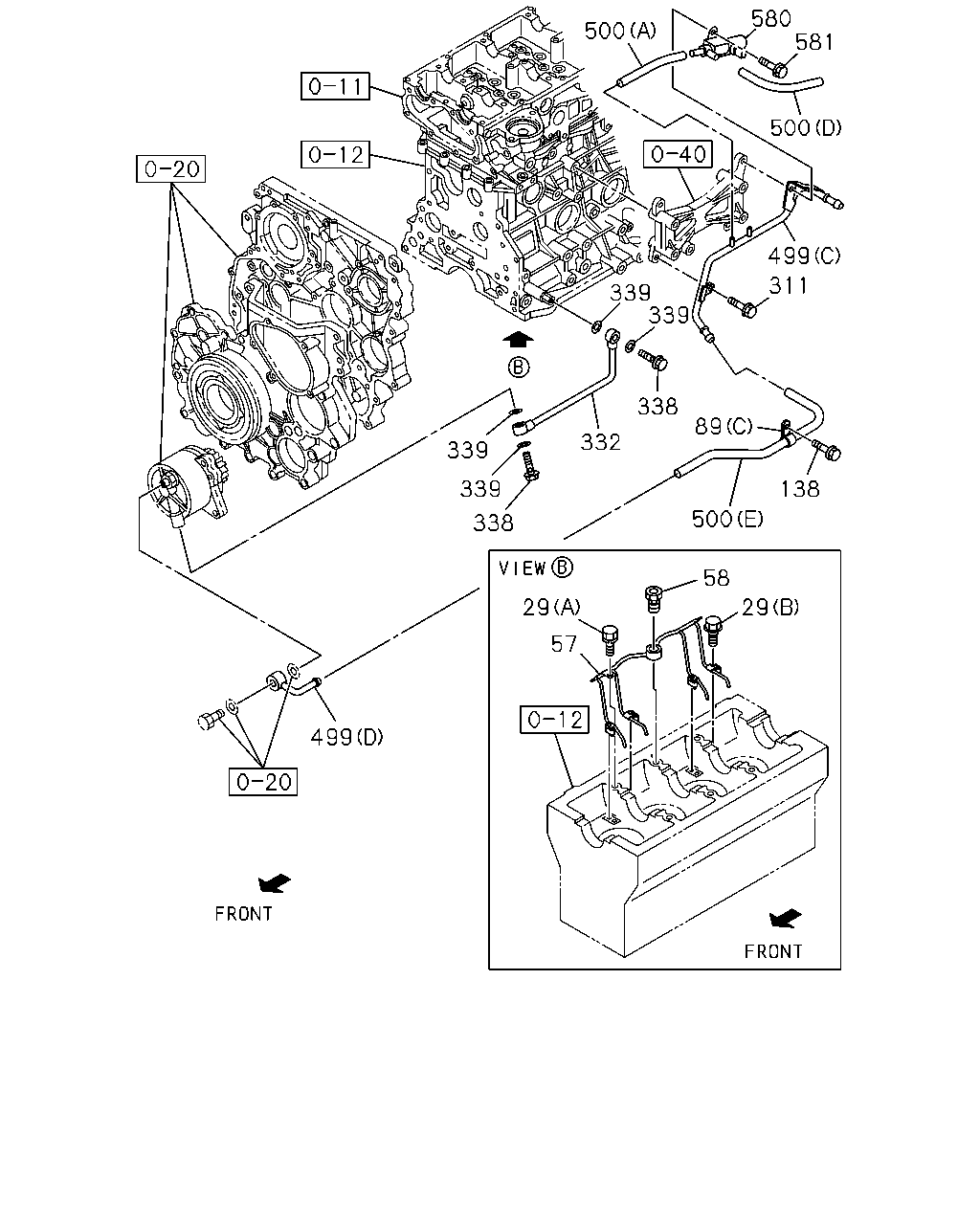

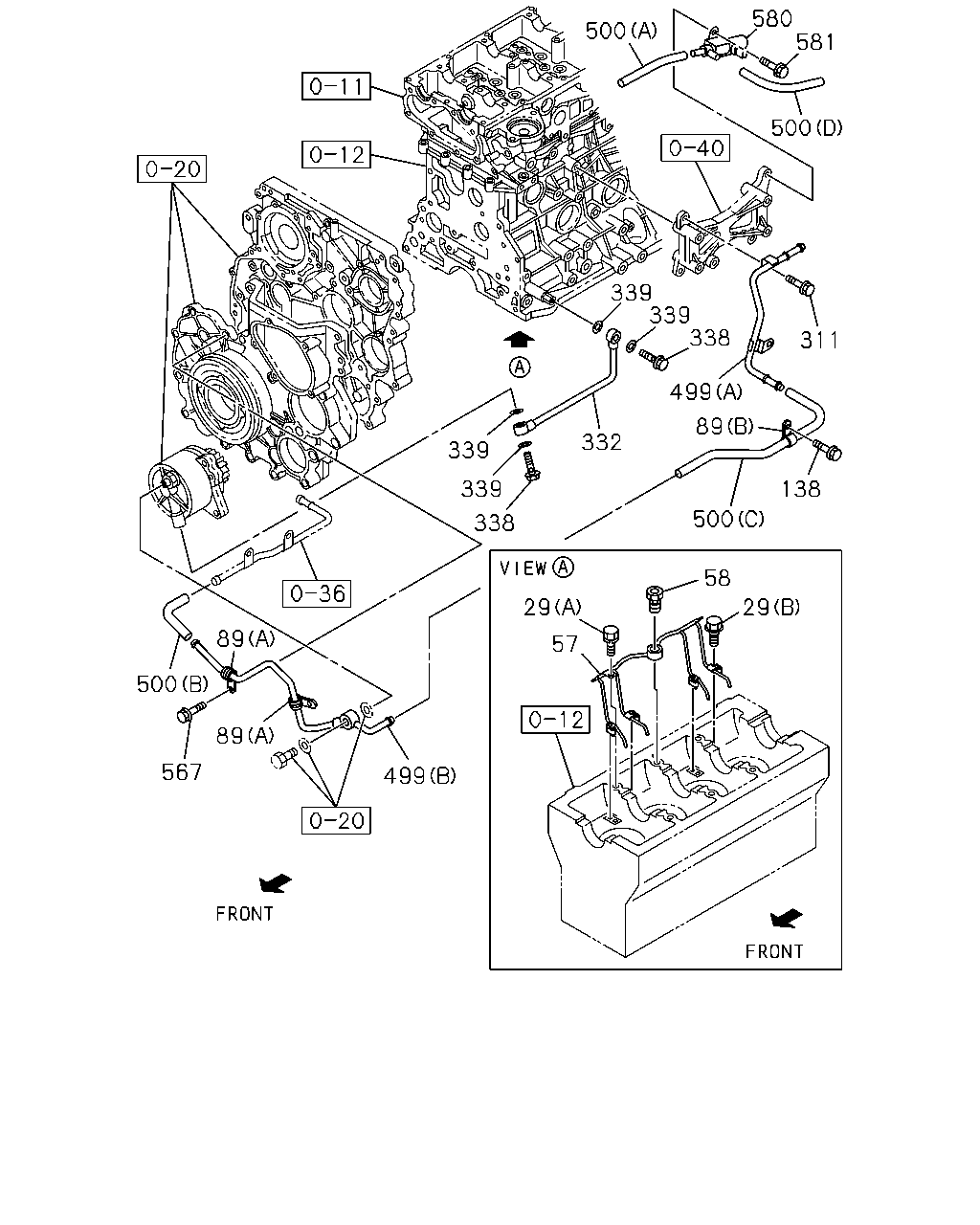

500 580 581 500 339 339 338 311 499 89 138 500 58 29 29 57 499 89 500 567 89 339 339 338 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0411-0606		●
29	BOLT; OIL PIPE,OIL JET M/T MUA 5 SPEED 5H<MWQ> (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0607-0609		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0610-0708	●	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0709-0709		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0710-	●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-0	04	1	0411-0606		●
29	BOLT; OIL PIPE,OIL JET M/T MUA 5 SPEED 5H<MWQ> (B) M6X20 FLANGE THA	8-97380-673-0	04	1	0607-0609		●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-1	04	1	0610-0708	●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-1	04	1	0709-0709		●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-1	04	1	0710-	●	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0411-0606		●
57	PIPE; OIL,OIL JET M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-132-2	01	1	0607-0609		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0610-0708	●	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0709-0709		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0710-	●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0411-0606		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING M/T MUA 5 SPEED 5H<MWQ> THA	8-97379-464-0	01	1	0607-0609		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0610-0708	●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0709-0709		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0710-	●	●
89	CLIP; VAC HOSE (A) ID=12 L=20 IMA	1-09700-911-1	02	1	0411-0606		●
89	CLIP; VAC HOSE M/T MUA 5 SPEED 5H<MWQ> (C) ID=16 L=20 THA	0-95235-536-0	01	1	0607-0609		●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0610-0708	●	●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0709-0709		●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0710-	●	●
89	CLIP; VAC HOSE (B) THA	9-09520-835-0	01	1	0411-0606		●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606		●
138	BOLT; CLIP FIX M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA	0-28050-816-0	01	1	0607-0609		●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708	●	●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0709-0709		●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0710-	●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0411-0606		●
311	BOLT; PIPE FIX M/T MUA 5 SPEED 5H<MWQ> M6X12 FLANGE THA	0-28050-612-0	01	1	0607-0609		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0610-0708	●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0709-0709		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0710-	●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0411-0606		●
332	PIPE; OIL,C/BL TO VAC PUMP M/T MUA 5 SPEED 5H<MWQ> THA	8-98038-929-0	01	1	0607-0609		●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0610-0708	●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0709-0709		●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0710-	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0411-0606		●
338	BOLT; JOINT,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0607-0609		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0610-0708	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0709-0709		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0710-	●	●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0411-0606		●
339	GASKET; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0607-0609		●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0610-0708	●	●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0709-0709		●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0710-	●	●
499	PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0411-0606		●
499	PIPE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (D) THA	8-98011-527-1	01	1	0607-0609		●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0610-0708	●	●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0709-0709		●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0710-	●	●
499	PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0411-0606		●
499	PIPE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-98013-802-1	01	1	0607-0808		●
499	PIPE; VACUUM (C) THA	8-98013-802-1	01	1	0809-		●
499	PIPE; VACUUM (C) THA	8-98011-526-1	01	1	0610-0708	●
499	PIPE; VACUUM (C) THA	8-98011-526-1	01	1	0710-	●
500	HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0411-0606		●
500	HOSE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (A) THA	0-04420-110-0	01	1	0607-0609		●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0610-0708	●	●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0709-0709		●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0710-	●	●
500	HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0411-0606		●
500	HOSE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (E) THA	0-08508-230-0	01	1	0607-0609		●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0610-0708	●	●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0709-0709		●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0710-	●	●
500	HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0411-0606		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0411-0606		●
500	HOSE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (D) THA	8-97369-589-0	01	1	0607-0609		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0610-0708	●	●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0709-0709		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0710-	●	●
567	CLIP; PIPE M6X16 FLANGE THA	0-28650-616-0	02	1	0411-0606		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0411-0606		●
580	VALVE; VAC SW M/T MUA 5 SPEED 5H<MWQ> IMA	8-97352-145-0	01	1	0607-0609		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0610-0708	●	●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0709-0709		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0710-	●	●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606		●
581	BOLT; VSV M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA	0-28050-816-0	01	1	0607-0609		●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708	●	●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0709-0709		●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0710-	●	●

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE M10X25 FLANGE THA	8-98151-063-1	01	1	1009-	●
2	BOLT; EYE,OIL PIPE M10X24 IMA	9-09906-205-1	01	1	0411-0506		●
2	BOLT; EYE,OIL PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●
2	BOLT; EYE,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M10X27 FLANGE IMA	8-94443-535-0	01	1	0607-0808		●
2	BOLT; EYE,OIL PIPE M10X27 FLANGE IMA	8-94443-535-0	01	1	0809-		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0411-0606		●
3	GASKET; EYE BOLT,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0607-0609		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-0708	●	●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0709-0709		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0710-	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0411-0601		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0606		●
44	BOLT; CLIP,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M6X30 FLANGE THA	0-28650-630-0	01	1	0607-0609		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0610-0708	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0709-0709		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0710-	●	●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	0809-1008		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	1009-	●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25 THA	1-09701-228-2	01	1	0411-0411		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-0	01	1	0412-0606		●
48	CLIP; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97389-843-1	01	1	0607-0808		●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25 THA	1-09701-229-1	01	1	0411-0411		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0412-0606		●
48	CLIP; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97389-844-0	01	1	0607-0808		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0809-1008		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	1009-	●	●
48	CLIP; OIL PIPE (C) ID=8 & 9 L=25 IMA	8-97603-522-0	01	1	0610-0707	●
48	CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0708-0708	●
48	CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0710-1008	●
48	CLIP; OIL PIPE (D) ID=8 & 9 L=25 IMA	8-97603-523-0	01	1	0610-0707	●
48	CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0708-0708	●
48	CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0710-1008	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0411-0606		●
63	PIPE; OIL,TURBOCHARGER FEED M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-899-0	01	1	0607-0808		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0809-		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-0708	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0710-1008	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1009-	●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0411-0606		●
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97354-056-0	01	1	0607-0808		●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0809-		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0411-0606		●
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0607-0808		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0809-1008		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE). THA	9-09571-410-0	02	1	1009-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-0708	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0710-1008	●
147	GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1009-	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-98156-381-0	01	1	1009-	●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-97355-431-4	01	1	0411-0606		●
149	PIPE; OIL RETURN,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-900-0	01	1	0607-0808		●
149	PIPE; OIL RETURN,TURBOCHARGER THA	8-98011-900-0	01	1	0809-		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0411-0606		●
150	GASKET; OIL PIPE TO C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-587-0	01	1	0607-0609		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-0708	●	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0709-0709		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0710-1008	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1009-	●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0411-0506		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M/T MUA 5 SPEED 5H<MWQ> M10X24 THA	8-97944-505-1	01	1	0607-0808		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-1	01	1	0809-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X22 IMA	1-09675-028-0	01	1	0610-0708	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X22 IMA	1-09675-028-0	01	1	0710-	●
414	BOLT; OIL PIPE M6X16 FLANGE THA	0-28050-616-0	02	1	1202-	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0411-0606		●
414	BOLT; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M6X20 FLANGE THA	0-28650-620-0	02	1	0607-0609		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0610-0708	●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0709-0709		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0710-1201	●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	1202-		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0411-0606		●
534	NUT; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	02	1	0607-0609		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0610-0708	●	●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0709-0709		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0710-	●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0411-0606		●
563	STUD; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8X20 L=32 THA	0-41010-820-0	02	1	0607-0609		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0610-0708	●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0709-0709		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0710-	●	●

500 580 581 500 499 311 138 29 58 500 89 338 332 57 29 338 339 339 499 339 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0411-0606		●
29	BOLT; OIL PIPE,OIL JET M/T MUA 5 SPEED 5H<MWQ> (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0607-0609		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0610-0708	●	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0709-0709		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0710-	●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-0	04	1	0411-0606		●
29	BOLT; OIL PIPE,OIL JET M/T MUA 5 SPEED 5H<MWQ> (B) M6X20 FLANGE THA	8-97380-673-0	04	1	0607-0609		●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-1	04	1	0610-0708	●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-1	04	1	0709-0709		●
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE THA	8-97380-673-1	04	1	0710-	●	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0411-0606		●
57	PIPE; OIL,OIL JET M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-132-2	01	1	0607-0609		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0610-0708	●	●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0709-0709		●
57	PIPE; OIL,OIL JET THA	8-97312-132-2	01	1	0710-	●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0411-0606		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING M/T MUA 5 SPEED 5H<MWQ> THA	8-97379-464-0	01	1	0607-0609		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0610-0708	●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0709-0709		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97379-464-0	01	1	0710-	●	●
89	CLIP; VAC HOSE (A) ID=12 L=20 IMA	1-09700-911-1	02	1	0411-0606		●
89	CLIP; VAC HOSE M/T MUA 5 SPEED 5H<MWQ> (C) ID=16 L=20 THA	0-95235-536-0	01	1	0607-0609		●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0610-0708	●	●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0709-0709		●
89	CLIP; VAC HOSE (C) ID=16 L=20 THA	0-95235-536-0	01	1	0710-	●	●
89	CLIP; VAC HOSE (B) THA	9-09520-835-0	01	1	0411-0606		●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606		●
138	BOLT; CLIP FIX M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA	0-28050-816-0	01	1	0607-0609		●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708	●	●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0709-0709		●
138	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0710-	●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0411-0606		●
311	BOLT; PIPE FIX M/T MUA 5 SPEED 5H<MWQ> M6X12 FLANGE THA	0-28050-612-0	01	1	0607-0609		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0610-0708	●	●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0709-0709		●
311	BOLT; PIPE FIX M6X12 FLANGE THA	0-28050-612-0	01	1	0710-	●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97312-302-1	01	1	0411-0606		●
332	PIPE; OIL,C/BL TO VAC PUMP M/T MUA 5 SPEED 5H<MWQ> THA	8-98038-929-0	01	1	0607-0609		●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0610-0708	●	●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0709-0709		●
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-98038-929-0	01	1	0710-	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0411-0606		●
338	BOLT; JOINT,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8X20 EYE-BOLT THA	8-97910-296-0	02	1	0607-0609		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0610-0708	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0709-0709		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT THA	8-97910-296-1	02	1	0710-	●	●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0411-0606		●
339	GASKET; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0607-0609		●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0610-0708	●	●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0709-0709		●
339	GASKET; OIL PIPE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	0710-	●	●
499	PIPE; VACUUM (B) THA	8-97357-846-2	01	1	0411-0606		●
499	PIPE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (D) THA	8-98011-527-1	01	1	0607-0609		●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0610-0708	●	●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0709-0709		●
499	PIPE; VACUUM (D) THA	8-98011-527-1	01	1	0710-	●	●
499	PIPE; VACUUM (A) THA	8-97369-442-2	01	1	0411-0606		●
499	PIPE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-98013-802-1	01	1	0607-0808		●
499	PIPE; VACUUM (C) THA	8-98013-802-1	01	1	0809-		●
499	PIPE; VACUUM (C) THA	8-98011-526-1	01	1	0610-0708	●
499	PIPE; VACUUM (C) THA	8-98011-526-1	01	1	0710-	●
500	HOSE; VACUUM (A) THA	0-04320-160-0	01	1	0411-0606		●
500	HOSE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (A) THA	0-04420-110-0	01	1	0607-0609		●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0610-0708	●	●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0709-0709		●
500	HOSE; VACUUM (A) THA	0-04420-110-0	01	1	0710-	●	●
500	HOSE; VACUUM (B) THA	8-97358-019-0	01	1	0411-0606		●
500	HOSE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (E) THA	0-08508-230-0	01	1	0607-0609		●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0610-0708	●	●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0709-0709		●
500	HOSE; VACUUM (E) THA	0-08508-230-0	01	1	0710-	●	●
500	HOSE; VACUUM (C) THA	8-97369-587-1	01	1	0411-0606		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0411-0606		●
500	HOSE; VACUUM M/T MUA 5 SPEED 5H<MWQ> (D) THA	8-97369-589-0	01	1	0607-0609		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0610-0708	●	●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0709-0709		●
500	HOSE; VACUUM (D) THA	8-97369-589-0	01	1	0710-	●	●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0411-0606		●
580	VALVE; VAC SW M/T MUA 5 SPEED 5H<MWQ> IMA	8-97352-145-0	01	1	0607-0609		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0610-0708	●	●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0709-0709		●
580	VALVE; VAC SW IMA	8-97352-145-0	01	1	0710-	●	●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606		●
581	BOLT; VSV M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA	0-28050-816-0	01	1	0607-0609		●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708	●	●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0709-0709		●
581	BOLT; VSV M8X16 FLANGE THA	0-28050-816-0	01	1	0710-	●	●

44 147 48 248 3 3 48 414 63 534 150 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0411-0606		●
3	GASKET; EYE BOLT,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0607-0609		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0610-0708	●	●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0709-0709		●
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0710-	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28680-630-0	01	1	0411-0601		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0602-0606		●
44	BOLT; CLIP,OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M6X30 FLANGE THA	0-28650-630-0	01	1	0607-0609		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0610-0708	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0709-0709		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE THA	0-28650-630-0	01	1	0710-	●	●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	0809-1008		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-1	01	1	1009-	●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25 THA	1-09701-228-2	01	1	0411-0411		●
48	CLIP; OIL PIPE (A) THA	8-97389-843-0	01	1	0412-0606		●
48	CLIP; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97389-843-1	01	1	0607-0808		●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25 THA	1-09701-229-1	01	1	0411-0411		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0412-0606		●
48	CLIP; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97389-844-0	01	1	0607-0808		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	0809-1008		●
48	CLIP; OIL PIPE (B) THA	8-97389-844-0	01	1	1009-	●	●
48	CLIP; OIL PIPE (C) ID=8 & 9 L=25 IMA	8-97603-522-0	01	1	0610-0707	●
48	CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0708-0708	●
48	CLIP; OIL PIPE (C) THA	8-97946-175-0	01	1	0710-1008	●
48	CLIP; OIL PIPE (D) ID=8 & 9 L=25 IMA	8-97603-523-0	01	1	0610-0707	●
48	CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0708-0708	●
48	CLIP; OIL PIPE (D) THA	8-97946-176-0	01	1	0710-1008	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-97355-452-1	01	1	0411-0606		●
63	PIPE; OIL,TURBOCHARGER FEED M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-899-0	01	1	0607-0808		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-899-0	01	1	0809-		●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0610-0708	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98011-504-1	01	1	0710-1008	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98156-380-0	01	1	1009-	●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0411-0606		●
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97354-056-0	01	1	0607-0808		●
147	GASKET; OIL PIPE TO TURBOCHARGER (A) THA	8-97354-056-0	01	1	0809-		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0411-0606		●
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0607-0808		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0809-1008		●
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE). THA	9-09571-410-0	02	1	1009-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0610-0708	●
147	GASKET; OIL PIPE TO TURBOCHARGER (C) THA	8-98011-505-1	01	1	0710-1008	●
147	GASKET; OIL PIPE TO TURBOCHARGER (D) ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-017-0	01	1	1009-	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0411-0606		●
150	GASKET; OIL PIPE TO C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-587-0	01	1	0607-0609		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0610-0708	●	●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0709-0709		●
150	GASKET; OIL PIPE TO C/BL THA	8-97920-587-0	01	1	0710-1008	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-98132-018-1	01	1	1009-	●	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 IMA	9-09906-205-1	01	1	0411-0506		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-0	01	1	0507-0606		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M/T MUA 5 SPEED 5H<MWQ> M10X24 THA	8-97944-505-1	01	1	0607-0808		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24 THA	8-97944-505-1	01	1	0809-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X22 IMA	1-09675-028-0	01	1	0610-0708	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X22 IMA	1-09675-028-0	01	1	0710-	●
414	BOLT; OIL PIPE M6X16 FLANGE THA	0-28050-616-0	02	1	1202-	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0411-0606		●
414	BOLT; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M6X20 FLANGE THA	0-28650-620-0	02	1	0607-0609		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0610-0708	●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0709-0709		●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	0710-1201	●	●
414	BOLT; OIL PIPE M6X20 FLANGE THA	0-28650-620-0	02	1	1202-		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0411-0606		●
534	NUT; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	02	1	0607-0609		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0610-0708	●	●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0709-0709		●
534	NUT; OIL PIPE M8 FLANGE THA	0-91180-208-0	02	1	0710-	●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0411-0606		●
563	STUD; OIL PIPE M/T MUA 5 SPEED 5H<MWQ> M8X20 L=32 THA	0-41010-820-0	02	1	0607-0609		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0610-0708	●	●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0709-0709		●
563	STUD; OIL PIPE M8X20 L=32 THA	0-41010-820-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
