◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#73738) — 43 parça

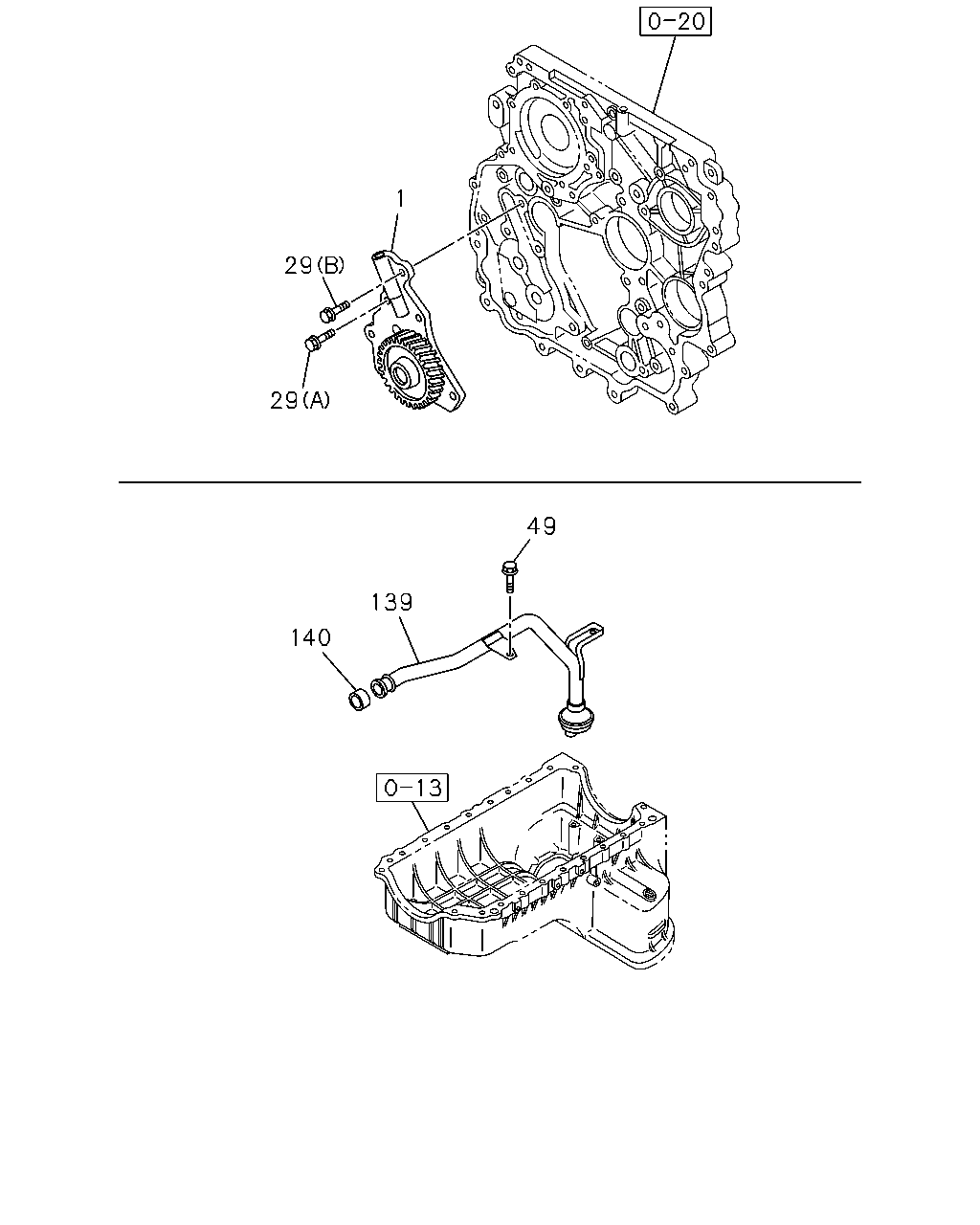

çizim 185373
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
THA 		8-97376-687-2 01 1 0411-0506 ●
1 PUMP ASM; OIL
THA 		8-98013-966-1 01 1 0507-0606 ●
1 PUMP ASM; OIL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-503-3 01 1 0607-0609 ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0610-0708 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0709-0709 ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0710-0905 ● ●
1 PUMP ASM; OIL
THA 		8-98128-134-0 01 1 0906-1303 ● ●
1 PUMP ASM; OIL
THA 		8-98232-624-1 01 1 1304- ● ●
29 BOLT; OIL PUMP
(A) M8X30 FLANGE THA 		0-28050-830-0 04 1 0411-0606 ●
29 BOLT; OIL PUMP
M/T MUA 5 SPEED 5H<MWQ> (A) M8X30 FLANGE THA 		0-28050-830-0 04 1 0607-0609 ●
29 BOLT; OIL PUMP
(A) M8X30 FLANGE THA 		0-28050-830-0 04 1 0610-0708 ● ●
29 BOLT; OIL PUMP
(A) M8X30 FLANGE THA 		0-28050-830-0 04 1 0709-0709 ●
29 BOLT; OIL PUMP
(A) M8X30 FLANGE THA 		0-28050-830-0 04 1 0710- ● ●
29 BOLT; OIL PUMP
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0411-0606 ●
29 BOLT; OIL PUMP
M/T MUA 5 SPEED 5H<MWQ> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0607-0609 ●
29 BOLT; OIL PUMP
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0610-0708 ● ●
29 BOLT; OIL PUMP
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0709-0709 ●
29 BOLT; OIL PUMP
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0710- ● ●
49 BOLT; STRAINER,OIL PUMP
M8X12 FLANGE THA 		0-28050-812-0 02 1 0411-0606 ●
49 BOLT; STRAINER,OIL PUMP
M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 02 1 0607-0609 ●
49 BOLT; STRAINER,OIL PUMP
M8X12 FLANGE THA 		0-28050-812-0 02 1 0610-0708 ● ●
49 BOLT; STRAINER,OIL PUMP
M8X12 FLANGE THA 		0-28050-812-0 02 1 0709-0709 ●
49 BOLT; STRAINER,OIL PUMP
M8X12 FLANGE THA 		0-28050-812-0 02 1 0710-1405 ● ●
49 BOLT; STRAINER,OIL PUMP
M8X16 FLANGE THA 		0-28050-816-0 02 1 1406- ● ●
139 PIPE; OIL STRAINER
4X2<UCB***> THA 		8-97312-134-3 01 1 0411-0508 ●
139 PIPE; OIL STRAINER
4X2<UCB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97312-134-3 01 1 0509-0606 ●
139 PIPE; OIL STRAINER
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-134-3 01 1 0607-0609 ●
139 PIPE; OIL STRAINER
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> THA 		8-97312-134-3 01 1 0610-0708 ● ●
139 PIPE; OIL STRAINER
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-134-3 01 1 0709-0709 ●
139 PIPE; OIL STRAINER
4X2<UCB***> THA 		8-97312-134-3 01 1 0710-0809 ● ●
139 PIPE; OIL STRAINER
4X2<UCB***> THA 		8-98127-247-0 01 1 0810- ● ●
139 PIPE; OIL STRAINER
4X4<UCS***> THA 		8-97354-753-3 01 1 0411-0508 ●
139 PIPE; OIL STRAINER
4X4<UCS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97354-753-3 01 1 0509-0606 ●
139 PIPE; OIL STRAINER
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97354-753-3 01 1 0607-0609 ●
139 PIPE; OIL STRAINER
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97354-753-3 01 1 0610-0708 ● ●
139 PIPE; OIL STRAINER
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97354-753-3 01 1 0709-0709 ●
139 PIPE; OIL STRAINER
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-97354-753-3 01 1 0710-0809 ● ●
139 PIPE; OIL STRAINER
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-98127-248-0 01 1 0810- ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0411-0606 ●
140 GASKET; OIL STRAINER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97356-150-0 01 1 0607-0609 ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0610-0708 ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0709-0709 ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
