0-41 — FUEL FILTER AND BRACKET (#73736) — 167 parça

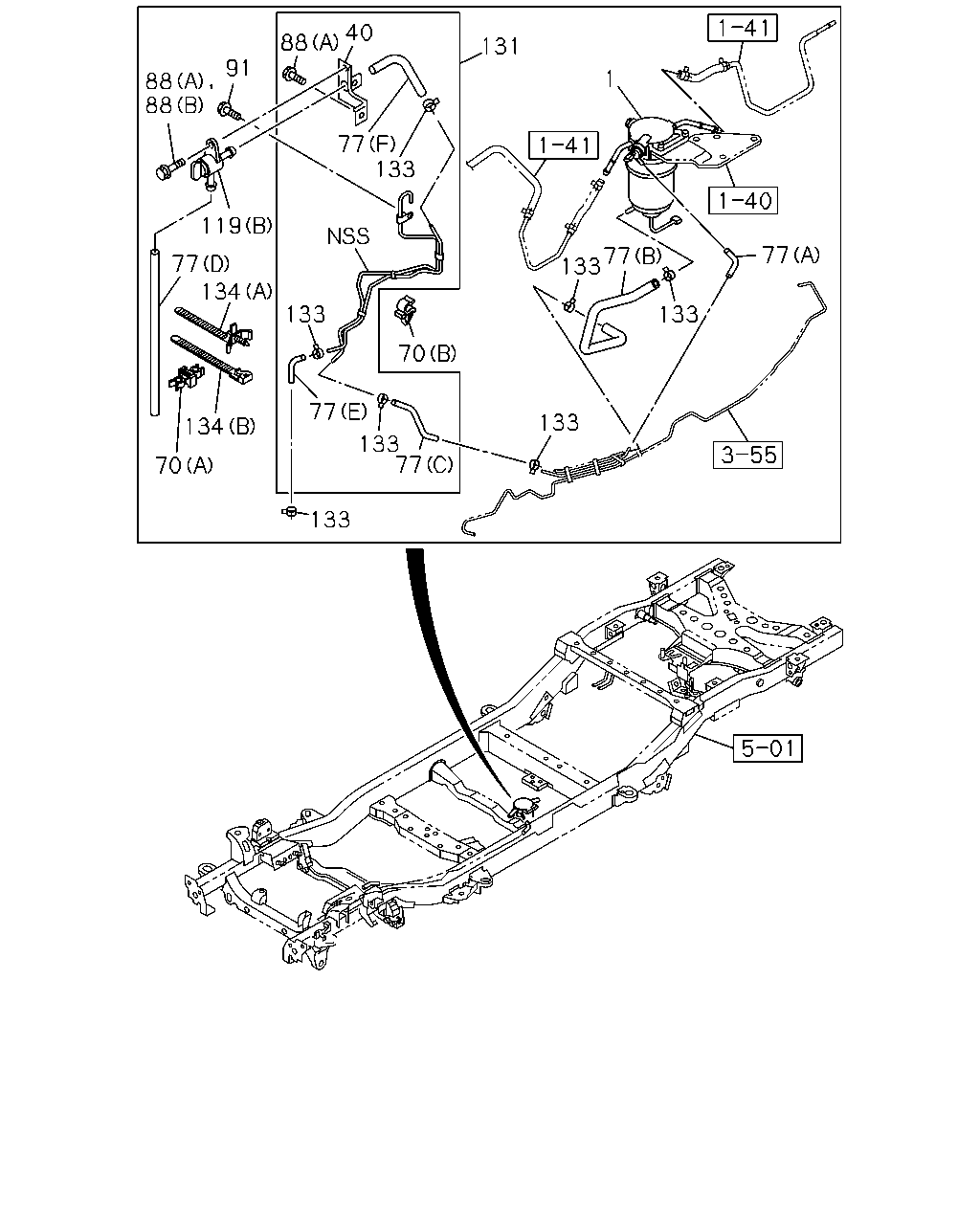

40 88 131 91 1 88 88 77 133 119 77 133 77 77 134 133 133 70 77 133 134 133 77 70 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0411-0606	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0609	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0708	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-	●	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0607-0609	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0610-0708	●	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0709-0709	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0710-	●	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0607-0609	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0610-0708	●	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0709-0709	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0710-	●	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0607-0609	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0610-0708	●	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0709-0709	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0710-	●	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0607-0609	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0610-0708	●	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0709-0709	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0710-1002	●	●
77	HOSE; FUEL FILTER (B) L=249 THA	8-98165-271-0	01	1	1003-	●	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0607-0609	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0610-0708	●	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0709-0709	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0710-1002	●	●
77	HOSE; FUEL FILTER (E) L=120 THA	8-98165-853-0	01	1	1003-	●	●
77	HOSE; FUEL FILTER (B) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0607-0609	●
77	HOSE; FUEL FILTER (B) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0610-0708	●	●
77	HOSE; FUEL FILTER (B) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0709-0709	●
77	HOSE; FUEL FILTER (B) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0710-	●	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0607-0609	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0610-0708	●	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0709-0709	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0710-	●	●
77	HOSE; FUEL FILTER (C) L=249 THA	8-98048-455-0	01	1	0607-0609	●
77	HOSE; FUEL FILTER (C) L=249 THA	8-98048-455-0	01	1	0610-0708	●	●
77	HOSE; FUEL FILTER (C) L=249 THA	8-98048-455-0	01	1	0709-0709	●
77	HOSE; FUEL FILTER (C) L=249 THA	8-98048-455-0	01	1	0710-1002	●	●
77	HOSE; FUEL FILTER (C) L=220 THA	8-98165-854-0	01	1	1003-	●	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0607-0609	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0610-0708	●	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0709-0709	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0710-	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0607-0609	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0610	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0610	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0611	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0610-0611	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0612-0708	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0709-0709	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-	●	●
88	BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0612-0708	●	●
88	BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0709-0709	●
88	BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0710-	●	●
91	BOLT; FUEL FILTER 4X2<UCB***> M6X20 FLANGE THA	0-28650-620-0	01	1	0607-0609	●
91	BOLT; FUEL FILTER 4X2<UCB***> M6X20 FLANGE THA	0-28650-620-0	01	1	0610-0708	●	●
91	BOLT; FUEL FILTER 4X2<UCB***> M6X20 FLANGE THA	0-28650-620-0	01	1	0709-0709	●
91	BOLT; FUEL FILTER 4X2<UCB***> M6X20 FLANGE THA	0-28650-620-0	01	1	0710-	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0411-0606	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0607-0609	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0610-0708	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0709-0709	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0710-	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0607-0609	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0610-0708	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0709-0709	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0710-	●	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0607-0609	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0610-0708	●	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0709-0709	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0710-1002	●	●
131	PIPE; FILTER THA	8-98165-820-0	01	1	1003-	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	06	1	0607-0609	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	02	1	0610-0610	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	02	1	0610-0708	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	02	1	0709-0709	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	02	1	0710-1002	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	05	1	1003-1008	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	02	1	1009-	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0607-0609	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0610-0708	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0709-0709	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0710-1002	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	02	1	1003-1008	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	05	1	1009-	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	04	1	0610-0610	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	04	1	0610-0708	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	04	1	0709-0709	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	04	1	0710-1002	●	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0607-0609	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0610-0708	●	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0709-0709	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0710-	●	●
134	CLIP; FUEL HOSE (B) L=158.7 THA	8-97922-209-0	01	1	0607-0609	●
134	CLIP; FUEL HOSE (B) L=158.7 THA	8-97922-209-0	01	1	0610-0708	●	●
134	CLIP; FUEL HOSE (B) L=158.7 THA	8-97922-209-0	01	1	0709-0709	●
134	CLIP; FUEL HOSE (B) L=158.7 THA	8-97922-209-0	01	1	0710-	●	●

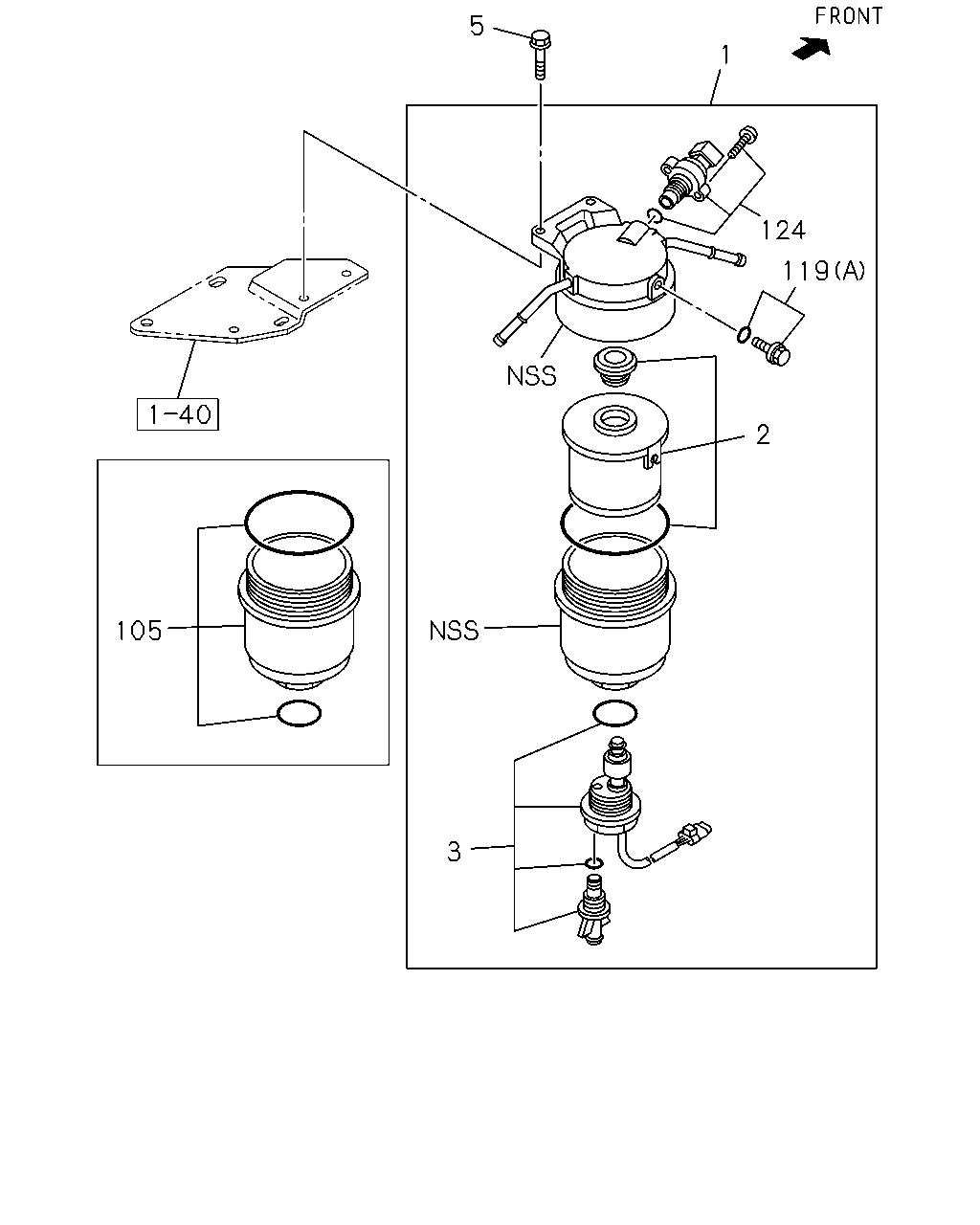

5 105 3 2 119 124 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0411-0606	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0609	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0708	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0411-0606	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0607-0609	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0610-0708	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0709-0709	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0710-0907	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-	●	●
3	SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0411-0606	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0607-0609	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0610-0708	●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0709-0709	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0710-	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0411-0609	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0610-0708	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0709-0709	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0710-	●	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0607-0609	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0610-0708	●	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0709-0709	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0710-	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0411-0606	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0607-0609	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0610-0708	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0709-0709	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0710-	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0607-0609	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0610-0708	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0709-0709	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0710-	●	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0607-0609	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0610-0708	●	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0709-0709	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0710-	●	●

5 3 2 1 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0411-0606	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0609	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0610-0708	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0411-0606	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0607-0609	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0610-0708	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0709-0709	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0710-0907	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-	●	●
3	SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0411-0606	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0607-0609	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0610-0708	●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0709-0709	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0710-	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0411-0609	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0610-0708	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0709-0709	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0710-	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0411-0606	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0607-0609	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0610-0708	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0709-0709	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0710-	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0607-0609	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0610-0708	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0709-0709	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0710-	●	●
