◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#73735) — 430 parça

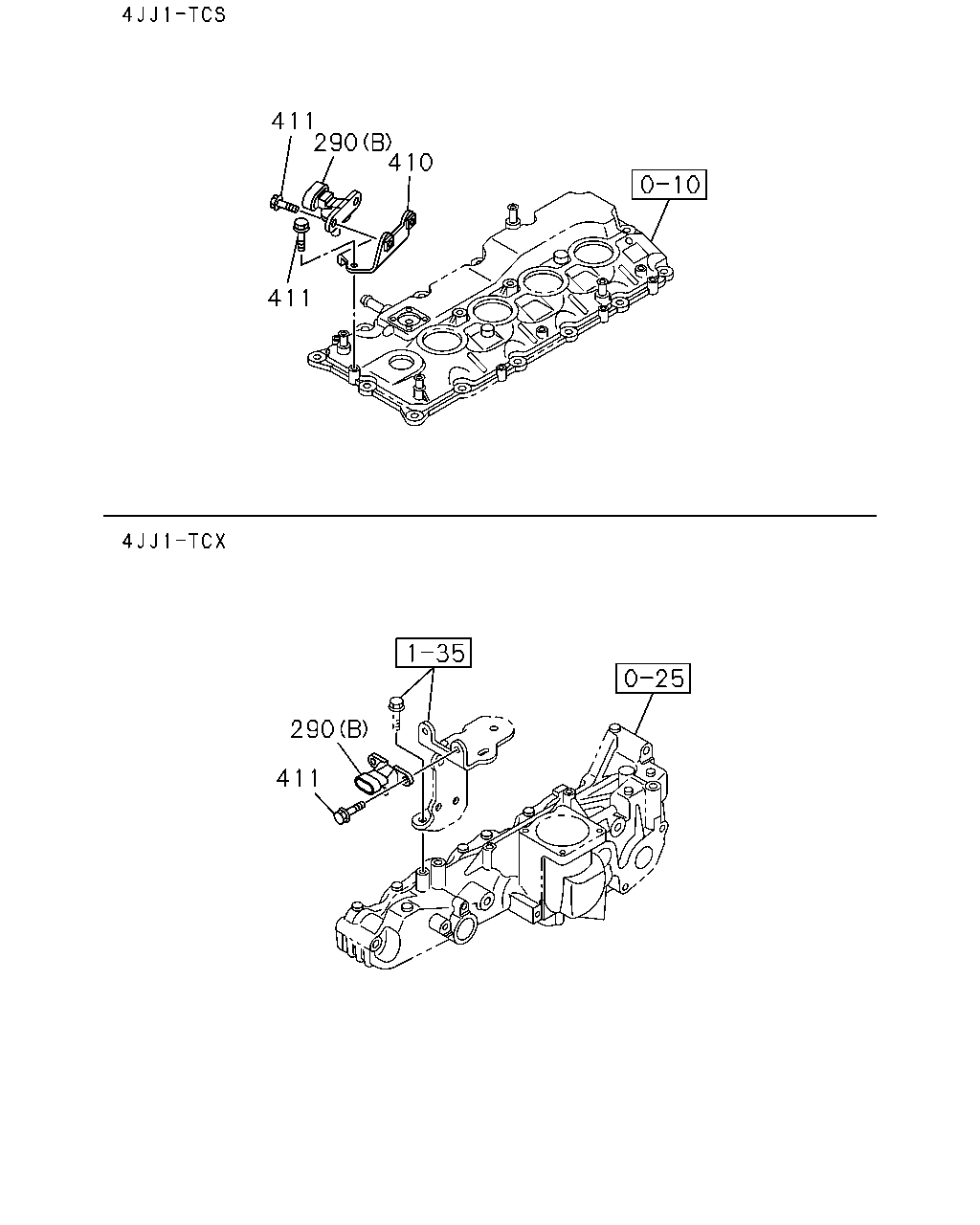

çizim 185371
411 290 410 411 290 411
BalonParca AdiParca NoAdetTipApplied Date A B
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0411-0606 ●
290 SENSOR; PRESS
M/T MUA 5 SPEED 5H<MWQ> (B) IMA 		8-98020-514-0 01 1 0607-0609 ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0610-0708 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0709-0709 ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0710- ● ●
290 SENSOR; PRESS
M/T MUA 5 SPEED 5H<MWQ> (C) IMA 		8-97318-684-0 01 1 0607-0609 ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0610-0708 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0710-1208 ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0411-0606 ●
410 BRACKET; SENSOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-801-1 01 1 0607-0808 ●
410 BRACKET; SENSOR
THA 		8-98013-801-1 01 1 0809- ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0411-0606 ●
411 BOLT; SENSOR
M/T MUA 5 SPEED 5H<MWQ> M6X12 FLANGE THA 		0-28050-612-0 01 1 0607-0808 ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0809- ●
411 BOLT; SENSOR
M/T MUA 5 SPEED 5H<MWQ> M6X20 FLANGE THA 		0-28650-620-0 02 1 0607-0609 ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0610-0708 ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710- ● ●

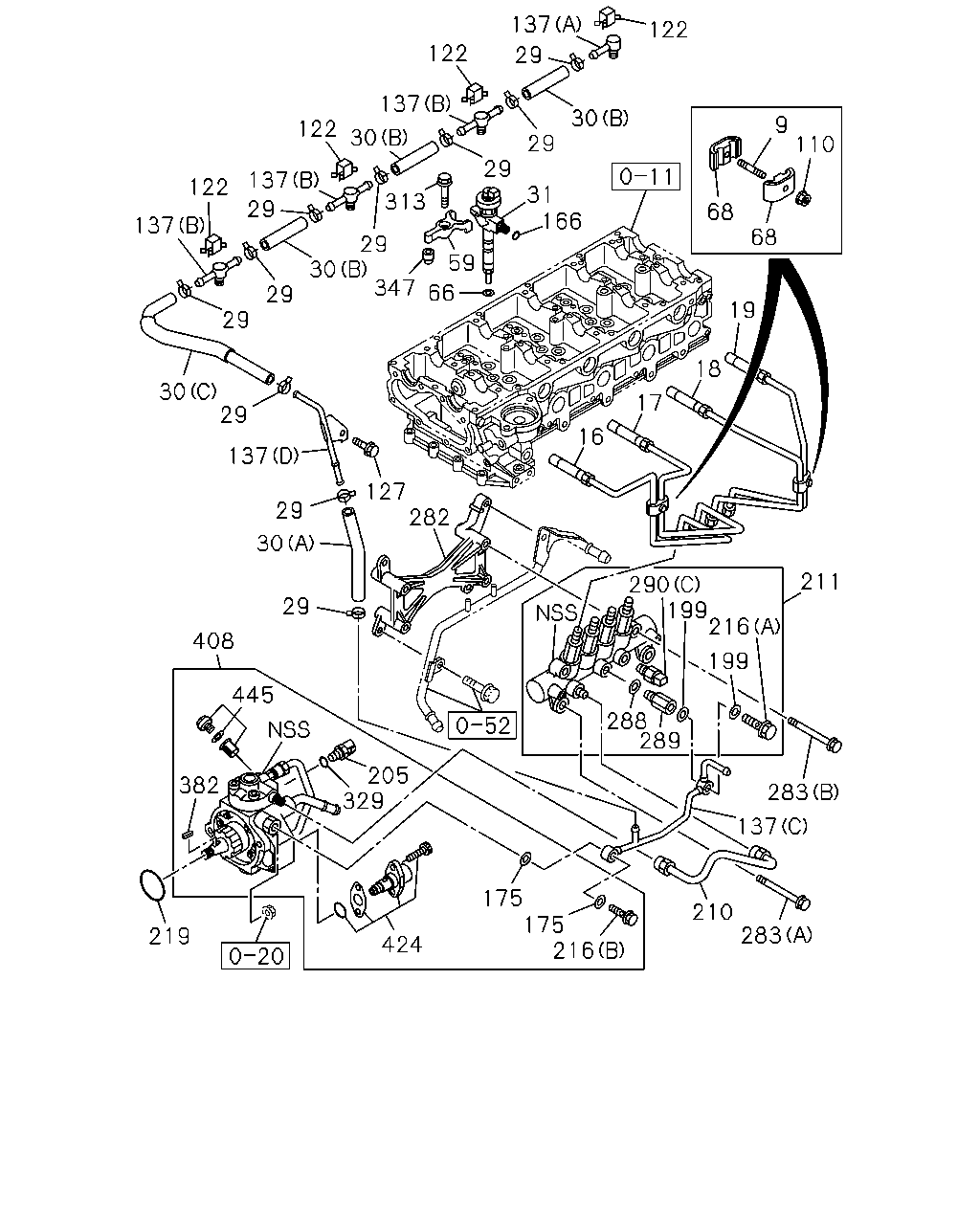

çizim 185374
283 210 216 175 175 424 329 205 445 408 382 219 29 30 29 137 29 30 282 127 288 289 283 137 199 211 216 199 290 16 17 18 19 68 110 9 68 122 137 29 30 29 122 137 30 122 29 31 166 59 66 347 313 29 30 29 29 29 137 122 137
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0411-0606 ●
9 STUD; CLIP
M/T MUA 5 SPEED 5H<MWQ> M6X25 L=36 THA 		8-97214-234-0 02 1 0607-0609 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0610-0708 ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0709-0709 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0710- ● ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0411-0606 ●
16 PIPE; INJ NO.1
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-606-0 01 1 0607-0609 ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0610-0708 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0709-0709 ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0710- ● ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0411-0606 ●
17 PIPE; INJ NO.2
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98043-684-0 01 1 0607-0609 ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0610-0708 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0709-0709 ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0710- ● ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0411-0606 ●
18 PIPE; INJ NO.3
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-608-0 01 1 0607-0609 ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0610-0708 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0709-0709 ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0710- ● ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0411-0606 ●
19 PIPE; INJ NO.4
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-609-0 01 1 0607-0609 ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0610-0708 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0709-0709 ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0710- ● ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0411-0606 ●
29 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ> ID=10.5 THA 		8-97944-126-0 10 1 0607-0609 ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0610-0708 ● ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 IMA 		0-01804-130-0 01 1 0411-0606 ●
30 HOSE; RUBBER,FUEL LEAK
M/T MUA 5 SPEED 5H<MWQ> (A) L=130 IMA 		0-01804-130-0 01 1 0607-0609 ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 IMA 		0-01804-130-0 01 1 0610-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 THA 		8-98053-692-0 01 1 0709-0709 ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 THA 		8-98053-692-0 01 1 0710- ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 IMA 		8-97354-652-0 03 1 0411-0606 ●
30 HOSE; RUBBER,FUEL LEAK
M/T MUA 5 SPEED 5H<MWQ> (B) L=98 IMA 		8-97354-652-0 03 1 0607-0609 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 IMA 		8-97354-652-0 03 1 0610-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 THA 		8-98053-693-0 03 1 0709-0709 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 THA 		8-98053-693-0 03 1 0710- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0411-0606 ●
30 HOSE; RUBBER,FUEL LEAK
M/T MUA 5 SPEED 5H<MWQ> (C) L=150 IMA 		8-97362-306-2 01 1 0607-0609 ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0610-0708 ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) THA 		8-98112-034-0 01 1 0811- ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0909-1306 ● ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ● ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0411-0606 ●
31 NOZZLE ASM; INJ
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-604-0 04 1 0607-0609 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0610-0704 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0705-0708 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0709-0709 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0710-0908 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0411-0606 ●
59 CLAMP; NOZZLE HOLDER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-528-2 04 1 0607-0609 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0610-0708 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0709-0709 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0710-0710 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0411-0606 ●
66 GASKET; INJ NOZZLE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97251-334-0 04 1 0607-0608 ●
66 GASKET; INJ NOZZLE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98057-731-0 04 1 0609-0609 ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0610-0701 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-0708 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0709-0709 ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0710-1012 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0411-0606 ●
68 CLIP; INJ PIPE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97213-481-0 04 1 0607-0609 ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0610-0708 ● ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0709-0709 ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0710- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0411-0605 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606-0606 ●
110 NUT; CLIP
M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA 		0-91180-106-0 02 1 0607-0609 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0610-0708 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0411-0606 ●
122 CLIP; LEAK OFF PIPE
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97315-286-0 04 1 0607-0609 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0610-0708 ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0709-0709 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0710- ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0606 ●
127 BOLT; CLIP LEAK OFF PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0609 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0610-0708 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97315-230-1 01 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97315-231-1 03 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97357-916-3 01 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (D) THA 		8-97372-938-2 01 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0710- ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0411-0606 ●
166 GASKET; FUEL INJECTOR
M/T MUA 5 SPEED 5H<MWQ> ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0607-0609 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0610-0708 ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0709-0709 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0710- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0709-0709 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0710- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0612-0707 ● ●
199 GASKET; EYE BOLT
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97602-218-0 02 1 0607-0609 ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0610-0708 ● ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0709-0709 ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0710- ● ●
205 SENSOR; FUEL TEMP
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97216-283-0 01 1 0607-0609 ●
205 SENSOR; FUEL TEMP
THA 		8-97216-283-0 01 1 0610-0611 ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0612-0708 ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0709-0709 ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0710- ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0411-0606 ●
210 PIPE; INJ,C/R
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97388-902-0 01 1 0607-0609 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0610-0708 ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0709-0709 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0710- ● ●
211 RAIL ASM; COMMON
THA 		8-97311-370-2 01 1 0411-0606 ●
211 RAIL ASM; COMMON
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-888-0 01 1 0607-0609 ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0610-0708 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ●
211 RAIL ASM; COMMON
THA 		8-98052-238-1 01 1 0710- ● ●
216 BOLT; EYE
(B) THA 		9-88130-088-0 01 1 0809- ● ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0709-0709 ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0710-0808 ● ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0612-0707 ● ●
216 BOLT; EYE
M/T MUA 5 SPEED 5H<MWQ> (A) IMA 		8-98043-033-0 01 1 0607-0609 ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0610-0708 ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0709-0709 ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0710- ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0411-0606 ●
219 GASKET
M/T MUA 5 SPEED 5H<MWQ> ID=49.7 THA 		1-09623-541-0 01 1 0607-0609 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0610-0708 ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0709-0709 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0710- ● ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0411-0606 ●
282 BRACKET; COMMON RAIL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-890-1 01 1 0607-0609 ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0610-0708 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0709-0709 ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0710- ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0411-0606 ●
283 BOLT; COMMON RAIL
M/T MUA 5 SPEED 5H<MWQ> (A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0607-0609 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0610-0708 ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0709-0709 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0710- ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0411-0606 ●
283 BOLT; COMMON RAIL
M/T MUA 5 SPEED 5H<MWQ> (B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0607-0609 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0610-0708 ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0709-0709 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0710- ● ●
288 GASKET
M/T MUA 5 SPEED 5H<MWQ> ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0607-0609 ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0610-0708 ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0709-0709 ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0710- ● ●
289 LIMITER; FUEL PRESS
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98032-549-0 01 1 0607-0609 ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0610-0708 ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0709-0709 ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0710- ● ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0411-0606 ●
290 SENSOR; PRESS
M/T MUA 5 SPEED 5H<MWQ> (B) IMA 		8-98020-514-0 01 1 0607-0609 ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0610-0708 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0709-0709 ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0710- ● ●
290 SENSOR; PRESS
M/T MUA 5 SPEED 5H<MWQ> (C) IMA 		8-97318-684-0 01 1 0607-0609 ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0610-0708 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0710-1208 ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0411-0606 ●
313 BOLT; BRKT,INJ NOZZLE
M/T MUA 5 SPEED 5H<MWQ> M8X50 W/WASHER THA 		8-97372-144-0 04 1 0607-0609 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0610-0707 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0708-0708 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0709-0709 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0710- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 0709-0709 ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 0710- ● ●
347 PIN
THA 		8-97383-286-0 04 1 0411-0606 ●
347 PIN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97383-286-0 04 1 0607-0609 ●
347 PIN
THA 		8-97383-286-0 04 1 0610-0708 ● ●
347 PIN
THA 		8-97383-286-0 04 1 0709-0709 ●
347 PIN
THA 		8-97383-286-0 04 1 0710-1012 ● ●
347 PIN
THA 		8-98165-035-0 04 1 1101- ● ●
382 KEY; DRIVE SHAFT
THA 		8-97375-384-0 01 1 1009- ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-5 01 1 0411-0606 ●
408 PUMP ASM; FUEL,SUPPLY
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97311-373-5 01 1 0607-0609 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0610-0708 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0709-0709 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-9 01 1 0710-1008 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-1 01 1 1009- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0411-0606 ●
424 OVERHAUL KIT; SUPPLY PUMP
M/T MUA 5 SPEED 5H<MWQ> W/ADAPTER THA 		8-98145-453-0 01 1 0607-0609 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0610-0708 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
M/T MUA 5 SPEED 5H<MWQ> W/ADAPTER THA 		8-98145-453-0 01 1 0709-0709 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0710-0809 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0810-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0906- ● ●
445 SCREW; FILTER,INLET
THA 		8-98209-778-0 01 1 1009- ● ●

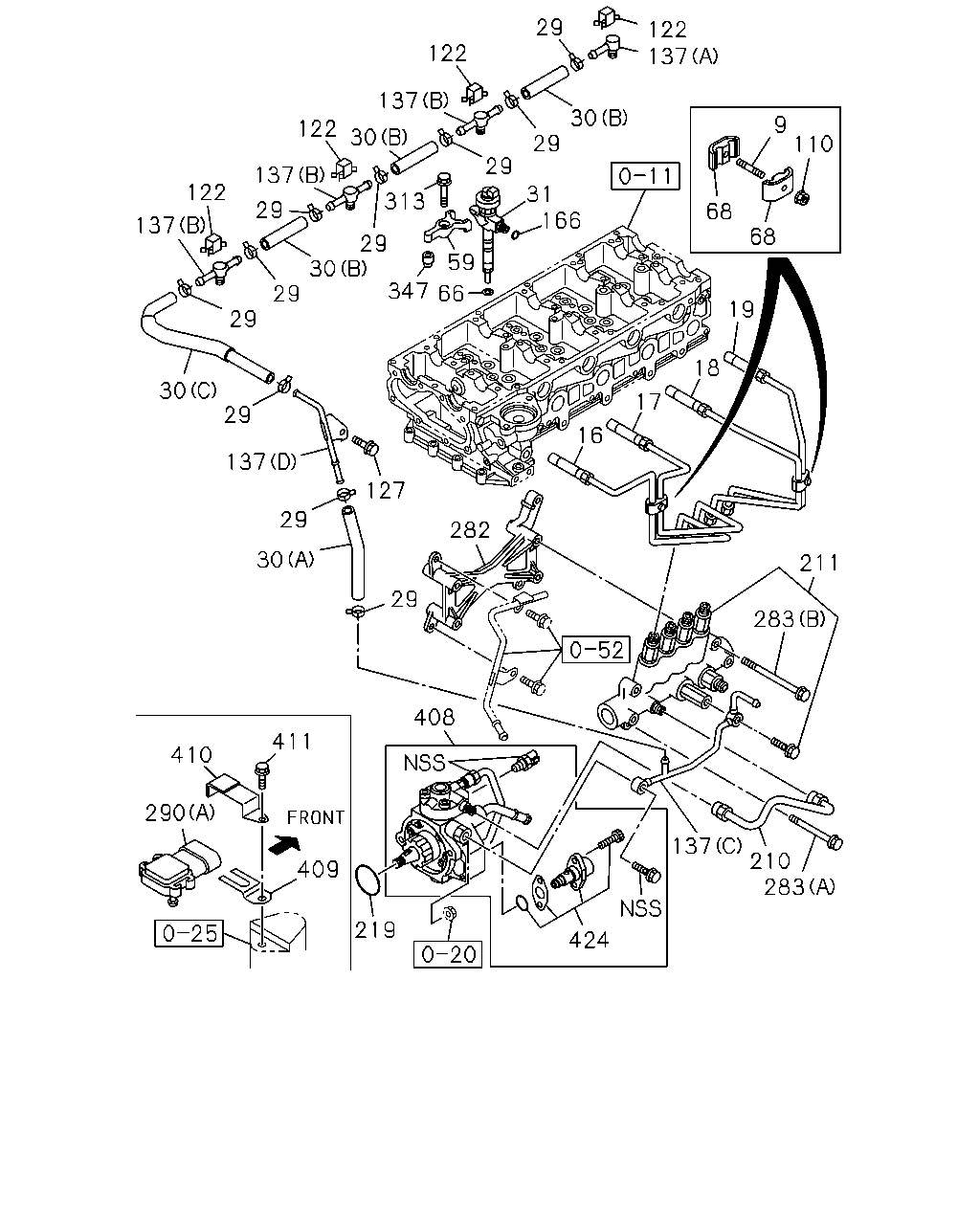

çizim 185376
283 210 137 424 219 409 411 410 290 408 29 30 29 137 29 30 29 29 122 137 29 137 122 30 137 122 29 122 137 9 110 68 68 30 29 29 313 29 30 59 66 347 31 166 19 18 17 16 282 127 211 283
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0411-0606 ●
9 STUD; CLIP
M/T MUA 5 SPEED 5H<MWQ> M6X25 L=36 THA 		8-97214-234-0 02 1 0607-0609 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0610-0708 ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0709-0709 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0710- ● ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0411-0606 ●
16 PIPE; INJ NO.1
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-606-0 01 1 0607-0609 ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0610-0708 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0709-0709 ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0710- ● ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0411-0606 ●
17 PIPE; INJ NO.2
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98043-684-0 01 1 0607-0609 ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0610-0708 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0709-0709 ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0710- ● ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0411-0606 ●
18 PIPE; INJ NO.3
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-608-0 01 1 0607-0609 ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0610-0708 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0709-0709 ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0710- ● ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0411-0606 ●
19 PIPE; INJ NO.4
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-609-0 01 1 0607-0609 ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0610-0708 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0709-0709 ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0710- ● ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0411-0606 ●
29 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ> ID=10.5 THA 		8-97944-126-0 10 1 0607-0609 ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0610-0708 ● ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 IMA 		0-01804-130-0 01 1 0411-0606 ●
30 HOSE; RUBBER,FUEL LEAK
M/T MUA 5 SPEED 5H<MWQ> (A) L=130 IMA 		0-01804-130-0 01 1 0607-0609 ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 IMA 		0-01804-130-0 01 1 0610-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 THA 		8-98053-692-0 01 1 0709-0709 ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 THA 		8-98053-692-0 01 1 0710- ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 IMA 		8-97354-652-0 03 1 0411-0606 ●
30 HOSE; RUBBER,FUEL LEAK
M/T MUA 5 SPEED 5H<MWQ> (B) L=98 IMA 		8-97354-652-0 03 1 0607-0609 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 IMA 		8-97354-652-0 03 1 0610-0611 ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 THA 		8-98053-693-0 03 1 0709-0709 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 THA 		8-98053-693-0 03 1 0710- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0411-0606 ●
30 HOSE; RUBBER,FUEL LEAK
M/T MUA 5 SPEED 5H<MWQ> (C) L=150 IMA 		8-97362-306-2 01 1 0607-0609 ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0610-0708 ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) THA 		8-98112-034-0 01 1 0811- ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0909-1306 ● ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ● ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0411-0606 ●
31 NOZZLE ASM; INJ
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-604-0 04 1 0607-0609 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0610-0704 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0705-0708 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0709-0709 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0710-0908 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0411-0606 ●
59 CLAMP; NOZZLE HOLDER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-528-2 04 1 0607-0609 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0610-0708 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0709-0709 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0710-0710 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0411-0606 ●
66 GASKET; INJ NOZZLE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97251-334-0 04 1 0607-0608 ●
66 GASKET; INJ NOZZLE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98057-731-0 04 1 0609-0609 ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0610-0701 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-0708 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0709-0709 ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0710-1012 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0411-0606 ●
68 CLIP; INJ PIPE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97213-481-0 04 1 0607-0609 ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0610-0708 ● ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0709-0709 ●
68 CLIP; INJ PIPE
THA 		8-97213-481-0 04 1 0710- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0411-0605 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606-0606 ●
110 NUT; CLIP
M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA 		0-91180-106-0 02 1 0607-0609 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0610-0708 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0411-0606 ●
122 CLIP; LEAK OFF PIPE
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97315-286-0 04 1 0607-0609 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0610-0708 ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0709-0709 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0710- ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0411-0606 ●
127 BOLT; CLIP LEAK OFF PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0609 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0610-0708 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97315-230-1 01 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97315-231-1 03 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97357-916-3 01 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0710- ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0411-0606 ●
137 PIPE ASM; LEAK OFF
M/T MUA 5 SPEED 5H<MWQ> (D) THA 		8-97372-938-2 01 1 0607-0609 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0610-0708 ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0709-0709 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0710- ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0411-0606 ●
166 GASKET; FUEL INJECTOR
M/T MUA 5 SPEED 5H<MWQ> ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0607-0609 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0610-0708 ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0709-0709 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0710- ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0411-0606 ●
210 PIPE; INJ,C/R
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97388-902-0 01 1 0607-0609 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0610-0708 ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0709-0709 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0710- ● ●
211 RAIL ASM; COMMON
THA 		8-97311-370-2 01 1 0411-0606 ●
211 RAIL ASM; COMMON
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-888-0 01 1 0607-0609 ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0610-0708 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ●
211 RAIL ASM; COMMON
THA 		8-98052-238-1 01 1 0710- ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0411-0606 ●
219 GASKET
M/T MUA 5 SPEED 5H<MWQ> ID=49.7 THA 		1-09623-541-0 01 1 0607-0609 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0610-0708 ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0709-0709 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0710- ● ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0411-0606 ●
282 BRACKET; COMMON RAIL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-890-1 01 1 0607-0609 ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0610-0708 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0709-0709 ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0710- ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0411-0606 ●
283 BOLT; COMMON RAIL
M/T MUA 5 SPEED 5H<MWQ> (A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0607-0609 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0610-0708 ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0709-0709 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0710- ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0411-0606 ●
283 BOLT; COMMON RAIL
M/T MUA 5 SPEED 5H<MWQ> (B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0607-0609 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0610-0708 ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0709-0709 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0710- ● ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0411-0606 ●
290 SENSOR; PRESS
M/T MUA 5 SPEED 5H<MWQ> (B) IMA 		8-98020-514-0 01 1 0607-0609 ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0610-0708 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0709-0709 ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0710- ● ●
290 SENSOR; PRESS
M/T MUA 5 SPEED 5H<MWQ> (C) IMA 		8-97318-684-0 01 1 0607-0609 ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0610-0708 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0710-1208 ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0411-0606 ●
313 BOLT; BRKT,INJ NOZZLE
M/T MUA 5 SPEED 5H<MWQ> M8X50 W/WASHER THA 		8-97372-144-0 04 1 0607-0609 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0610-0707 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0708-0708 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0709-0709 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0710- ● ●
347 PIN
THA 		8-97383-286-0 04 1 0411-0606 ●
347 PIN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97383-286-0 04 1 0607-0609 ●
347 PIN
THA 		8-97383-286-0 04 1 0610-0708 ● ●
347 PIN
THA 		8-97383-286-0 04 1 0709-0709 ●
347 PIN
THA 		8-97383-286-0 04 1 0710-1012 ● ●
347 PIN
THA 		8-98165-035-0 04 1 1101- ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-5 01 1 0411-0606 ●
408 PUMP ASM; FUEL,SUPPLY
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97311-373-5 01 1 0607-0609 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0610-0708 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0709-0709 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-9 01 1 0710-1008 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-1 01 1 1009- ● ●
409 PLATE; SENSOR
THA 		8-97377-206-0 01 1 0411-0606 ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0411-0606 ●
410 BRACKET; SENSOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-801-1 01 1 0607-0808 ●
410 BRACKET; SENSOR
THA 		8-98013-801-1 01 1 0809- ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0411-0606 ●
411 BOLT; SENSOR
M/T MUA 5 SPEED 5H<MWQ> M6X12 FLANGE THA 		0-28050-612-0 01 1 0607-0808 ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0809- ●
411 BOLT; SENSOR
M/T MUA 5 SPEED 5H<MWQ> M6X20 FLANGE THA 		0-28650-620-0 02 1 0607-0609 ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0610-0708 ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0411-0606 ●
424 OVERHAUL KIT; SUPPLY PUMP
M/T MUA 5 SPEED 5H<MWQ> W/ADAPTER THA 		8-98145-453-0 01 1 0607-0609 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0610-0708 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
M/T MUA 5 SPEED 5H<MWQ> W/ADAPTER THA 		8-98145-453-0 01 1 0709-0709 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0710-0809 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0810-0905 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
