0-36 — TURBOCHARGER SYSTEM (#73733) — 324 parça

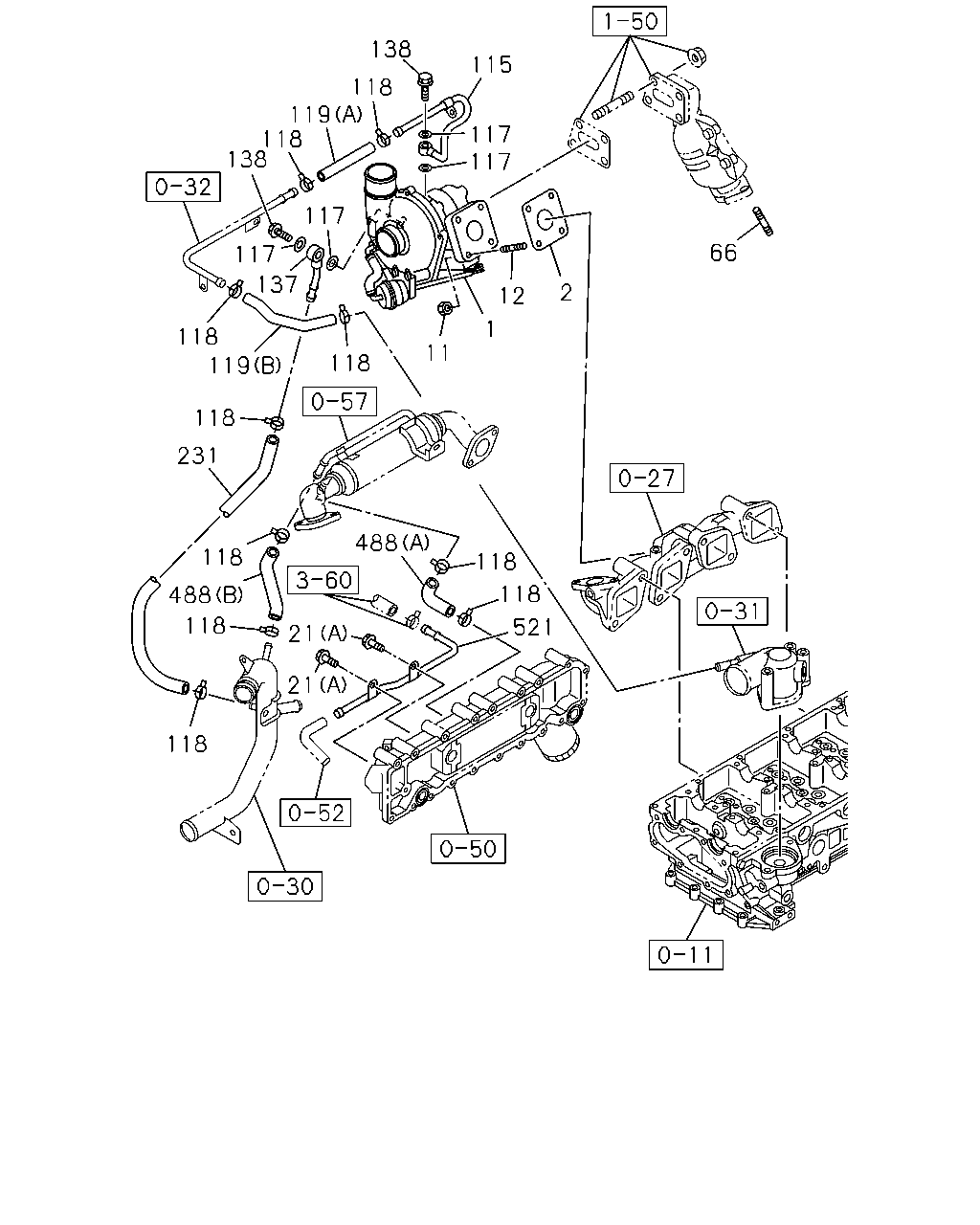

138 118 119 118 138 115 117 117 117 66 2 12 1 11 118 119 118 137 117 231 118 118 488 118 21 488 118 118 521 21 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-892-3	01	1	0707-0808	●
1	TURBOCHARGER ASM THA	8-98011-892-3	01	1	0809-	●
1	TURBOCHARGER ASM THA	8-97355-408-3	01	1	0411-0606	●
1	TURBOCHARGER ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-892-2	01	1	0607-0706	●
1	TURBOCHARGER ASM THA	8-98011-529-3	01	1	0610-0708		●
1	TURBOCHARGER ASM THA	8-98011-529-7	01	1	0710-1008		●
1	TURBOCHARGER ASM THA	8-98132-069-2	01	1	1009-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1009-		●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0411-0606	●
2	GASKET; TURBOCHARGER TO EXH MANIF M/T MUA 5 SPEED 5H<MWQ> THA	8-97912-697-0	01	1	0607-0609	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0610-0708	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0709-0709	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0710-1008	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1009-	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0411-0606	●
11	NUT; TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	8-97379-384-0	04	1	0607-0609	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-0708	●	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0709-0709	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0710-	●	●
12	STUD; TURBOCHARGER M8X20 L=31 THA	8-97378-060-0	04	1	0411-0606	●
12	STUD; TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> M8X20 L=31 THA	8-97378-060-0	04	1	0607-0808	●
12	STUD; TURBOCHARGER M8X20 L=31 THA	8-97378-060-0	04	1	0809-	●
12	STUD; TURBOCHARGER M8X25 L=36 THA	8-97378-062-0	02	1	0610-0708		●
12	STUD; TURBOCHARGER M8X30 L=41 IMA	8-97378-064-0	02	1	0610-0708		●
12	STUD; TURBOCHARGER M8X25 L=36 THA	8-97378-062-0	02	1	0710-		●
12	STUD; TURBOCHARGER M8X30 L=41 IMA	8-97378-064-0	02	1	0710-		●
21	BOLT; PIPE (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0411-0606	●
21	BOLT; PIPE (D) M6X40 FLANGE IMA	0-28050-640-0	02	1	0610-0708		●
21	BOLT; PIPE (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0610-0708		●
21	BOLT; PIPE (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0610-0708		●
21	BOLT; PIPE (D) M6X40 FLANGE IMA	0-28050-640-0	02	1	0710-1008		●
21	BOLT; PIPE (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0710-1008		●
21	BOLT; PIPE (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0710-1008		●
21	BOLT; PIPE (D) M6X45 FLANGE THA	0-28050-645-0	02	1	1009-		●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0411-0508	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0509-0606	●
66	STUD; EXH PIPE M/T MUA 5 SPEED 5H<MWQ> M10X22 L=43 THA	0-43211-022-0	02	1	0607-0609	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-0708	●	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0709-0709	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0710-	●	●
115	PIPE; WATER,TURBOCHARGER OUT THA	8-97312-288-1	01	1	0411-0606	●
115	PIPE; WATER,TURBOCHARGER OUT M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-902-0	01	1	0607-0808	●
115	PIPE; WATER,TURBOCHARGER OUT THA	8-98011-902-0	01	1	0809-	●
117	GASKET; WATER PIPE ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0411-0606	●
117	GASKET; WATER PIPE M/T MUA 5 SPEED 5H<MWQ> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0607-0808	●
117	GASKET; WATER PIPE ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0809-	●
117	GASKET; WATER PIPE IMA	8-97262-117-0	01	1	0610-0708		●
117	GASKET; WATER PIPE IMA	8-97262-117-0	01	1	0710-1008		●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0411-0606	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	10	1	0607-0609	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	04	1	0610-0708	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0709-0709	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	04	1	0710-0808	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0809-1008	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-0708	●	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0710-1008	●	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1009-	●	●
118	CLIP; WATER HOSE ID=20.8 THA	8-97944-127-0	06	1	0610-0708		●
118	CLIP; WATER HOSE ID=20.8 THA	8-97944-127-0	06	1	0710-1008		●
119	HOSE; WATER,TURBOCHARGER (A) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-		●
119	HOSE; WATER,TURBOCHARGER (A) L=100 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
119	HOSE; WATER,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0609	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0610-0708	●	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0709-0709	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0710-1008	●	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0411-0606	●
119	HOSE; WATER,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97369-590-1	01	1	0607-0609	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0610-0708	●	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0709-0709	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0710-	●	●
137	PIPE; WATER,TURBOCHARGER IN THA	8-97312-289-2	01	1	0411-0606	●
137	PIPE; WATER,TURBOCHARGER IN M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-903-0	01	1	0607-0808	●
137	PIPE; WATER,TURBOCHARGER IN THA	8-98011-903-0	01	1	0809-	●
138	BOLT; EYE,WATER PIPE M14X27 EYE-BOLT IMA	1-09675-193-0	02	1	0411-0606	●
138	BOLT; EYE,WATER PIPE M/T MUA 5 SPEED 5H<MWQ> M14X31 EYE-BOLT THA	8-98037-067-0	02	1	0607-0808	●
138	BOLT; EYE,WATER PIPE M14X31 EYE-BOLT THA	8-98037-067-0	02	1	0809-	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=220 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
231	HOSE; RUBBER,TURBOCHARGER OUT M/T MUA 5 SPEED 5H<MWQ> L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0609	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0610-0708	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0709-0709	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0710-	●	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
488	HOSE; RUBBER M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0808	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0809-1008	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-	●	●
488	HOSE; RUBBER (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
488	HOSE; RUBBER M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0808	●
488	HOSE; RUBBER (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0809-	●
488	HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0610-0708		●
488	HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0610-0708		●
488	HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0610-0708		●
488	HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0710-1008		●
488	HOSE; RUBBER (F) L=220 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-		●
488	HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0710-1008		●
488	HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0710-1008		●
521	PIPE; VAC THA	8-97357-847-3	01	1	0411-0606	●

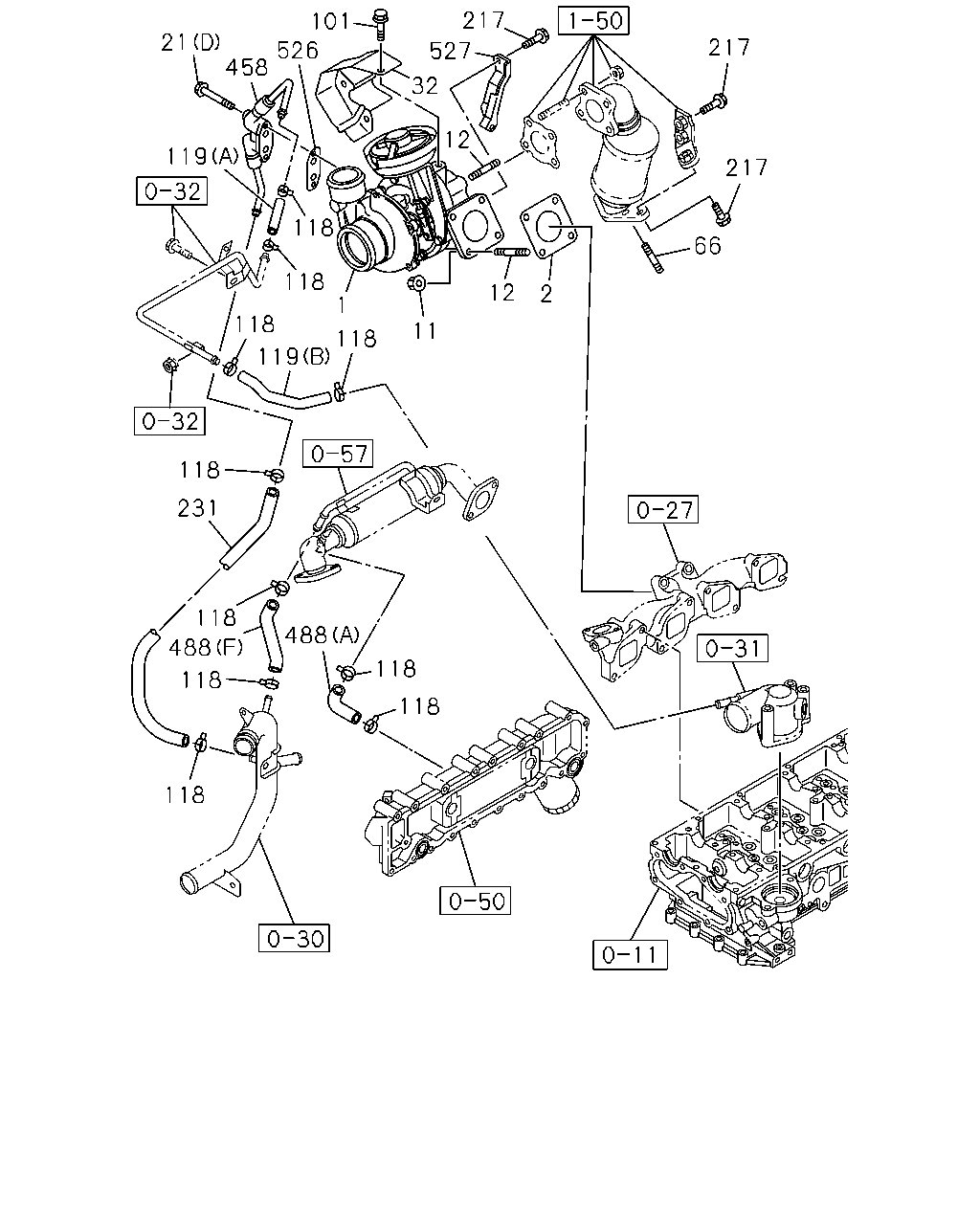

21 458 526 101 217 527 32 119 118 118 118 119 118 231 1 118 11 118 488 118 118 488 118 118 12 2 66 217 217 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-892-3	01	1	0707-0808	●
1	TURBOCHARGER ASM THA	8-98011-892-3	01	1	0809-	●
1	TURBOCHARGER ASM THA	8-97355-408-3	01	1	0411-0606	●
1	TURBOCHARGER ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-892-2	01	1	0607-0706	●
1	TURBOCHARGER ASM THA	8-98011-529-3	01	1	0610-0708		●
1	TURBOCHARGER ASM THA	8-98011-529-7	01	1	0710-1008		●
1	TURBOCHARGER ASM THA	8-98132-069-2	01	1	1009-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1009-		●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0411-0606	●
2	GASKET; TURBOCHARGER TO EXH MANIF M/T MUA 5 SPEED 5H<MWQ> THA	8-97912-697-0	01	1	0607-0609	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0610-0708	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0709-0709	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0710-1008	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1009-	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0411-0606	●
11	NUT; TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	8-97379-384-0	04	1	0607-0609	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-0708	●	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0709-0709	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0710-	●	●
12	STUD; TURBOCHARGER M8X20 L=31 THA	8-97378-060-0	04	1	0411-0606	●
12	STUD; TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> M8X20 L=31 THA	8-97378-060-0	04	1	0607-0808	●
12	STUD; TURBOCHARGER M8X20 L=31 THA	8-97378-060-0	04	1	0809-	●
12	STUD; TURBOCHARGER M8X25 L=36 THA	8-97378-062-0	02	1	0610-0708		●
12	STUD; TURBOCHARGER M8X30 L=41 IMA	8-97378-064-0	02	1	0610-0708		●
12	STUD; TURBOCHARGER M8X25 L=36 THA	8-97378-062-0	02	1	0710-		●
12	STUD; TURBOCHARGER M8X30 L=41 IMA	8-97378-064-0	02	1	0710-		●
21	BOLT; PIPE (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0411-0606	●
21	BOLT; PIPE (D) M6X40 FLANGE IMA	0-28050-640-0	02	1	0610-0708		●
21	BOLT; PIPE (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0610-0708		●
21	BOLT; PIPE (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0610-0708		●
21	BOLT; PIPE (D) M6X40 FLANGE IMA	0-28050-640-0	02	1	0710-1008		●
21	BOLT; PIPE (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0710-1008		●
21	BOLT; PIPE (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0710-1008		●
21	BOLT; PIPE (D) M6X45 FLANGE THA	0-28050-645-0	02	1	1009-		●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-98057-857-0	01	1	0610-0708		●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-98057-857-0	01	1	0710-1008		●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-98156-389-0	01	1	1009-		●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0411-0508	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0509-0606	●
66	STUD; EXH PIPE M/T MUA 5 SPEED 5H<MWQ> M10X22 L=43 THA	0-43211-022-0	02	1	0607-0609	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-0708	●	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0709-0709	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0710-	●	●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	02	1	0610-0708		●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	02	1	0710-		●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0411-0606	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	10	1	0607-0609	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	04	1	0610-0708	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0709-0709	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	04	1	0710-0808	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0809-1008	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-0708	●	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0710-1008	●	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1009-	●	●
118	CLIP; WATER HOSE ID=20.8 THA	8-97944-127-0	06	1	0610-0708		●
118	CLIP; WATER HOSE ID=20.8 THA	8-97944-127-0	06	1	0710-1008		●
119	HOSE; WATER,TURBOCHARGER (A) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-		●
119	HOSE; WATER,TURBOCHARGER (A) L=100 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
119	HOSE; WATER,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0609	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0610-0708	●	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0709-0709	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0710-1008	●	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0411-0606	●
119	HOSE; WATER,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97369-590-1	01	1	0607-0609	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0610-0708	●	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0709-0709	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0710-	●	●
217	BOLT; BRKT M8X60 FLANGE THA	0-28050-860-0	01	1	0610-0708		●
217	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0610-0708		●
217	BOLT; BRKT M8X18 FLANGE IMA	8-97378-076-0	01	1	0610-0708		●
217	BOLT; BRKT M8X28 FLANGE THA	8-98041-363-0	01	1	0610-0708		●
217	BOLT; BRKT M8X60 FLANGE THA	0-28050-860-0	01	1	0710-1008		●
217	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1009-		●
217	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0710-		●
217	BOLT; BRKT M8X18 FLANGE IMA	8-97378-076-0	01	1	0710-		●
217	BOLT; BRKT M8X28 FLANGE THA	8-98041-363-0	01	1	0710-		●
231	HOSE; RUBBER,TURBOCHARGER OUT L=220 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
231	HOSE; RUBBER,TURBOCHARGER OUT M/T MUA 5 SPEED 5H<MWQ> L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0609	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0610-0708	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0709-0709	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0710-	●	●
458	PIPE; WATER,TURBOCHARGER THA	8-98031-001-0	01	1	0610-0708		●
458	PIPE; WATER,TURBOCHARGER THA	8-98031-001-0	01	1	0710-1008		●
458	PIPE; WATER,TURBOCHARGER THA	8-98132-035-2	01	1	1009-		●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
488	HOSE; RUBBER M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0808	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0809-1008	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-	●	●
488	HOSE; RUBBER (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
488	HOSE; RUBBER M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0808	●
488	HOSE; RUBBER (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0809-	●
488	HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0610-0708		●
488	HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0610-0708		●
488	HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0610-0708		●
488	HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0710-1008		●
488	HOSE; RUBBER (F) L=220 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-		●
488	HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0710-1008		●
488	HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0710-1008		●
526	GASKET; PLATE THA	8-97352-985-0	01	1	0610-0708		●
526	GASKET; PLATE THA	8-97352-985-0	01	1	0710-		●
527	BRACKET; TURBOCHARGER THA	8-98011-536-1	01	1	0610-0708		●
527	BRACKET; TURBOCHARGER THA	8-98011-536-1	01	1	0710-1008		●
527	BRACKET; TURBOCHARGER THA	8-98156-388-0	01	1	1009-		●

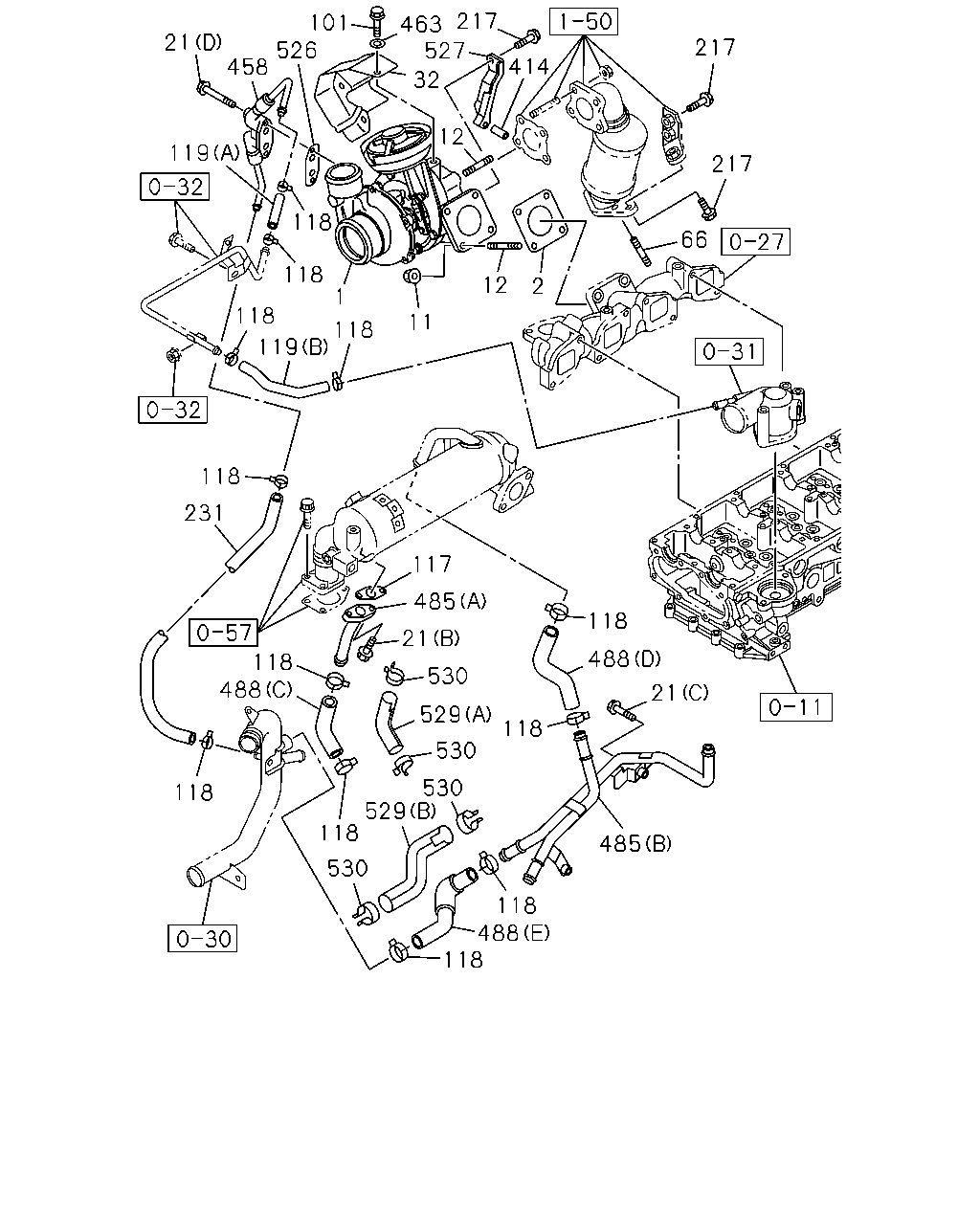

21 458 526 101 463 414 217 217 217 66 2 12 11 118 119 118 118 118 119 118 231 117 485 118 488 21 21 530 118 488 1 12 32 527 529 530 530 529 118 118 485 118 488 118 530 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-892-3	01	1	0707-0808	●
1	TURBOCHARGER ASM THA	8-98011-892-3	01	1	0809-	●
1	TURBOCHARGER ASM THA	8-97355-408-3	01	1	0411-0606	●
1	TURBOCHARGER ASM M/T MUA 5 SPEED 5H<MWQ> THA	8-98011-892-2	01	1	0607-0706	●
1	TURBOCHARGER ASM THA	8-98011-529-3	01	1	0610-0708		●
1	TURBOCHARGER ASM THA	8-98011-529-7	01	1	0710-1008		●
1	TURBOCHARGER ASM THA	8-98132-069-2	01	1	1009-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98132-073-0	01	1	1009-		●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0411-0606	●
2	GASKET; TURBOCHARGER TO EXH MANIF M/T MUA 5 SPEED 5H<MWQ> THA	8-97912-697-0	01	1	0607-0609	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0610-0708	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0709-0709	●
2	GASKET; TURBOCHARGER TO EXH MANIF THA	8-97912-697-0	01	1	0710-1008	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97912-697-0	01	1	1009-	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0411-0606	●
11	NUT; TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	8-97379-384-0	04	1	0607-0609	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0610-0708	●	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0709-0709	●
11	NUT; TURBOCHARGER M8 FLANGE THA	8-97379-384-0	04	1	0710-	●	●
12	STUD; TURBOCHARGER M8X20 L=31 THA	8-97378-060-0	04	1	0411-0606	●
12	STUD; TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> M8X20 L=31 THA	8-97378-060-0	04	1	0607-0808	●
12	STUD; TURBOCHARGER M8X20 L=31 THA	8-97378-060-0	04	1	0809-	●
12	STUD; TURBOCHARGER M8X25 L=36 THA	8-97378-062-0	02	1	0610-0708		●
12	STUD; TURBOCHARGER M8X30 L=41 IMA	8-97378-064-0	02	1	0610-0708		●
12	STUD; TURBOCHARGER M8X25 L=36 THA	8-97378-062-0	02	1	0710-		●
12	STUD; TURBOCHARGER M8X30 L=41 IMA	8-97378-064-0	02	1	0710-		●
21	BOLT; PIPE (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0411-0606	●
21	BOLT; PIPE (D) M6X40 FLANGE IMA	0-28050-640-0	02	1	0610-0708		●
21	BOLT; PIPE (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0610-0708		●
21	BOLT; PIPE (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0610-0708		●
21	BOLT; PIPE (D) M6X40 FLANGE IMA	0-28050-640-0	02	1	0710-1008		●
21	BOLT; PIPE (B) M6X20 FLANGE THA	0-28650-620-0	02	1	0710-1008		●
21	BOLT; PIPE (C) M8X40 FLANGE THA	0-28650-840-0	02	1	0710-1008		●
21	BOLT; PIPE (D) M6X45 FLANGE THA	0-28050-645-0	02	1	1009-		●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-98057-857-0	01	1	0610-0708		●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-98057-857-0	01	1	0710-1008		●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-98156-389-0	01	1	1009-		●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0411-0508	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0509-0606	●
66	STUD; EXH PIPE M/T MUA 5 SPEED 5H<MWQ> M10X22 L=43 THA	0-43211-022-0	02	1	0607-0609	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0610-0708	●	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0709-0709	●
66	STUD; EXH PIPE M10X22 L=43 THA	0-43211-022-0	02	1	0710-	●	●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	02	1	0610-0708		●
101	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	02	1	0710-		●
117	GASKET; WATER PIPE ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0411-0606	●
117	GASKET; WATER PIPE M/T MUA 5 SPEED 5H<MWQ> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0607-0808	●
117	GASKET; WATER PIPE ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0809-	●
117	GASKET; WATER PIPE IMA	8-97262-117-0	01	1	0610-0708		●
117	GASKET; WATER PIPE IMA	8-97262-117-0	01	1	0710-1008		●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0411-0606	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	10	1	0607-0609	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	04	1	0610-0708	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	0709-0709	●
118	CLIP; WATER HOSE M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA	8-97944-125-0	04	1	0710-0808	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	04	1	0809-1008	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0610-0708	●	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	06	1	0710-1008	●	●
118	CLIP; WATER HOSE ID=12.8 THA	8-97944-125-0	10	1	1009-	●	●
118	CLIP; WATER HOSE ID=20.8 THA	8-97944-127-0	06	1	0610-0708		●
118	CLIP; WATER HOSE ID=20.8 THA	8-97944-127-0	06	1	0710-1008		●
119	HOSE; WATER,TURBOCHARGER (A) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-		●
119	HOSE; WATER,TURBOCHARGER (A) L=100 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
119	HOSE; WATER,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0609	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0610-0708	●	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0709-0709	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0710-1008	●	●
119	HOSE; WATER,TURBOCHARGER (A) L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0411-0606	●
119	HOSE; WATER,TURBOCHARGER M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97369-590-1	01	1	0607-0609	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0610-0708	●	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0709-0709	●
119	HOSE; WATER,TURBOCHARGER (B) THA	8-97369-590-1	01	1	0710-	●	●
217	BOLT; BRKT M8X60 FLANGE THA	0-28050-860-0	01	1	0610-0708		●
217	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0610-0708		●
217	BOLT; BRKT M8X18 FLANGE IMA	8-97378-076-0	01	1	0610-0708		●
217	BOLT; BRKT M8X28 FLANGE THA	8-98041-363-0	01	1	0610-0708		●
217	BOLT; BRKT M8X60 FLANGE THA	0-28050-860-0	01	1	0710-1008		●
217	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1009-		●
217	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0710-		●
217	BOLT; BRKT M8X18 FLANGE IMA	8-97378-076-0	01	1	0710-		●
217	BOLT; BRKT M8X28 FLANGE THA	8-98041-363-0	01	1	0710-		●
231	HOSE; RUBBER,TURBOCHARGER OUT L=220 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
231	HOSE; RUBBER,TURBOCHARGER OUT M/T MUA 5 SPEED 5H<MWQ> L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0609	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0610-0708	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0709-0709	●
231	HOSE; RUBBER,TURBOCHARGER OUT L=210 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0710-	●	●
414	SPACER THA	8-98059-266-0	01	1	0610-0708		●
414	SPACER THA	8-98059-266-0	01	1	0710-1008		●
458	PIPE; WATER,TURBOCHARGER THA	8-98031-001-0	01	1	0610-0708		●
458	PIPE; WATER,TURBOCHARGER THA	8-98031-001-0	01	1	0710-1008		●
458	PIPE; WATER,TURBOCHARGER THA	8-98132-035-2	01	1	1009-		●
463	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22 THA	0-91614-708-0	01	1	0610-0708		●
463	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22 THA	0-91614-708-0	01	1	0710-1008		●
485	PIPE; WATER EGR (A) THA	8-98011-517-0	01	1	0610-0708		●
485	PIPE; WATER EGR (B) THA	8-98020-208-2	01	1	0610-0708		●
485	PIPE; WATER EGR (A) THA	8-98011-517-0	01	1	0710-1008		●
485	PIPE; WATER EGR (B) THA	8-98020-208-2	01	1	0710-1008		●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
488	HOSE; RUBBER M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0808	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0809-1008	●
488	HOSE; RUBBER (A) L=150 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-	●	●
488	HOSE; RUBBER (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0411-0606	●
488	HOSE; RUBBER M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0607-0808	●
488	HOSE; RUBBER (B) L=170 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	0809-	●
488	HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0610-0708		●
488	HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0610-0708		●
488	HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0610-0708		●
488	HOSE; RUBBER (C) THA	8-98011-632-1	01	1	0710-1008		●
488	HOSE; RUBBER (F) L=220 SERVICED BY L=3000 IMA	0-03559-300-0	01	1	1009-		●
488	HOSE; RUBBER (D) THA	8-98011-633-1	01	1	0710-1008		●
488	HOSE; RUBBER (E) THA	8-98031-860-0	01	1	0710-1008		●
526	GASKET; PLATE THA	8-97352-985-0	01	1	0610-0708		●
526	GASKET; PLATE THA	8-97352-985-0	01	1	0710-		●
527	BRACKET; TURBOCHARGER THA	8-98011-536-1	01	1	0610-0708		●
527	BRACKET; TURBOCHARGER THA	8-98011-536-1	01	1	0710-1008		●
527	BRACKET; TURBOCHARGER THA	8-98156-388-0	01	1	1009-		●
529	INSULATOR; HOSE (A) THA	8-98031-883-0	01	1	0610-0708		●
529	INSULATOR; HOSE (B) THA	8-98031-884-0	01	1	0610-0708		●
529	INSULATOR; HOSE (A) THA	8-98031-883-0	01	1	0710-1008		●
529	INSULATOR; HOSE (B) THA	8-98031-884-0	01	1	0710-1008		●
530	CLIP; INSULATOR IMA	8-97101-337-0	04	1	0610-0708		●
530	CLIP; INSULATOR IMA	8-97101-337-0	04	1	0710-1008		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
