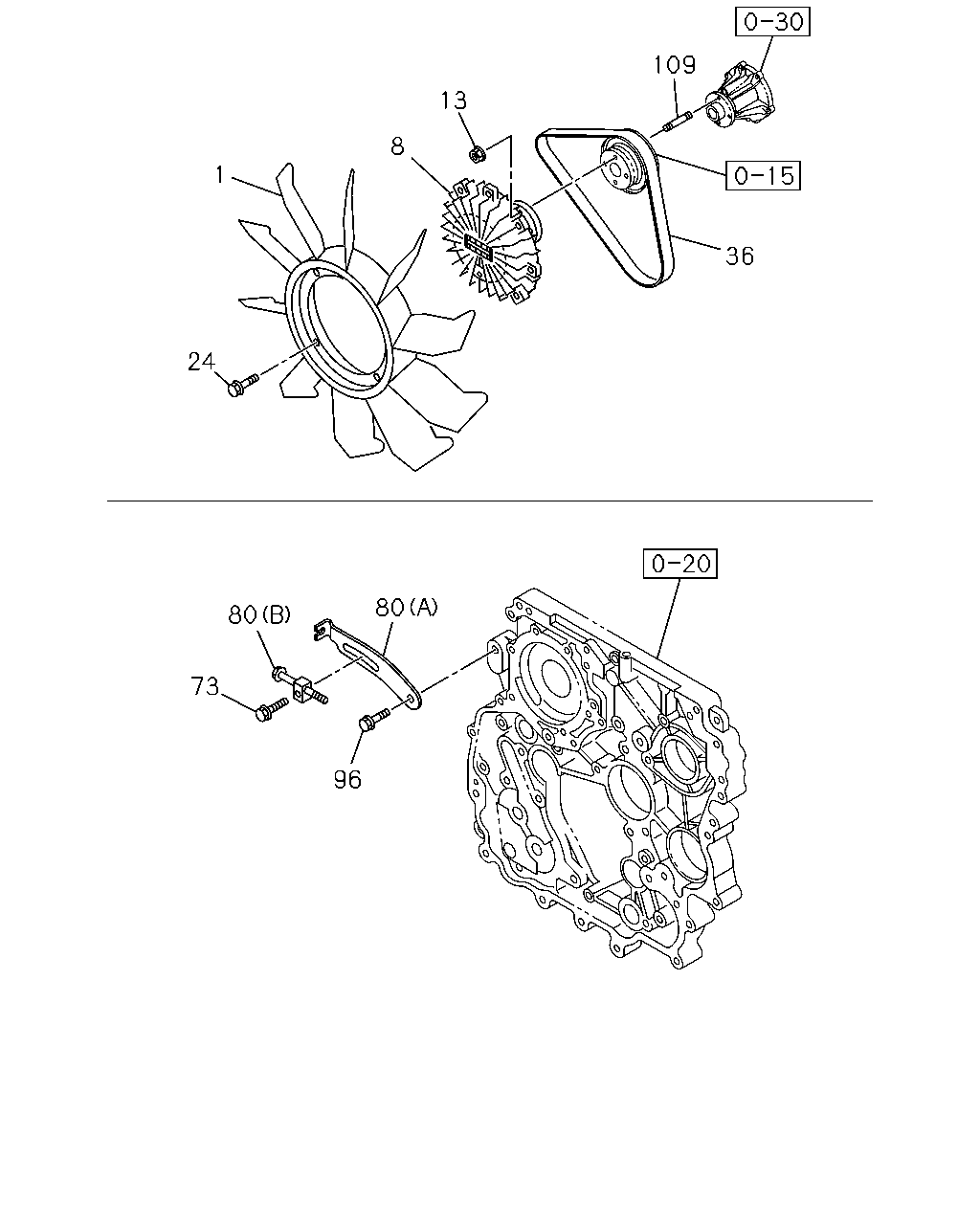

0-33 — FAN AND FAN BELT (#73732) — 49 parça

13 109 36 8 1 24 80 73 80 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FAN; COOLING THA	8-97944-150-0	01	1	0411-0609	●
1	FAN; COOLING THA	8-97944-150-0	01	1	0610-0708	●	●
1	FAN; COOLING THA	8-97944-150-0	01	1	0709-0709	●
1	FAN; COOLING THA	8-97944-150-0	01	1	0710-	●	●
8	CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0411-0609	●
8	CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0610-0708	●	●
8	CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0709-0709	●
8	CLUTCH; COOLING FAN THA	8-97944-149-1	01	1	0710-	●	●
13	NUT; COOLING FAN M6 FLANGE THA	8-98049-362-0	04	1	0709-0709	●
13	NUT; COOLING FAN M6 FLANGE THA	8-98049-362-0	04	1	0710-	●	●
13	NUT; COOLING FAN M6 FLANGE THA	8-97943-101-0	04	1	0411-0606	●
13	NUT; COOLING FAN M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA	8-97943-101-0	04	1	0607-0609	●
13	NUT; COOLING FAN M6 FLANGE THA	8-97943-101-0	04	1	0610-0704	●	●
13	NUT; COOLING FAN M6 FLANGE THA	8-98049-362-0	04	1	0705-0708	●	●
24	BOLT; FAN M6X25 FLANGE THA	0-28650-625-0	04	1	0411-0609	●
24	BOLT; FAN M6X25 FLANGE THA	0-28650-625-0	04	1	0610-0708	●	●
24	BOLT; FAN M6X25 FLANGE THA	0-28650-625-0	04	1	0709-0709	●
24	BOLT; FAN M6X25 FLANGE THA	0-28650-625-0	04	1	0710-	●	●
36	BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0411-0606	●
36	BELT; COOLING FAN M/T MUA 5 SPEED 5H<MWQ> L=1006 THA	8-97362-926-0	01	1	0607-0609	●
36	BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0610-0708	●	●
36	BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0709-0709	●
36	BELT; COOLING FAN L=1006 THA	8-97362-926-0	01	1	0710-	●	●
73	BOLT; GEN TO ADJ PLATE M8X35 FLANGE THA	0-28650-835-0	01	1	0411-0606	●
73	BOLT; GEN TO ADJ PLATE M/T MUA 5 SPEED 5H<MWQ> M8X35 FLANGE THA	0-28650-835-0	01	1	0607-0609	●
73	BOLT; GEN TO ADJ PLATE M8X35 FLANGE THA	0-28650-835-0	01	1	0610-0708	●	●
73	BOLT; GEN TO ADJ PLATE M8X35 FLANGE THA	0-28650-835-0	01	1	0709-0709	●
73	BOLT; GEN TO ADJ PLATE M8X35 FLANGE THA	0-28650-835-0	01	1	0710-	●	●
80	PLATE; ADJ (A) THA	8-97322-592-0	01	1	0411-0606	●
80	PLATE; ADJ M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97322-592-0	01	1	0607-0609	●
80	PLATE; ADJ (A) THA	8-97322-592-1	01	1	0610-0708	●	●
80	PLATE; ADJ (A) THA	8-97322-592-1	01	1	0709-0709	●
80	PLATE; ADJ (A) THA	8-97322-592-1	01	1	0710-	●	●
80	PLATE; ADJ (B) THA	8-97944-144-0	01	1	0411-0606	●
80	PLATE; ADJ M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97944-144-0	01	1	0607-0609	●
80	PLATE; ADJ (B) THA	8-97944-144-1	01	1	0610-0708	●	●
80	PLATE; ADJ (B) THA	8-97944-144-1	01	1	0709-0709	●
80	PLATE; ADJ (B) THA	8-97944-144-1	01	1	0710-	●	●
96	BOLT; ADJ PLATE M8X20 FLANGE THA	0-28650-820-0	01	1	0411-0606	●
96	BOLT; ADJ PLATE M/T MUA 5 SPEED 5H<MWQ> M8X20 FLANGE THA	0-28650-820-0	01	1	0607-0609	●
96	BOLT; ADJ PLATE M8X20 FLANGE THA	0-28650-820-0	01	1	0610-0708	●	●
96	BOLT; ADJ PLATE M8X20 FLANGE THA	0-28650-820-0	01	1	0709-0709	●
96	BOLT; ADJ PLATE M8X20 FLANGE THA	0-28650-820-0	01	1	0710-	●	●
109	STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0411-0606	●
109	STUD; FAN CLU M/T MUA 5 SPEED 5H<MWQ> M6X18 L=29 THA	8-97373-779-0	04	1	0607-0609	●
109	STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0610-0708	●	●
109	STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0709-0709	●
109	STUD; FAN CLU M6X18 L=29 THA	8-97373-779-0	04	1	0710-1405	●	●
109	STUD; FAN CLU M6X20 L=31 THA	8-98256-636-0	04	1	1406-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
