◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#73730) — 37 parça

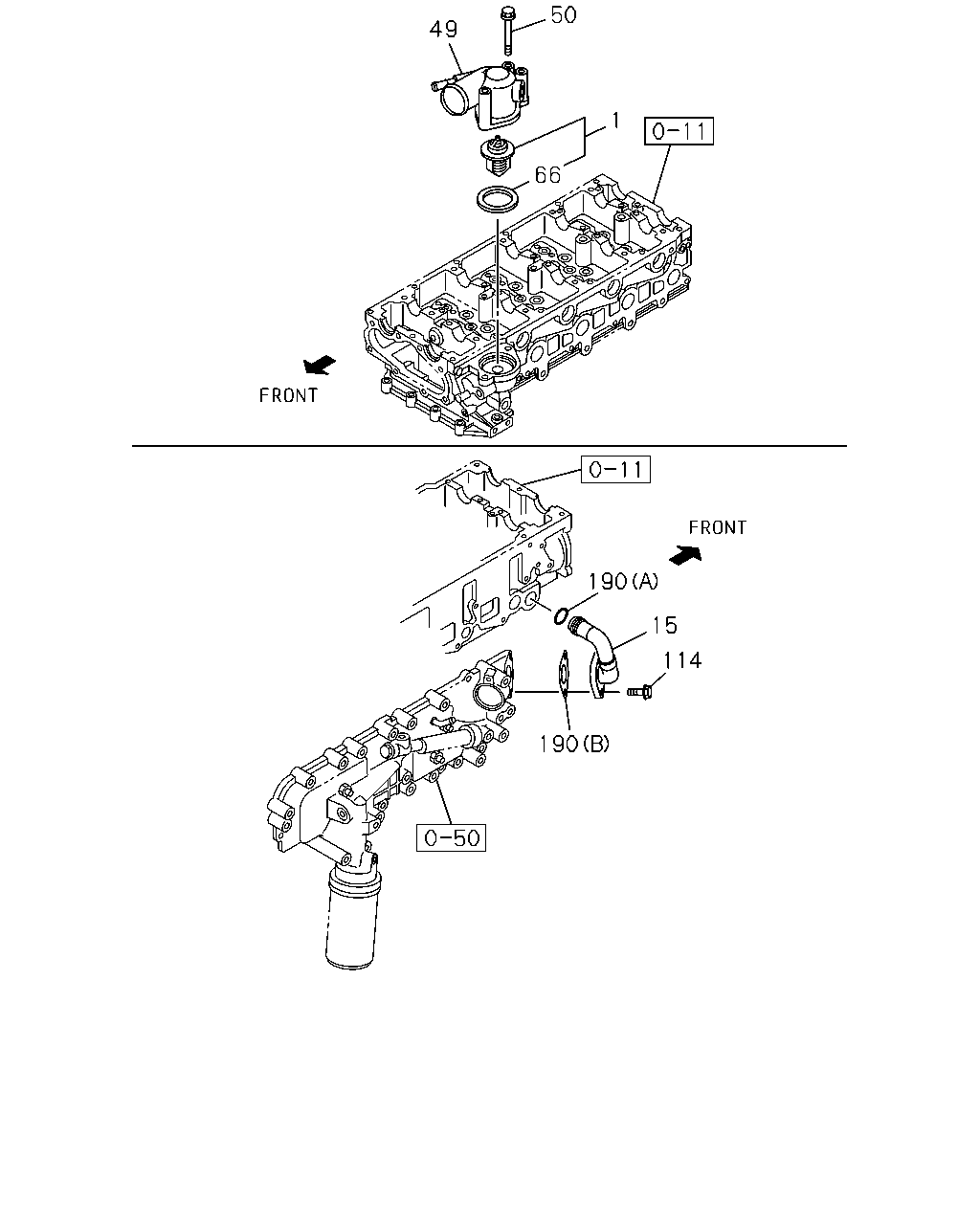

çizim 41857
50 49 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
85 CELSIUS THA 		8-97312-158-0 01 1 0411-0606 ●
1 THERMOSTAT
M/T MUA 5 SPEED 5H<MWQ> 85 CELSIUS THA 		8-98017-027-0 01 1 0607-0609 ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0610-0708 ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0709-0709 ●
1 THERMOSTAT
85 CELSIUS IMA 		8-98017-027-1 01 1 0710- ● ●
15 PIPE; BYPASS
THA 		8-97318-732-1 01 1 0411-0606 ●
15 PIPE; BYPASS
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97318-732-1 01 1 0607-0609 ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0610-0708 ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0709-0709 ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0710- ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-5 01 1 0411-0606 ●
49 PIPE; WATER OUTLET
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97355-456-5 01 1 0607-0609 ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0610-0708 ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0709-0709 ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0710-0809 ● ●
49 PIPE; WATER OUTLET
THA 		8-98120-945-0 01 1 0810- ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0411-0606 ●
50 BOLT; OUTLET PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X80 FLANGE THA 		0-28050-880-0 02 1 0607-0609 ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0610-0708 ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0709-0709 ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0710- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98114-587-0 01 1 0809- ● ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0411-0606 ●
114 BOLT; BYPASS PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0607-0609 ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0610-0708 ● ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0411-0606 ●
190 GASKET; BYPASS PIPE
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		0-95690-226-0 01 1 0607-0609 ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0610-0708 ● ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0709-0709 ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0710- ● ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0411-0606 ●
190 GASKET; BYPASS PIPE
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97318-494-2 01 1 0607-0609 ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0610-0708 ● ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0709-0709 ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
