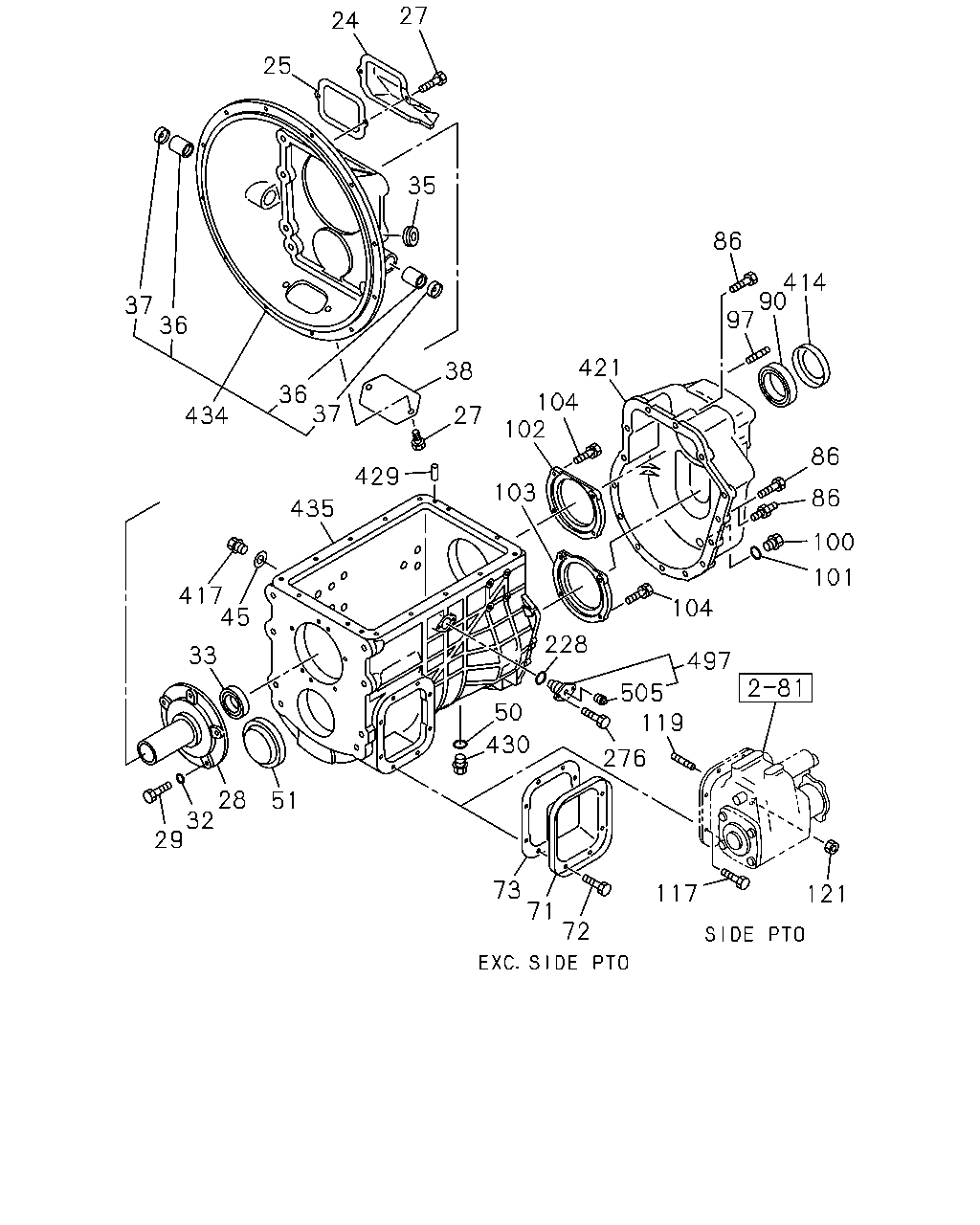

24 |
COVER; CHECK HOLE,DUST
|
1-31131-037-0 |
01 |
1 |
9905- |
| |
25 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-31139-008-0 |
01 |
1 |
9905- |
| |
27 |
BOLT; COVER TO CLU HSG
M8X12 FLANGE
|
0-28080-812-0 |
04 |
1 |
9905-0104 |
| |
27 |
BOLT; COVER TO CLU HSG
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0105- |
| |
28 |
COVER; FRT,TRANS CASE
|
1-33121-063-2 |
01 |
1 |
9905- |
| |
29 |
BOLT; FRT COVER
M10X28 FLANGE REAMER
|
1-09040-089-1 |
05 |
1 |
9905- |
| |
32 |
GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T).
ID=10
|
1-09623-369-0 |
05 |
1 |
9905- |
| |
33 |
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-562-0 |
01 |
1 |
9905- |
| |
35 |
GROMMET; CLU HSG
|
9-09575-796-0 |
01 |
1 |
9905- |
| |
36 |
BEARING; NEEDLE,CLU HSG
|
1-09811-087-0 |
02 |
1 |
9905- |
| |
37 |
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-003-0 |
02 |
1 |
9905- |
| |
38 |
COVER; CHECK HOLE,LWR
|
1-31131-003-0 |
01 |
1 |
9905- |
| |
45 |
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
9905- |
| |
50 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
9905- |
| |
51 |
COVER; SEAL,COUNTER,FRT
|
1-33319-195-0 |
01 |
1 |
9905- |
| |
71 |
COVER; SIDE,TRANS CASE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-33141-030-1 |
01 |
1 |
9905- |
| |
72 |
BOLT; SIDE COVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
M10X16 FLANGE
|
0-28181-016-0 |
08 |
1 |
9905- |
| |
73 |
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-33142-043-0 |
01 |
1 |
9905- |
| |
86 |
BOLT; RR COVER
M17X35
|
1-09044-076-0 |
09 |
1 |
9905- |
| |
86 |
BOLT; RR COVER
M12X65
|
1-09044-077-0 |
02 |
1 |
9905-0011 |
| |
86 |
BOLT; RR COVER
M12X65 FLANGE
|
1-09044-113-0 |
02 |
1 |
0012- |
| |
86 |
BOLT; RR COVER
M10X16,M12X30 L=57.7
|
1-09049-018-0 |
03 |
1 |
9905- |
| |
90 |
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-577-1 |
01 |
1 |
9905- |
| |
97 |
STUD; PARKING BRK
M16X41 L=62
|
1-09302-151-0 |
01 |
1 |
9905- |
| |
100 |
PLUG; DRAIN RR COVER
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9905- |
| |
101 |
GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
9905- |
| |
102 |
RETAINER; BRG UPR,MAINSHAFT
|
1-33151-035-1 |
01 |
1 |
9905- |
| |
103 |
RETAINER; BRG
|
1-33151-035-1 |
01 |
1 |
9905- |
| |
104 |
BOLT; BRG RET
M10X25
|
1-09049-006-1 |
08 |
1 |
9905- |
| |
117 |
BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
M10X22 FLANGE
|
0-28181-022-0 |
04 |
1 |
9905- |
| |
117 |
BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
M10X50 FLANGE
|
0-28181-050-0 |
02 |
1 |
9905- |
| |
119 |
STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9905- |
| |
121 |
NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5)
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9905- |
| |
228 |
GASKET; NOZZLE
ID=24.4
|
1-09623-057-0 |
01 |
1 |
9905- |
| |
276 |
BOLT; ADAPTER
M14X20
|
1-09044-078-0 |
02 |
1 |
9905- |
| |
414 |
COVER; DUST,RR COVER
|
1-33139-011-1 |
01 |
1 |
9905- |
| |
417 |
PLUG; OIL FILLER,TRANS
M24X17 FLANGE
|
1-09604-064-1 |
01 |
1 |
9905- |
| |
421 |
COVER; RR,TRANS
|
1-33131-197-2 |
01 |
1 |
9905- |
| |
429 |
PIN; STRAIGHT
OD=10 L=18
|
9-08151-018-0 |
02 |
1 |
9905- |
| |
430 |
PLUG; OIL DRAIN
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9905- |
| |
434 |
HOUSING; CLU
|
1-31110-173-2 |
01 |
1 |
9905- |
| |
435 |
CASE; TRANS
|
1-33111-195-1 |
01 |
1 |
9905- |
| |
497 |
ADAPTER; PLUG
|
1-33119-255-0 |
01 |
1 |
9905- |
| |
505 |
PLUG; ADAPTER,OIL INLET
PT1/4
|
9-99204-513-0 |
01 |
1 |
9905- |
