Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

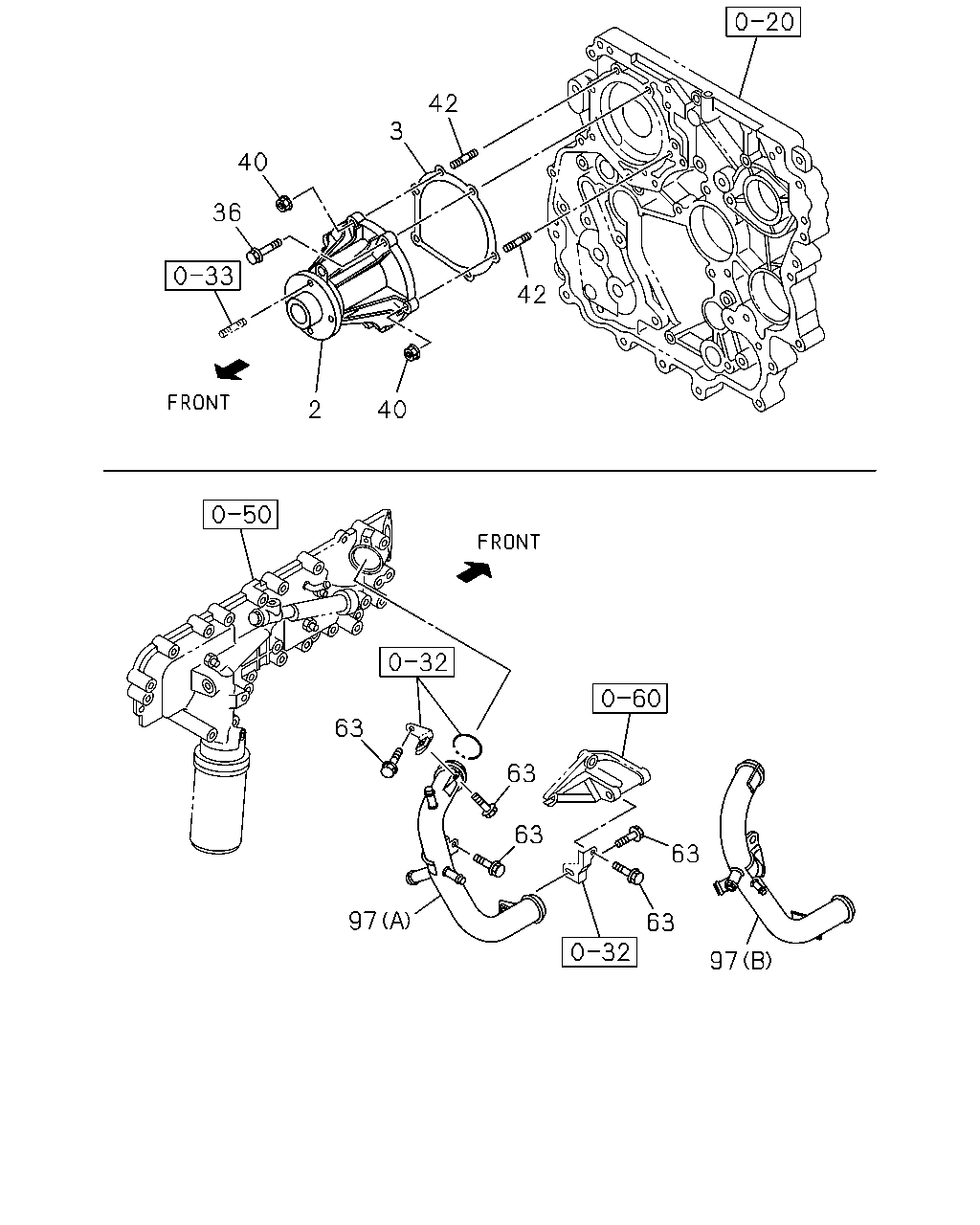

0-30 — WATER PUMP AND CORROSION RESISTOR
(#73729) — 38 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JJ1-TCX ENG
42
3
40
36
42
2
40
63
63
63
63
97
63
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
PUMP ASM; WATER
THA
8-97312-147-3
01
1
0411-0606
●
2
PUMP ASM; WATER
M/T MUA 5 SPEED 5H<MWQ> THA
8-97312-147-3
01
1
0607-0609
●
2
PUMP ASM; WATER
THA
8-97312-147-3
01
1
0610-0708
●
●
2
PUMP ASM; WATER
THA
8-97312-147-3
01
1
0709-0709
●
2
PUMP ASM; WATER
THA
8-97312-147-4
01
1
0710-
●
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0411-0606
●
3
GASKET; PUMP TO C/BL
M/T MUA 5 SPEED 5H<MWQ> THA
8-97312-156-0
01
1
0607-0609
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0610-0708
●
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0709-0709
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0710-
●
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0411-0606
●
36
BOLT; WATER PUMP TO C/BL
M/T MUA 5 SPEED 5H<MWQ> M8X50 FLANGE THA
0-28050-850-0
04
1
0607-0609
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0610-0708
●
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0709-0709
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0710-
●
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0411-0606
●
40
NUT; WATER PUMP
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA
0-91180-208-0
02
1
0607-0609
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0610-0708
●
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0709-0709
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0710-
●
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0411-0606
●
42
STUD; WATER PUMP
M/T MUA 5 SPEED 5H<MWQ> M8X22 L=40 THA
0-49140-822-0
02
1
0607-0609
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0610-0708
●
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0709-0709
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0710-
●
●
63
BOLT; INL PIPE
M8X16 FLANGE THA
0-28050-816-0
05
1
0411-0606
●
63
BOLT; INL PIPE
M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA
0-28050-816-0
05
1
0607-0609
●
63
BOLT; INL PIPE
M8X16 FLANGE THA
0-28050-816-0
05
1
0610-0708
●
●
63
BOLT; INL PIPE
M8X16 FLANGE THA
0-28050-816-0
05
1
0709-0709
●
63
BOLT; INL PIPE
M8X16 FLANGE THA
0-28050-816-0
05
1
0710-
●
●
97
PIPE; WATER
(A) THA
8-97354-754-2
01
1
0411-0606
●
97
PIPE; WATER
M/T MUA 5 SPEED 5H<MWQ> (A) THA
8-97354-754-3
01
1
0607-0706
●
97
PIPE; WATER
M/T MUA 5 SPEED 5H<MWQ> (A) THA
8-98090-214-0
01
1
0707-0808
●
97
PIPE; WATER
(A) THA
8-98090-214-0
01
1
0809-1008
●
97
PIPE; WATER
(A) THA
8-98090-214-0
01
1
1009-
●
●
97
PIPE; WATER
(B) THA
8-98039-494-0
01
1
0610-0706
●
97
PIPE; WATER
(B) THA
8-98090-215-0
01
1
0707-0708
●
97
PIPE; WATER
M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) THA
8-98090-215-0
01
1
0710-1008
●
